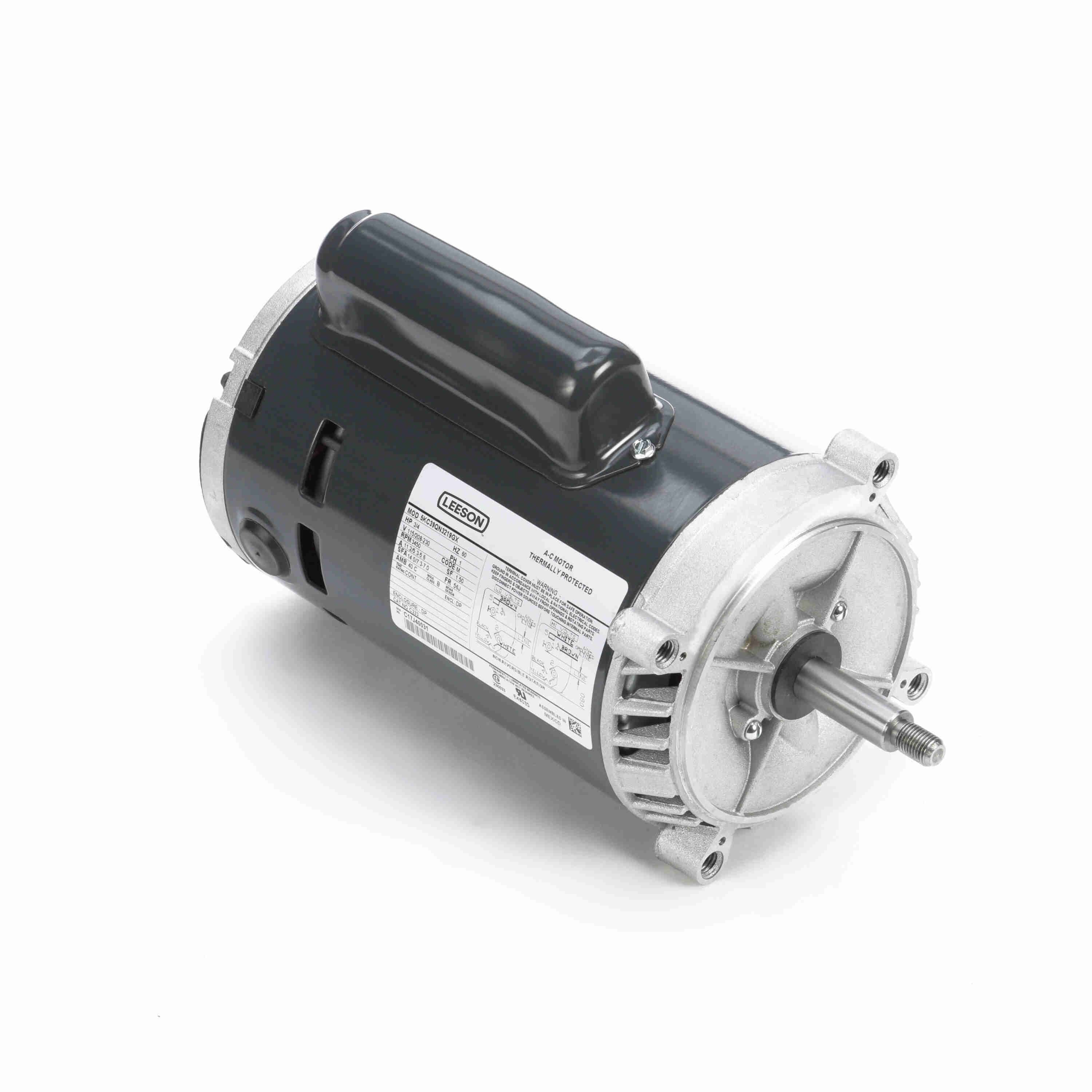

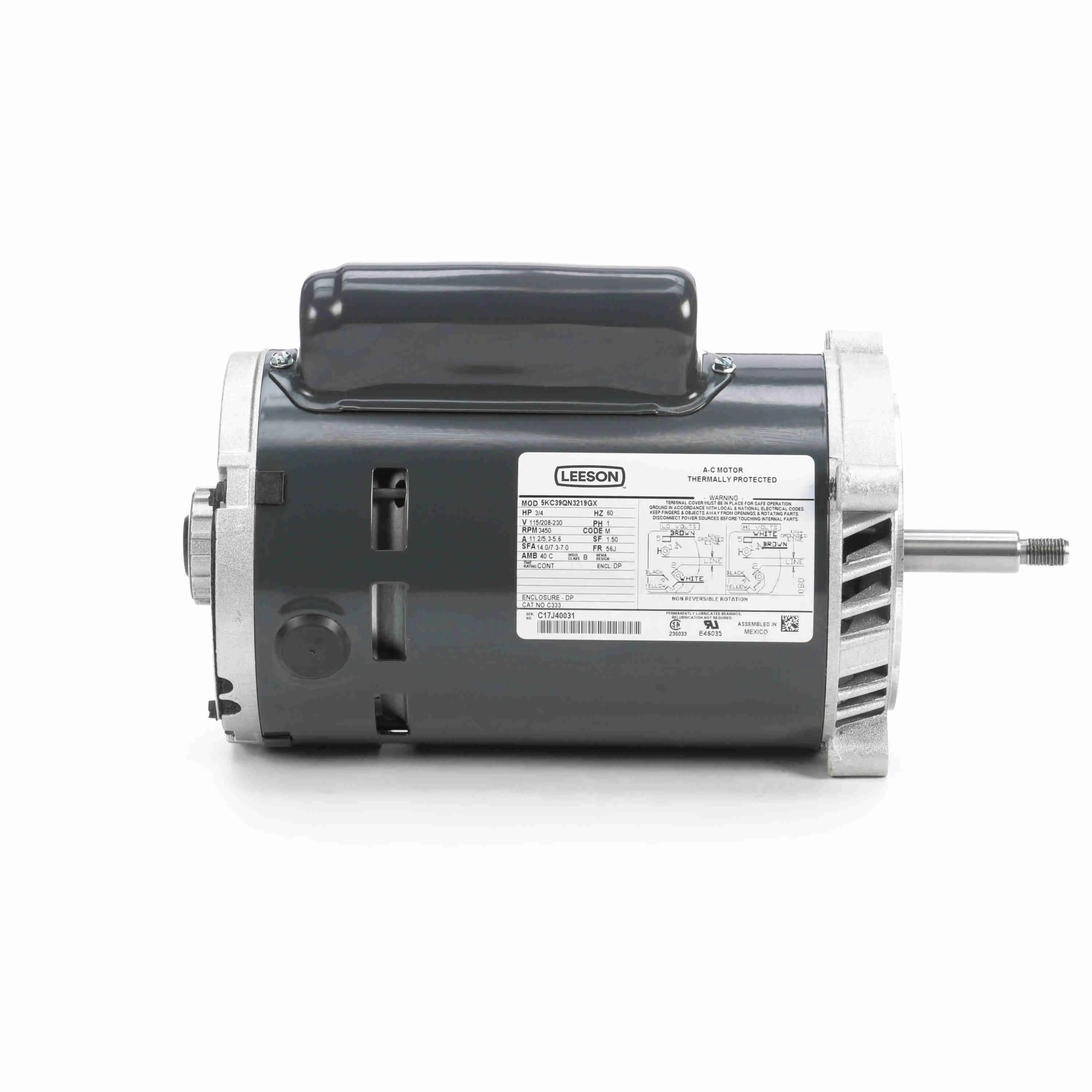

| Item | Jet Pump Motor |
|---|---|
| Bearing Type | Ball |
| Body Dia. | 5 3/5" |
| Bolt Circle Dia. | 2.938" |
| Cc Number | CC003A |
| Conduit Box Location | Exterior |
| Duty Cycle | Continuous |
| Frame | 56J |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 11.2/5.6-5.3A , 5.3-5.6A |
| Hp | 3/4 hp |
| Includes | Shaft Slinger |
| Lead Length | 5", 7" |
| Length Less Shaft | 10" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Jet Pump |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Position | All Angle , Horizontal |
| Motor Shaft Design | Threaded |
| Motor Shaft Rotation | CCWSE |
|---|---|
| Motor Thermal Protection | Automatic |
| Motor Type | Capacitor Start Induction Run |
| Mounting Type | Face |
| Nameplate Rpm | 3450 RPM |
| Nominal Efficiency | 65.6% |
| Number Of Speeds | 1 |
| Overall Length | 12 3/8" |
| Phase | 1 |
| Rpm Range | 3001-3600 RPM |
| Service Factor | 1.5 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 3/8" |
| Shaft Material | Stainless Steel |
| Shaft Type | Threaded |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V AC |
| Height (cm) | 24.13 |
|---|---|
| Length (cm) | 39.22 |
| Width (cm) | 25.88 |
| HS Code | 8501406040 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 8.1 |
| Style | Model | Voltage | Hp | Motor Shaft Rotation | Service Factor | Motor Application | Motor Thermal Protection | Motor Mounting Position | Overall Length | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 5KC36JN269X | 115/230V AC | 1/2 hp | CCWSE | 1.6 | Pump | Automatic | All Angle | 10 13/16" | $371.14 | |
| B | 5KC39RN45X | 115/208-230V AC | 1 hp | CCWSE | 1.4 | Pump | Automatic | All Angle | 13 1/8" | $404.70 | |
| C | 5KC49NN2167X | 115/230V AC | 1 1/2 hp | CCWSE | 1.3 | Pump | Auto | All Angle | 11 7/8" | $568.09 | |
| D | 5KCR48TN2174T | 115/230V AC | 3 hp | CCWSE | 1.15 | Pump | Automatic | All Angle | 13 3/16" | $1,109.36 | |
| E | 5KC37FN65X | 115/208-230V AC | 1/3 hp | CW | 1.75 | Pump | Automatic | All Angle | 11 1/4" | $351.92 |
