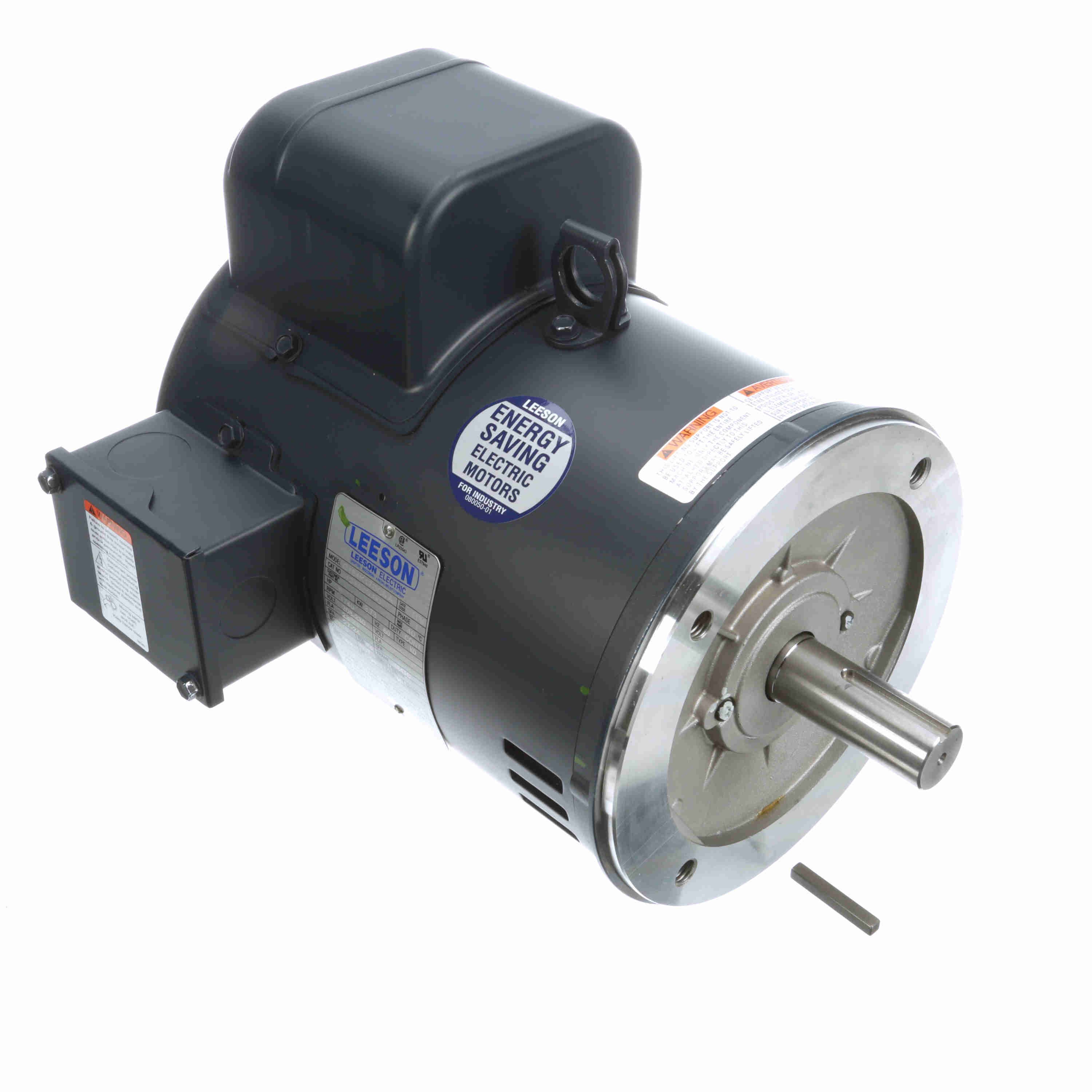

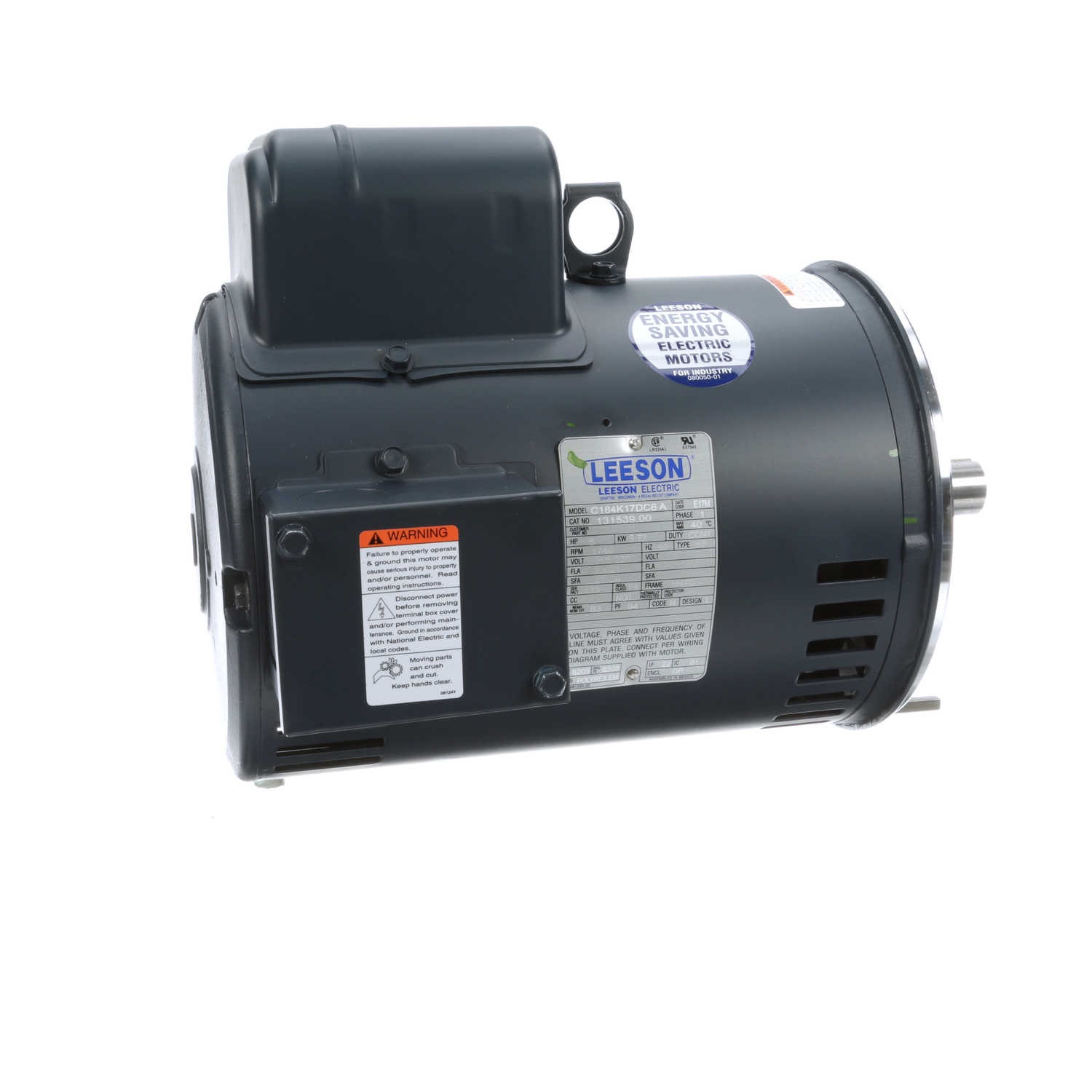

| Item | Single Phase Motor |
|---|---|
| Ambient Temp. | 40°C |
| Code | H |
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Enclosure Type | Dp |
| Frame | 184TC |
| Frame Type | 184 |
| Frequency | 60 Hz |
| Full Load Amps | 21-23A |
| Grease Type | Polyrex EM |
| Hp | 5 hp |
| Insulation Class | Class F |
| Lubrication | Polyrex EM |
| Motor Enclosure Design | Dripproof |
| Motor Shaft Rotation | Selective Counter Clockwise |
|---|---|
| Motor Type | Capacitor Start/Run |
| Mounting Type | C Face, Footless |
| Nameplate Rpm | 1800 RPM |
| Nema Design | H, L |
| Output Kw | 3.7 kW |
| Packaging | B |
| Phase | 1 |
| Power Factor | 94 |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 1 1/8" |
| Type | KD |
| Voltage | 208-230V |
| Height (cm) | 32.72 |
|---|---|
| Length (cm) | 45.57 |
| Width (cm) | 33.17 |
| Country Of Origin | MX |
|---|---|
| Weight (kg) | 37.8 |
