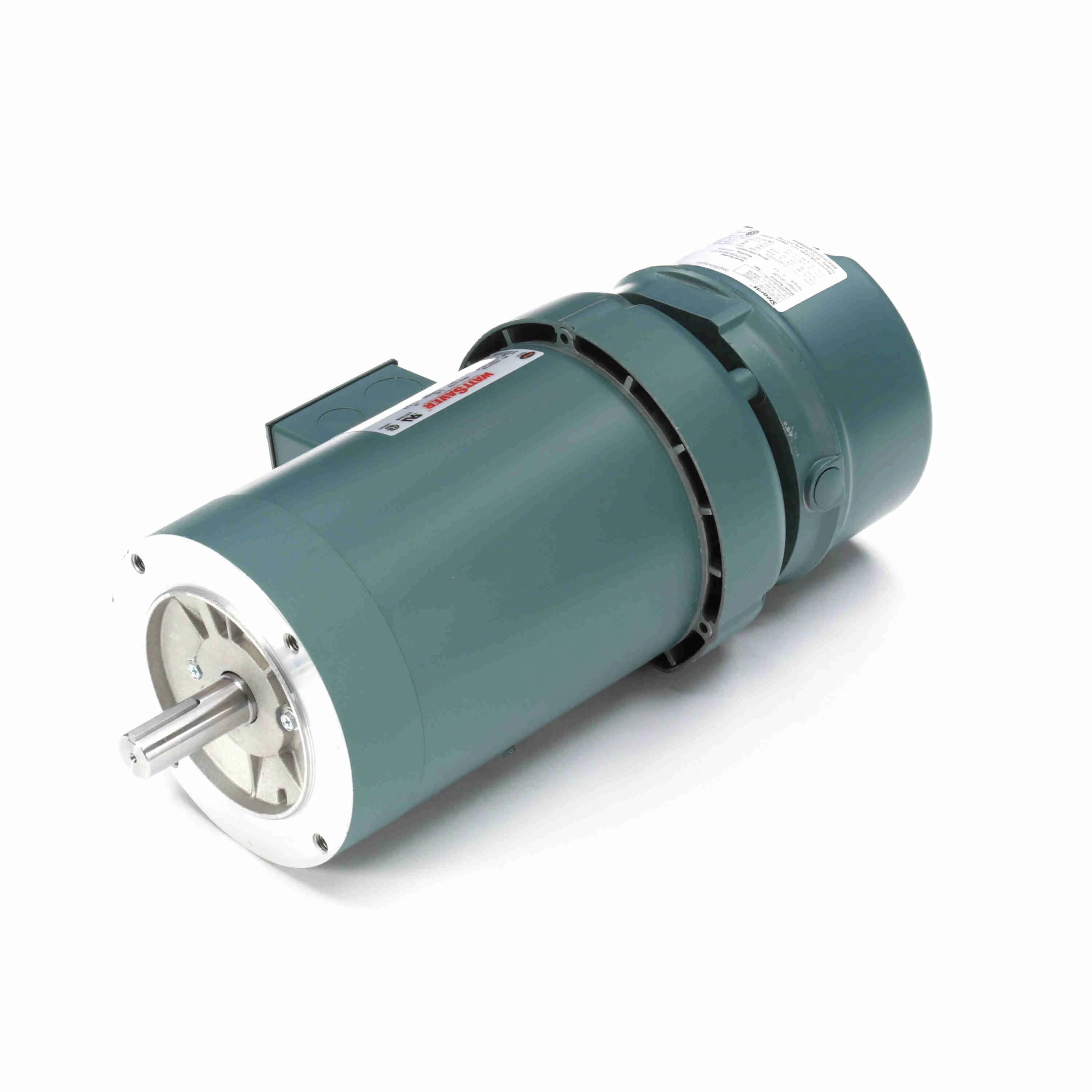

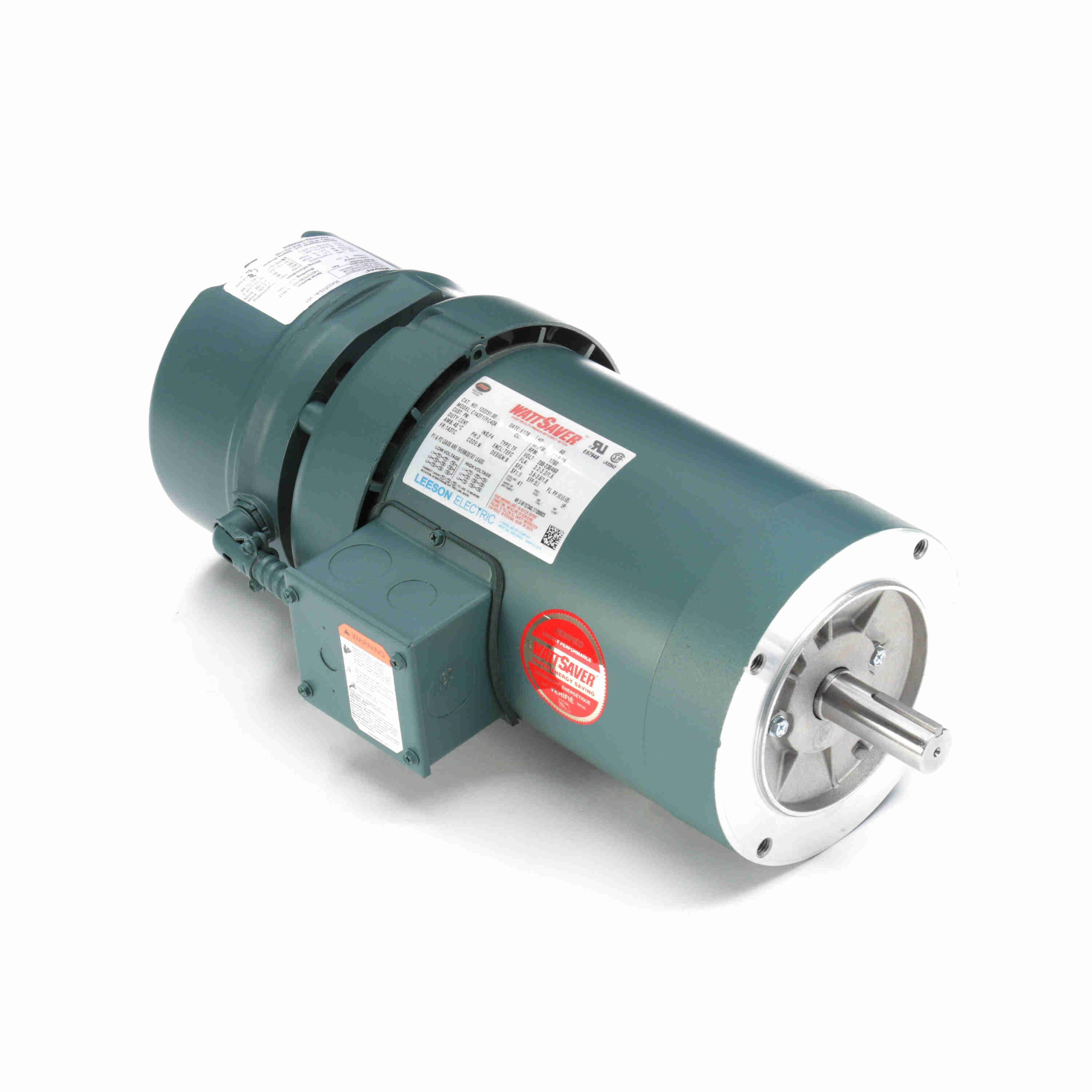

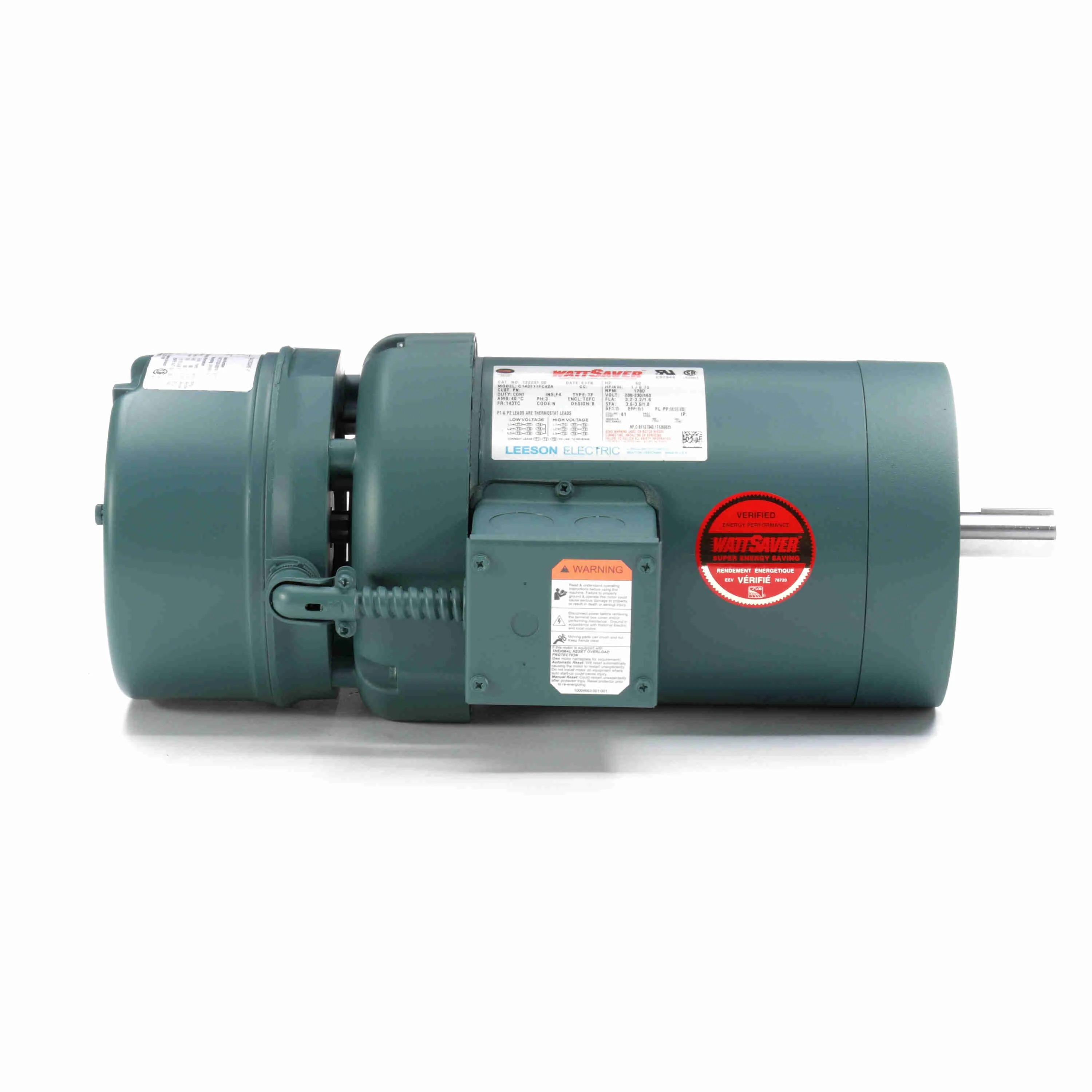

| Item | Brake Motor |
|---|---|
| Amps | 3.2/1.6A |
| Application | Brake Motor |
| Bearing Protection | Double Shield |
| Bearing Type | Ball |
| Brake Model/series | Series 56000 |
| Brake Rating | 6 lbs.-ft. |
| Break-down Torque | 15.8 lbs.-ft. |
| Code | N |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Design | B, N |
| Design Code | B |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 85.5% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | Tefc |
| Frame | 143TC |
| Frame Length | 7" |
| Frame Material | Rolled Steel |
| Frame Type | 143TC |
| Frequency | 60 Hz |
| Full Load Amps | 1.7A |
| Grease Type | Polyrex EM |
| Height | 9 22/25" |
| Hp | 1 hp |
| Hz | 60 Hz |
| Includes | Key |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Inverter Rated | No |
| Ip Code | IP43 |
| Kva Code | No |
| Kw | 0.75 kW |
| Length | 22 22/25" |
| Length Less Shaft | 15 1/2" |
| Manufacturers Warranty Length | 18 Months |
| Max. Ambient Temp. | 40°C |
| Max. Rpm | 1760 RPM |
| Motor Application | Brake Motor |
| Motor Bearings | Ball |
|---|---|
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Thermal Protection | Thermostat |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Round |
| Nameplate Rpm | 1760 RPM |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 85.5% |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 0.75 kW |
| Overall Length | 17 11/16" |
| Packaging | B |
| Phase | 3 |
| Power | 0.75 kW |
| Power Factor | 68.5 |
| Resistance Main | 12.96 ohms |
| Rpm | 1700-1800 RPM |
| Rpm Range | 1701-1800 RPM |
| Series | Series 56000 |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/4" |
| Shaft Type | T |
| Standards | Csa, Ul Recognized |
| Starting Method | Across The Line |
| Thermal Protection | Thermostat |
| Type | TF |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V |
| Width | 10 14/25" |
| Height (cm) | 25.1 |
|---|---|
| Length (cm) | 58.12 |
| Width (cm) | 26.82 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 25.65 |
| Style | Model | Voltage | Hp | Nameplate Rpm | Design | Frame | Brake Rating | Motor Thermal Protection | Insulation Class | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 114158.00 | 208-230/460V | 33/100 hp | 1800 RPM | L | 56C | - | - | Class B | $1,707.32 | |
| B | 114159.00 | 208-230/460V | 1/2 hp | 1800 RPM | B, K | 56C | - | - | Class B | $1,119.44 | |
| C | 114160.00 | 208-230/460V | 3/4 hp | 1725 RPM | B, K | 56C | 6 lbs.-ft. | - | Class B | $1,711.79 | |
| D | 119564.00 | 208-230/460V | 1 hp | 1760 RPM | B, N | 56C | 6 lbs.-ft. | T Stat | Class F | $1,579.97 | |
| E | 119565.00 | 208-230/460V | 1 1/2 hp | 1750 RPM | C, L | 56C | 10 lbs.-ft. | Thermostat | Class F | $1,772.36 | |
| F | 122252.00 | 208-230/460V | 1 1/2 hp | 1750 RPM | C, L | 145TC | 10 lbs.-ft. | T Stat | Class F | $1,784.89 | |
| G | 122253.00 | 208-230/460V | 2 hp | 1745 RPM | B, L | 145TC | 10 lbs.-ft. | T Stat | Class F | $3,212.21 |
