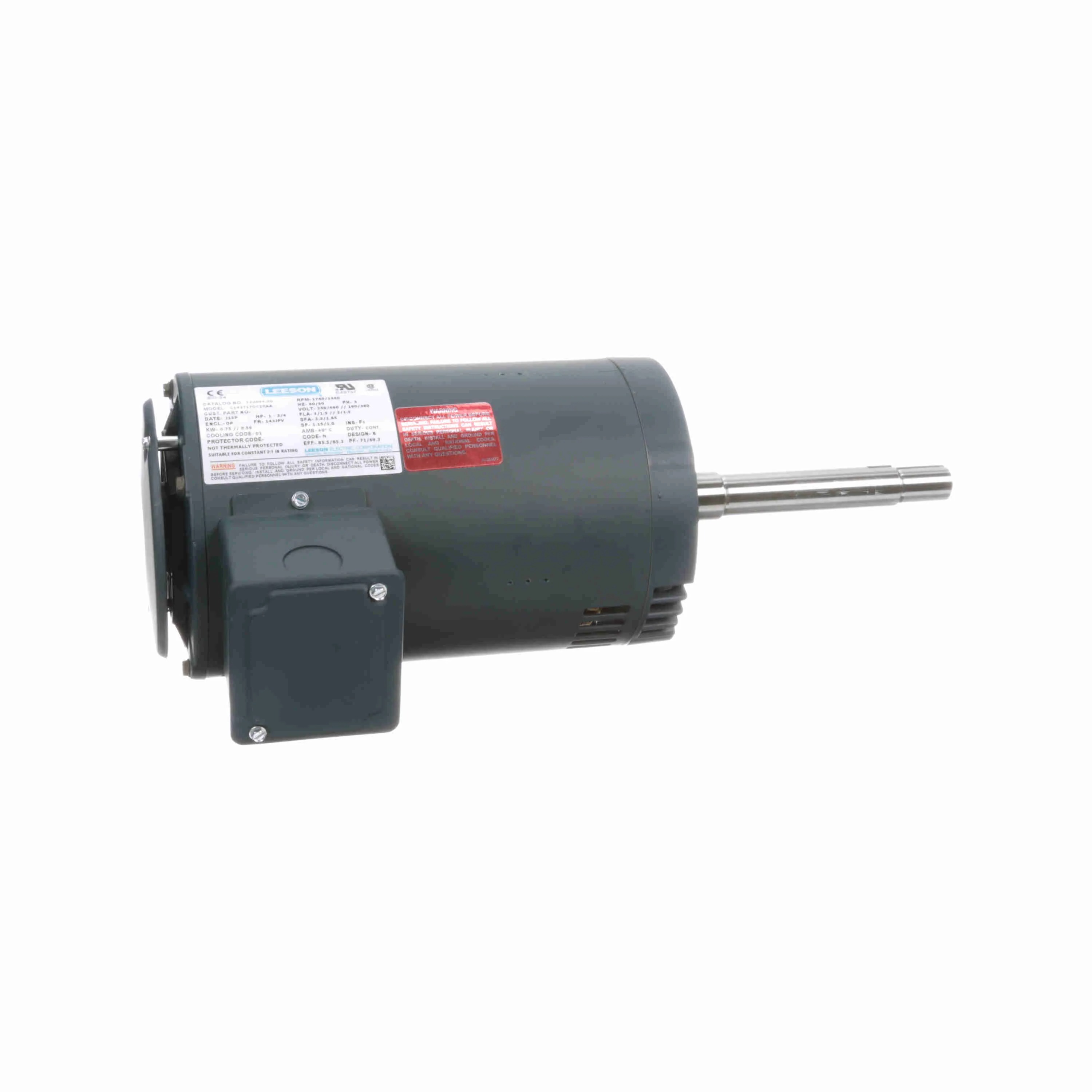

| Item | Pump Motor |
|---|---|
| Ambient Temp. | 40°C |
| Amps | 3/1.5A |
| Code | N |
| Conduit Box Position | F1 |
| Design Code | B |
| Drive End Bearing Size | 6206 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 85.5% |
| Electrical Type | Squirrel Cage, Inverter Rated |
| Enclosure Type | ODP |
| Frame | 143JPV |
| Frame Length | 9 3/5" |
| Frame Material | Rolled Steel |
| Frame Type | 143JPV |
| Frequency | 60 Hz |
| Full Load Amps | 3/1.5A |
| Height | 14" |
| Hp | 1 hp |
| Insulation Class | Class F |
| Ip Code | IP22 |
| Kva Code | No |
| Kw | 0.75 kW |
| Length | 22.19" |
| Max. Rpm | 1760 RPM |
| Motor Enclosure Design | Dripproof |
|---|---|
| Motor Shaft Rotation | Reversible |
| Motor Type | Squirrel Cage Inverter Rated |
| Mounting Type | C Face, Footless |
| Nameplate Rpm | 1800/1500 RPM |
| Nema Design | B, N |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 0.56/0.75 kW |
| Packaging | F |
| Phase | 3 |
| Power Factor | 71 |
| Resistance Main | 13.6 ohms |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 1" |
| Shaft Length | 7.31" |
| Shaft Type | JP |
| Starting Method | Line Or Inverter |
| Thermal Protection | No Protection |
| Type | TD |
| Voltage | 230/460V |
| Width | 16 1/2" |
| Height (cm) | 35.56 |
|---|---|
| Length (cm) | 56.36 |
| Width (cm) | 41.91 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 21.15 |
