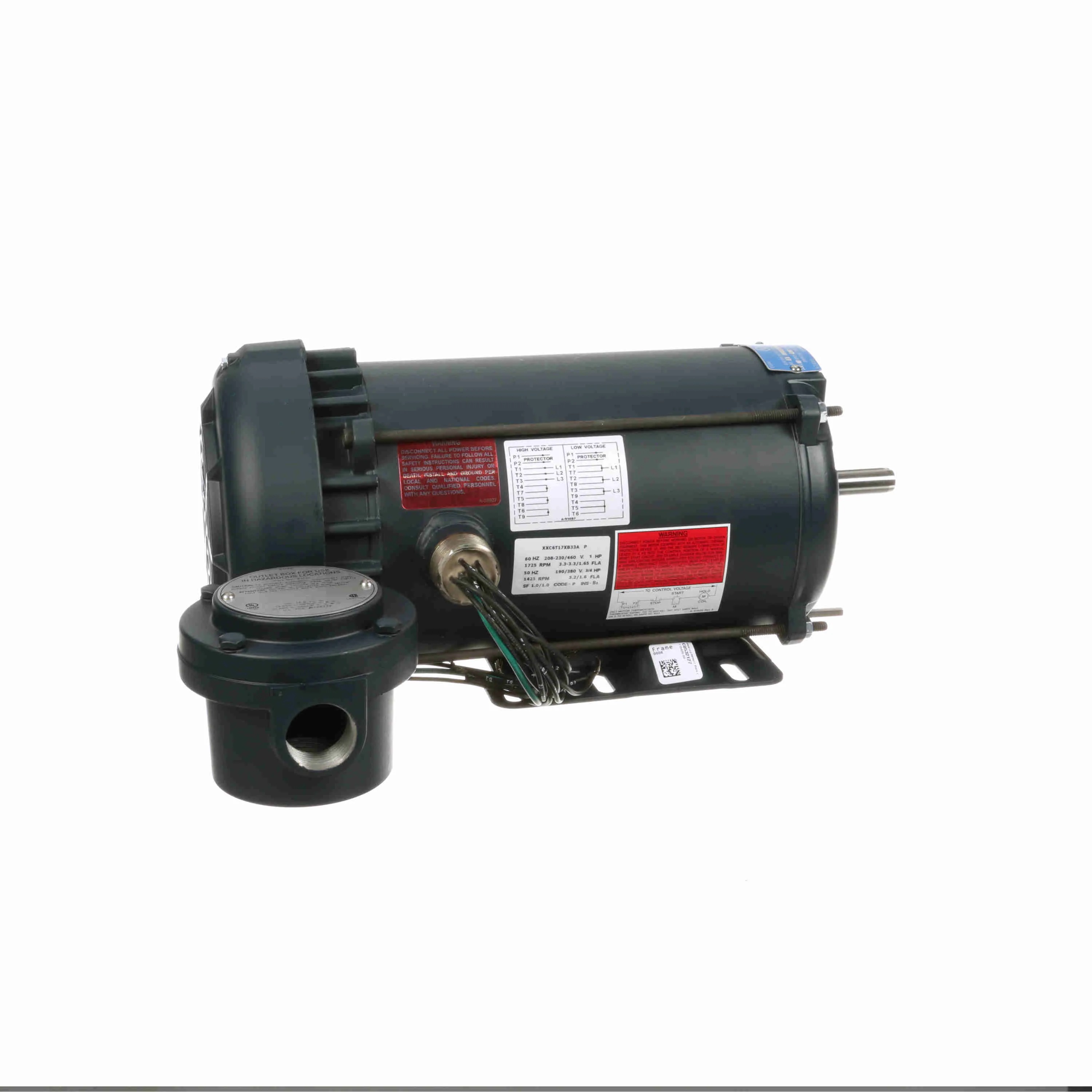

| Item | Explosion Proof Motor |
|---|---|
| Ambient Temp. | 40°C |
| Amps | 6/3A |
| Code | N |
| Design | B |
| Design Code | B |
| Drive End Bearing Size | 205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | EPFC |
| Frame | 145T |
| Frame Length | 9.31" |
| Frame Material | Rolled Steel |
| Frame Type | 145T |
| Frequency | 60 Hz |
| Grease Type | Polyrex EM |
| Hazardous Location | Div 1 Exp Proof Cl I Gr Cd Cl Ii Gr Fg T3C |
| Hazardous Location Class | 1C, D/2F, G |
| Height | 8 3/25" |
| Hp | 2 hp |
| Insulation Class | Class F |
| Ip Code | IP54 |
| Kva Code | No |
| Kw | 1.5 kW |
|---|---|
| Length | 19 22/25" |
| Lubrication | Polyrex EM |
| Max. Rpm | 1760 RPM |
| Motor Orientation | Horizontal |
| Motor Type | Squirrel Cage Induction Run |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 203 |
| Opp. Drive End Bearing Type | Ball |
| Output Rating | 1.49 kW |
| Packaging | F |
| Phase | 3 |
| Power Factor | 71 |
| Rpm | 1700-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/4" |
| Shaft Type | T |
| Starting Method | Across The Line |
| Temp. Code | T3C |
| Thermal Protection | Automatic |
| Type | TX |
| Voltage | 230/460V |
| Width | 10.25" |
| Height (cm) | 20.62 |
|---|---|
| Length (cm) | 50.5 |
| Width (cm) | 26.04 |
| Country Of Origin | MX |
|---|---|
| Weight (kg) | 27 |
