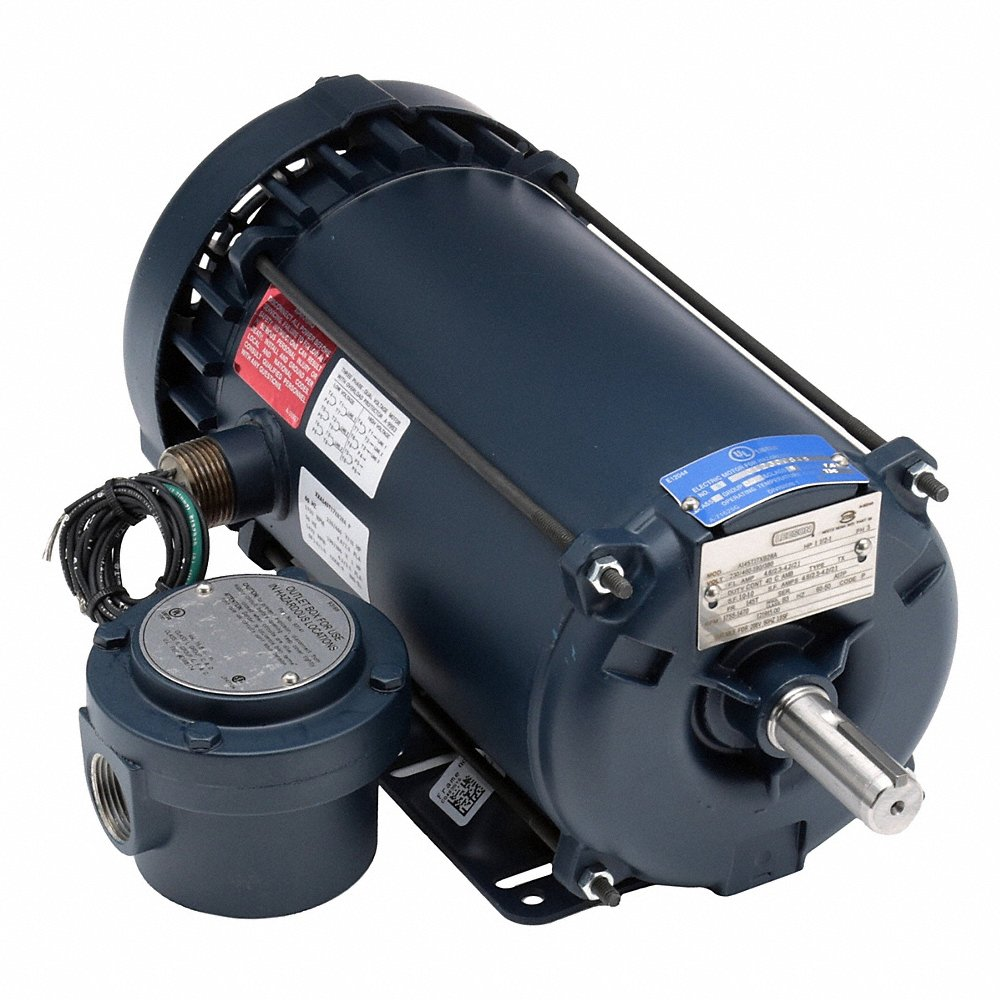

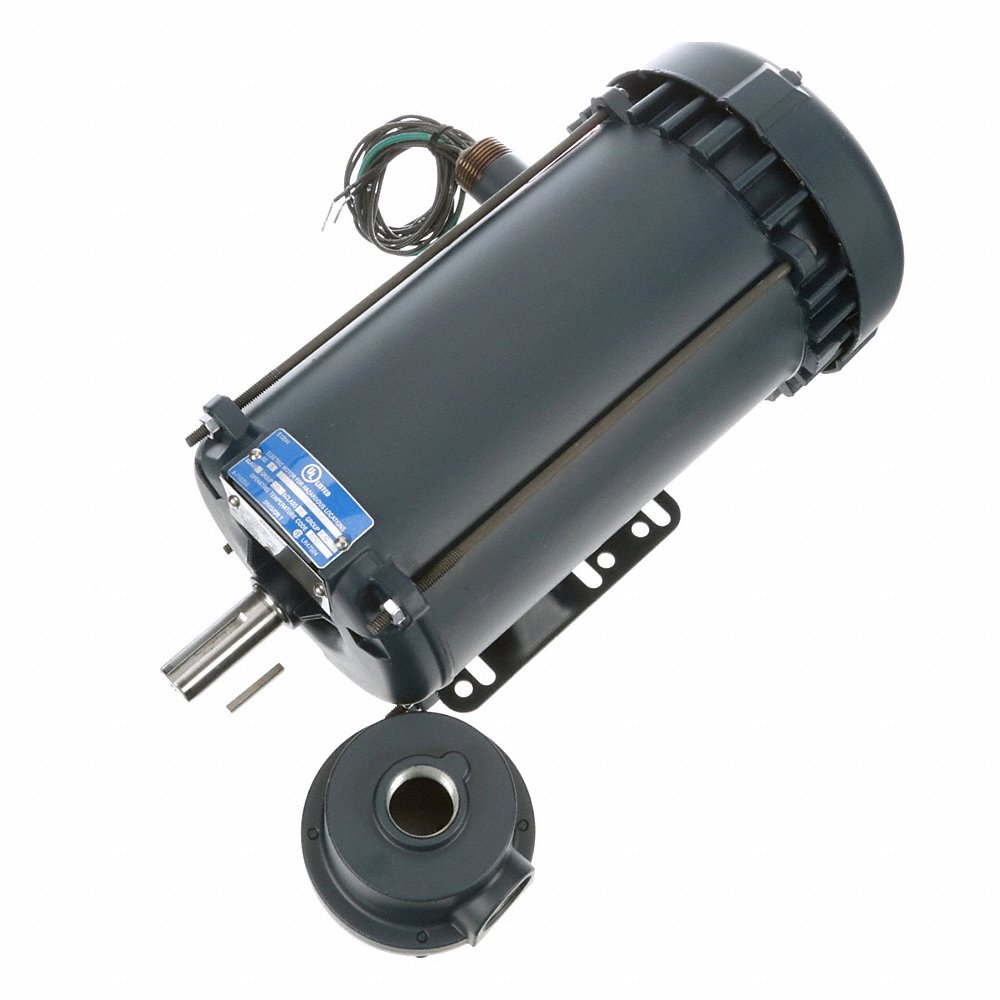

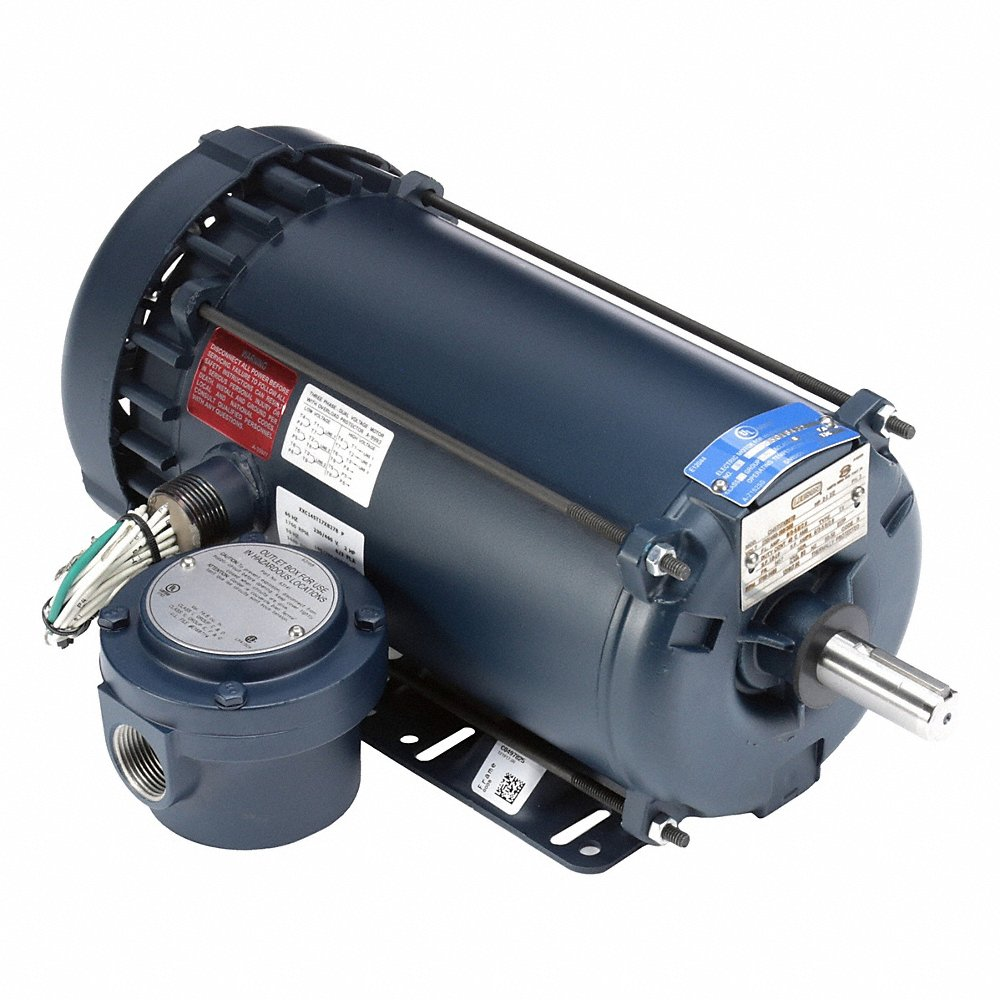

| Item | Explosion Proof Motor |
|---|---|
| Ambient Temp. | 40°C |
| Amps | 3.3/1.7A |
| Code | P |
| Design | A |
| Design Code | A |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 85.5% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | EPFC |
| Frame | 56H |
| Frame Length | 8.81" |
| Frame Material | Rolled Steel |
| Frame Type | 56H |
| Frequency | 60 Hz |
| Full Load Amps | 3.3/1.65A |
| Hazardous Location | Div 1 Exp Proof Cl I Gr Cd Cl Ii Gr Fg T3C |
| Hazardous Location Class | EXP Proof CL I GR C&D CL II GR F&G T3C |
| Height | 9 3/4" |
| Hp | 1 hp |
| Insulation Class | Class B |
| Ip Code | IP54 |
| Kva Code | P |
| Kw | 0.75 kW |
| Length | 19" |
|---|---|
| Lubrication | Polyrex EM |
| Max. Rpm | 1725 RPM |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Reversible |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1800/1500 RPM |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Rating | 0.56/0.75 kW |
| Packaging | F |
| Phase | 3 |
| Power Factor | 68 |
| Resistance Main | 11.8 ohms |
| Rpm | 1700-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Type | NEMA 56 |
| Starting Method | Across The Line |
| Thermal Protection | Thermostat |
| Type | TX |
| Voltage | 208-230/460V |
| Width | 10 22/25" |
| Height (cm) | 24.76 |
|---|---|
| Length (cm) | 48.26 |
| Width (cm) | 27.64 |
| Country Of Origin | MX |
|---|---|
| Weight (kg) | 21.6 |
