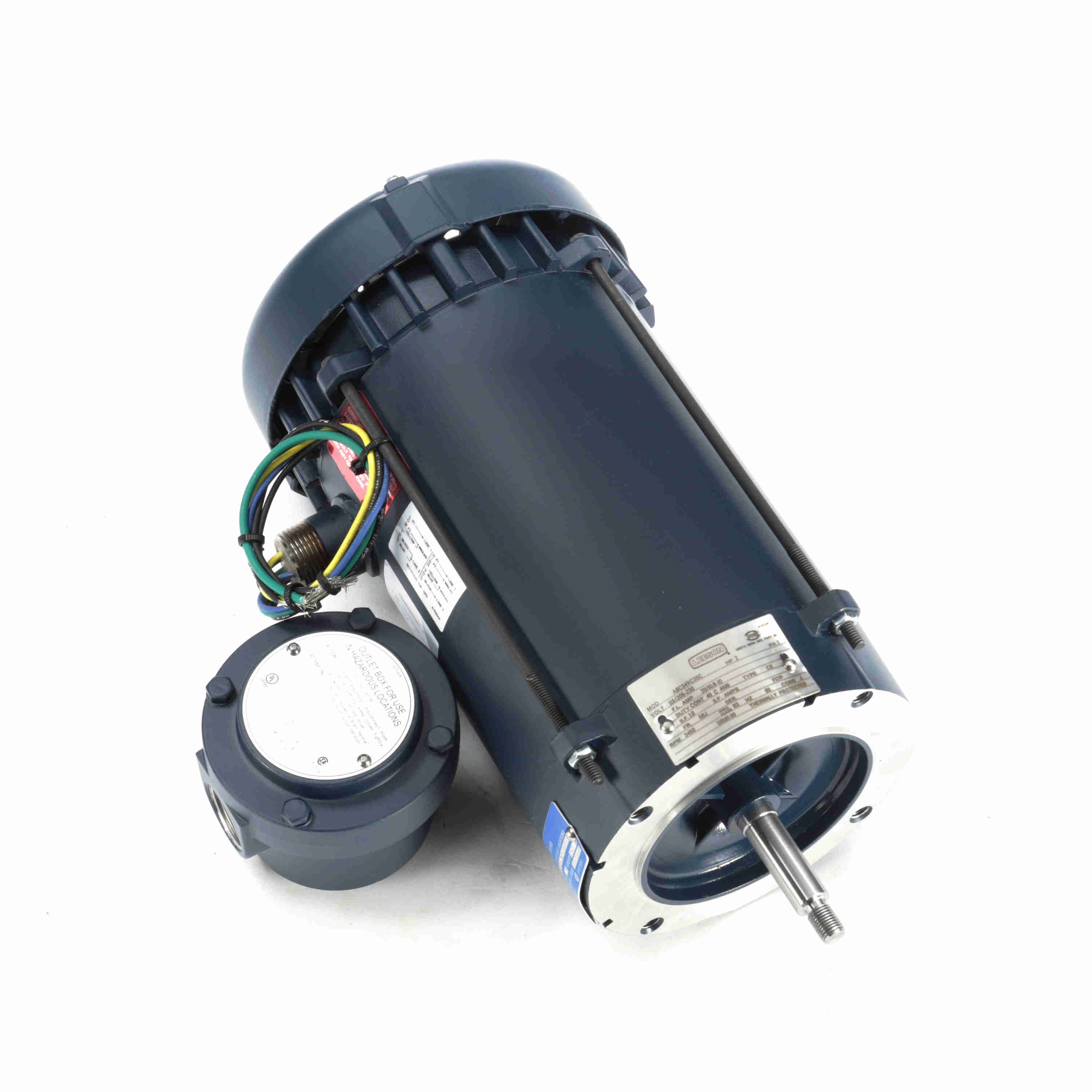

| Item | Explosion Proof Motor |
|---|---|
| Ambient Temp. | 40°C |
| Amps | 20/10-10.8A |
| Code | J |
| Conduit Box Position | F1 |
| Design | L |
| Design Code | L |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 75.5% |
| Electrical Type | Capacitor Start, Induction Run |
| Enclosure Type | EPFC |
| Frame | 56J |
| Frame Length | 7.81" |
| Frame Material | Rolled Steel |
| Frame Type | 56J |
| Frequency | 60 Hz |
| Full Load Amps | 20/10.8-10A |
| Grease Type | Polyrex EM |
| Hazardous Location | Div 1 Exp Proof Cl I Gr Cd Cl Ii Gr Fg T3C |
| Hazardous Location Class | 1C, D/2F, G |
| Height | 12.31" |
| Hp | 2 hp |
| Insulation Class | Class B |
| Ip Code | IP54 |
| Kva Code | J |
| Kw | 1.5 kW |
| Length | 19.69" |
|---|---|
| Lubrication | Polyrex EM |
| Max. Rpm | 3450 RPM |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Fixed Clockwise |
| Motor Type | Capacitor Start/Induction Run |
| Mounting Type | Round |
| Nameplate Rpm | 3600 RPM |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Rating | 1.49 kW |
| Packaging | B |
| Phase | 1 |
| Power Factor | 87.5 |
| Rpm | 3400-3600 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 11/25" |
| Shaft Type | J |
| Starting Method | Across The Line |
| Temp. Code | T3C |
| Thermal Protection | Automatic |
| Type | CX |
| Voltage | 115/208-230V |
| Width | 12.62" |
| Height (cm) | 31.27 |
|---|---|
| Length (cm) | 50.01 |
| Width (cm) | 32.05 |
| Country Of Origin | MX |
|---|---|
| Weight (kg) | 19.35 |
| Style | Model | Hp | Frame | Output Rating | Motor Shaft Rotation | Design | Shaft Length | Type | Power Factor | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

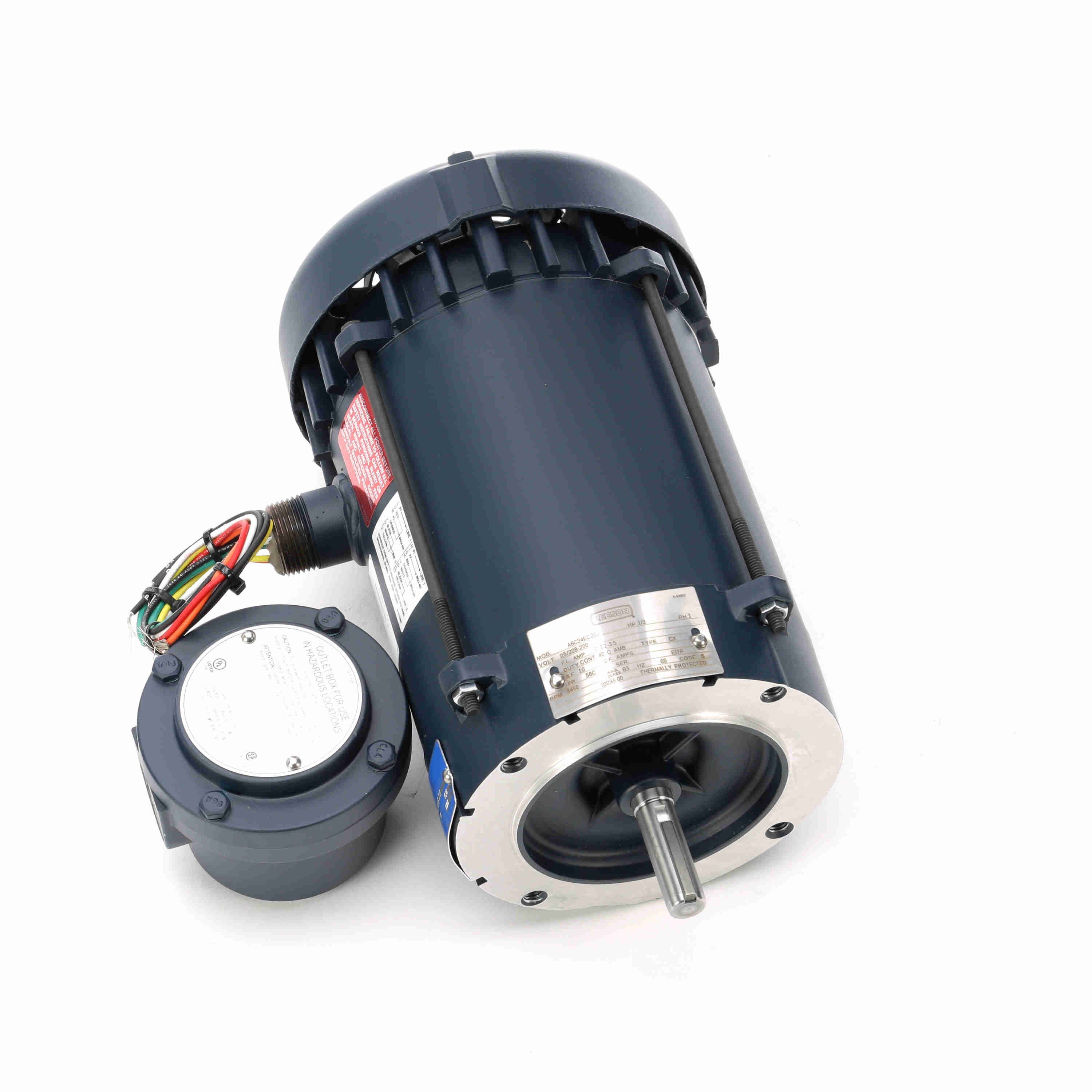

| A | 111095.00 | 33/100 hp | 56C | 0.246 kW | Selective Counter Clockwise | N | 1 22/25" | CX | 58 | $1,400.32 | |
| B | 111097.00 | 3/4 hp | 56C | 0.56 kW | Selective Counter Clockwise | N | 1 22/25" | CX | 71.9 | $1,452.24 | |

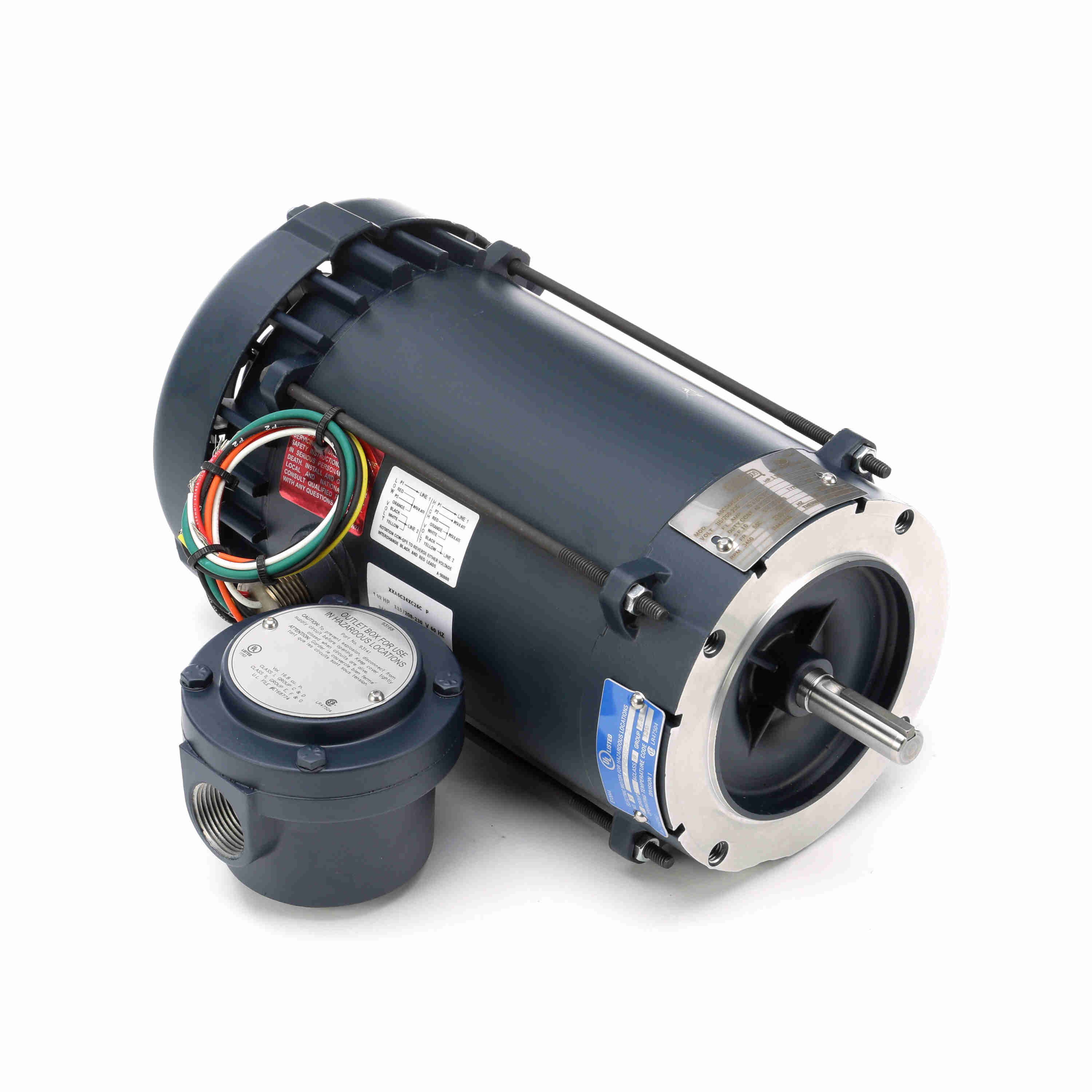

| C | 114424.00 | 1 1/2 hp | 56C | 1.12 kW | Selective Counter Clockwise | L | 1 22/25" | KX | 81.5 | $1,236.61 | |
| D | 114425.00 | 2 hp | 56C | 1.49 kW | Selective Counter Clockwise | L | 1 22/25" | KX | 87.5 | $1,355.97 | |

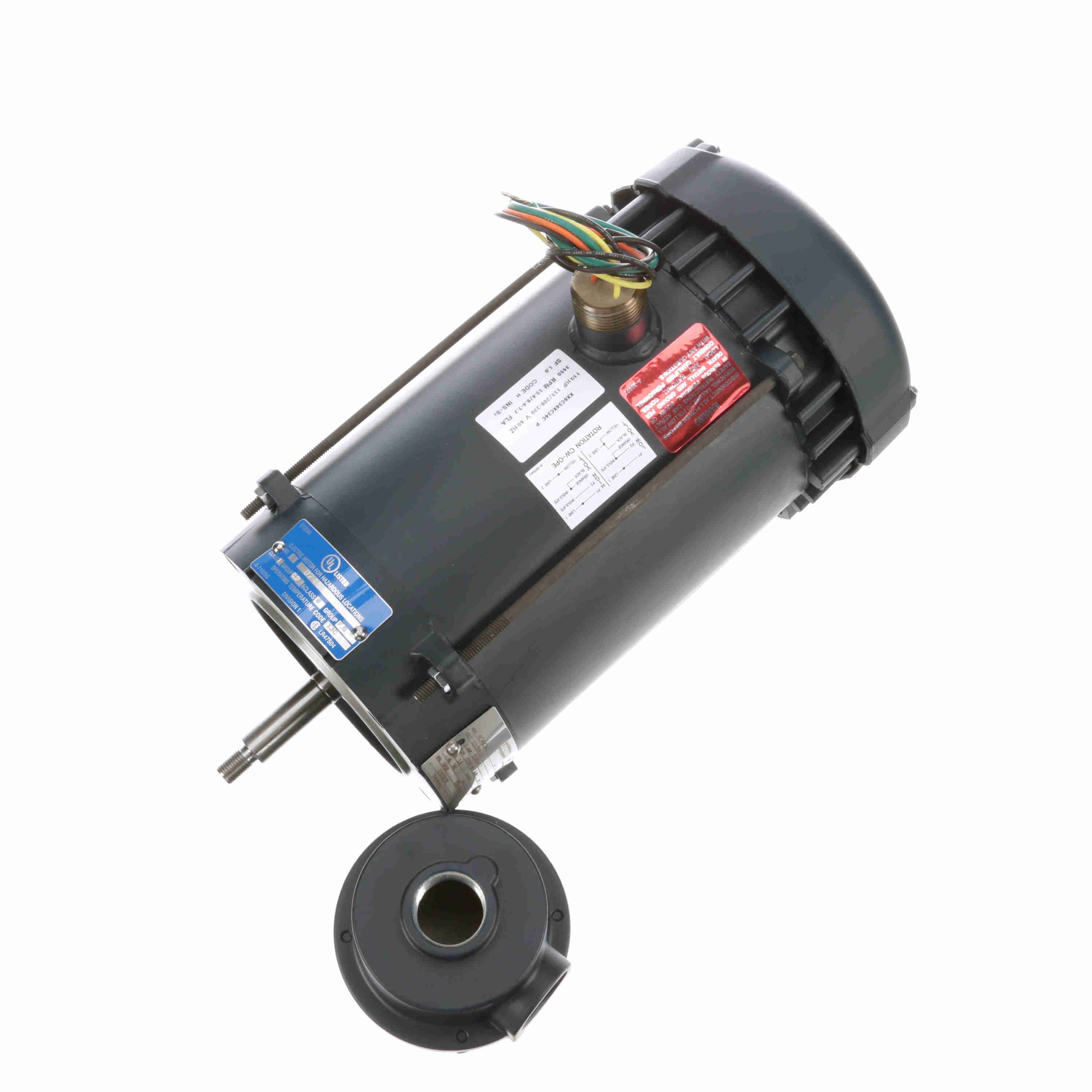

| E | 116183.00 | 1 1/2 hp | 56J | 1.12 kW | Fixed Clockwise | L | 2 11/25" | KX | 81.5 | $1,269.31 | |

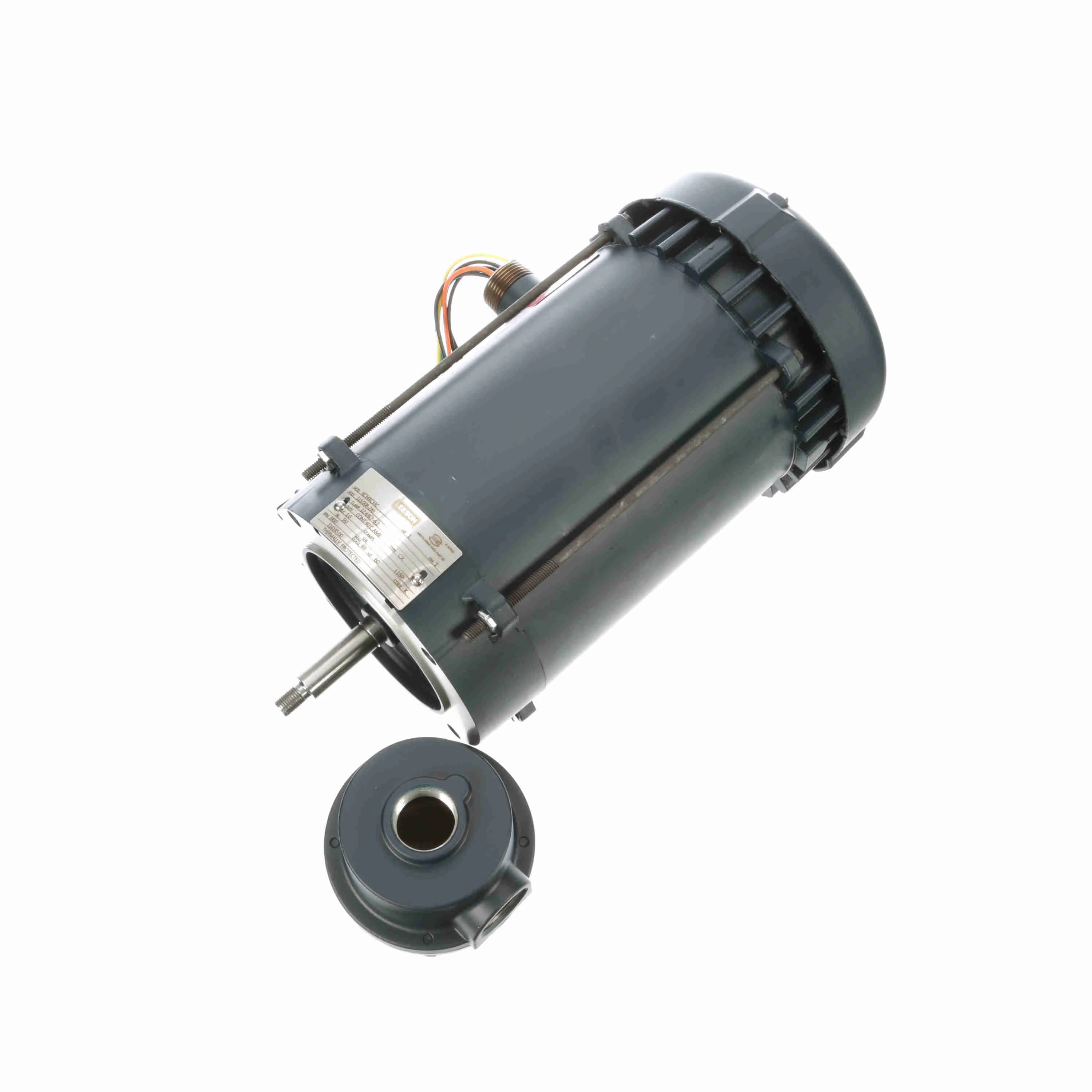

| F | 116185.00 | 1 hp | 56J | 0.75 kW | Fixed Clockwise | N | 2 11/25" | CX | 76 | $989.73 | |
| G | 116186.00 | 3/4 hp | 56J | 0.56 kW | Fixed Clockwise | N | 2 11/25" | CX | 71.9 | $923.24 |
