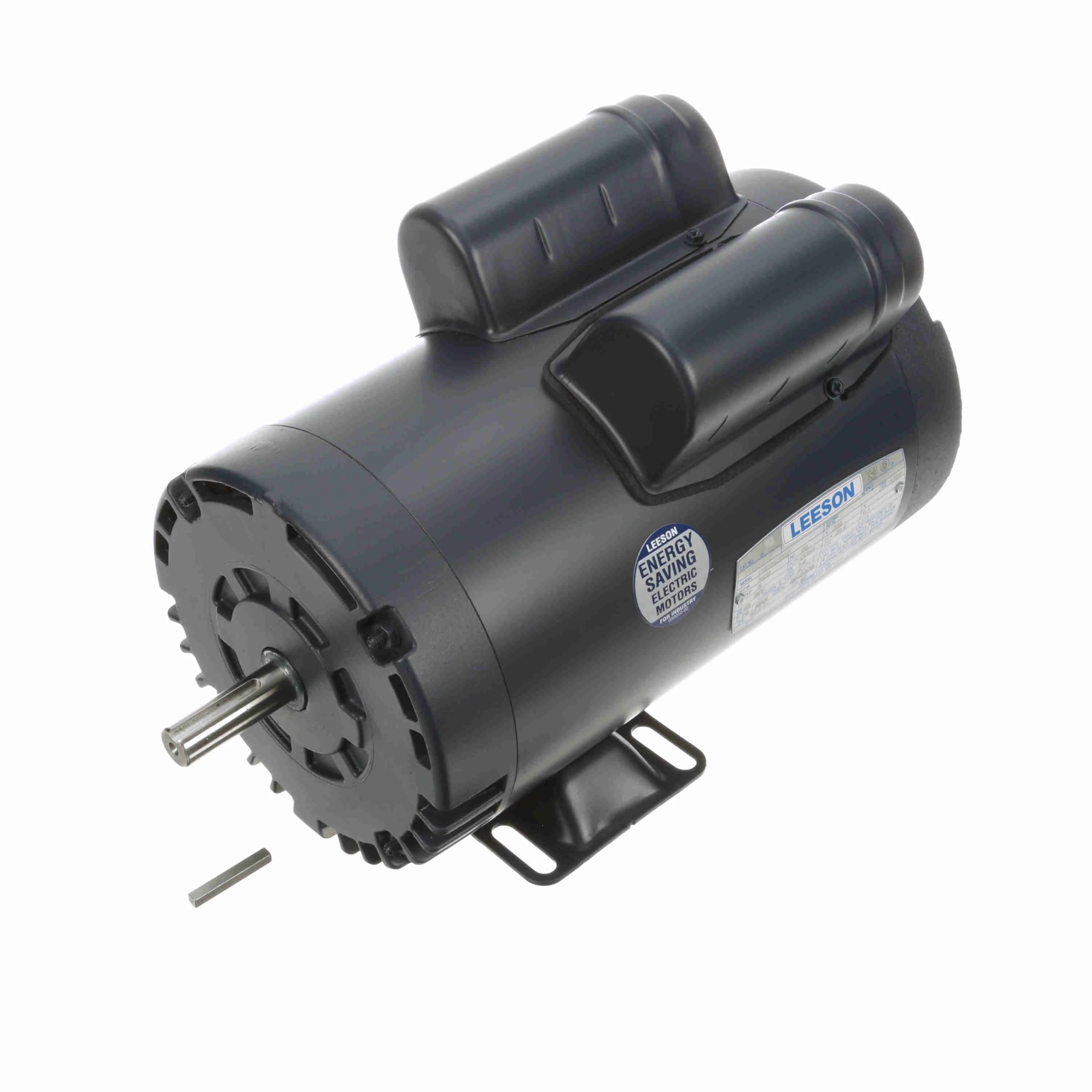

| Item | Single Phase Motor |
|---|---|
| Ambient Temp. | 40°C |
| Amps | 20.8A |
| Code | E |
| Design | E, L |
| Design Code | L |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 82.5% |
| Electrical Type | Capacitor Start, Capacitor Run |
| Enclosure Type | ODP |
| Frame | 56Y |
| Frame Length | 8 1/2" |
| Frame Material | Rolled Steel |
| Frame Type | 56Y |
| Frequency | 60 Hz |
| Full Load Amps | 20.8A |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 5 hp |
| Insulation Class | Class F |
| Ip Code | IP22 |
| Kva Code | E |
| Kw | 3.7 kW |
| Length | 19 1/2" |
| Lubrication | Polyrex EM |
| Max. Rpm | 3450 RPM |
|---|---|
| Motor Enclosure Design | Dripproof |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Selective Clockwise |
| Motor Type | Capacitor Start |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3600 RPM |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 3.7 kW |
| Packaging | B |
| Phase | 1 |
| Power Factor | 95 |
| Resistance Main | 0.52 ohms |
| Rpm | 3400-3600 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1.87" |
| Shaft Type | NEMA 56 |
| Starting Method | Across The Line |
| Thermal Protection | Manual |
| Type | KD |
| Voltage | 230V |
| Width | 10 11/25" |
| Height (cm) | 27.64 |
|---|---|
| Length (cm) | 49.53 |
| Width (cm) | 26.52 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 21.15 |
