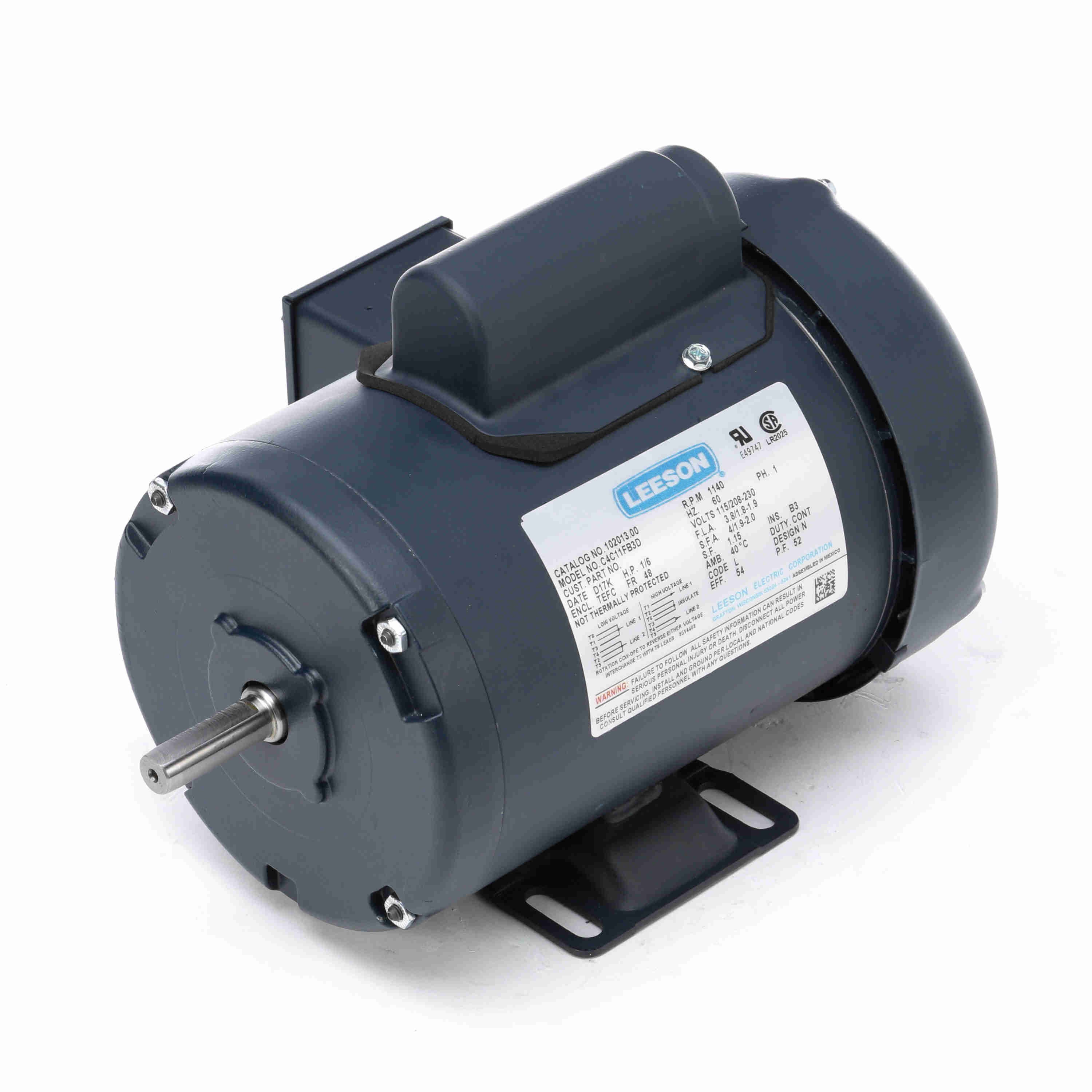

LEESON 102013.00 C4C11FB3D General Purpose Motor, 0.17 HP, 1 Phase, 60 Hz, 115/208-230V, 1200 RPM

Item: AJ2PMR

Model: 102013.00

Cross Ref: 820HN2 / C4C11FB3D

Check Availability

In Stock.

Get it by Friday, Feb 13

£9.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates

Nameplate Rpm

We deliver to your doorstep under DAP terms. Customs clearance is for your account

$556.47 /unit (ex. VAT)

Add To Cart

Request Quote

Business customers can apply for Net 30
No fees, No interest, Fast approval.

Payment

Delivery

Specifications

Item	Single Phase Motor
Ambient Temp.	40°C
Amps	3.8/1.8-1.9A
Code	L
Design Code	No
Drive End Bearing Size	6203
Drive End Bearing Type	Ball
Duty Cycle	Continuous
Efficiency	54%
Electrical Type	Capacitor Start, Induction Run
Enclosure Type	Tefc
Frame	48
Frame Length	6"
Frame Material	Rolled Steel
Frame Type	48
Frequency	60 Hz
Full Load Amps	3.8/1.8-1.9A
Height	10 22/25"
Hp	17/100 hp
Insulation Class	Class B
Ip Code	IP43
Kva Code	L
Kw	0.13 kW
Length	14 11/25"
Max. Rpm	1140 RPM
Motor Enclosure Design	Totally Enclosed Fan Cooled

Motor Orientation	Horizontal
Motor Shaft Rotation	Selective Counter Clockwise
Motor Type	Capacitor Start
Mounting Type	Rigid Base
Nameplate Rpm	1200 RPM
Nema Design	L, N
No. Of Poles	6
No. Of Speeds	1
Opp. Drive End Bearing Size	6203
Opp. Drive End Bearing Type	Ball
Output Kw	0.125 kW
Packaging	B
Phase	1
Power Factor	52
Resistance Main	2.61 ohms
Rpm	1100-1200 RPM
Service Factor	1.15
Shaft Dia.	1/2"
Shaft Length	1 1/2"
Shaft Type	NEMA 48
Starting Method	Across The Line
Thermal Protection	No Protection
Type	CF
Voltage	115/208-230V
Width	10 11/25"

Country Of Origin	MX
Weight (kg)	9
