| Item | Hazardous Location Motor |
|---|---|
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 Only |
| Duty Cycle | Continuous |
| Efficiency Group | Standard |
| Enclosure Type | Hazardous Location |
| Frame | 56C |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 2.4-2.3/1.2A |
| Hazardous Location Class | 1 C, D / 2 F, G |
| Hazardous Location Division | Division 1 |
| Hp | 1/2 hp |
| Includes | Conduit Box |
| Insulation Class | Class B |
| Lead Length | 12" |
| Length Less Shaft | 11 7/8" |
| Max. Ambient Temp. | 104°F |
| Motor Application | Hazardous Location |
| Motor Bearings | Ball |
| Motor Design | 3 Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
|---|---|
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Automatic |
| Motor Type | Three Phase |
| Mounting Type | Face |
| Nameplate Rpm | 1725 RPM |
| Nema Design | B |
| Nominal Efficiency | 68% |
| Number Of Speeds | 1 |
| Overall Length | 13 15/16" |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 1/16" |
| Temp. Code | T3B |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V AC |
| Height (cm) | 20.62 |
|---|---|
| Length (cm) | 41.61 |
| Width (cm) | 26.67 |
| HS Code | 8501514040 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 12.6 |
| Style | Model | Voltage | Hp | Nameplate Rpm | Motor Thermal Protection | Motor Design | Mounting Type | Full Load Amps | Frame Material | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

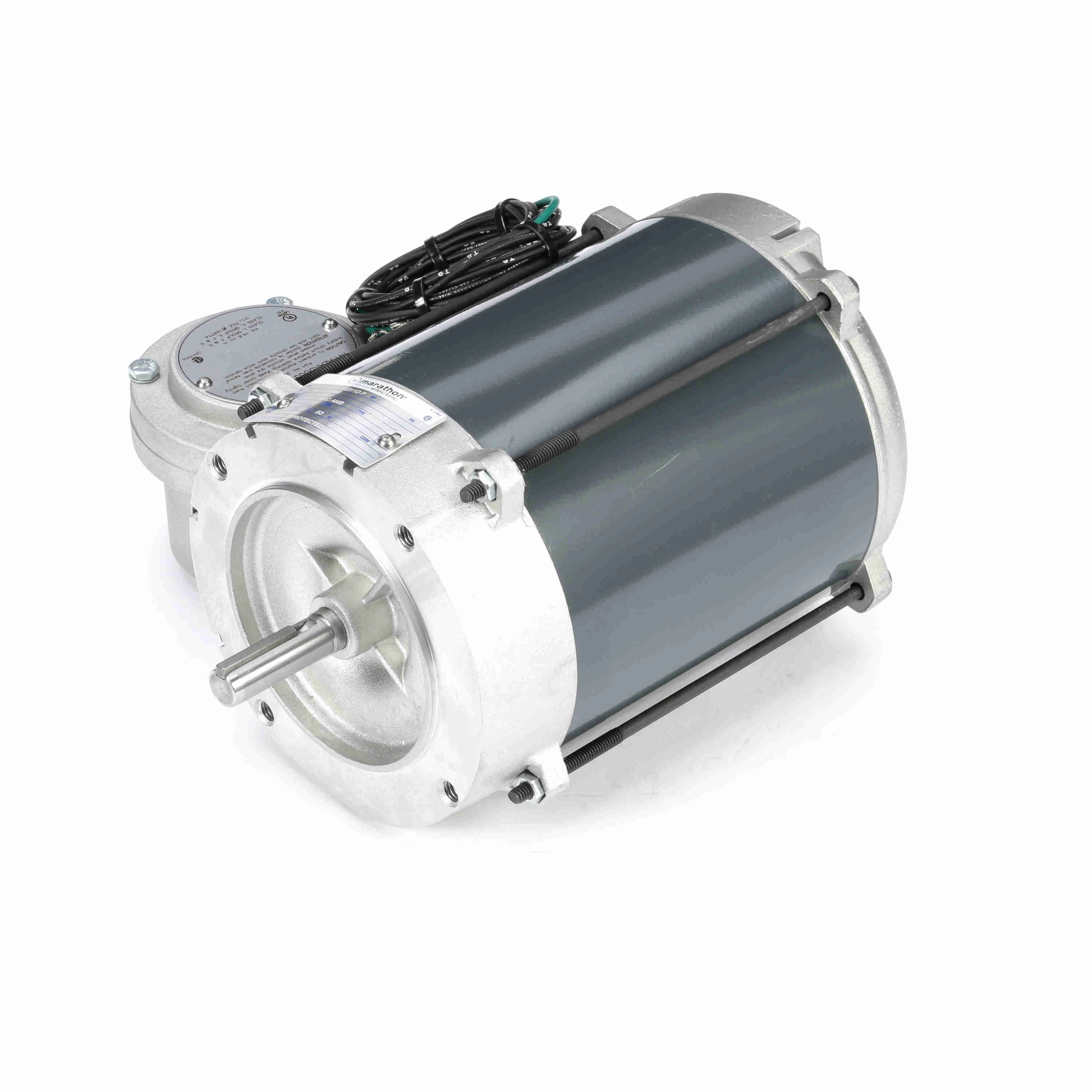

| A | 056T17E5311 | 208-230/460V AC | 1/3 hp | 1725 RPM | Auto | 3-Phase | Face | 1.20-1.20/0.6A | Rolled Steel | $952.21 | |
| B | 056T17E5312 | 575V AC | 1/4 hp | 1800 RPM | - | - | C Face, Footless | 0.44A | - | $901.07 | |

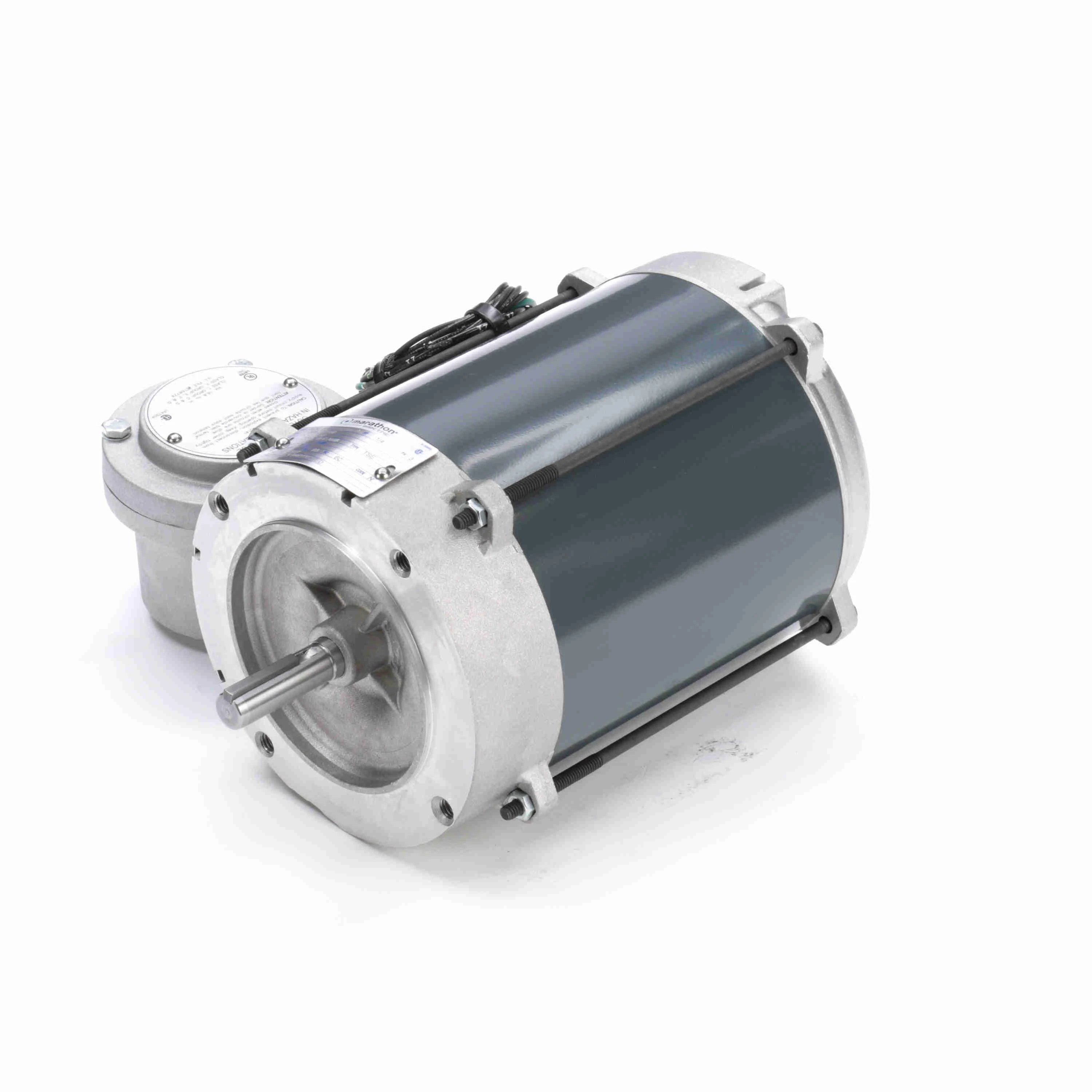

| C | 056T17E5310 | 208-230/460V AC | 1/4 hp | 1725 RPM | Auto | 3-Phase | C Face, Footless | 1.10-1.1/0.55A | Steel | $722.81 |
