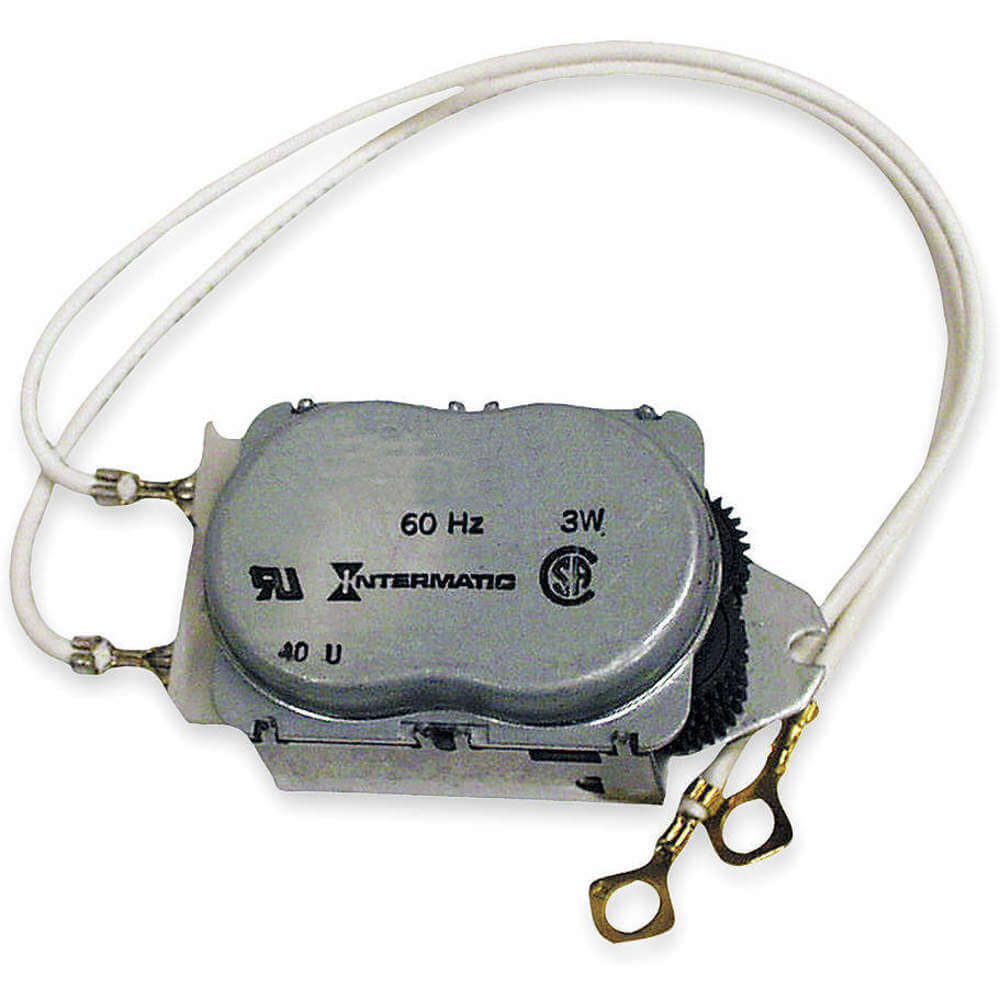

INTERMATIC WG733 Time Clock Motor, 60 Hz

Intermatic WG733 time clock motor is compatible with brand's T1900, T8800 and R8800 Series timers for driving the movement of clock hands and controlling the switching operations of the time clock. It is used in outdoor lighting systems, irrigation systems and other automated equipment. This Intermatic WG733 time clock motor ensures precise timing and synchronisation, allowing users to automate the activation and deactivation of devices according to preset schedules, enhancing energy efficiency and convenience.

• The time clock motor is connected to a power source, typically AC voltage, which provides the necessary energy for its operation.
• The motor is equipped with a series of gears that are connected in a precise arrangement. These gears are responsible for converting the rotational motion of the motor into the movement of clock hands.
• The motor operates synchronously with the power supply frequency. The alternating current causes the motor's rotor to rotate in a consistent manner, ensuring accurate timekeeping.
• The motor's output shaft is connected to the clock hands. As the motor rotates, it turns the clock's hands in a synchronised manner, indicating the passage of time on the clock's face.
• In addition to moving the clock hands, the motor is equipped with a switching mechanism. This mechanism controls the electrical contacts that are used to turn electrical loads on or off at specific times.
• The switching mechanism often employs a cam wheel with lobes or protrusions that interact with electrical contacts. As the cam wheel rotates with the motor, these lobes open or close the contacts at predetermined intervals.
• The opening and closing of contacts by the cam wheel control the electrical loads connected to the time clock. This allows users to automate the operation of various devices, such as lighting systems or pumps, based on the scheduled times set on the clock.
