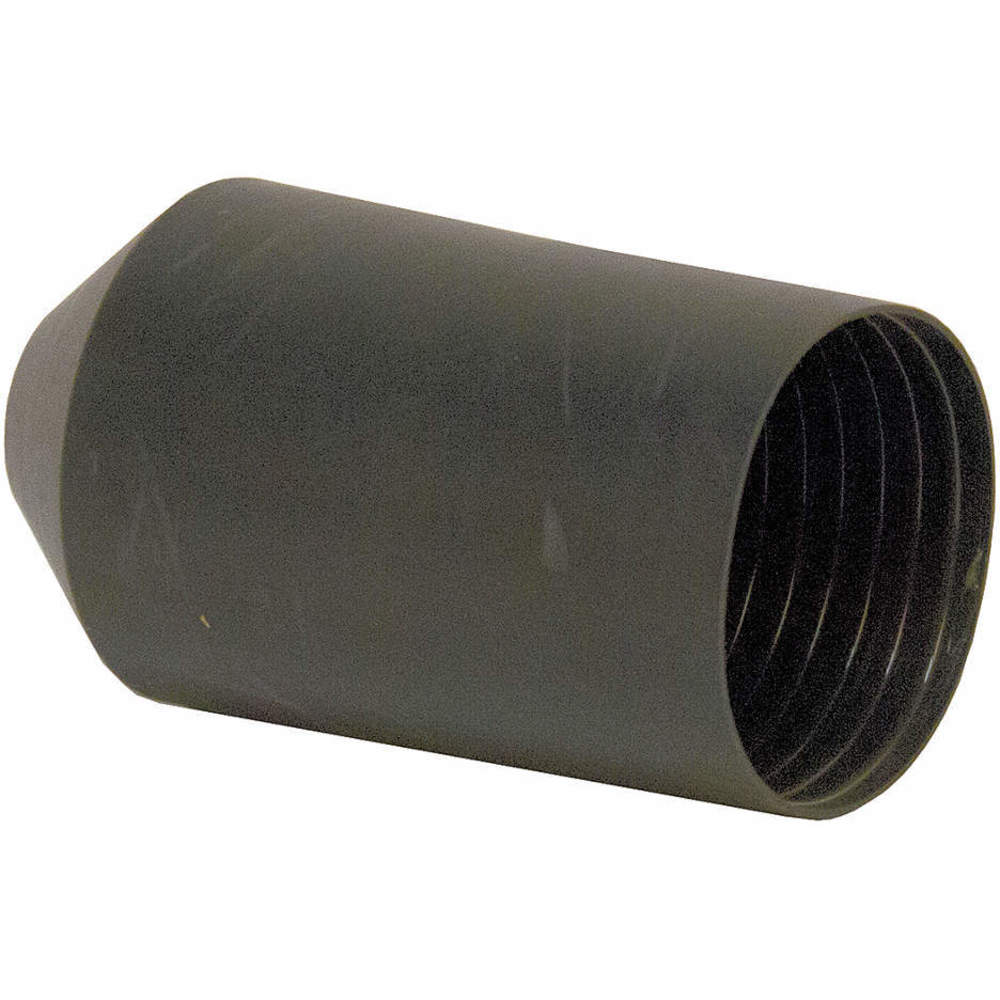

| Item | Heat Shrink End Cap |
|---|---|
| Adhesive Lined | Yes |
| Application | General |
| Color | Black |
| Dielectric Strength | 1000V |
| Features | Recommended For Open Air And Underground Power Distribution Cables With Pvc, Lead, Or Xlpe Sheaths |
| Flame Retardant | No |
| I.d. After Shrinking | 1.38" |
| I.d. Before Shrinking | 2.95" |
| Length | 5.13" |
| Material | Cross-Linked Polyolefin, Adhesive |
| Max. Temp. Rating | 110°F |
| Max. Voltage | 1000V |
| Min. Shrink Temp. | 248°F |
|---|---|
| Min. Temp. Rating | -55°F |
| Shrink Ratio | 3:1 |
| Shrink Temp. | 248°F |
| Shrink Tubing Properties | UV Light Resistant |
| Standards | RoHS |
| Temp. Range | -55°F to +110°F |
| Tubing Wall Type | Medium Wall |
| Use With Wire Size | 500 mcm to 1000 mcm |
| Wall Thickness After Shrinking | 0.18" |
| Wall Type | Medium Wall |
| Wire Size | 2000 kcmil to 2500 kcmil |
| Height (cm) | 33.66 |
|---|---|
| Length (cm) | 26.67 |
| Width (cm) | 20.32 |
| HS Code | 3917320000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.675 |
| Style | Model | I.d. Before Shrinking | I.d. After Shrinking | Wall Thickness After Shrinking | Wire Size | Use With Wire Size | Color | Wall Type | Temp. Range | Pkg. Qty. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

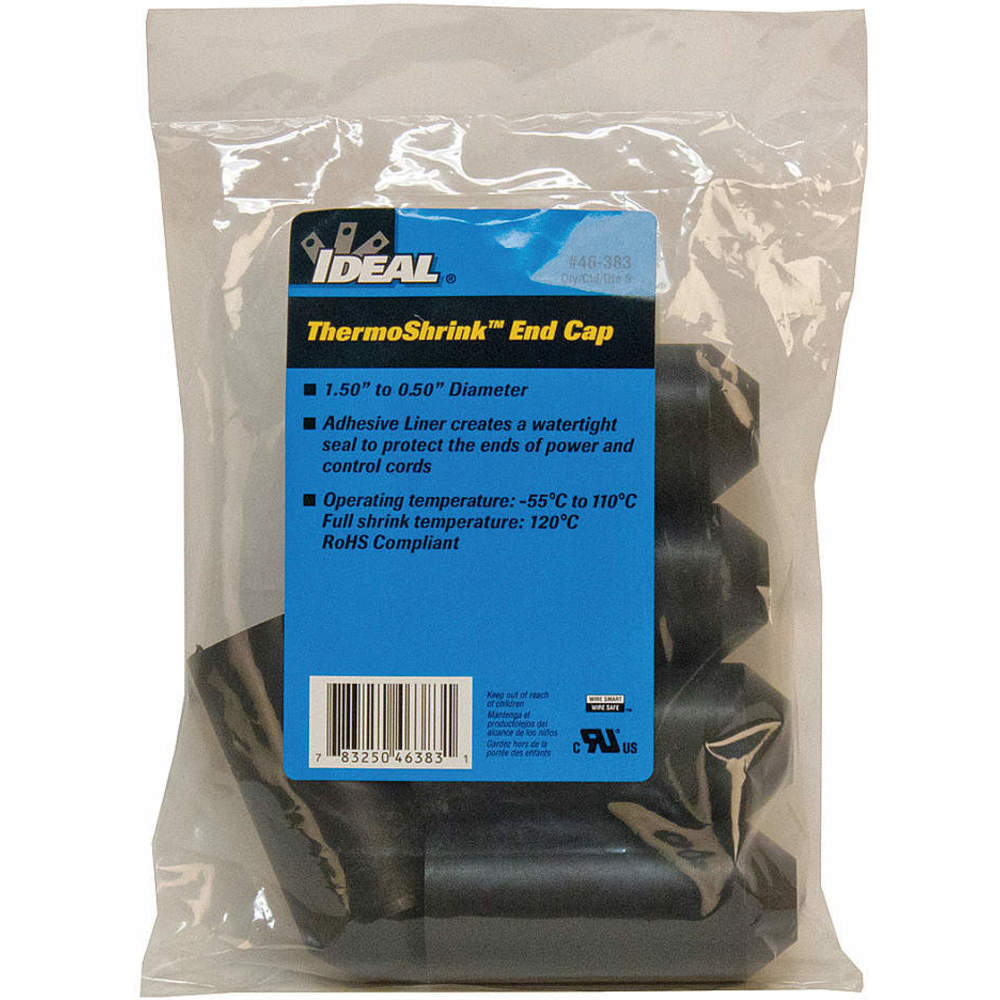

| A | 46-383 | 1.38" | 0.59" | 3/25" | 500 kcmil to 1500 kcmil | 4/0 Awg To 400 Mcm | Black | Medium Wall | -55°F to +110°F | 5 | $155.86 | |

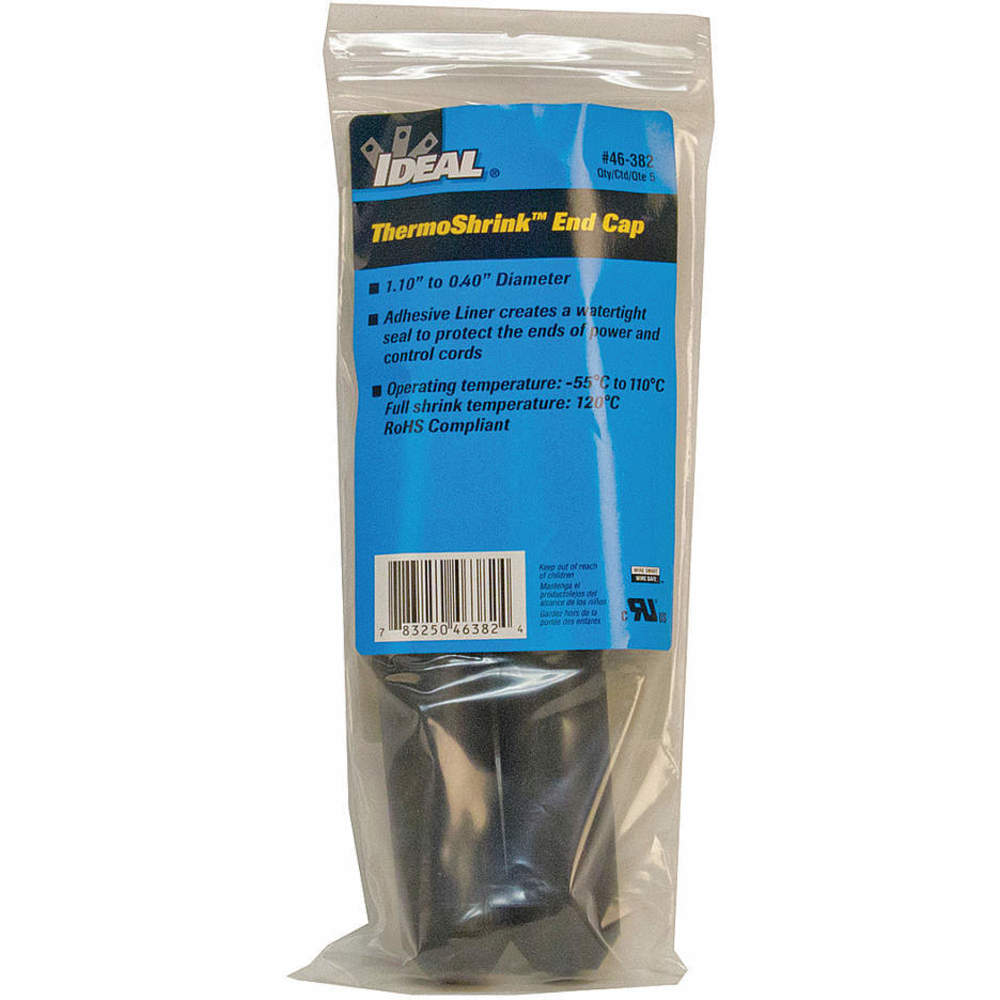

| B | 46-382 | 0.98" | 0.31" | 0.09" | 2/0 AWG to 500 kcmil | 4 AWG to 3/0 AWG | Black | Medium Wall | -55°F to +110°F | 5 | $129.47 | |

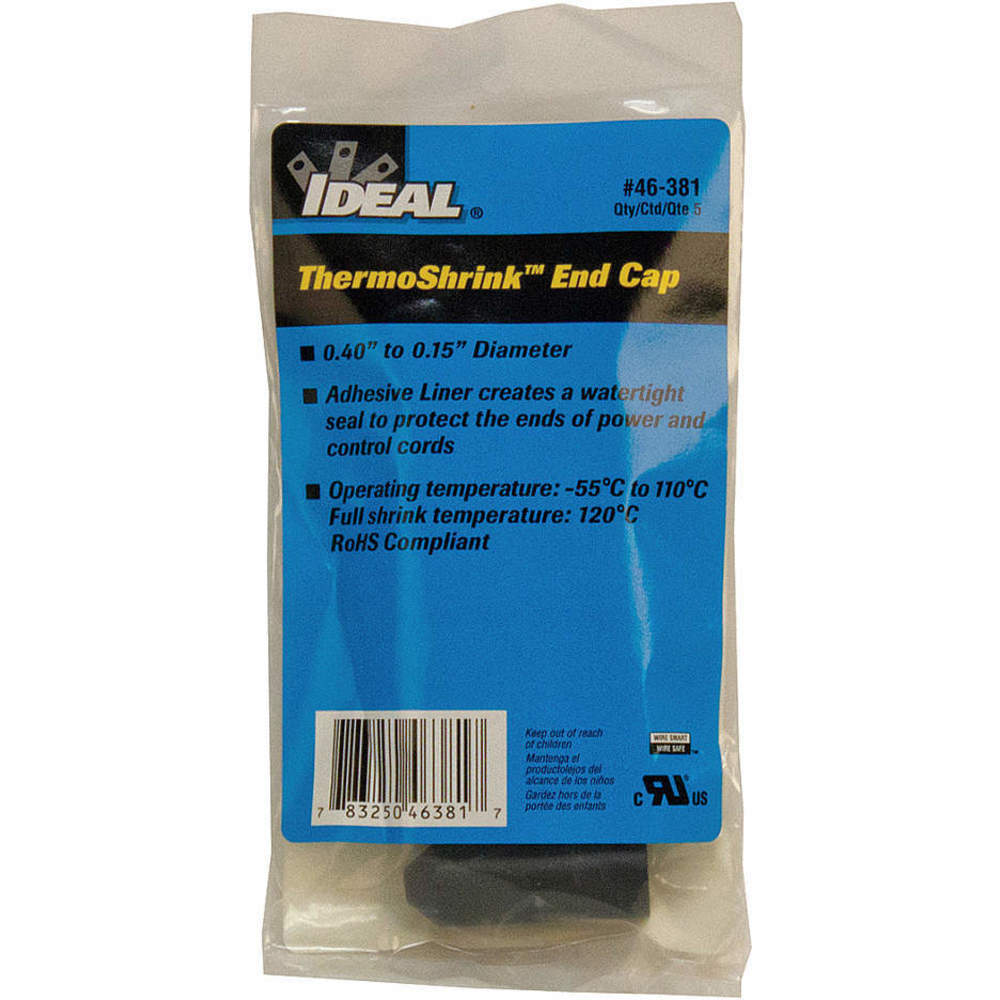

| C | 46-381 | 0.55" | 0.18" | 0.079" | 8 AWG to 1 AWG | - | Black | Medium Wall | -55°F to +110°F | 5 | $92.04 |
