| Item | Watertight Receptacle |
|---|---|
| Amps | 15A |
| Application Environment | Industrial Environments |
| Color | Yellow |
| Current Rating | 15A |
| Flange Type | Non Flanged |
| Ip Rating | IP69K |
| Mounting Type | Flush |
| Nema Enclosure Rating | 1 |
| Nema Plug Configuration | 5-15R |
| Nema Rating | NEMA 5-15R |
| Nema Receptacle Configuration | NEMA 5-15R |
| Number Of Gangs | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Outlet Type | Single |
|---|---|
| Phase | 1 |
| Power Indicator | No |
| Receptacle Type | Single |
| Resistance Properties | Moisture Resistant,UV/Sunlight Resistant |
| Surge Protection | No |
| Type | Straight Blade |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Weather Resistant | Yes |
| Wire Connection Location | Back, Side |
| Wire Connection Types | Screw Terminals |
| Wiring Method | Back And Side |
| standard | CSA CERTIFIED, NSF, UL LISTED |
| Height (cm) | 8.68 |
|---|---|
| Length (cm) | 13.13 |
| Width (cm) | 8.05 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 0.2475 |
| Style | Model | Current Rating | Voltage Rating | Color | Nema Rating | Voltage | Amps | Nema Receptacle Configuration | Nema Plug Configuration | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

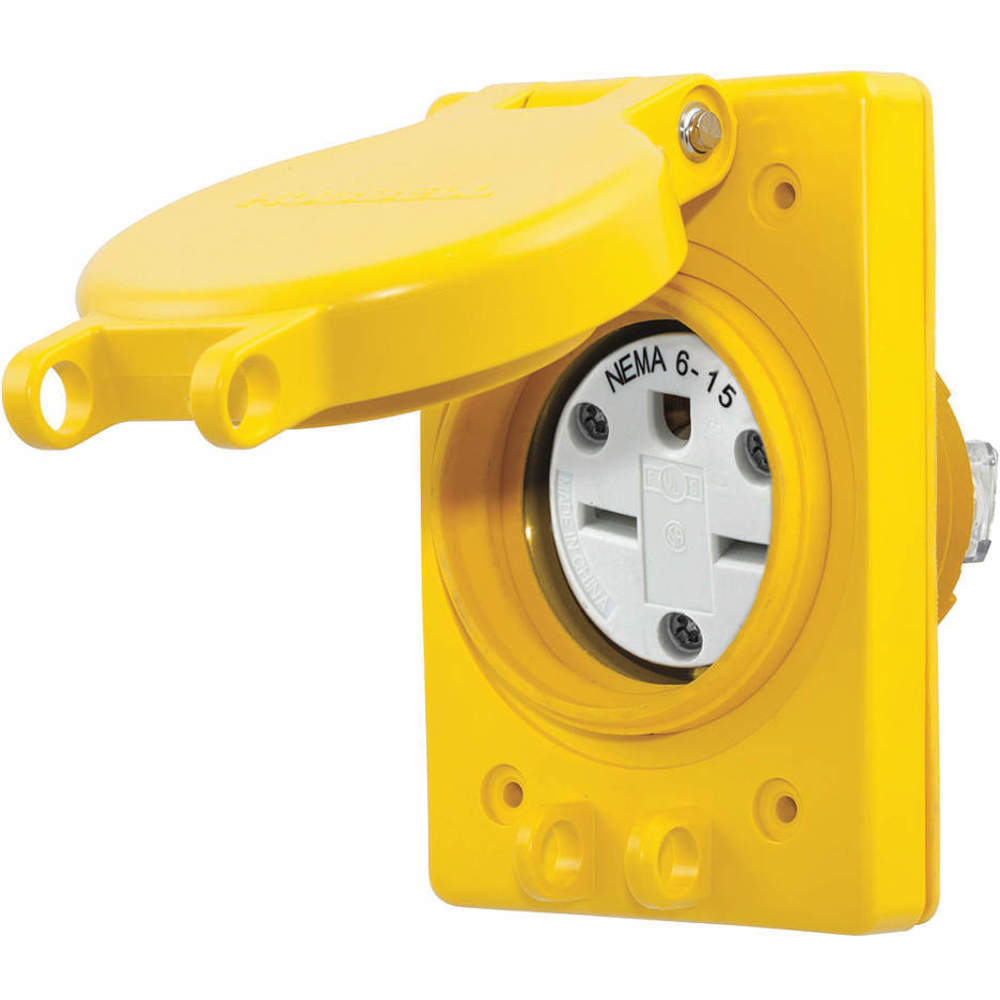

| A | HBL60W49 | 15A | 250V AC | Yellow | NEMA 6-15R | 250V AC | 15A | NEMA 6-15R | 6-15R | $248.00 | |
| B | HBL60W48 | 20A | 250V AC | Yellow | NEMA 6-20R | 250V AC | 20A | Nema 6-20R | 6-20R | $264.10 | |
| C | HBL60W33 | 20A | 125V AC | Yellow | NEMA 5-20R | 125V AC | 20A | NEMA 5-20R | 5-20R | $277.33 | |

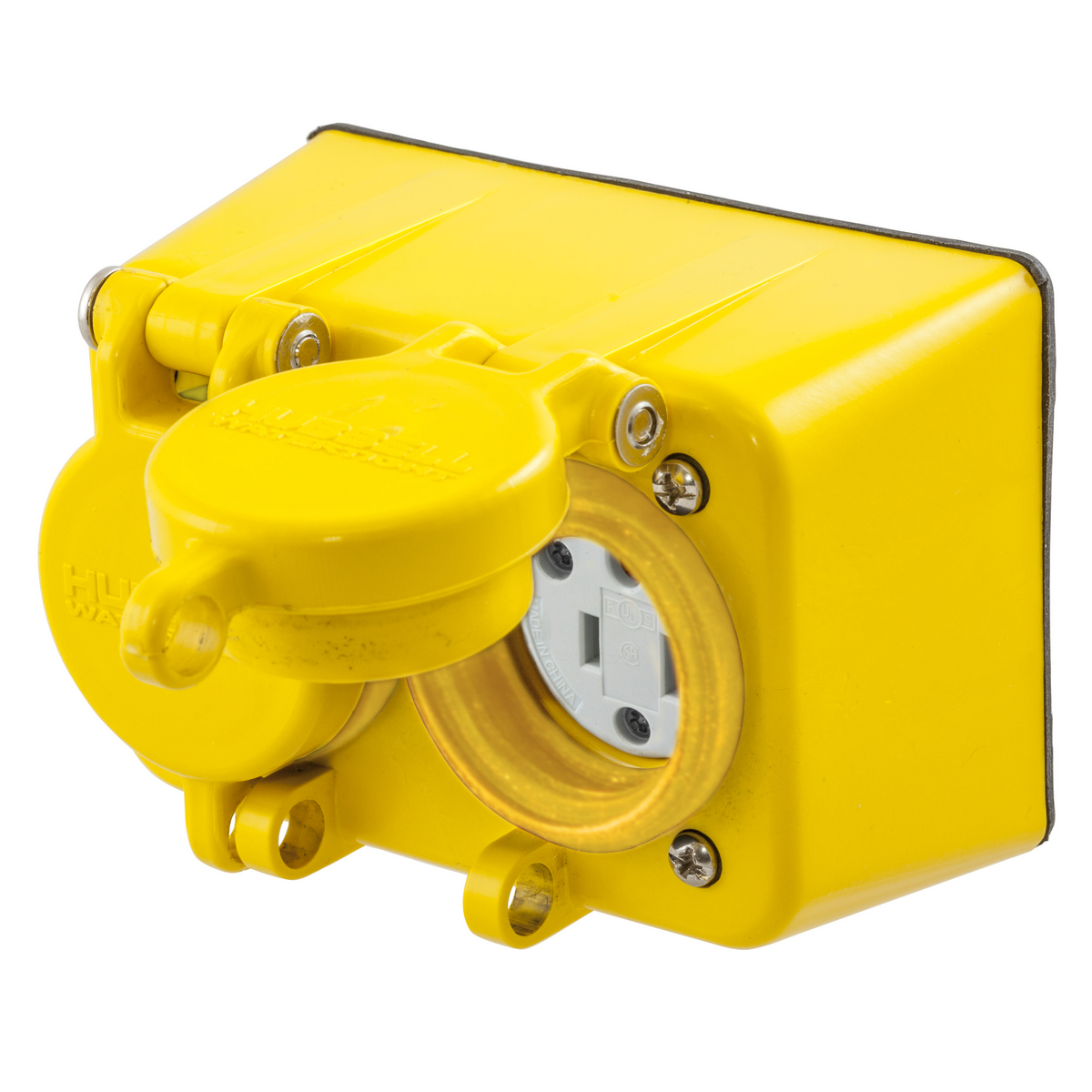

| D | HBL60W33D | - | - | Yellow | NEMA 5-20R | 125V | 20A | - | - | $272.25 | |
| E | HBL60W47BK | - | - | Black | NEMA 5-15R | 125V | 15A | - | - | $243.13 | |

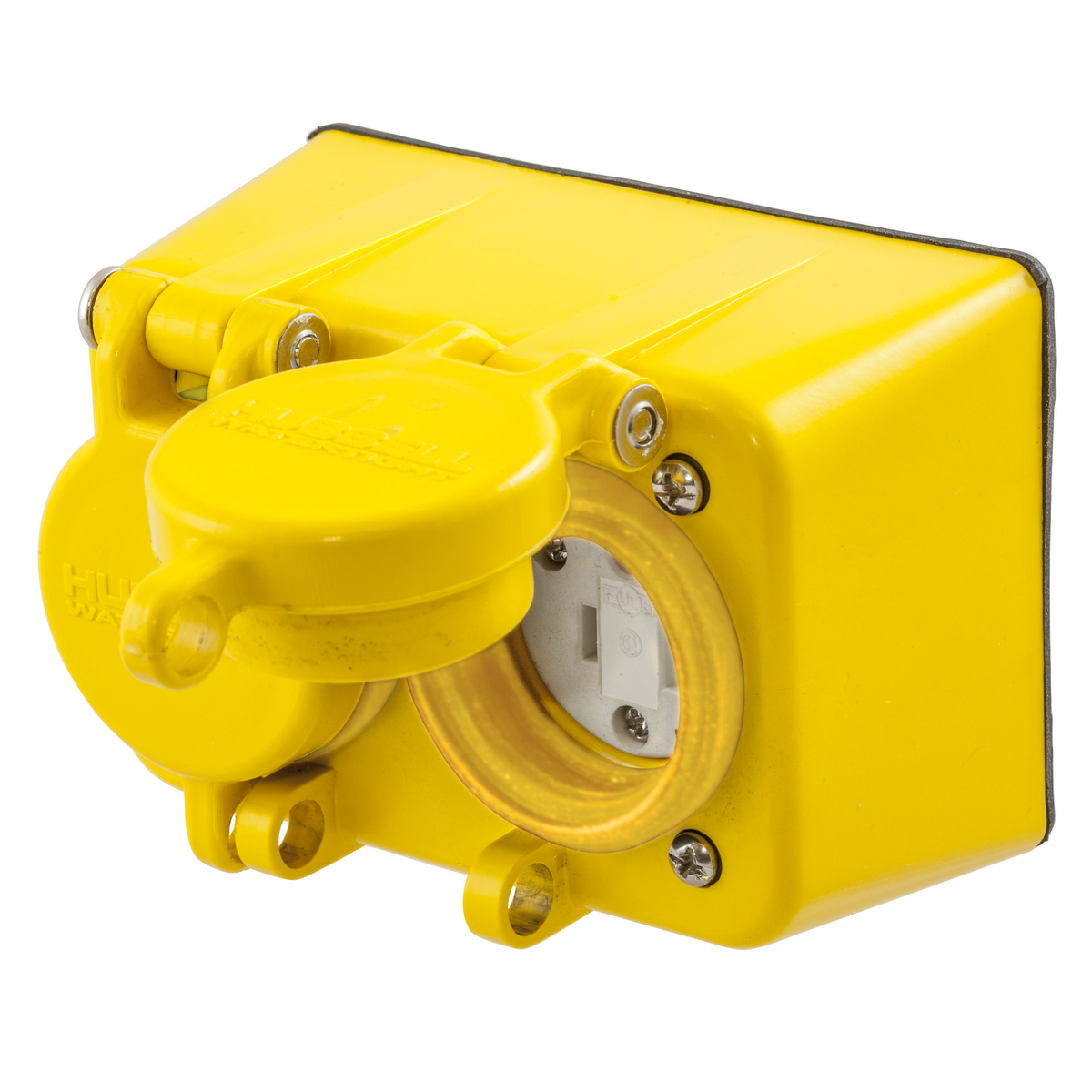

| F | HBL60W47D | - | - | Yellow | NEMA 5-15R | 125V | 15A | - | - | $272.25 | |

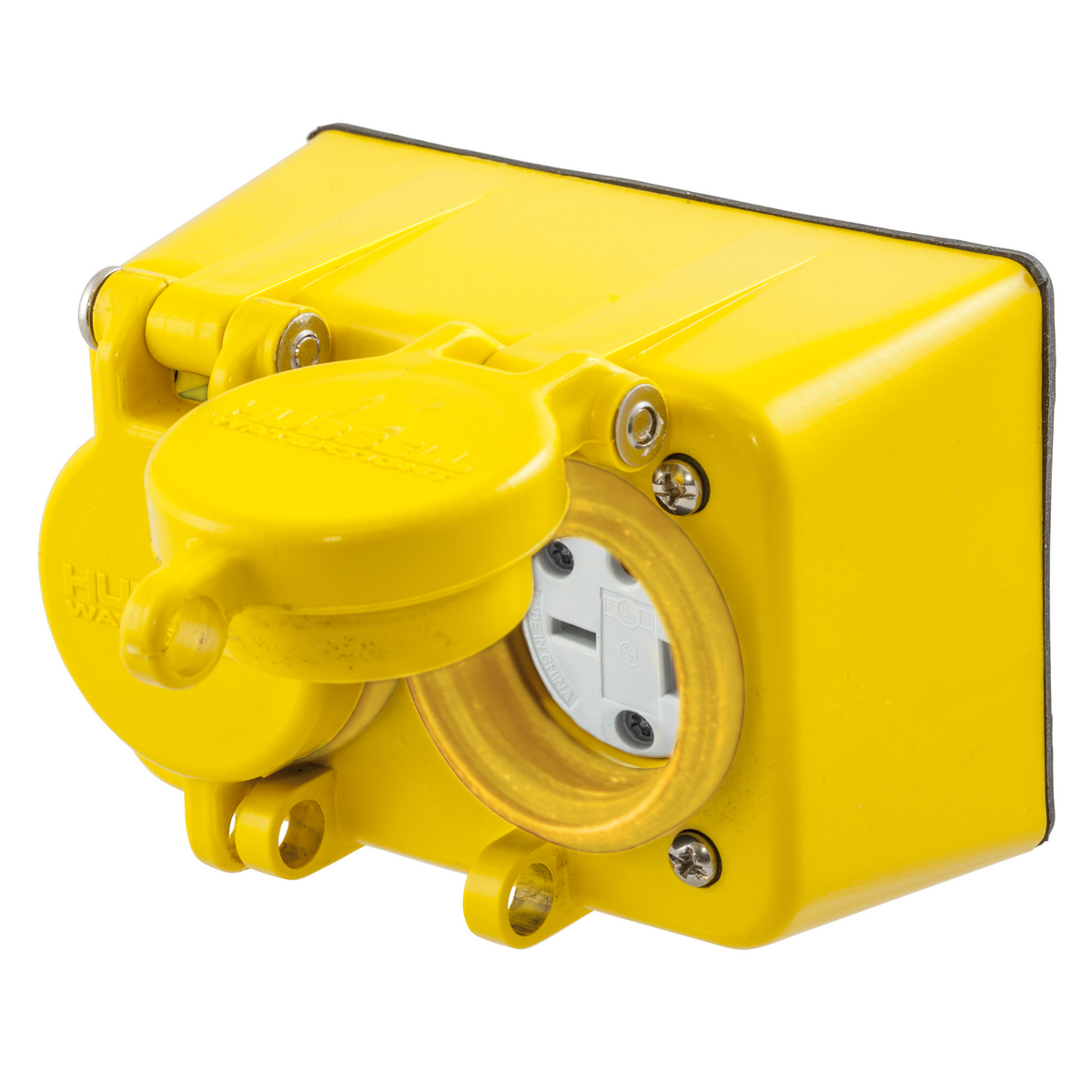

| G | HBL60W48D | - | - | Yellow | NEMA 6-20R | 250V | 20A | - | - | $272.25 |
