| Item | IEC Pin and Sleeve Inlet |
|---|---|
| Amps | 100A |
| Color | Blue |
| Compatible With Series | Hbl Heavy Duty |
| Current Rating | 100A |
| Exposure Conditions | Wateright |
| Face Diameter | 3.44" |
| Features | Gasketed Sealing Ring Provides Watertight Seal, Raised Collar Surrounds Each Phase Pin |
| Flange Diameter | 3.94" |
| Flange Type | Flanged |
| Grounding | Grounded |
| Grounding Style | IEC |
| Housing Color | Blue |
| Housing Material | Polybutylene Terephthalate |
| Hp Rating | 15 hp |
| Insulation Material | Thermoplastic |
| Ip Rating | IP67 |
| Market | Industrial |
| Material | Thermoplastic |
| Maximum Operating Temperature | 75°C |
|---|---|
| Maximum Wire Size | 1/0 AWG |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 3 AWG |
| Mounting Style | Screw |
| Number Of Poles | 2.0 |
| Number Of Wires | 3 |
| Phase | 1 |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| Shrouded | Yes |
| Type | Inlet |
| Ul 94 Flammability Rating | V-0 |
| Voltage | 250V |
| Voltage Rating | 250V AC |
| Wattage | 25000 W |
| Wire Connection Type | Screw Terminals |
| Wire Size | #3 AWG to #1/0 AWG |
| standard | CSA CERTIFIED LR280C, UL E146032, UL IEC 60309-1 IEC 60309-2 |
| Height (cm) | 18.8 |
|---|---|
| Length (cm) | 16.51 |
| Width (cm) | 14.99 |
| HS Code | 8536904000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 1.5975 |
| Style | Model | Phase | Number Of Poles | Number Of Wires | Current Rating | Voltage Rating | Hp Rating | Type | Amps | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | HBL320B6W | 1 | 2.0 | 3 | 20A | 250V AC | - | Inlet | 20A | $282.81 | |
| A | HBL330B6W | 1 | 2.0 | 3 | 30A | 250V AC | 2 hp | Inlet | 30A | $579.23 | |
| B | HBL360B6W | 1 | 2.0 | 3 | 60A | 250V AC | - | Inlet | 60A | $853.14 | |

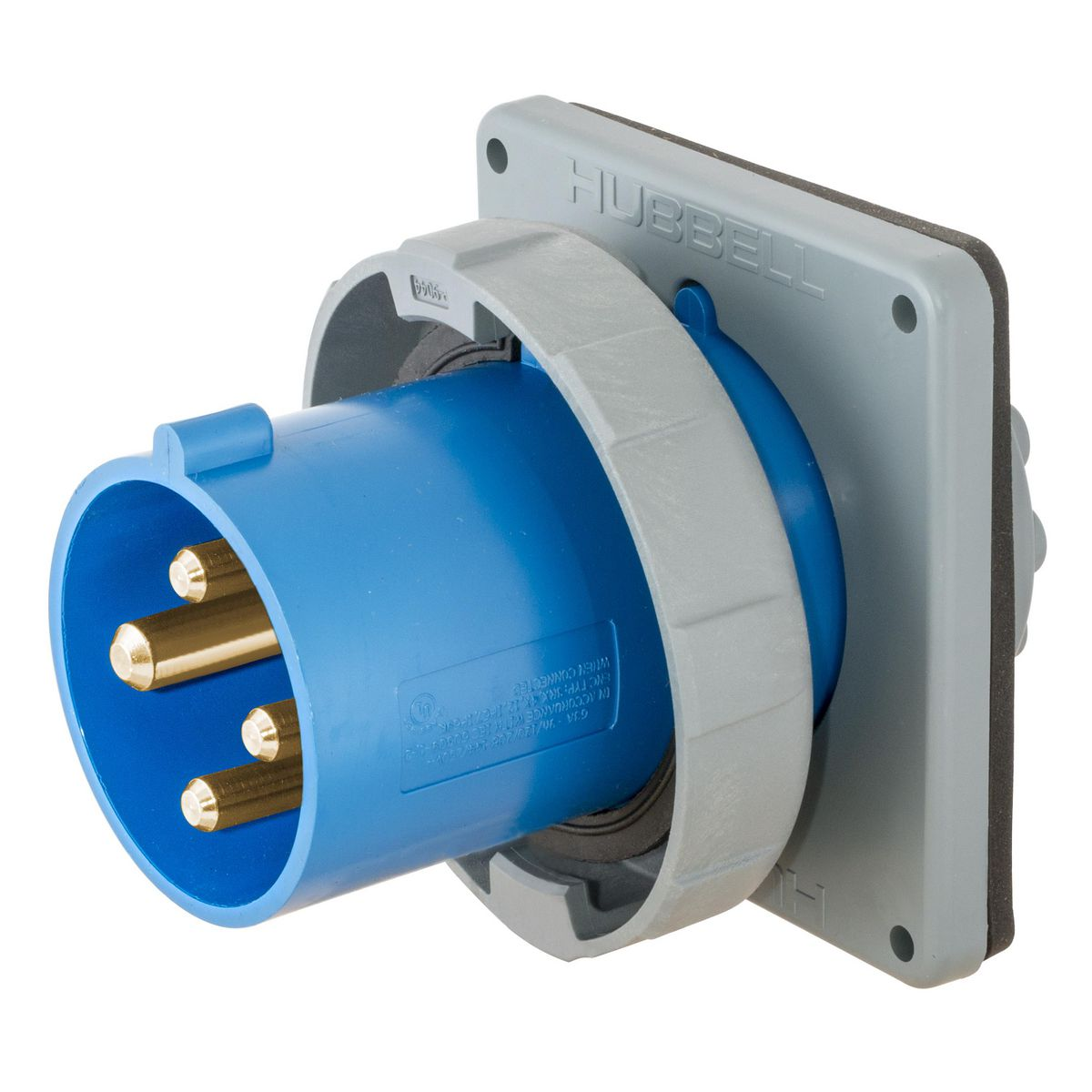

| C | HBL420B9W | 3 | 3.0 | 4 | 20A | 250V AC | 2 hp | Inlet | 20A | $327.36 | |
| C | HBL430B9W | 3 | 3.0 | 4 | 30A | 250V AC | 7 1/2 hp | Inlet | 30A | $621.76 | |

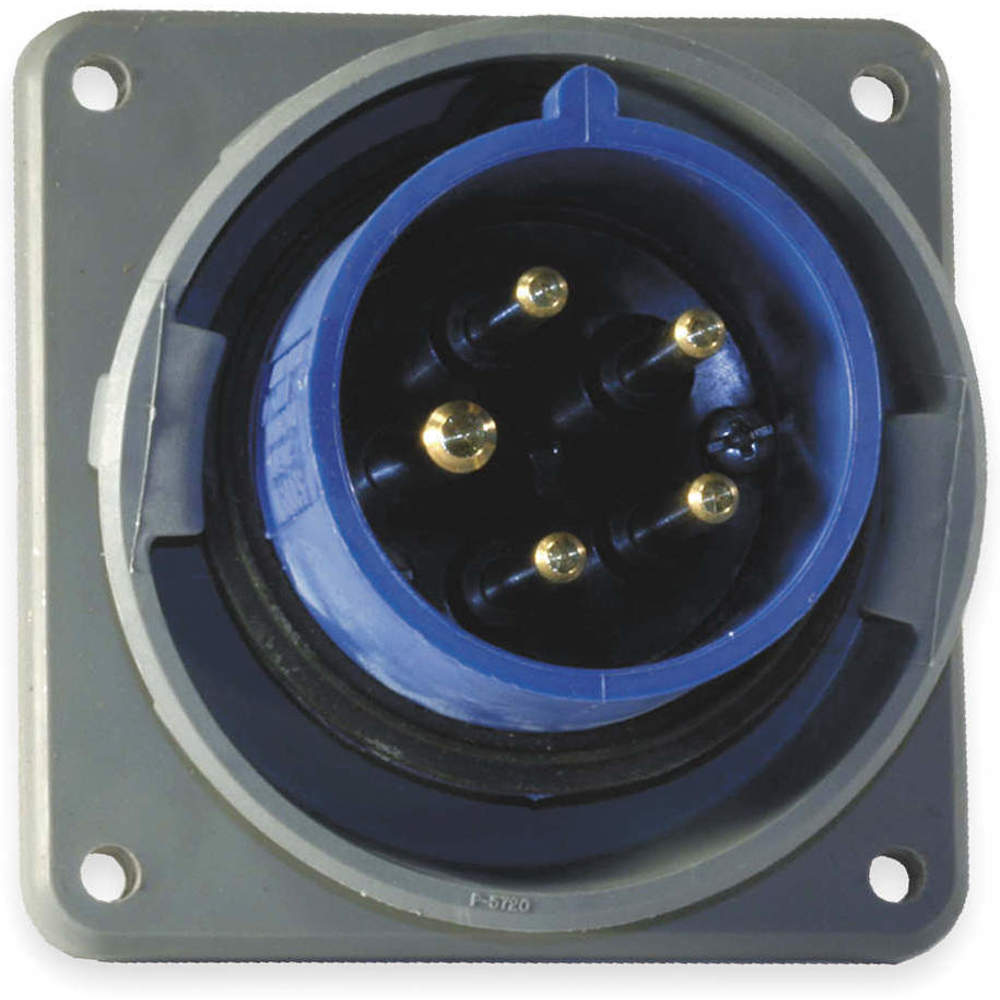

| D | HBL520B9W | 3 | 4.0 | 5 | 20A | 120/208V AC | 1/2 hp | Inlet | 20A | $413.96 | |
| D | HBL530B9W | 3 | 4.0 | 5 | 30A | 120/208V AC | 5 hp | Inlet | 30A | $726.71 |
