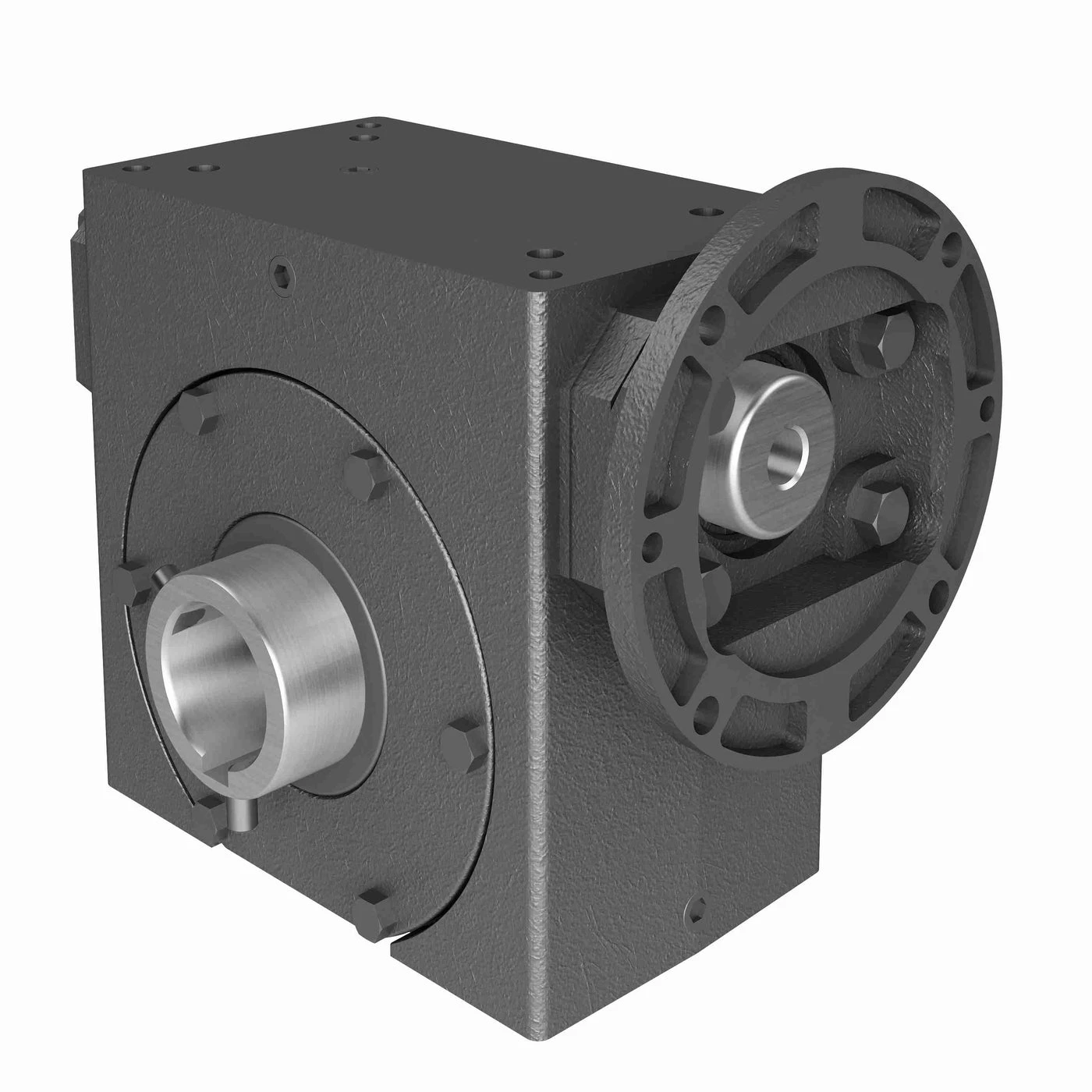

| Item | Speed Reducer |
|---|---|
| Center Distance | 3 1/4" |
| Center Distance Range | Above 3.25" |
| Frame Size | 180TC |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Hp Range | 5 hp to 7 1/2 hp |
| Input Dia. | 1 1/8" |
| Input Style | C Face Quill |
| Keyway Size | 1/4" x 1/8" |
| Max. Input Hp | 6 19/25 hp |
| No. Of Gear Reductions | 1 |
| Output Dia. | 2" |
|---|---|
| Output Rpm | 175 RPM |
| Output Shaft | Hollow Bore |
| Output Shaft Direction | Left Or Right |
| Output Torque Range | 1000 lbs.-in. to 2500 lbs.-in. |
| Product Line | Powercubex Worm Gear Drive |
| Product Type | Right Angle |
| Ratio | 10:1 |
| Service Factor | 1 |
| Style | A |
| Torque Rating | 2084 lbs.-in. |
| Height (cm) | 34.29 |
|---|---|
| Length (cm) | 35.56 |
| Width (cm) | 31.12 |
|---|---|
| Weight (kg) | 31.5 |
