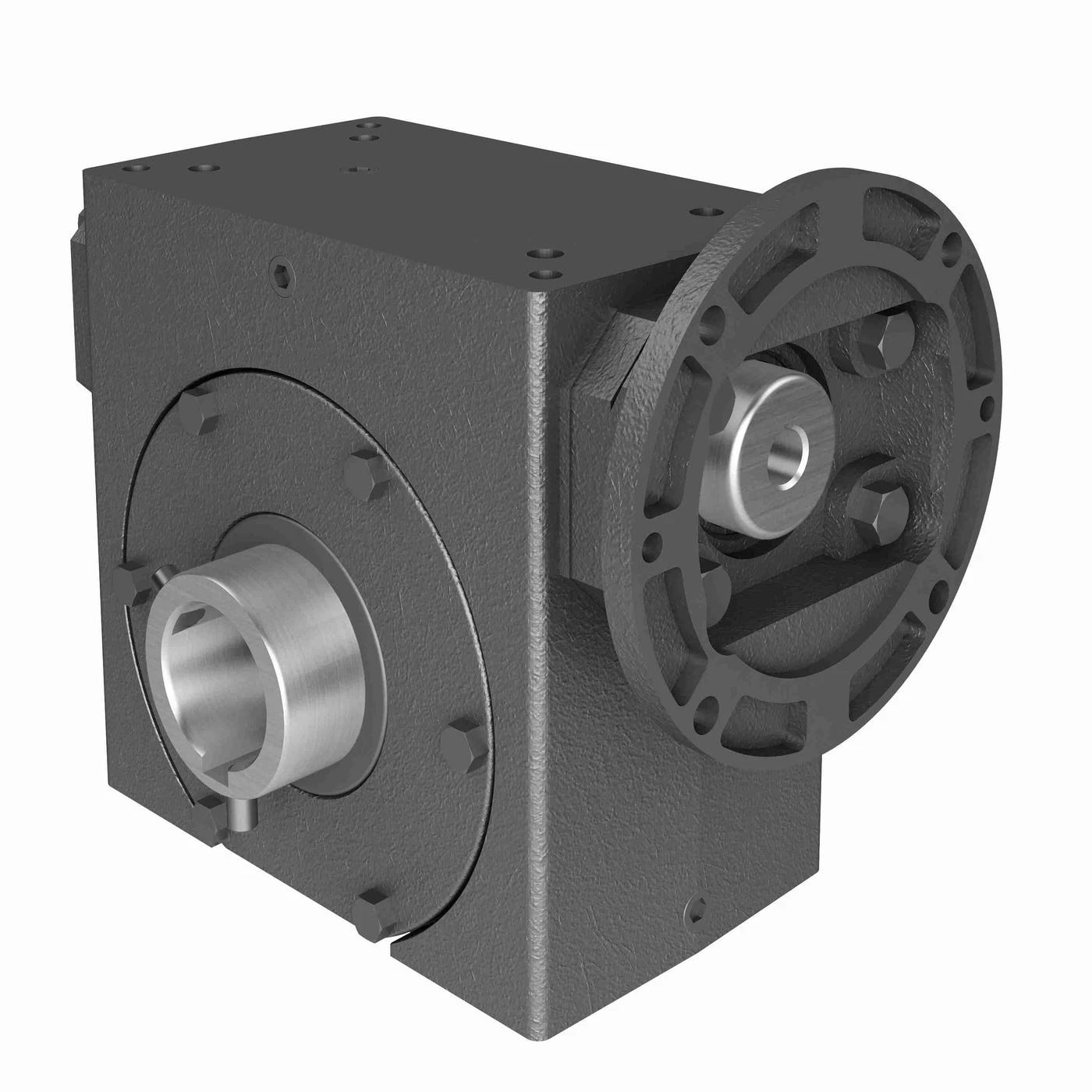

| Item | Speed Reducer |
|---|---|
| Center Distance | 3 1/4" |
| Center Distance Range | Above 3.25" |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Input Diameter | 5/8" |
| Input Hp | 1 17/20 hp |
| Input Style | C Face Quill |
| Keyway | 3/16" x 3/32" |
| Motor Frame Size | 56C |
| Mounting Style | A |
| Output | 29.2 RPM |
|---|---|
| Output Diameter | 1.938" |
| Output Shaft | Hollow Bore |
| Output Shaft Direction | Left, Right |
| Output Torque Range | 2500 lbs.-in. to 5000 lbs.-in. |
| Output Torque Rating | 2706 lbs.-in. |
| Ratio | 60:1 |
| Reduction | Single |
| Service Factor | 1 |
| Style | A |
