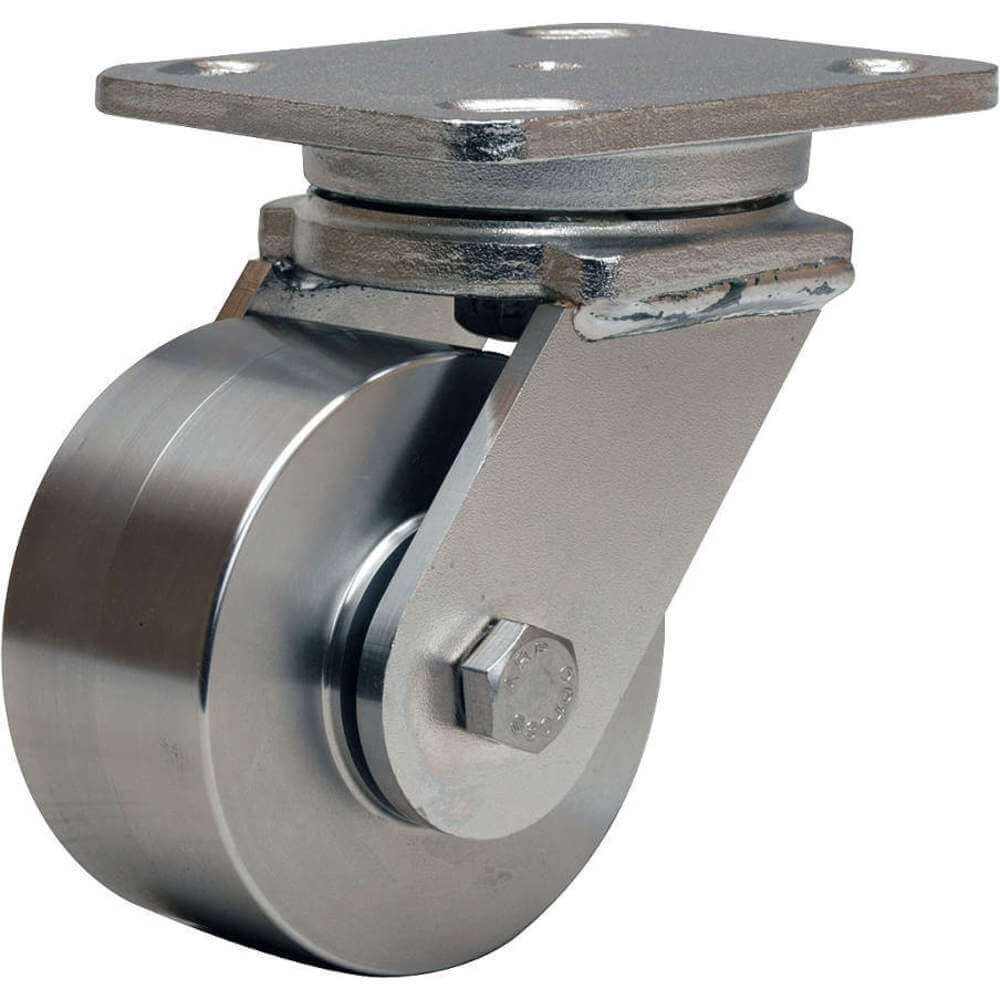

| Item | Swivel Plate Caster |
|---|---|
| Application | Stainless Steel Casters |
| Ball Material | Stainless Steel |
| Bearing Type | Double Ball |
| Caster Brake Included | No |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Stainless Steel |
| Caster Load Rating Range | 1000 lbs. to 2999 lbs. |
| Caster Material | Stainless Steel |
| Caster Product Group | Swivel Caster |
| Caster Sub-type | Swivel |
| Caster Temp. Range Available | Yes |
| Caster Type | Swivel |
| Caster Wheel Material | Stainless Steel |
| Caster Wheel Shape | Standard |
| Core Color | Silver |
| Core Material | Stainless Steel |
| Durometer | 201 BHN |
| Extended Lead | No |
| Features | Corrosion Resistant |
| Frame Finish | Stainless Steel |
| Frame Material | Stainless Steel |
| Hole Pattern | B |
| Includes | Spanner Bushing |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 2 5/8" x 3 5/8" |
| Load Rating | 1500 lbs. |
| Lock Type | No Lock Included |
| Mounting Height | 9 1/2" |
| Mounting Plate Bolt Hole Pattern | B |
|---|---|
| Mounting Plate Size | 4" x 5" |
| Mounting Plate Size & Bolt Hole Pattern | 4" X 5" ( B ) |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Operating Temp. Range | -40°F to +200°F |
| Outside Bolt Hole Spacing | 3" x 3" |
| Overall Height | 9 1/2" |
| Plate Size | 4" x 5" |
| Plate Thickness | 1/4" |
| Plate Type | B |
| Raceway Type | Double Ball |
| Replacement Wheel | 23EP83 |
| Standards | Icwm |
| Swivel Construction | Kingpin |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Double Ball |
| Swivel Radius | 0.0" |
| Tread Shape | Standard |
| Wheel Bearing Type | Precision Ball |
| Wheel Bearings | Stainless Steel Double Shielded Precision Ball |
| Wheel Color | Silver |
| Wheel Core Material | Stainless Steel |
| Wheel Diameter | 8" |
| Wheel/tread Color | Silver |
| Wheel/tread Hardness | 201 BHN |
| Wheel/tread Hardness Rating | Extra Hard |
| Wheel/tread Material | Stainless Steel |
| Height (cm) | 24.13 |
|---|---|
| Length (cm) | 22.86 |
| Width (cm) | 10.16 |
| HS Code | 8302200000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 15.2775 |
| Style | Model | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Caster Load Rating Range | Wheel/tread Material | Load Rating | Mounting Height | Core Color | Core Material | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | S-WHS-4UYSB | 2 5/8" x 3 5/8" | 3" x 3" | 300 lbs. to 999 lbs. | Polyurethane | 750 lbs. | 5 5/8" | Blue | Polyurethane | $643.50 | |
| B | S-WHS-4SB | 2 5/8" x 3 5/8" | 3" x 3" | 300 lbs. to 999 lbs. | Stainless Steel | - | 5 5/8" | Silver | Stainless Steel | $859.30 | |
| C | S-WHS-6SB | 2 5/8" x 3 5/8" | 3" x 3" | 1000 lbs. to 2999 lbs. | Stainless Steel | 1200 lbs. | 7 1/2" | Silver | Stainless Steel | $1,124.36 | |
| D | S-WHS-8UYSB | 3" x 3" | 2 5/8" x 3 5/8" | 1000 lbs. to 2999 lbs. | - | 1500 lbs. | - | Blue | Polyurethane | $717.41 |
