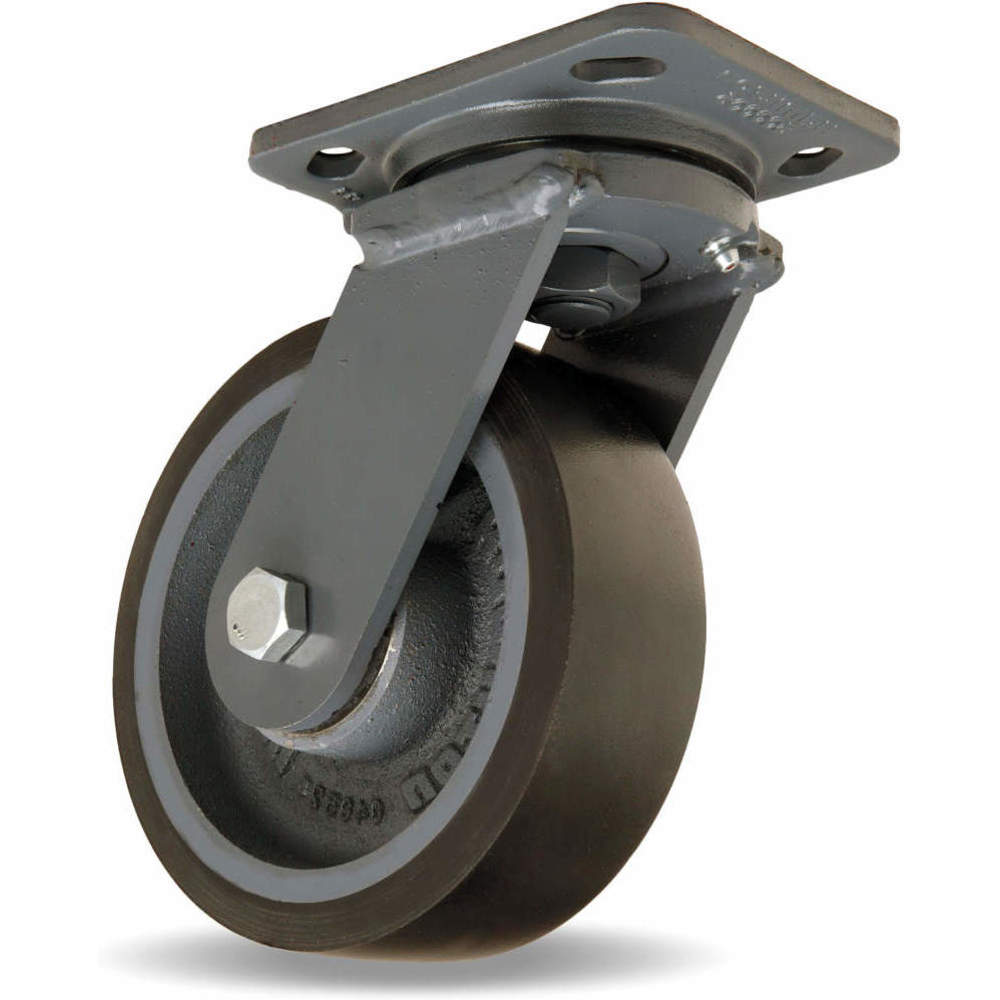

| Item | Swivel Plate Caster |
|---|---|
| Application | Aerospace Tooling, All Purpose Industrial And Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts |
| Bearing Type | Precision Ball |
| Caster Brake Included | No |
| Caster Brake Type | No Brake |
| Caster Frame Material | Steel |
| Caster Load Rating Range | 1000 lbs. to 2999 lbs. |
| Caster Material | Polyurethane |
| Caster Product Group | Swivel Caster |
| Caster Temp. Range Available | Yes |
| Caster Type | Swivel |
| Caster Wheel Material | Polyurethane |
| Caster Wheel Shape | Standard |
| Compatible Wheel Grainger Part Number | 49H455 |
| Core Color | Gray |
| Core Material | Cast Iron |
| Durometer | 70 Shore D |
| Duty Rating | Medium Duty |
| Extended Lead | No |
| Features | Floor Protective |
| For Axle Diameter | 1/2" |
| For Surface Type | Concrete |
| Frame Finish | Enamel |
| Frame Material | Steel |
| Hole Pattern | B |
| Includes | Spanner Bushing |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 2 5/8" x 3 5/8" |
| Inside Slot Spacing - Length | 3" |
| Inside Slot Spacing - Width | 2 5/8" |
| Load Capacity | 1560 lbs. |
| Load Rating | 1560 lbs. |
| Lock Type | No Lock Included |
| Mounting Bolt Dia. | 3/8" |
| Mounting Bolt Diameter | 1/2" |
| Mounting Height | 7 1/2" |
| Mounting Hole Type | Slot |
| Mounting Plate Length | 5" |
| Mounting Plate Shape | Rectangle |
| Mounting Plate Slot Angle | Angled Outward |
|---|---|
| Mounting Plate Thickness | 1/4" |
| Mounting Plate Width | 4" |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Operating Temp. Range | -40°F to +200°F |
| Outside Bolt Hole Spacing | 3" x 3" |
| Outside Slot Spacing - Length | 3 5/8" |
| Outside Slot Spacing - Width | 3" |
| Overall Height | 7 1/2" |
| Overall Wheel Width | 2" |
| Plate Caster Core Material | Cast Iron |
| Plate Caster Lock | No Lock Included |
| Plate Caster Wheel Material | Polyurethane |
| Plate Size | 4" x 5" |
| Plate Thickness | 1/4" |
| Plate Type | B |
| Raceway Type | Precision Ball |
| Standards | Ansi Icwm |
| Swivel Construction | Kingpin |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Single Ball |
| Swivel Radius | 0.0" |
| Tread Material | Polyurethane |
| Tread Shape | Standard |
| Unit Of Measurement | Imperial |
| Wheel Bearing Type | Ball |
| Wheel Bearings | Precision Ball |
| Wheel Color | Black |
| Wheel Core Material | Iron |
| Wheel Core Type | Solid |
| Wheel Diameter | 6" |
| Wheel Hardness | Firm, Hard |
| Wheel Hardness Rating | 70 Shore D |
| Wheel Type | Flat Free |
| Wheel Width | 2" |
| Wheel/tread Color | Black |
| Height (cm) | 12.7 |
|---|---|
| Length (cm) | 22.86 |
| Width (cm) | 17.78 |
| HS Code | 8716903000 |
|---|---|
| Weight (kg) | 5.3595 |
