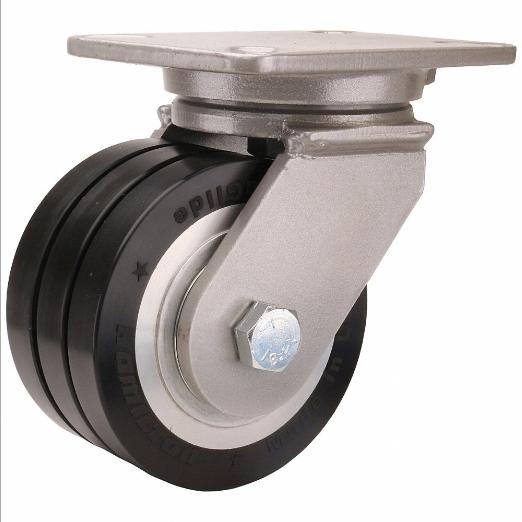

| Item | Swivel Plate Caster |
|---|---|
| Abrasion Resistance | High |
| Application | Fabrication, Heavy Machinery, Maintenance Repair & Operations, Warehouse & Distribution |
| Bolt Hole 1 | 3 3/8" x 5 1/4" |
| Bolt Hole 2 | 4 1/8" x 6 1/8" |
| Caster Brake Type | No Brake Included |
| Caster Color/finish | Platinum Powder |
| Caster Frame Material | Forged Steel, Steel |
| Caster Mounting Type | Plate |
| Caster Rig Type | Integral Forged Kingpin |
| Caster Sub-type | Swivel |
| Chemical Resistant | Medium |
| Core Color | Silver |
| Cushioning (resilience) | Medium |
| Features | Kingpin: 1" Diameter Integrally Forged With Mounting Plate Guaranteed For Life And Threaded For 1" Diameter Lock Nut, Metallic Haa Polyester Providing A Premium Look And Excellent Durability For Both Interior And Exterior Environments |
| For Axle Dia. | 3/4" |
| Frame Color | Crimson |
| Frame Finish | Powder Coated |
| High Temp. Range (f) | 200°F |
| Impact Resistance | High |
| Includes | Axle |
| Includes Mounting Fasteners | Yes |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 9/16" |
| Load Capacity | 3100 lbs. |
| Load Capacity @ 3 Mph | 3100 lbs. |
| Load Rating | 3100 lbs. |
| Low Temp. Range (f) | -50°F |
| Moisture Resistance | Medium |
| Mounting Bolt | 1/2" |
| Mounting Bolt Dia. | 1/2" |
| Mounting Height | 7 1/2" |
| Mounting Plate | 5 1/4" x 7 1/4" |
| Mounting Plate Bolt Hole Pattern | A |
| Mounting Plate Length | 7 1/4" |
| Mounting Plate Size | 5 1/4" x 7 1/4" |
|---|---|
| Mounting Plate Size & Bolt Hole Pattern | 5 1/4" X 7 1/4" ( A ) |
| Mounting Plate Thickness | 3/8" |
| Mounting Plate Width | 5 1/4" |
| Non-marking | No |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 3 |
| Outside Bolt Hole Spacing | 5 1/4 x 7 1/4 |
| Overall Height | 8" |
| Relative Capacity | High |
| Relative Cost | High |
| Replacement Wheel | W-630-SWF70D-3/4, W630SWF70D3/4 |
| Swivel Bearing Seal Type | Sealed |
| Swivel Construction | Kingpin |
| Swivel Lead | 2 1/4" |
| Swivel Lock Type | No Lock Included |
| Swivel Offset | 2 1/4" |
| Swivel Or Rigid Caster | Swivel |
| Swivel Raceway Type | Precision Ball |
| Tread Shape | Standard |
| Wheel Bearing Material | Steel |
| Wheel Bearing Type | Precision Ball |
| Wheel Color/finish | Black Tread On Alum Center |
| Wheel Core Material | Aluminum |
| Wheel Dia. | 6" |
| Wheel Face | 3" |
| Wheel Material @ Tread | Polyurethane |
| Wheel Type | UltraGlide XC |
| Wheel Width | 1" |
| Wheel/tread Color | Black |
| Wheel/tread Hardness | 70 Shore D |
| Wheel/tread Hardness Rating | Extra Hard |
| Wheel/tread Material | Polyurethane |
| With Toe Plate | No |
| Weight (kg) | 9.8685 |
|---|
