| Item | Swivel Plate Caster |
|---|---|
| Abrasion Resistance | High |
| Application | Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Casters, Chassis Rack Carts, Engine Dollies, Material Carts |
| Bearing Type | Precision Ball |
| Bolt Hole 1 | 3 3/8" x 5 1/4" |
| Bolt Hole 2 | 4 1/8" x 6 1/8" |
| Caster Brake Included | No |
| Caster Brake Type | No Brake Included |
| Caster Color/finish | Platinum Powder |
| Caster Frame Material | Steel |
| Caster Load Rating Range | 1000 lbs. to 2999 lbs. |
| Caster Material | Polyurethane |
| Caster Product Group | Swivel Caster |
| Caster Rig Type | Integral Forged Kingpin |
| Caster Sub-type | Swivel |
| Caster Temp. Range Available | Yes |
| Caster Type | Swivel |
| Caster Wheel Material | Polyurethane |
| Caster Wheel Shape | Standard |
| Chemical Resistant | Medium |
| Core Color | Gray |
| Core Material | Cast Iron |
| Cushioning (resilience) | Medium |
| Durometer | 90 Shore A |
| Extended Lead | No |
| Frame Finish | Enamel |
| Frame Material | Steel |
| High Temp. Range (f) | 200°F |
| Hole Pattern | A |
| Impact Resistance | Medium |
| Includes | Spanner Bushing |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 4 1/8" x 6 1/8" |
| Load Capacity | 2200 lbs. |
| Load Capacity @ 3 Mph | 2200 lbs. |
| Load Rating | 2200 lbs. |
| Lock Type | No Lock Included |
| Low Temp. Range (f) | -50°F |
| Moisture Resistance | Medium |
| Mounting Bolt | 1/2" |
| Mounting Bolt Dia. | 1/2" |
| Mounting Height | 8" |
| Mounting Plate | 5 1/4" x 7 1/4" |
|---|---|
| Mounting Plate Bolt Hole Pattern | A |
| Mounting Plate Length | 7 1/4" |
| Mounting Plate Size | 5 1/4" x 7 1/4" |
| Mounting Plate Size & Bolt Hole Pattern | 5 1/4" X 7 1/4" ( A ) |
| Mounting Plate Width | 5 1/4" |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Operating Temp. Range | -40°F to +200°F |
| Outside Bolt Hole Spacing | 3 3/8" x 5 1/4" |
| Overall Height | 8" |
| Plate Size | 5 1/4" x 7 1/4" |
| Plate Thickness | 1/2" |
| Plate Type | A |
| Raceway Type | Precision Ball |
| Relative Capacity | High |
| Relative Cost | Medium |
| Replacement Wheel | 4DU69, W-630-DB-3/4 |
| Standards | Icwm |
| Swivel Construction | Kingpin |
| Swivel Lock Type | No Lock Included |
| Swivel Offset | 2 1/4" |
| Swivel Or Rigid Caster | Swivel |
| Swivel Raceway Type | Single Ball |
| Swivel Radius | 0.0" |
| Tread Shape | Standard |
| Wheel Bearing Type | Precision Ball |
| Wheel Bearings | Precision Ball |
| Wheel Color | Green |
| Wheel Color/finish | Green Poly On Gray Center |
| Wheel Core Material | Cast Iron |
| Wheel Diameter | 6" |
| Wheel Face | 3" |
| Wheel Material | Polyurethane |
| Wheel Material @ Tread | Polyurethane |
| Wheel Type | Duralast |
| Wheel/tread Color | Green |
| Wheel/tread Hardness | 95 Shore A |
| Wheel/tread Hardness Rating | Firm |
| Wheel/tread Material | Polyurethane |
| Height (cm) | 20.32 |
|---|---|
| Length (cm) | 23.37 |
| Width (cm) | 13.97 |
| HS Code | 8302200000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 11.025 |
| Style | Model | Wheel Dia. | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Wheel Bearing Type | Load Rating | Caster Brake Type | Mounting Height | Caster Sub-type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

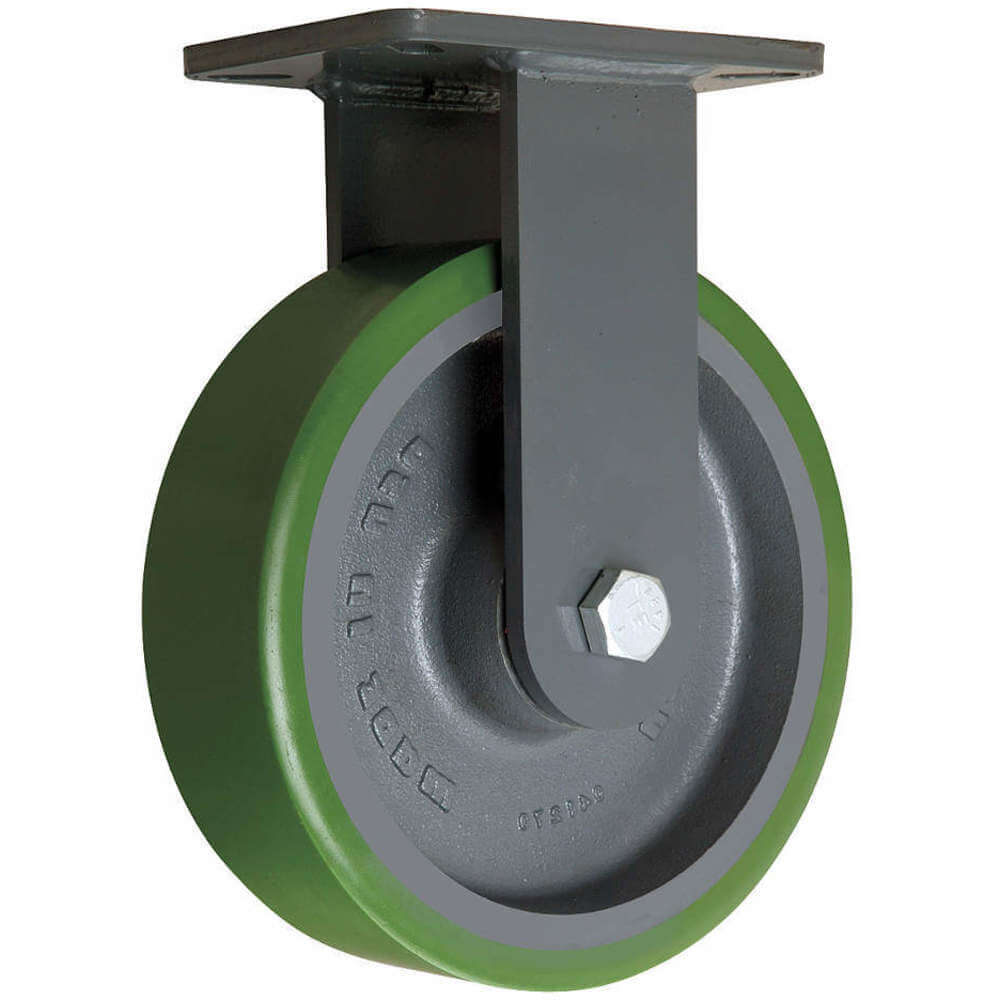

| A | R-CH-13DB | - | 4 1/8" x 6 1/8" | 3 3/8" x 5 1/4" | Precision Ball | 3000 lbs. | No Brake Included | 12 1/2" | Rigid | $377.18 | |
| B | R-CH-13FSB | 10" | 4 1/8" x 6 1/8" | 3 3/8" x 5 1/4" | Precision Ball | 4000 lbs. | No Brake Included | 12 1/2" | Rigid | $516.46 | |

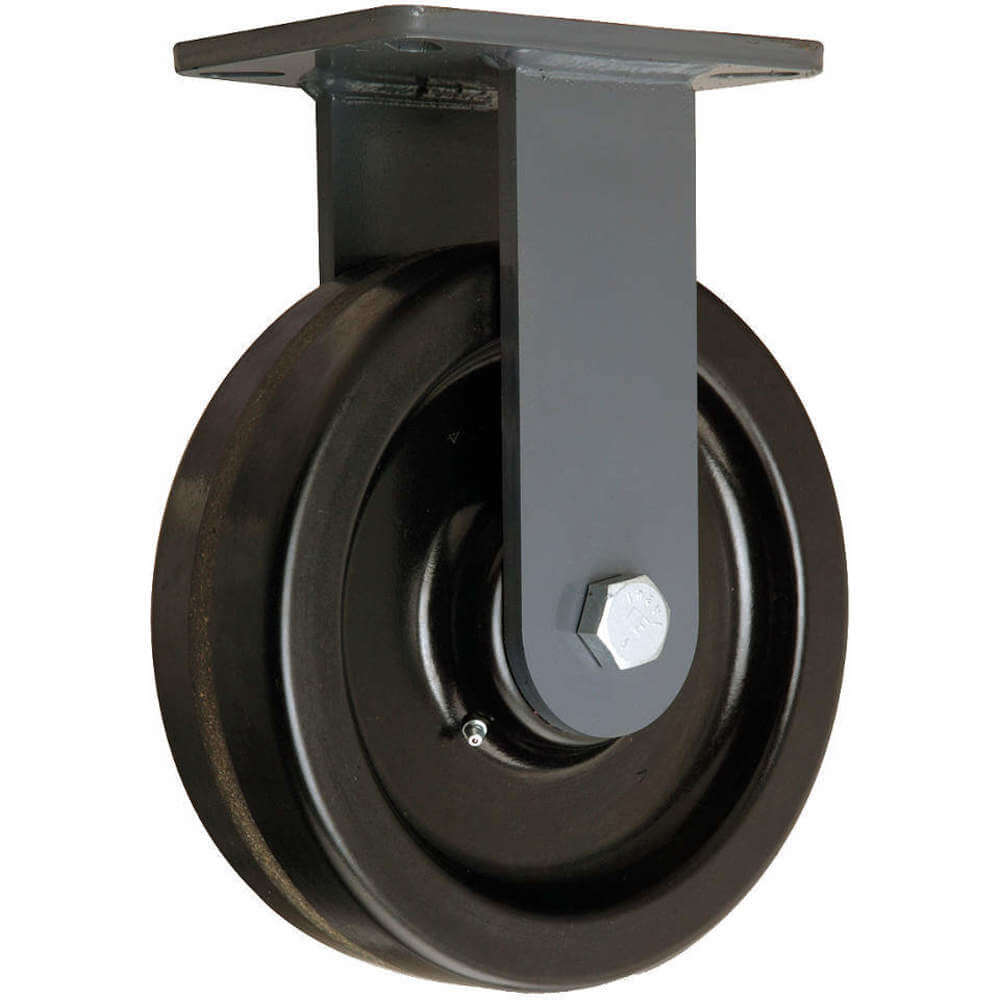

| C | R-CH-13PH | - | 4 1/8" x 6 1/8" | 3 3/8" x 5 1/4" | Roller | 2900 lbs. | No Brake Included | 12 1/2" | Rigid | $225.49 | |

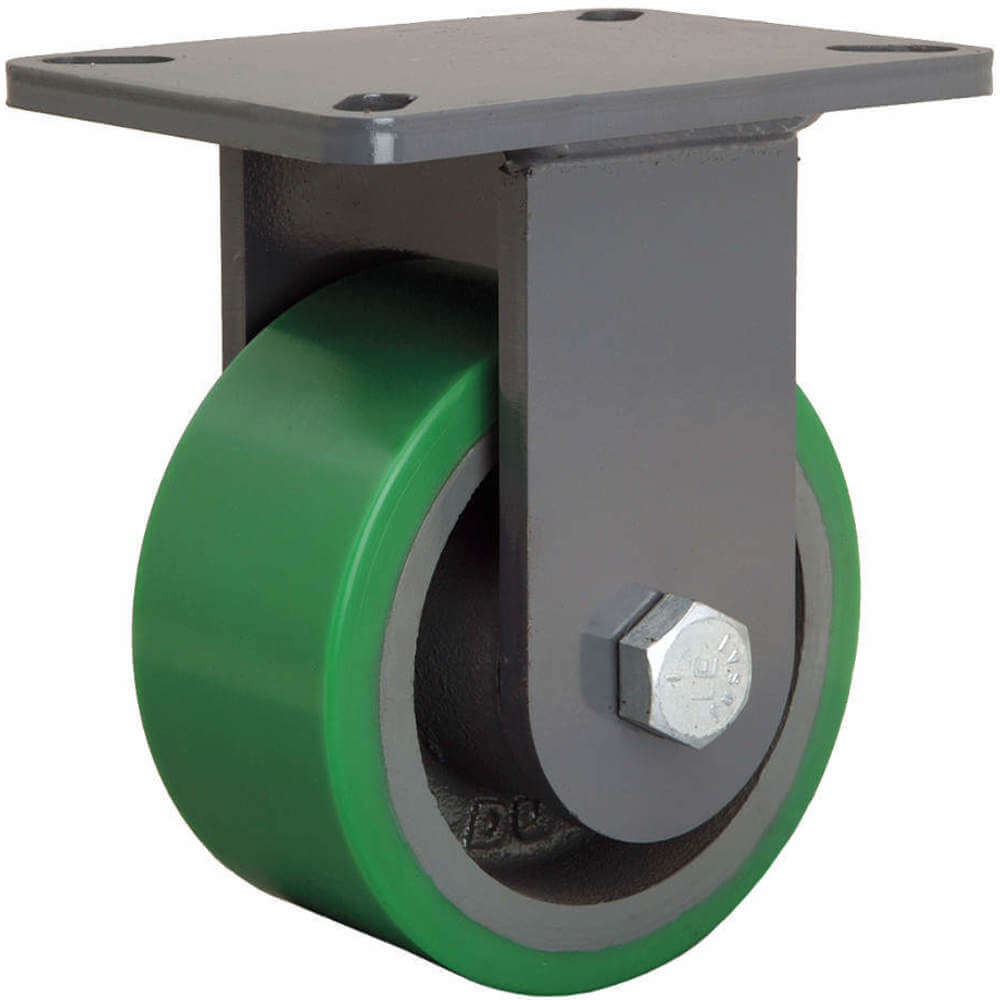

| D | R-CH-63DB | - | 4 1/8" x 6 1/8" | 3 3/8" x 5 1/4" | Precision Ball | 2200 lbs. | No Brake Included | 8" | Rigid | $246.66 | |
| E | R-CH-63FSB | - | 4 1/8" x 6 1/8" | 3 3/8" x 5 1/4" | Precision Ball | 4000 lbs. | No Brake Included | 8" | Rigid | $362.44 | |

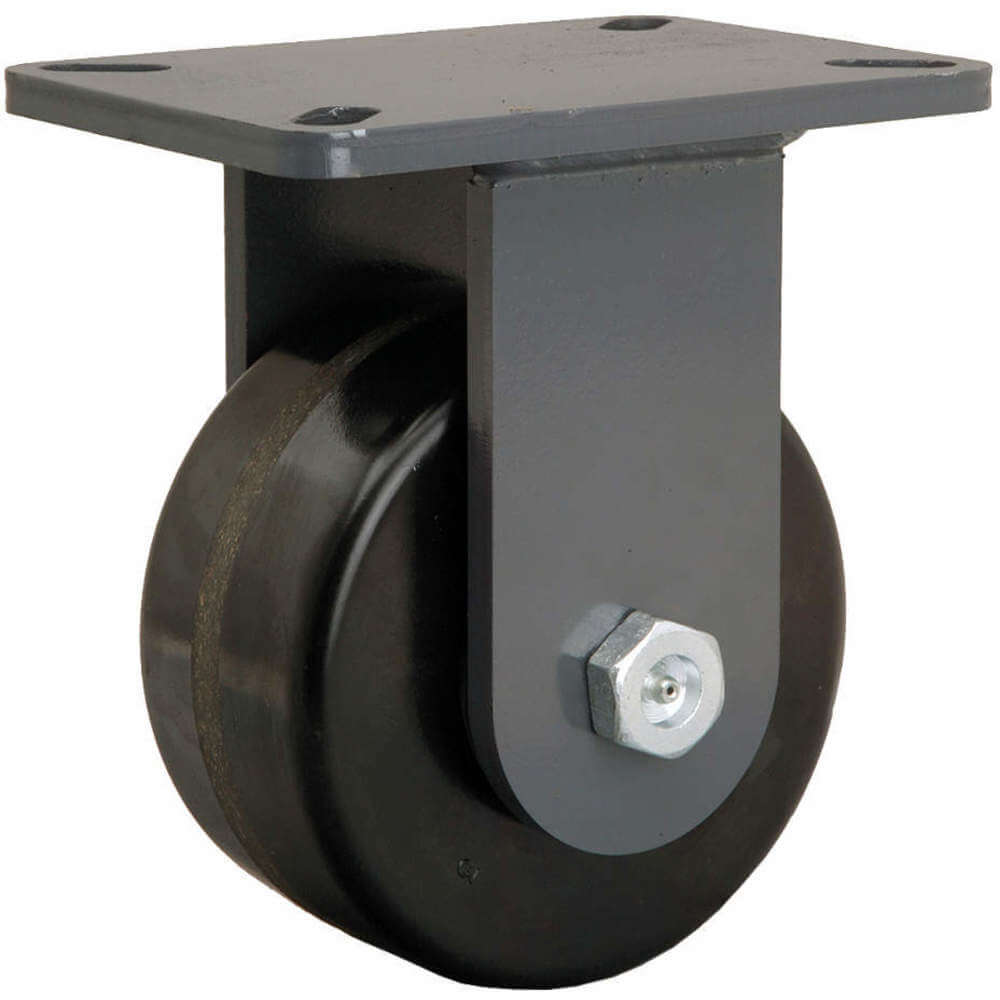

| F | R-CH-63PH | - | 3 3/8" x 5 1/4" | 4 1/8" x 6 1/8" | Roller | 2000 lbs. | No Brake | 8" | - | $174.36 | |

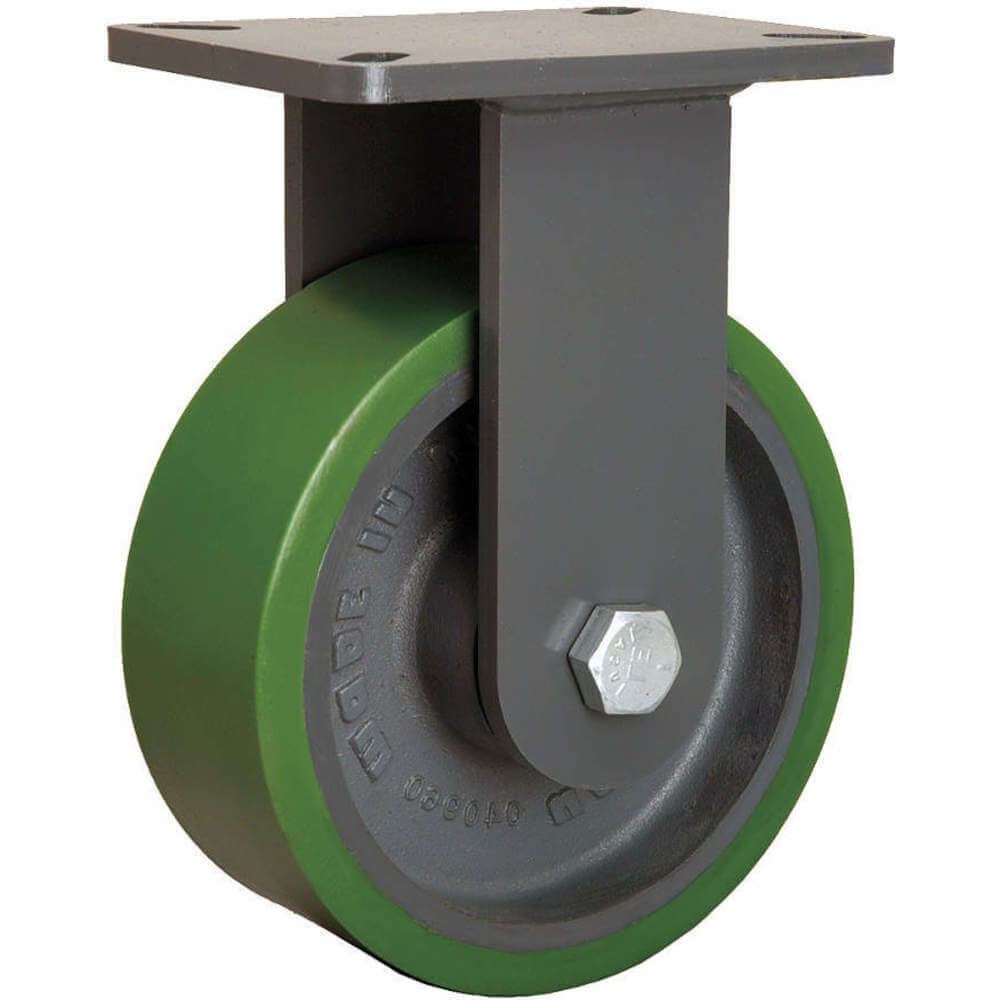

| G | R-CH-83DB | - | 4 1/8" x 6 1/8" | 3 3/8" x 5 1/4" | Precision Ball | 2500 lbs. | No Brake Included | 10 1/2" | Rigid | $310.81 |
