| Item | Rigid Plate Caster |
|---|---|
| Caster Brake Included | No |
| Caster Load Rating Range | 3000 to 5999 lb. |
| Caster Product Group | Rigid Caster |
| Caster Temp. Range Available | Yes |
| Caster Type | Rigid |
| Caster Wheel Material | Forged Steel |
| Caster Wheel Shape | Standard |
| Core Color | Silver |
| Core Material | Forged Steel |
| Durometer | 179 BHN |
| Extended Lead | No |
| Frame Finish | Gray Enamel |
| Frame Material | Steel |
| Hole Pattern | A |
| Inside Bolt Hole Spacing | 3-3/8 x 5-1/4" |
| Load Rating | 4000 lb. |
| Lock Type | No Lock Included |
|---|---|
| Mounting Bolt Dia. | 1/2" |
| Non-marking | No |
| Number Of Wheels | 1 |
| Outside Bolt Hole Spacing | 4-1/8 x 6-1/8" |
| Overall Height | 8" |
| Plate Size | 5-1/4 x 7-1/4" |
| Plate Thickness | 0.5" |
| Plate Type | A |
| Replacement Wheel | Mfr. No. W-630-FSB-3/4 |
| Swivel Radius | 0" |
| Temp. Range | -40 Degrees to 200 Degrees F |
| Wheel Bearings | Precision Ball |
| Wheel Color | Clear |
| Wheel Diameter | 6" |
| Wheel Material | Forged Steel |
| Wheel Width | 3" |
| Height (cm) | 13.97 |
|---|---|
| Length (cm) | 22.86 |
| Width (cm) | 19.05 |
| HS Code | 8302200000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 9.45 |
| Style | Model | Wheel Dia. | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Wheel Bearing Type | Load Rating | Caster Brake Type | Mounting Height | Caster Sub-type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | R-CH-13DB | - | 4 1/8" x 6 1/8" | 3 3/8" x 5 1/4" | Precision Ball | 3000 lbs. | No Brake Included | 12 1/2" | Rigid | $377.18 | |

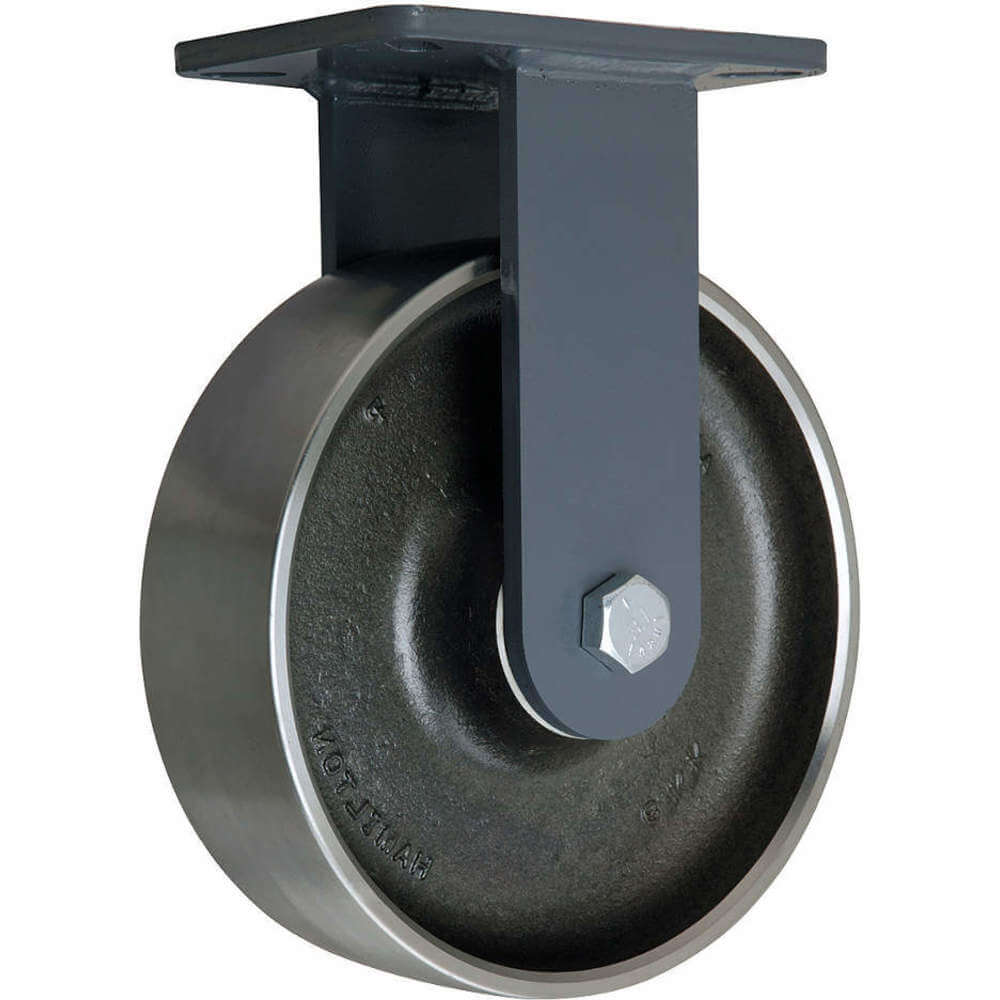

| B | R-CH-13FSB | 10" | 4 1/8" x 6 1/8" | 3 3/8" x 5 1/4" | Precision Ball | 4000 lbs. | No Brake Included | 12 1/2" | Rigid | $516.46 | |

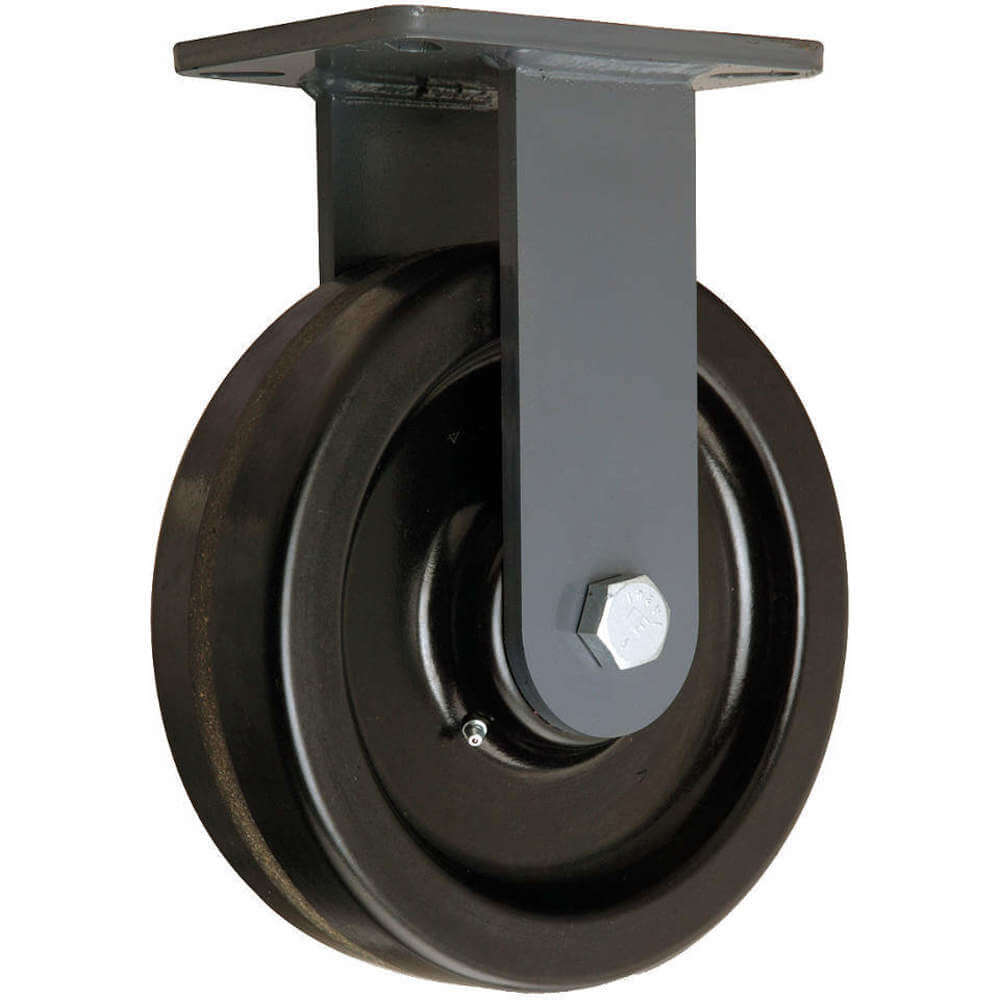

| C | R-CH-13PH | - | 4 1/8" x 6 1/8" | 3 3/8" x 5 1/4" | Roller | 2900 lbs. | No Brake Included | 12 1/2" | Rigid | $225.49 | |

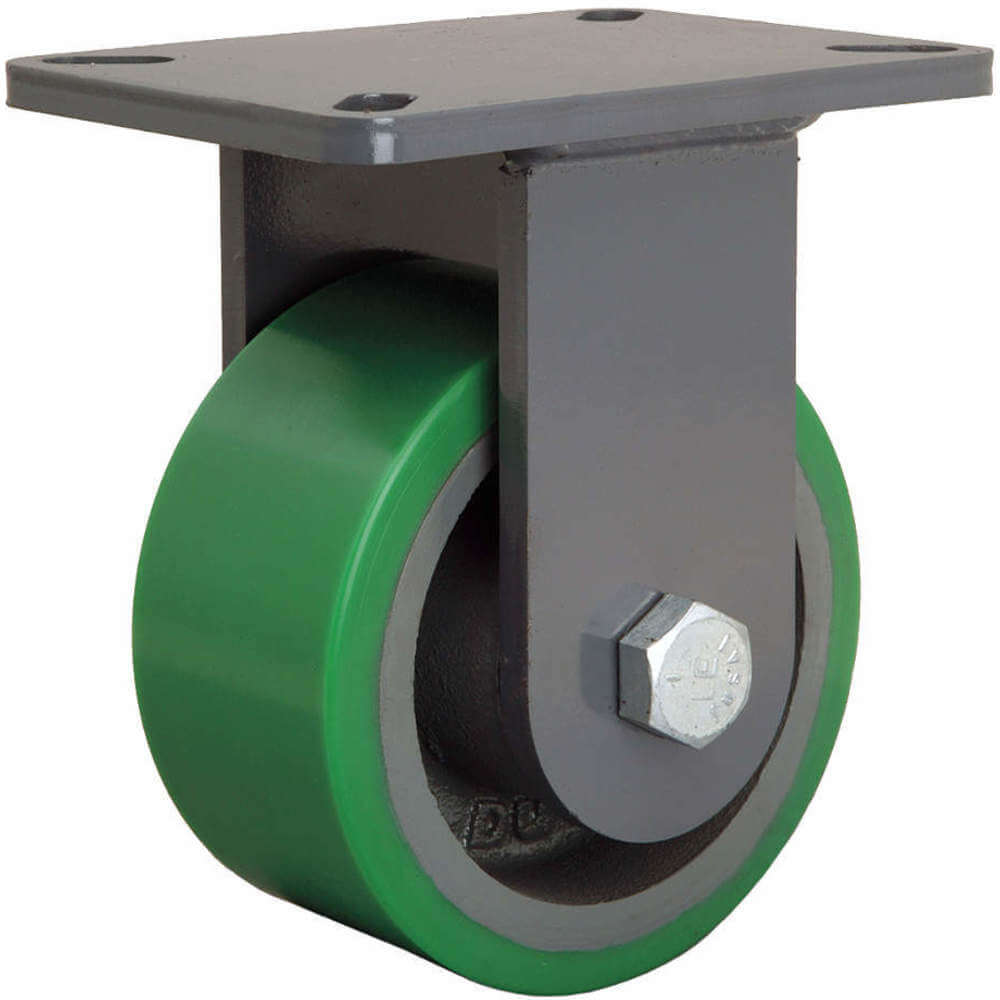

| D | R-CH-63DB | - | 4 1/8" x 6 1/8" | 3 3/8" x 5 1/4" | Precision Ball | 2200 lbs. | No Brake Included | 8" | Rigid | $246.66 | |
| E | R-CH-63PH | - | 3 3/8" x 5 1/4" | 4 1/8" x 6 1/8" | Roller | 2000 lbs. | No Brake | 8" | - | $174.36 | |
| F | R-CH-83DB | - | 4 1/8" x 6 1/8" | 3 3/8" x 5 1/4" | Precision Ball | 2500 lbs. | No Brake Included | 10 1/2" | Rigid | $310.81 | |

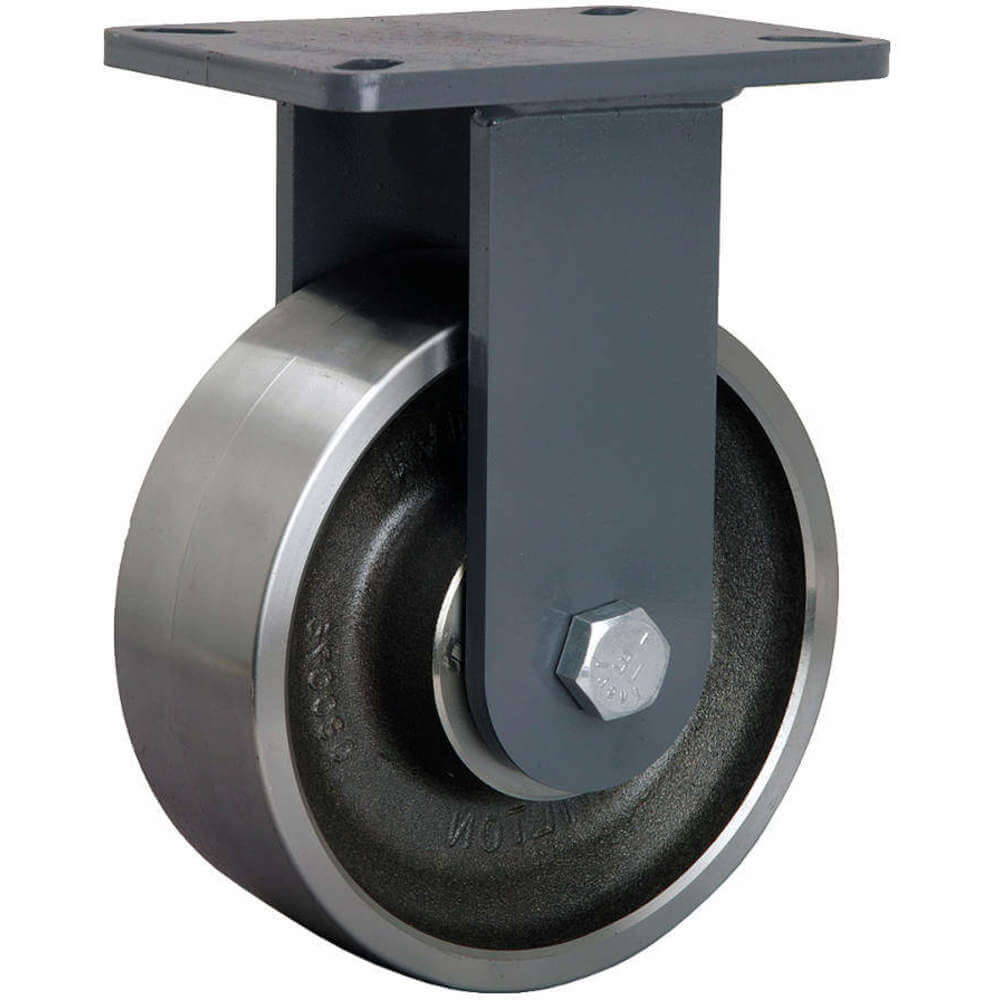

| G | R-CH-83FSB | - | 4 1/8" x 6 1/8" | 3 3/8" x 5 1/4" | Precision Ball | 4000 lbs. | No Brake Included | 10 1/2" | Rigid | $386.85 |
