| Item | Socket Head Cap Screw |
|---|---|
| Class | Class 10.9 |
| Combined Material & Grade | Class 10.9 Steel |
| Dimensional Standards | Iso 7380-1 |
| Display Qty | 100 |
| Drive Size | 6 mm |
| Drive Type | Socket |
| Finish | Black Oxide |
| Hardness | Rockwell C32-C39 |
| Head Dia. | 14 mm |
| Head Height | 4.4 mm |
| Head Type | Button |
| Length | 40 mm |
| Material | Steel |
| Material Grade/class | Class 10.9 |
| Material Type | Steel |
|---|---|
| Maximum Temperature | 302°F |
| Min. Tensile Strength | 1200 N/sq. mm |
| Minimum Temperature | -58°F |
| Minimum Thread Length | 40 mm |
| Screw Length | 40 mm |
| System Of Measurement | Metric |
| Temp. Range | -58°F to +302°F |
| Tensile Strength | 145000 psi |
| Thread Direction | Right Hand |
| Thread Length | 40 mm |
| Thread Size | M8 x 1.25 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
| Height (cm) | 2.54 |
|---|---|
| Length (cm) | 38.1 |
| Width (cm) | 17.78 |
|---|---|
| Weight (kg) | 1.5674 |
| Style | Model | Thread Size | Thread Style | Drive Size | Head Dia. | Head Height | Thread Length | Min. Tensile Strength | Hardness | Pkg. Qty. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

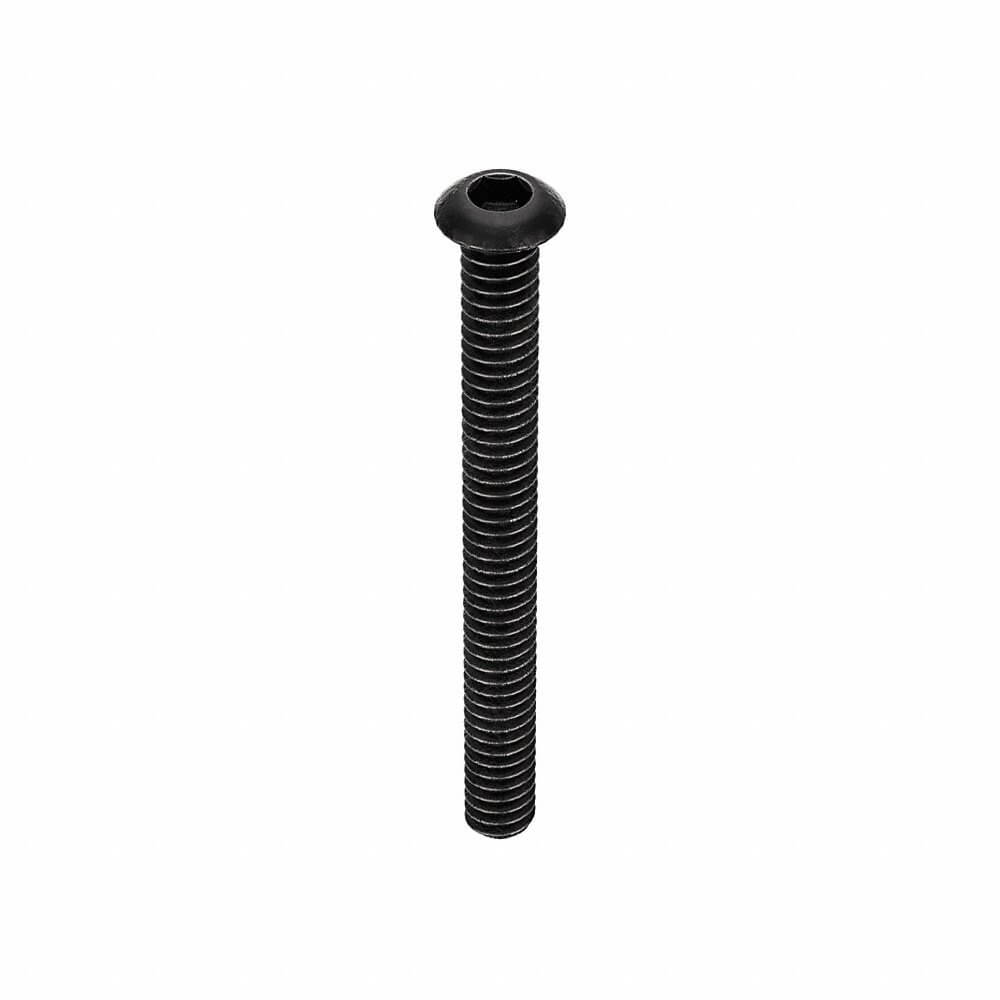

| A | U07150.019.0200 | #10-24 | Fully Threaded | 1/8" | 0.361" | 0.101" | 2" | 145000 psi | Rockwell C37-C45 | 100 | $21.21 | |
| B | U07150.031.0100 | 5/16"-18 | Fully Threaded | 3/16" | 0.547" | 0.166" | 1" | 145000 psi | Rockwell C37-C45 | 50 | $23.71 | |

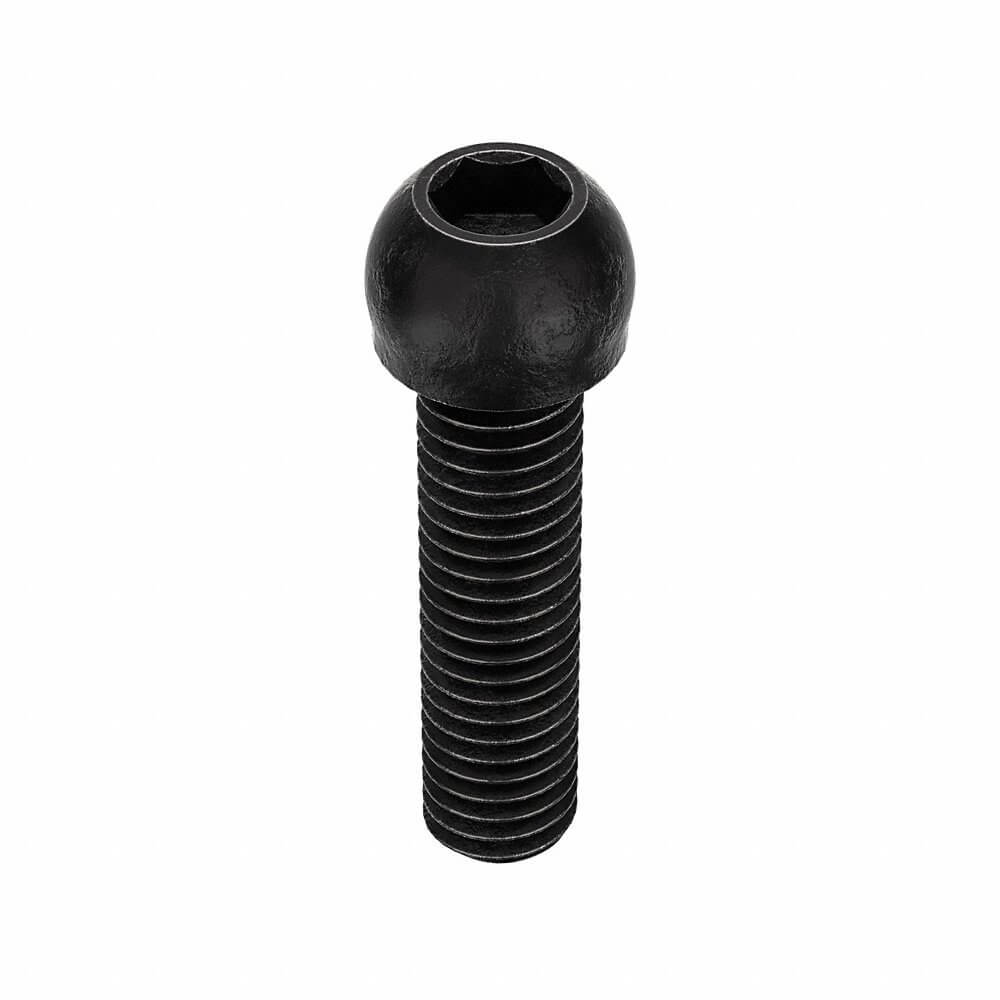

| C | U07150.037.0150 | 3/8"-16 | Fully Threaded | 7/32" | 0.656" | 0.199" | 1 1/2" | 145000 psi | Rockwell C37-C45 | 25 | $18.29 | |

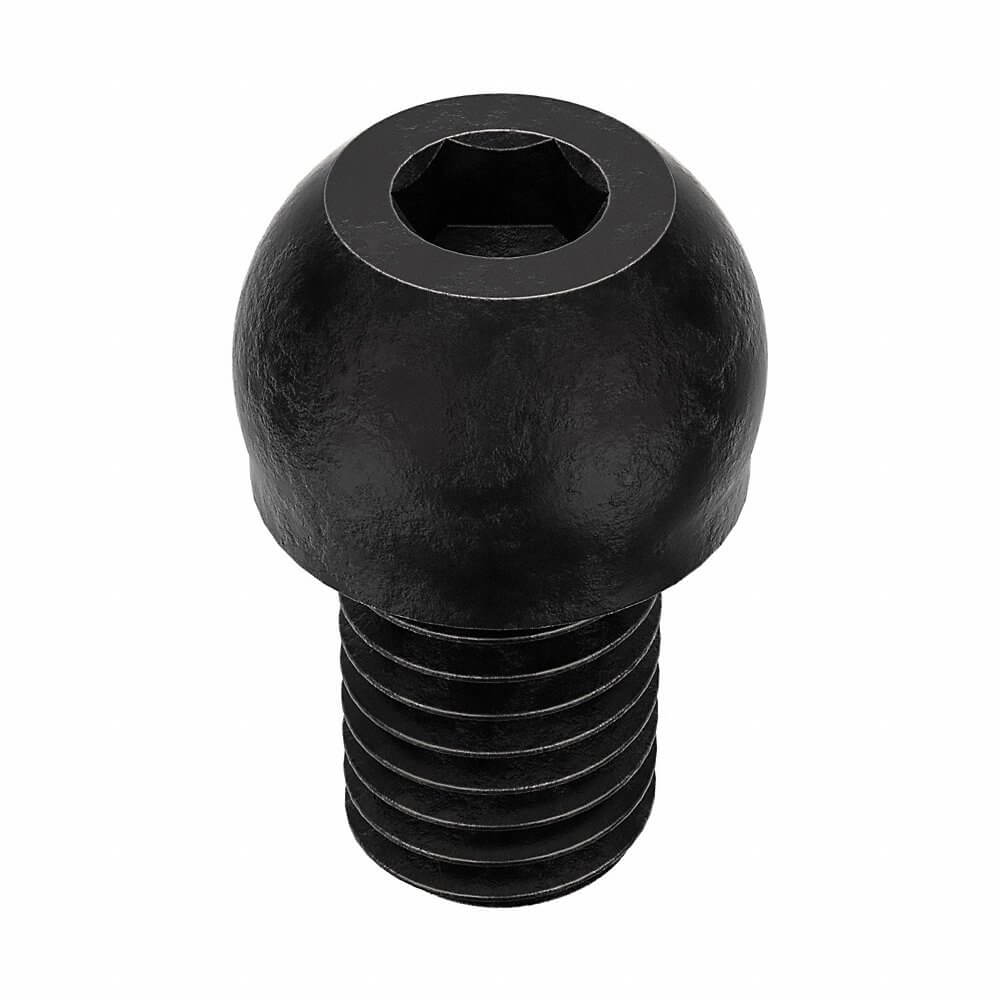

| D | U07150.050.0075 | 1/2"-13 | Fully Threaded | 5/16" | 7/8" | 0.265" | 3/4" | 145000 psi | Rockwell C37-C45 | 10 | $16.36 | |

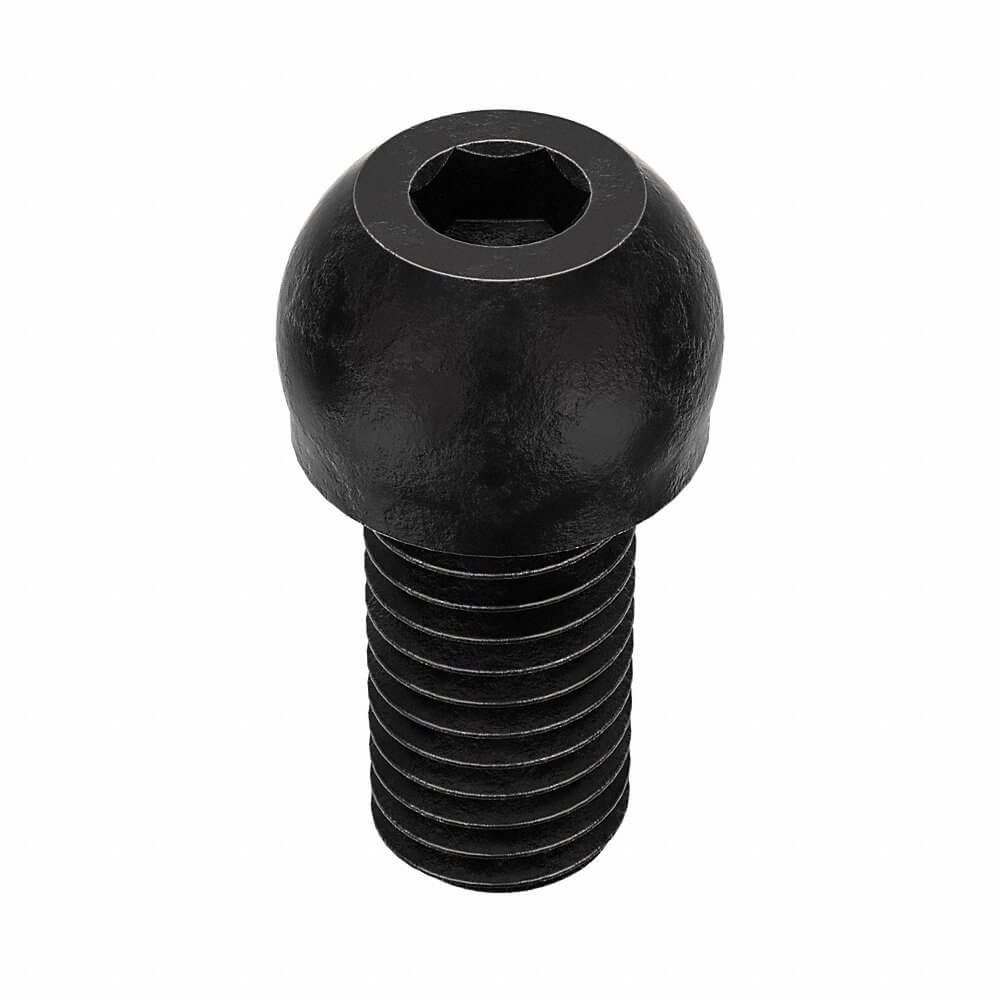

| E | U07150.050.0100 | 1/2"-13 | Fully Threaded | 5/16" | 7/8" | 0.265" | 1" | 145000 psi | Rockwell C37-C45 | 10 | $17.59 | |

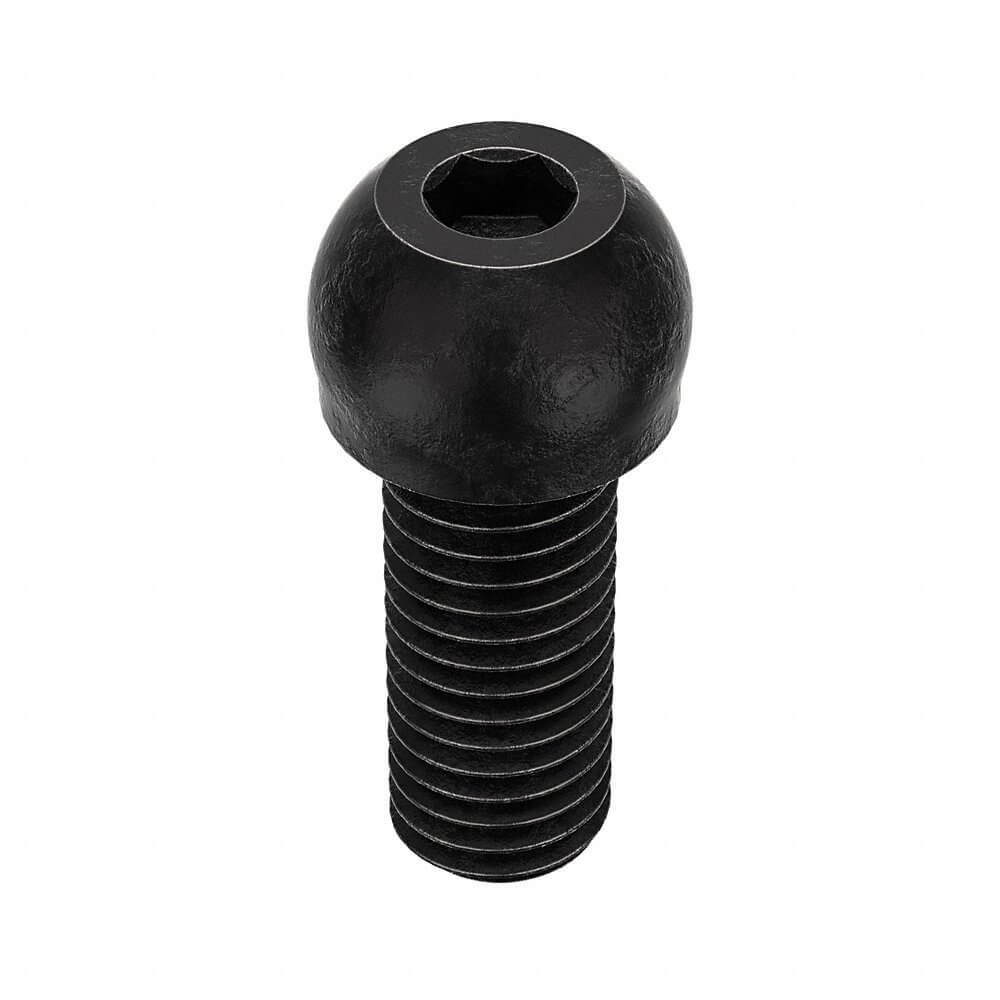

| F | U07150.050.0125 | 1/2"-13 | Fully Threaded | 5/16" | 7/8" | 0.265" | 1 1/4" | 145000 psi | Rockwell C37-C45 | 10 | $14.27 | |

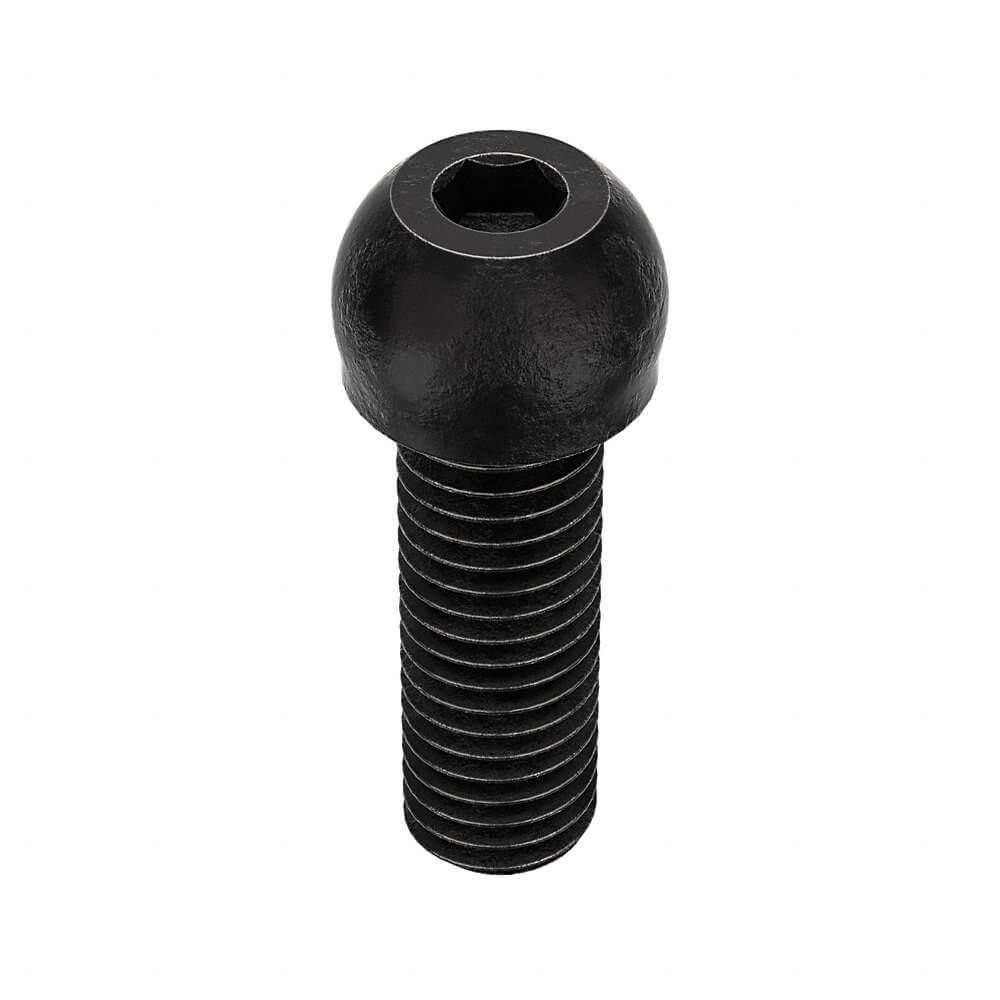

| G | U07150.050.0150 | 1/2"-13 | Fully Threaded | 5/16" | 7/8" | 0.265" | 1 1/2" | 145000 psi | Rockwell C37-C45 | 10 | $16.69 |
