| Item | Computer Cable |
|---|---|
| Application | Communications, Computer Systems, Control Systems |
| Cable Length | 1000 ft. |
| Capacitance | 26.2 pF/ft. |
| Color | Gray |
| Conductor Gauge | 22 AWG |
| Conductor Size | 22 AWG |
| Conductor Type | Stranded |
| Drain Wire | Single |
| Facing Material | Conductors |
| Fire Rating | Riser |
| Insulation Material | S R PVC |
| Insulation Thickness | 0.01" |
| Jacket Color | Gray |
| Jacket Material | PVC |
| Jacket Thickness | 0.032" |
| Length | 1000 ft. |
| Maximum Operating Temperature | 176°F |
| Maximum Voltage Rating | 300V |
| Minimum Operating Temperature | -4°F |
| Nec Article | 800 |
| Nec Article And Type | 800 CMR |
| Nominal Outside Dia. | 0.62" |
|---|---|
| Number Of Conductors | 25 |
| Number Of Pairs | 25 |
| Number Of Strands | 7 |
| Outer Dia. | 0.62" |
| Outside Diameter | 0.6" |
| Pairing | Paired |
| Plenum Or Riser | Riser |
| Power Limited | Power Limited |
| Product Series | Computer Wire |
| Product Type | Communication Cable |
| Shielded | Shielded |
| Shielded / Unshielded | Shielded |
| Shielding | Two Layer Overall |
| Shielding Material | 100% Aluminum, 100% Polyester Flexfoil, 65% Tinned Copper Braid |
| Solid/stranded | Stranded |
| Spool/coil Length | 1000 ft. |
| Temp. Range | -4°F to +176°F |
| Voltage | 300V |
| Wire Gauge | 22 AWG |
| Standards | CE 2006/95/EC, CSA CMG, CSA CMG FLAME TEST, FCC DOCKET 20789, NEC ARTICLE 800 CMR, ROHS COMPLIANT, UL 70, 000 BTU VERTICAL TRAY FLAME TEST, UL STYLE 2464 |
| Height (cm) | 26.2 |
|---|---|
| Length (cm) | 26.99 |
| Width (cm) | 26.99 |
| HS Code | 8544493080 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 8.235 |
| Style | Model | Number Of Conductors | Number Of Strands | Insulation Material | Voltage | Capacitance | Nominal Outside Dia. | Conductor Size | Spool/coil Length | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | C0600A.41.10 | 2 | 7 | S R PVC | 300V | 19.7 pF/ft. | 0.157" | 24 AWG | 1000 ft. | $501.67 | |
| A | C0603A.41.10 | 8 | 7 | S R PVC | 300V | 25.7 pF/ft. | 0.245" | 24 AWG | - | $1,343.90 | |

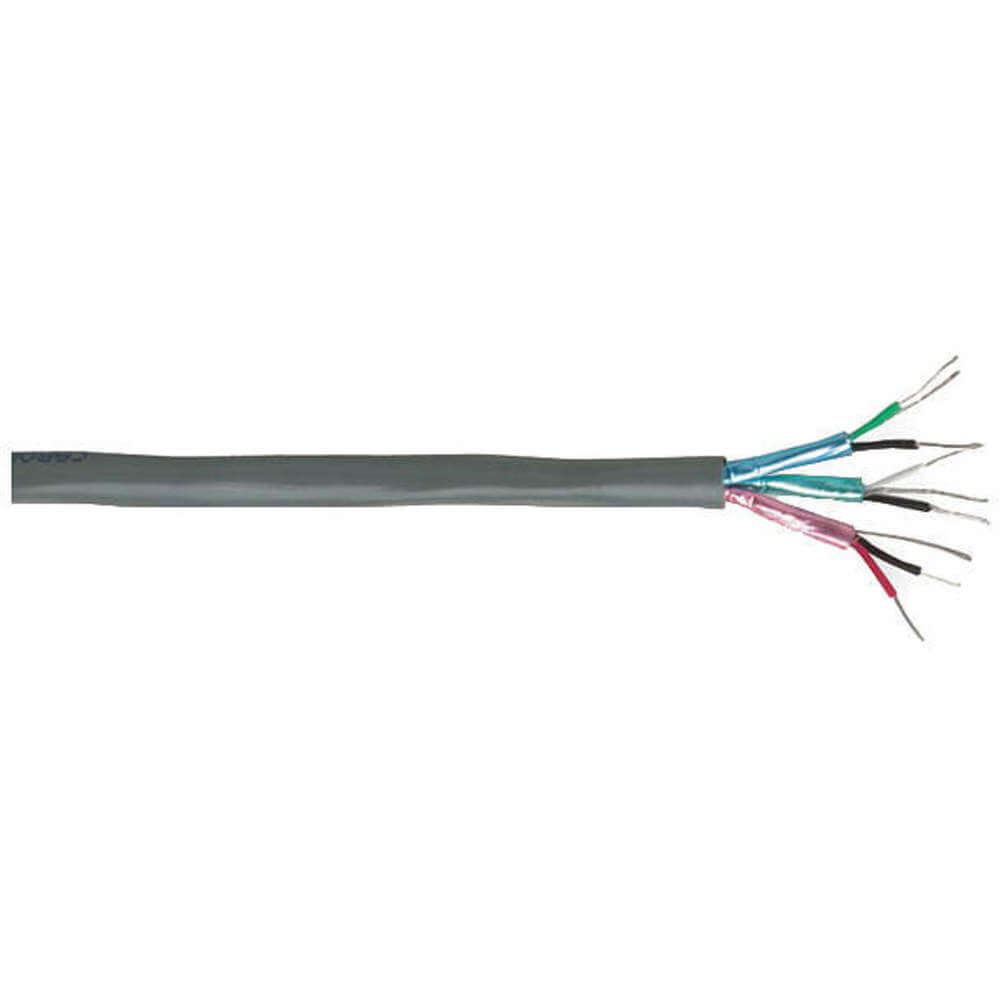

| B | C0650A.41.10 | 4 | - | PVC | 300V | 33.2 pF/ft. | 0.229" | 22 AWG | 1000 | - | RFQ
|
| C | C0654A.41.10 | 12 | - | - | 300V | 26.2 pF/ft. | 0.348" | - | - | - | RFQ
|
| A | C0720A.41.10 | 2 | 7 | S R PVC | 300V | 40.4 pF/ft. | 0.169" | 22 AWG | 1000 ft. | $634.58 | |
| A | C0721A.41.10 | 4 | 7 | S R PVC | 300V | 32.3 pF/ft. | 0.234" | 22 AWG | - | $899.45 | |
| A | C0723A.41.10 | 8 | 7 | S R PVC | 300V | 27.8 pF/ft. | 0.269" | - | - | - | RFQ
|
