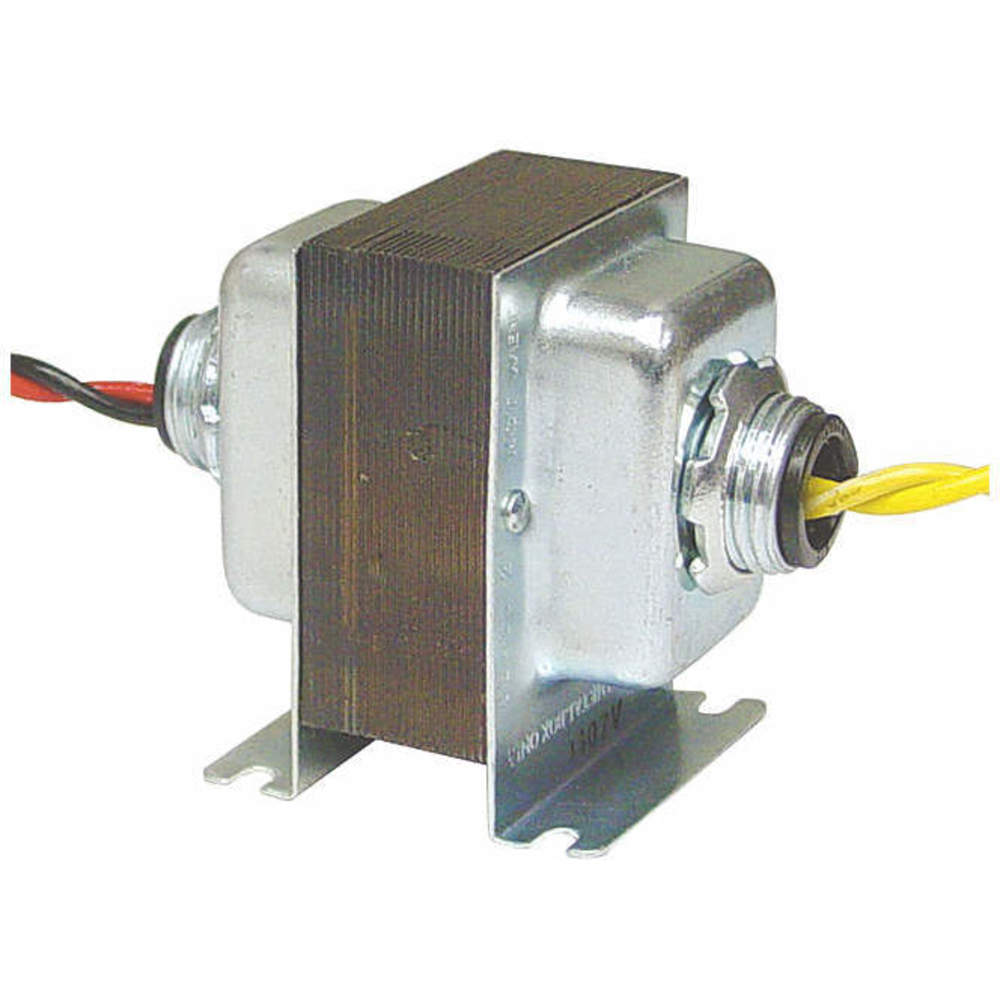

| Item | Class 2 Transformer |
|---|---|
| Connection - Primary | Wire Lead |
| Connection - Secondary | Wire Leads |
| Depth | 2.19" |
| Enclosure Finish | No Finish |
| Enclosure Rating | Not Rated |
| Enclosure Style | Open |
| Enclosure Type | Indoor |
| Frequency | 50/60 Hz |
| Height | 2 22/25" |
| Indoor/outdoor | Indoor |
| Input Voltage | 24V AC |
| Manufacturers Warranty Length | 5 yrs. |
| Mounting | Foot, Hub |
| Nema Enclosure Rating | Not Rated |
| Operating Temperature - Maximum | 140°F |
|---|---|
| Operating Temperature - Minimum | -30°F |
| Output Voltage | 24V AC |
| Overall Depth | 2.63" |
| Overall Height | 2 22/25" |
| Overall Width | 2.17" |
| Phase | 1 |
| Power Rating | 40 VA |
| Protective Device | Inherently Limited |
| Standards | Ce, Rohs, Ul Listed |
| Temp. Rise | Not Rated |
| Width | 2.69" |
| Wire Lead Length - Primary | 8" |
| Wire Lead Length - Secondary | 8" |
| Height (cm) | 8.13 |
|---|---|
| Length (cm) | 11.43 |
| Width (cm) | 6.35 |
| HS Code | 8504314065 |
|---|---|
| Country Of Origin | CN |
| Weight (kg) | 0.873 |
| Style | Model | Input Voltage | Mounting | Number Of Outputs | Enclosure Finish | Height | Output Voltage | Temp. Rise | Enclosure Rating | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | TR20VA001 | 120V AC | Foot, Hub | - | No Finish | 2.63" | 24V AC | Not Rated | Not Rated | $32.44 | |
| B | TR20VA003 | 24V AC | Foot, Hub | - | No Finish | 2.63" | 24V AC | Not Rated | Not Rated | $33.63 | |
| C | TR20VA007 | 277V AC | Foot, Hub | - | No Finish | 2.63" | 24V AC | Not Rated | Not Rated | $31.11 | |
| D | TR40VA001 | 120V AC | Foot, Hub | - | No Finish | 2 22/25" | 24V AC | Not Rated | Not Rated | $41.94 | |
| E | TR40VA015 | 120/208/240V AC | Foot, Hub | - | No Finish | 2 22/25" | 24V AC | Not Rated | Not Rated | $51.91 | |
| F | TR40VA004 | - | Foot Or Dual 1/2" NPT Hub | - | No Finish | 2 22/25" | - | Not Rated | Not Rated | $51.13 | |
| G | TR20VA002 | 208V AC | Dual Hub, Foot | - | No Finish | 2.616" | 24V AC | Not Rated | Not Rated | $35.39 |
