| Item | Current Sensor |
|---|---|
| Adjustment Method | Switch |
| Amps | 0.5-150A |
| Body Depth | 2.52" |
| Body Height | 1.75" |
| Body Width | 2" |
| Contact Form | SPST/NO |
| Contact Rating (ac) | 1A @ 120V |
| Core Type | Split |
| Current Rating | 1A |
| Electrical Connection | Terminal Strip |
| Electrical Connection Type | Wire Lead |
| For Use With | Sensors |
| Input Voltage | 120V AC |
| Maximum Switching Voltage | 120V AC |
| Monitored Parameters | Overcurrent, Undercurrent |
|---|---|
| Mounting | Tab |
| Number Of Pins/terminals | 2 |
| Overall Depth | 1.75" |
| Relay Mounting Style | Surface |
| Sensing Hole Diameter | 0.52" |
| Sensor Range | 0.5-150A |
| Status Indicator | No Indicator |
| Trip Delay | 1 sec. |
| Trip Point | 0.5A |
| Trip Point (amps) | 0.5A |
| Trip Point Type | Fixed |
| Type | Split, Wire Leads |
| Wire Size | 18 AWG |
| standard | CE CERTIFIED, CSFM, ROHS COMPLIANT, UL 864, UL 916, UL LISTED |

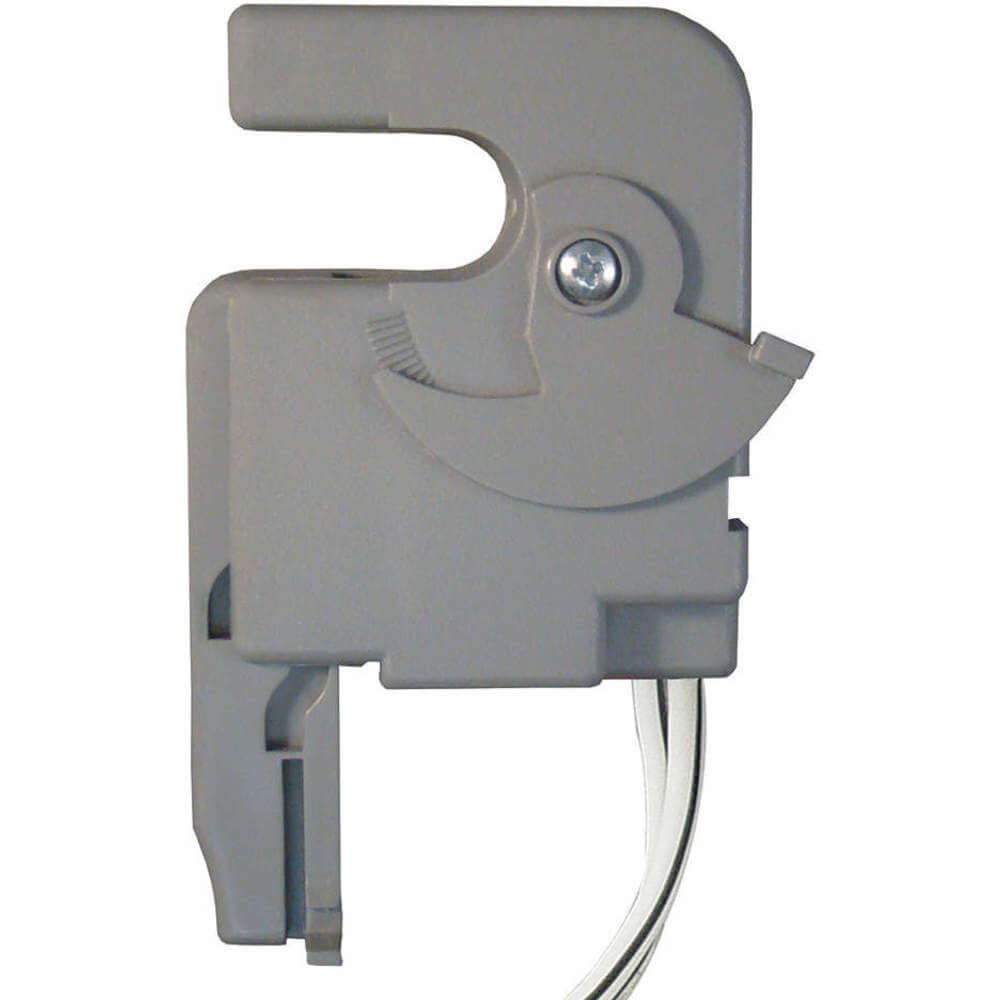

Functional Devices RIBXGHF current sensor is ideal for measuring and controlling electrical loads in industrial settings. This current sensor ensures the efficient functioning of equipment by providing accurate current data. The device is essential for maintaining electrical systems' health, preventing overloads and promoting overall safety.
| Height (cm) | 11.18 |
|---|---|
| Length (cm) | 6.6 |
| Width (cm) | 5.33 |
| HS Code | 9030330040 |
|---|---|
| Weight (kg) | 0.126 |
This sensor allows surface mounting for easy integration into various setups.
It features an electrical connection via wire lead, facilitating flexible connectivity.
It can accommodate wire sizes up to 18 AWG.
