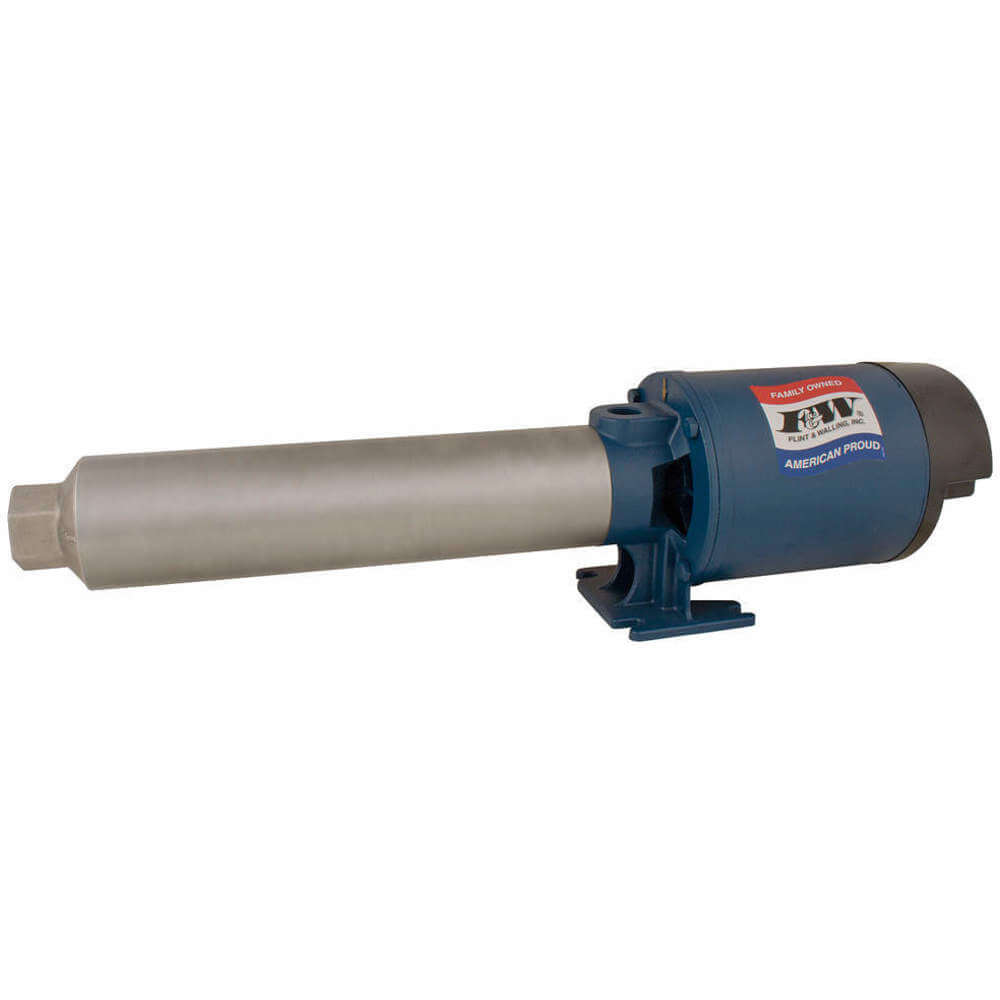

| Item | Multi-Stage Booster Pump |
|---|---|
| Amps | 14/7A |
| Bearing Type | Ball |
| Best Efficiency Flow Range @ Head | 9 to 5 GPM @ 185 to 288 ft. |
| Best Efficiency Flow Rate @ Head | 8 GPM @ 236 ft. |
| Compatible Discharge Pipe Size | 3/4" |
| Compatible Intake Pipe Size | 3/4" |
| Compatible With Media Type | Clear Water Only |
| Connection Type | NPT |
| Connector Type | Direct Wire |
| Coupling Material | Stainless Steel |
| Diffuser Material | Noryl |
| Discharge Type | NPT |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Flow Rate @ 10 Psi | 14 GPM |
| Flow Rate @ 100 Psi | 7.9 GPM |
| Flow Rate @ 120 Psi | 6 GPM |
| Flow Rate @ 140 Psi | 3.6 GPM |
| Flow Rate @ 15 Psi | 13.5 GPM |
| Flow Rate @ 20 Psi | 13.4 GPM |
| Flow Rate @ 30 Psi | 12.9 GPM |
| Flow Rate @ 40 Psi | 12.2 GPM |
| Flow Rate @ 50 Psi | 11.5 GPM |
| Flow Rate @ 60 Psi | 10.9 GPM |
| Flow Rate @ 70 Psi | 10.2 GPM |
| Flow Rate @ 80 Psi | 9.5 GPM |
| Flow Rate @ 90 Psi | 8.8 GPM |
| For Media Type | Clear Water Only |
| For Use With Potable Systems | No |
| Frame | 56J |
| Frequency | 60 Hz |
| Grade | Grade 303, Grade 304, Grade 316 |
| Height | 9" |
| Housing Material | Cast Iron |
| Hp | 3/4 hp |
| Hp - Pumps | 3/4 hp |
| Impeller Design | Closed |
| Impeller Material | Noryl |
| Impeller Type | Closed |
| Includes | Kit, Vertical Motor Cover |
| Inlet Size | 3/4" |
| Inlet Type | FNPT |
| Intake And Discharge Size | 3/4" |
| Intake Size | 3/4" |
| Length | 23 7/8" |
| Manufacturer Warranty Length | 1 yr. |
| Max. Ambient Temp. | 149°F |
| Max. Case Pressure | 300 psi |
|---|---|
| Max. Dia. Solids | 0" |
| Max. Flow Rate | 41.5 GPM |
| Max. Media Temp. | 140°F |
| Max. Pressure | 152 psi |
| Media Type | Water |
| Min. Ambient Temp. | 65°F |
| Min. Flow Rate | 1.5 GPM |
| Min. Media Temp. | 34°F |
| Motor Ambient Temperature (maximum) | 149°F |
| Motor Enclosure - Pumps | Open Dripproof |
| Motor Enclosure Design | Open Dripproof |
| Motor Speed | 3450 RPM |
| Motor Type | Capacitor Start |
| Mounting Orientation | Horizontal |
| No. Of Stages | 12 |
| Number Of Stages | 12 |
| Number Of Stages - Pumps | 12 |
| Outlet Size | 3/4" |
| Outlet Type | FNPT |
| Overall Height | 9" |
| Overall Length | 23 22/25" |
| Overall Width | 6 1/2" |
| Overload Thermal Protection | Yes |
| Phase | 1 |
| Pressure Boost (maximum) | 216 psi |
| Priming | Manual |
| Pump Housing Material | Cast Iron |
| Pumping Application | Booster Service, General Purpose, Jockey Pump, Pressure Cleaning, Reverse Osmosis, Spray Or Mist Systems, Water Circulation |
| Rpm (maximum) | 3450 RPM |
| Seal Application | Clear Water |
| Seal Material | Buna N, Carbon, Ceramic, Stainless Steel |
| Seal Type | Type 21 |
| Self Priming | Manual |
| Series | PB Series |
| Service Factor | 1.5 |
| Shaft Material | Stainless Steel |
| Shut Off Pressure | 158 psi |
| Shut Off Pressure (maximum) | 158 psi |
| Solid Diameter (maximum) | 0" |
| Stages | 12 |
| Suction Lift | 0 ft. |
| Suction Lift (maximum) | 0 ft. |
| Type | Standard |
| Voltage | 115/230V AC |
| Wetted Material Grade | Grade 304 , Stainless Steel, Bronze, Buna N, Cast Iron, Ceramic, Noryl |
| Width | 6 1/2" |
| standard | CSAUS CERTIFIED |
| Height (cm) | 29.72 |
|---|---|
| Length (cm) | 85.6 |
| Width (cm) | 29.21 |
| HS Code | 8413702040 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 20.0025 |
| Style | Model | Flow Rate @ 40 Psi | Flow Rate @ 50 Psi | Flow Rate @ 60 Psi | Hp | Pump Housing Material | Phase | Flow Rate @ 70 Psi | Flow Rate @ 80 Psi | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | PB0512A051 | 8.3 GPM | 7.6 GPM | 7.1 GPM | 1/2 hp | Cast Iron | 1 | 6.5 GPM | 6 GPM | $1,008.71 | |
| A | PB0712A073 | 12.2 GPM | 11.5 GPM | 10.9 GPM | 3/4 hp | Cast Iron | 3 | 10.2 GPM | 9.5 GPM | $1,229.39 | |
| A | PB0516A071 | 9.1 GPM | 8.8 GPM | 8.3 GPM | 3/4 hp | Cast Iron | 1 | 8 GPM | 7.5 GPM | $1,227.11 | |
| A | PB0516A073 | 9.1 GPM | 8.8 GPM | 8.3 GPM | 3/4 hp | Cast Iron | 3 | 8 GPM | 7.5 GPM | $1,328.91 | |
| A | PB1014A101 | 14.5 GPM | 14 GPM | 13.4 GPM | 1 hp | Cast Iron | 1 | 13 GPM | 12.3 GPM | $1,211.31 | |
| A | PB1014A103 | 14.5 GPM | 14 GPM | 13.4 GPM | 1 hp | Cast Iron | 3 | 13 GPM | 12.3 GPM | $1,274.27 | |
| A | PB1016A151 | 15 GPM | 14.5 GPM | 14.1 GPM | 1 1/2 hp | Cast Iron | 1 | 13.5 GPM | 13.1 GPM | $1,303.61 |
