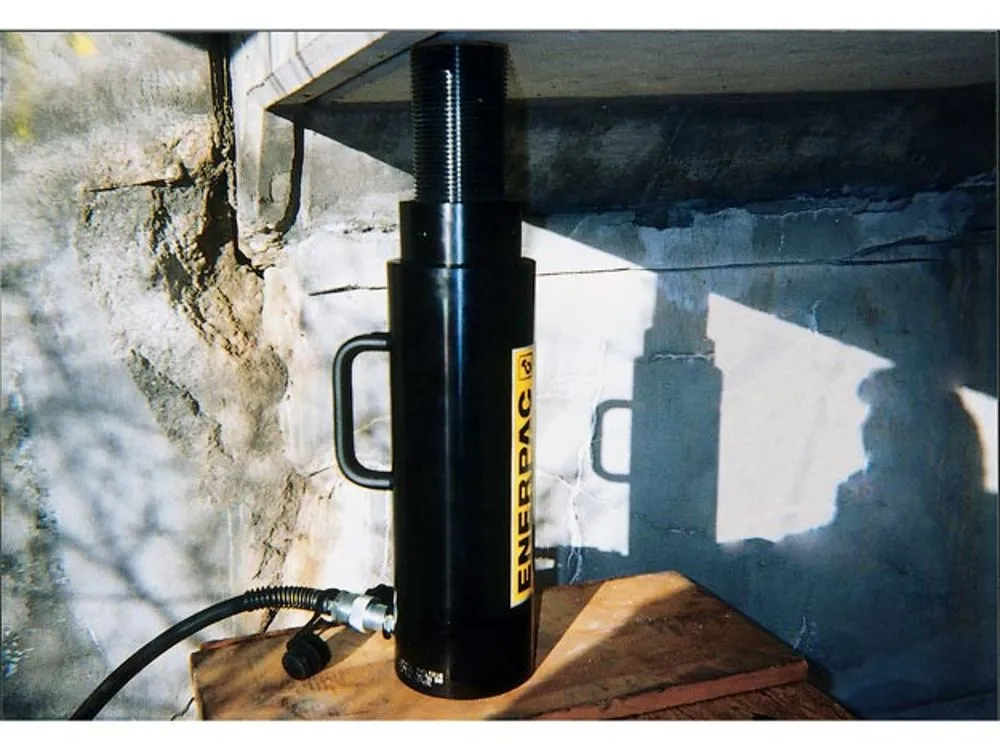

| Item | Hydraulic Cylinder |
|---|---|
| Base Bolt Circle Dia. | 7.87" |
| Body Material | Aluminum |
| Bolt Circle Dia. | 7.87" |
| Center Hole Dia. | 6 11/16" |
| Collapsed Height | 12 18/25" |
| Cylinder Bore | 6.69" |
| Cylinder Type | Lock Nut |
| Effective Push Area | 35.18 sq. in. |
| Extended Height | 14.69" |
| Finish | Anodized |
| Handle | Yes |
| Includes | Coupler, Dust Cap |
| Lock Nut Height | 3.15" |
| Material | Aluminum |
| Max. Operating Pressure | 10000 psi |
| Nominal Capacity | 150 ton. |
| Nominal Stroke Length | 2" |
| Oil Capacity | 69.25 cu. in. |
|---|---|
| Oil Capacity Push | 69.3 cu. in. |
| Optional Tilt Saddle Addition To Collapsed Height | 0.71" |
| Optional Tilt Saddle Dia. | 4 24/25" |
| Outside Dia. | 9.06" |
| Plunger Dia. | 5.51" |
| Plunger Thread Size | M6 |
| Plunger Type | Solid |
| Promotion Restriction | Not Eligible For Promotion |
| Retracted Height | 12.72" |
| Saddle Diameter | 4.45" |
| Saddle Max. Tilt Angle | 5° |
| Saddle Protrusion From Plunger | 3/25" |
| Series | RACL Series |
| Single Acting/double Acting | Single Acting |
| Stroke Length | 1 7/8" |
| Weighing Capacity | 150 ton. |
| Height (cm) | 22.86 |
|---|---|
| Length (cm) | 55.88 |
| Width (cm) | 22.86 |
| HS Code | 8425420000 |
|---|---|
| Country Of Origin | IN |
| Weight (kg) | 49.59 |
