| Item | Motor Circuit Protector |
|---|---|
| Ac Voltage Rating | 600V AC |
| Amperage Rating | 50A |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Free Standing |
| Circuit Breaker Type | Standard |
| Dc Voltage Rating | 250V AC |
| Depth | 8" |
| For Use With | Eaton Motor Starters, Rockwell Motor Starters |
| Frame | 250A/J |
| Height | 5" |
| High Amp Trip Setting | 42.1A |
| Instantaneous Trip | Fixed |
| Length | 8" |
| Low Amp Trip Setting | 11.2A |
| Magnetic Trip Range | 50-500A |
| Max. Operating Temp. | 158°F |
|---|---|
| Max. Wire Size | 1/0 AWG |
| Maximum Air Rating | 65 Ka @ 600V Ac |
| Mfr. Series | Series C |
| Min. Operating Temp. | -4°F |
| Min. Wire Size | 14 AWG |
| Number Of Poles | 3 |
| Phase | Three |
| Phase Connection | ABC |
| Series | HMCP Series |
| Terminal Connection | Line/Load Lug |
| Terminal Material | Non Aluminum |
| Trip Type | Thermal Magnetic |
| Type | Motor Circuit Protector |
| Width | 5" |
| Standards | CSA CERTIFIED, IEC RATED, UL LISTED |
| Height (cm) | 12.7 |
|---|---|
| Length (cm) | 20.32 |
| Width (cm) | 12.7 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 2.025 |
| Style | Model | Number Of Poles | Frame Size | Voltage | High Amp Trip Setting | Low Amp Trip Setting | Circuit Breaker Type | Ac Voltage Rating | Phase | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

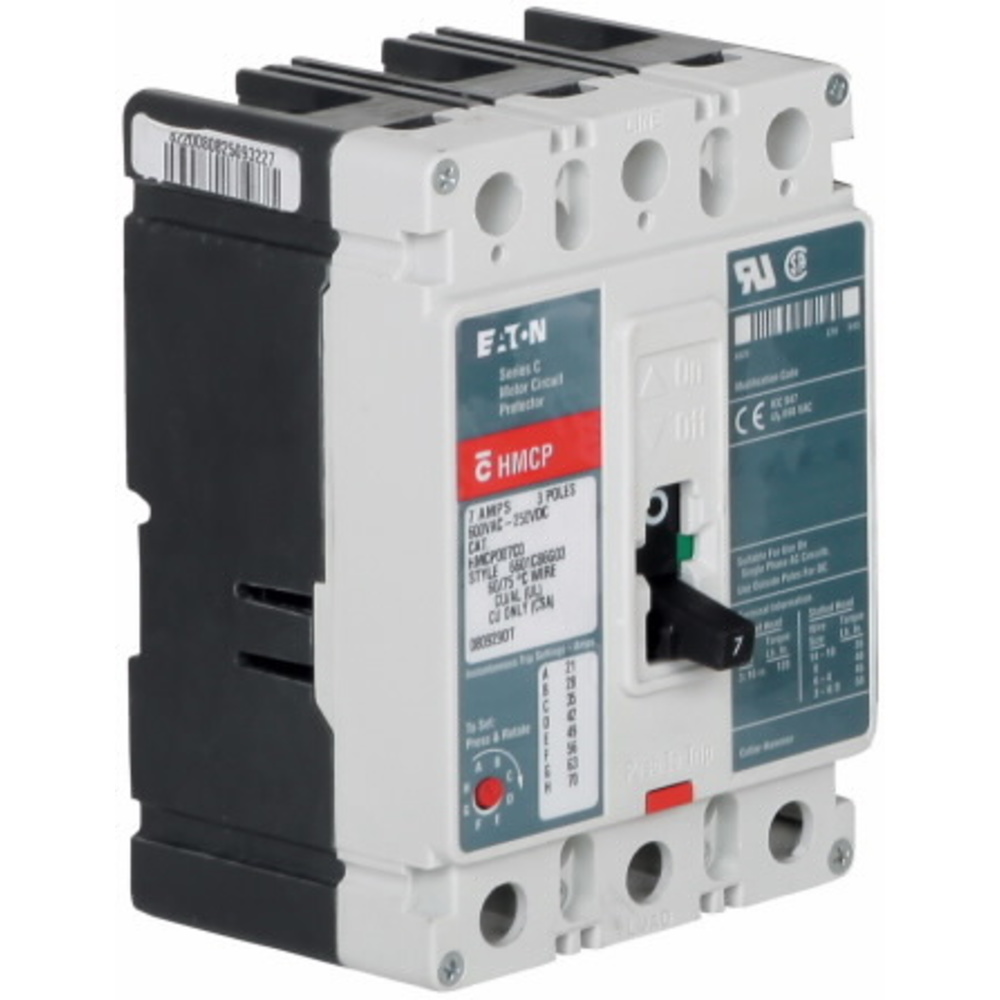

| A | HMCP007C0C | 3 | - | - | 5.7A | 1.5A | Standard | 600V AC | Three | $884.23 | |

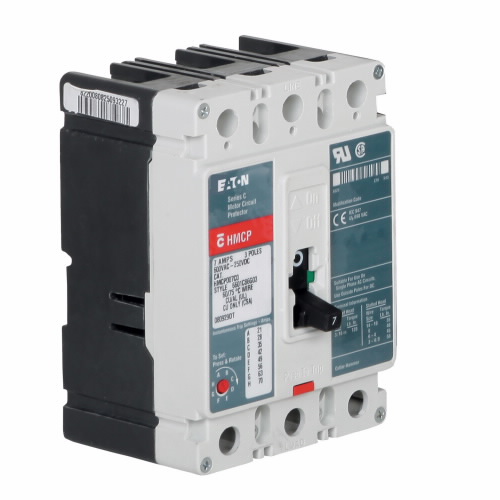

| A | HMCP015E0C | 3 | Frame J-K | - | - | - | - | - | - | $976.32 | |
| B | HMCP025D0C | 3 | Frame J-K | - | - | - | - | - | - | $993.60 | |
| A | HMCP030H1C | 3 | - | - | 25.2A | 6.9A | Standard | 600V AC | Three | $976.32 | |
| A | HMCP050G2C | 3 | Frame J-K | - | - | - | - | - | - | $1,250.00 | |
| A | HMCP070J2C | 3 | Frame J-K | - | - | - | - | - | - | $993.60 | |
| C | HMCP250A5C | 3 | Frame J-K | - | - | - | - | - | - | $2,531.34 |
