| Item | Knurling Tool |
|---|---|
| Features | Diameter Adjustment Screw Regulates The Depth Of The Knurl Pattern And The Diameter Size, for Twin Wheel And Single Wheel Knurling |
| Feed | In And End |
| For Knurl Face Width | 0.236" |
| For Knurl Hole Dia. | 5/16" |
| For Knurl Outside Dia. | 1" |
| For Use With | M Knurl Wheels |
| Head Height | 2 1/2" |
| Head Length | 2 3/8" |
| Head Width | 1.3" |
| Includes | LeftHand and RightHand Diagonal 25 TPI Knurl Wheels For Diamond Pattern |
| Knurl Holder Application | For General Purpose Knurling On Manual Or CNC Lathes |
| Knurl Series | SCKN Series |
|---|---|
| Knurls Included | Yes |
| Number Of Knurls Required | 2 |
| Overall Length | 6 3/8" |
| Pattern | Diamond, Straight Shoulderless |
| Shank Height | 1" |
| Shank Length | 4" |
| Shank Material | Alloy Steel |
| Shank Shape | Square |
| Shank Width | 1" |
| Type | CNC, Self Centering |
| Wheel | Dual |
| Height (cm) | 16.76 |
|---|---|
| Length (cm) | 16.19 |
| Width (cm) | 5.84 |
| HS Code | 7318190000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 1.1385 |
| Style | Model | Shank Width | Head Height | Head Width | Shank Length | Overall Length | Head Length | Shank Height | Feed | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | SCKN-50-D | 5/8" | 1 3/4" | 3/4" | 2 3/4" | 4 1/4" | 1 3/8" | 1/2" | In And End | $473.21 | |
| A | SCKN-75-M | 3/4" | 2 1/2" | 1.3" | 3 1/4" | 5 5/8" | 2 3/8" | 3/4" | In And End | $570.27 | |
| A | SCKN-125-M | 1/4" | 2 1/2" | 1.3" | 5" | 7 3/8" | 2 3/8" | 1/4" | In And End | $667.84 | |

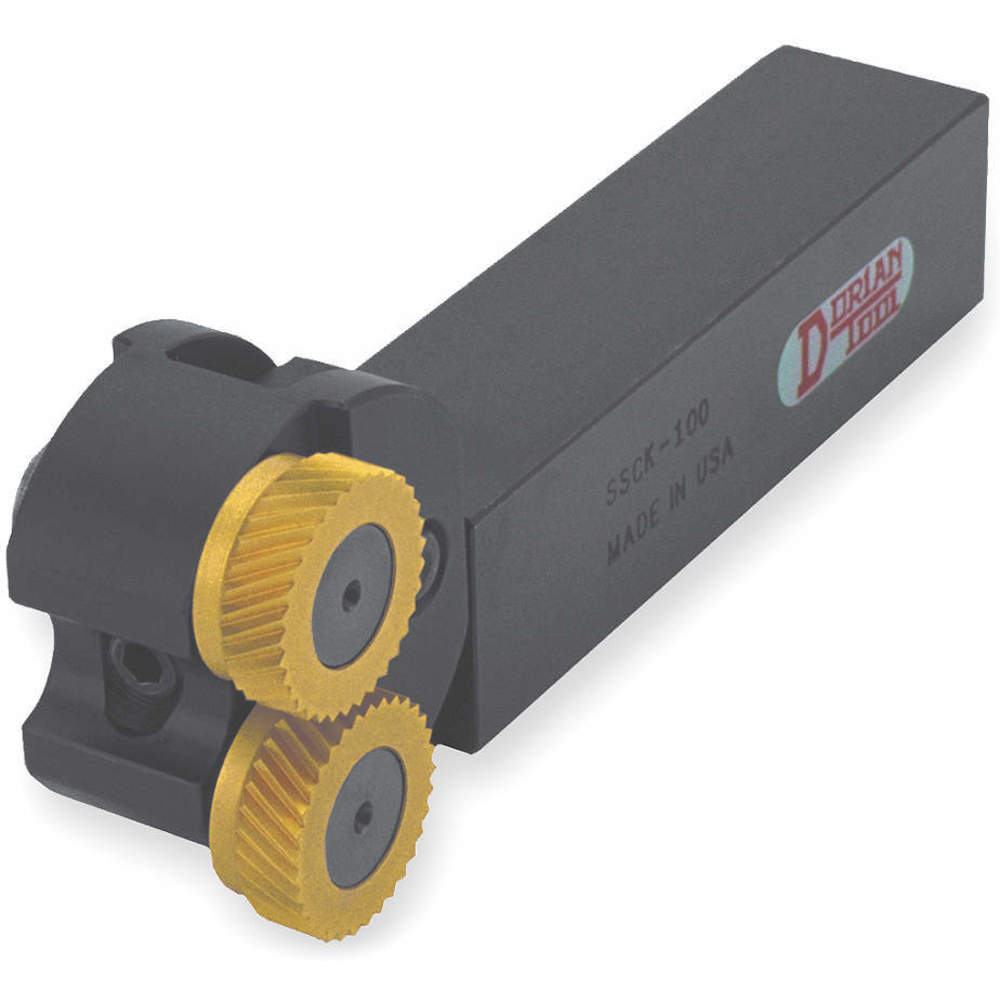

| B | SSCK-50-2 | 5/8" | 1 1/4" | 0.9" | 2 3/4" | 4" | 1 1/8" | 1/2" | In And End | $705.06 | |

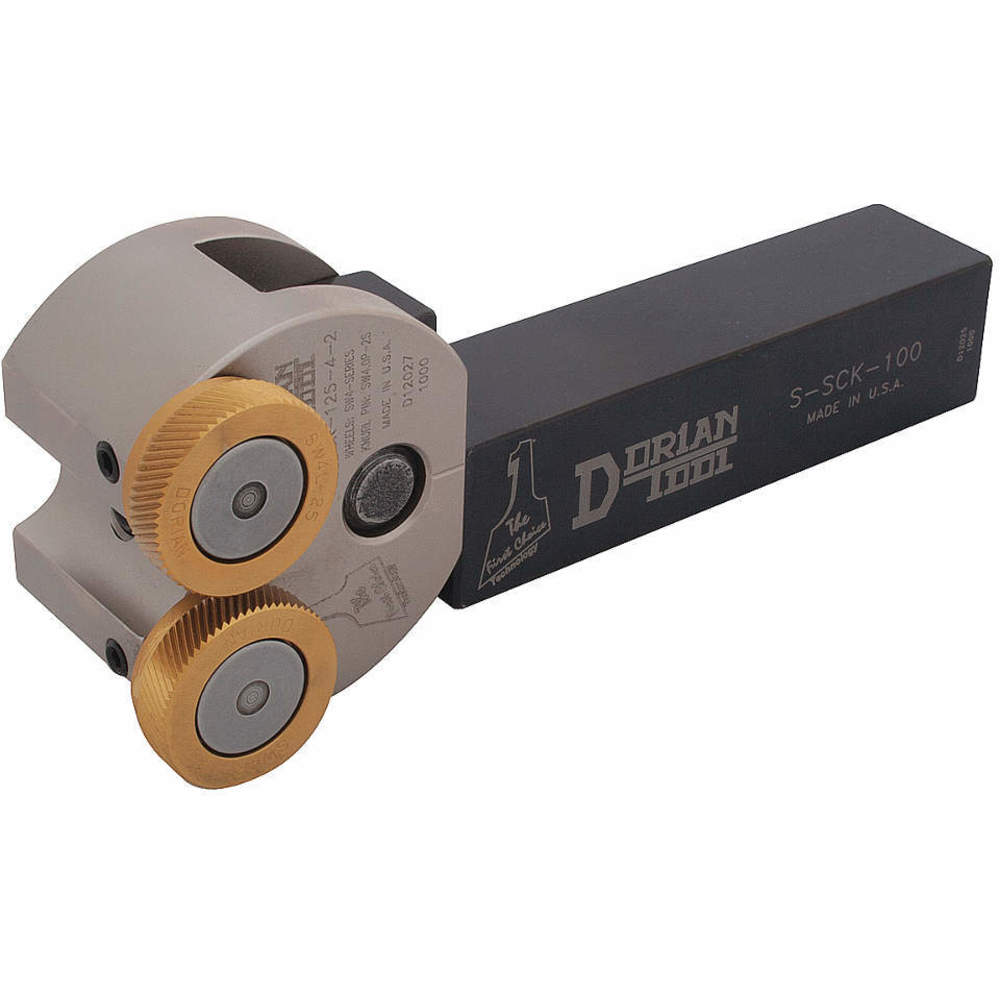

| C | SSCK-75-4 | 3/4" | 2 1/2" | 1 2/3" | 3 1/4" | 5 3/8" | 2 1/8" | 3/4" | In And End | $785.67 | |
| D | SSCK-100-4 | 1" | 2 1/2" | 1 2/3" | - | 6 1/8" | - | 1" | In And End | $793.55 | |
| B | SSCK-125-4 | 1 1/4" | 2 1/2" | 1.66" | 5" | - | - | 1 1/4" | In And End | $848.92 |
