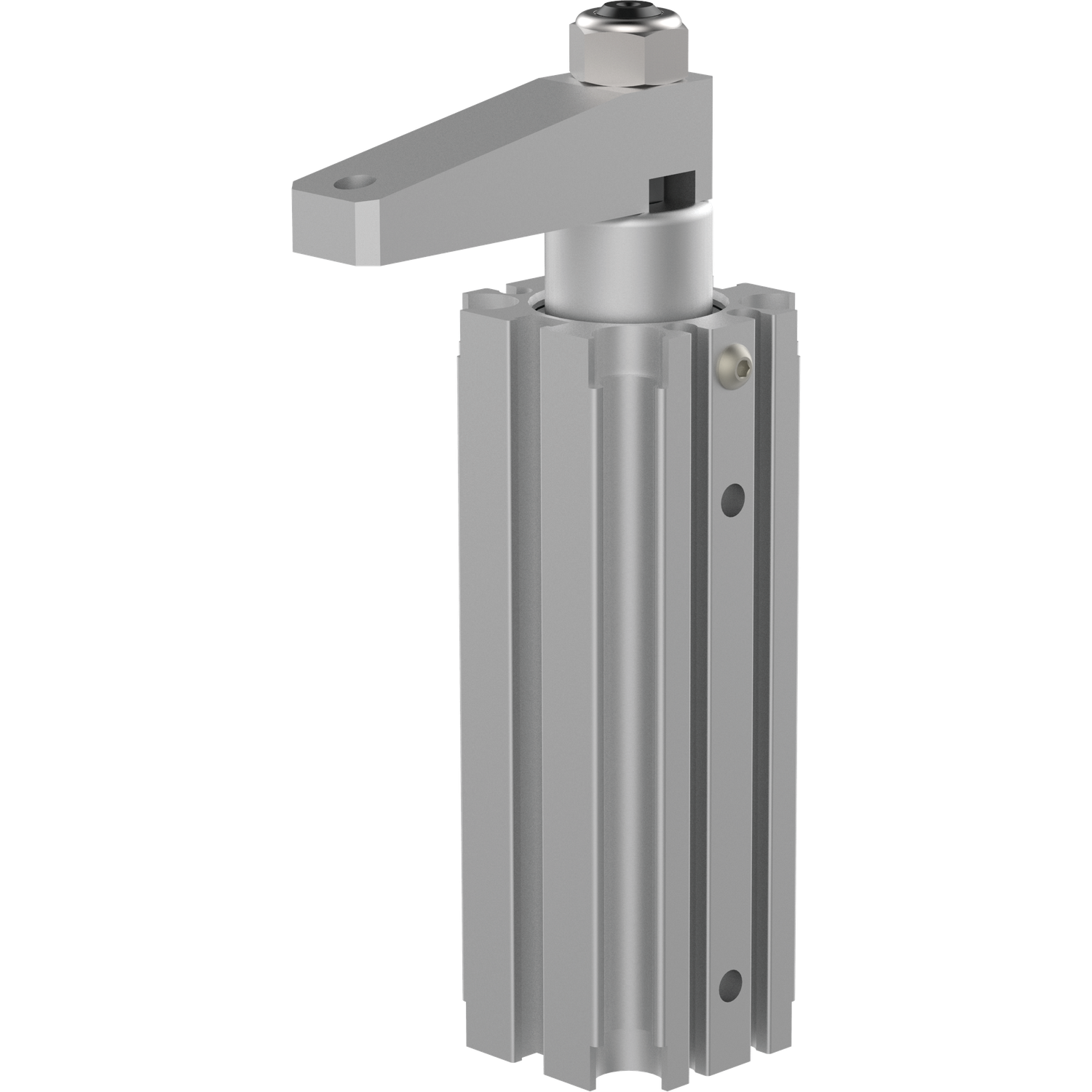

DESTACO 9540-2L Pneumatic Swing Clamp, 1/8 Inch NPT Port, Left Hand Swing

Desteco 9540-2L pneumatic swing clamp features a hydraulic clamping mechanism that provides fast clamping of both non-metallic and metallic products for increased productivity in secondary manufacturing operations. Due to its compact design, it is adaptable to tight spaces and the arm can be rotated at the top of the stroke. This clamp can be used on an extremely compact area owing to its high accuracy and repeatability of locking angles. This clamp is used where uninterrupted & rapid access to the clamping station is needed, and is ideal for fixturing, testing, assembling & welding applications in the automotive and food & packaging industries. This double-acting, non-locking clamp delivers clamping force directly in proportion to the inlet pressure and bore size, and has a shielded piston rod for protection from welding spatter. The clamp is sensor ready for either round style sensors or T slot sensors. Its swing direction is adjustable from left to right at 90 degrees. Desteco 9540-2L pneumatic swing clamp has a block style body for ease of installation and comes with rod weld covers to protect the rod throughout the stroke. It is capable of accommodating 6.5 mm x 5 mm T slot and 4 mm round style switches. In addition, this clamp has been tested for several million cycles and has a robust design that will improve the fundamental functions of the clamp and deliver consistency. Destaco 9540-2L pneumatic swing clamp can work under pressure ranging between 45 psig and 120 psig, at temperatures up to 140 degrees Fahrenheit. The clamp arm ensures maximum clamping power (total stroke of approximately 20 mm) and has an input port for connecting to compressed air supply. It is compatible with multiple mounting accessories, including body mount flanges & replacement seal kits, for unobstructed clamp operation.

This Destaco 9540-2L pneumatic swing clamp offers a broad combination of features, making it adaptable to applications such as fixturing, testing, assembling and welding applications in the automotive and food & packaging industries.

• Destaco 9540-2L pneumatic swing clamp is designed to quickly swing clamp metallic or non-metallic products and has a holding capacity of 160 lb.
• It is ideal for welding, assembling and light machining applications in tight spaces.
• This pneumatic swing clamp features aluminium construction to resist corrosion.
• Destaco 9540-2L pneumatic swing clamp has a clamp arm that can swing left at 90 degrees on horizontal planes, before moving downwards on clamping stroke.
• This swing clamp comes with a shielded piston rod to prevent weld spatter.
• It includes optional mounting accessories for tapped or side flange mounting.
• Destaco 9540-2L pneumatic swing clamp can operate at temperatures ranging from -14 to 195 degrees Fahrenheit, and allows input air pressure up to 120 psi.

• Destaco 9540153: These Destaco clamping arms are compatible with Destaco 9540-2L pneumatic swing clamp. They have lightweight aluminium construction for excellent structural rigidity and are equipped with a locking tapered connection that facilitates arm positioning up to 360 degrees.
• Destaco 953092 & 954092: These replacement seal kits are designed for unobstructed functioning of Destaco 9540-2L pneumatic swing clamp.

• Destaco 9540-2L pneumatic swing clamp is manufactured in accordance with international standards like ISO 9001:2015 & ISO 14001:2015 and ensures good environmental health, user safety and enhanced performance of the clamp.

• This Destaco 9540-2L pneumatic swing clamp features a block style body with side flange to allow the attachment of multiple mounting accessories. It is equipped with a clamp arm featuring tapped holes to accommodate spindle accessories, thereby enabling easy surface mounting..
