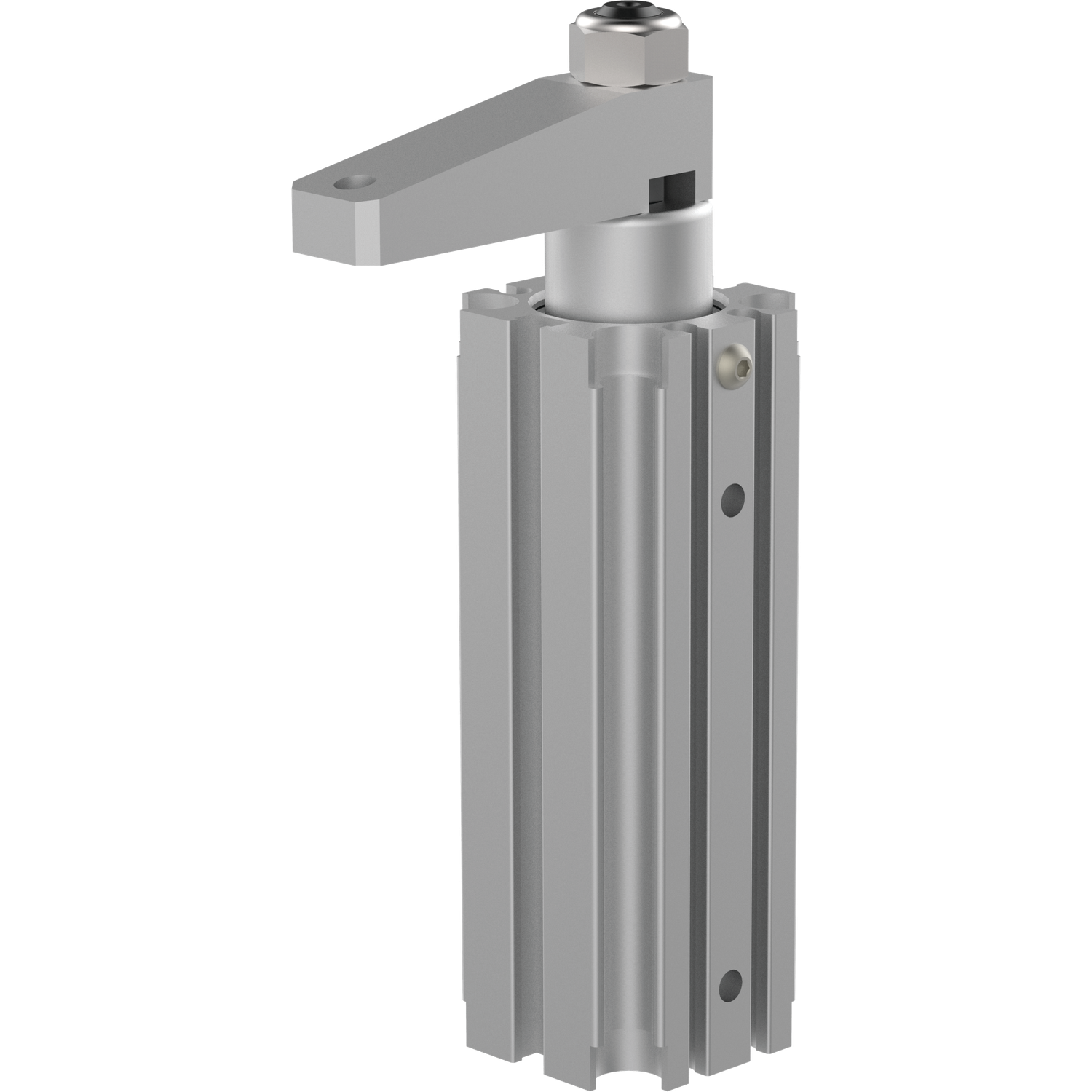

DESTACO 9530-2L Pneumatic Swing Clamp, Left Hand Swing, 1/8 Inch NPT Port

Destaco 9530-2L pneumatic swing clamp employs compressed air for applying clamping pressure to hold workpieces in place. This clamp is made of aluminium to handle operating temperatures ranging from -14 to 195 degrees Fahrenheit and pressure up to 120 psi. It is a non locking clamp that provides clamping force in direct proportion to the bore size and inlet pressure. This pneumatic swing clamp is intended for quick swing-and-clamp movement in secondary manufacturing operations on metallic & non metallic products in the automotive and food & packaging industries. Destaco 9530-2L pneumatic swing clamp is integrated with a sturdy swing mechanism that ensures the angle positioning of the clamping arm remains the same, even after a slight collision with the workpiece during unloading or loading. This Destaco 9530-2L pneumatic swing clamp features a rod weld cover to protect the rod throughout the entire stroke. It can be mounted to any face with an optional side flange mounting kit and is designed to be switch ready for sensors. The robust one-piece construction guarantees accurate alignment of internal components and clamping rigidity. This pneumatic clamp is incorporated with a pneumatic input cylinder for connecting to a source of compressed air and has internal orifices to prevent cam damage caused by over accelerating the clamp. It clamps down on the workpiece with the help of a manually adjustable threaded stud at the end of an air-powered pivoting arm.

Destaco 9530-2L pneumatic swing clamp offers a broad combination of features, making it adaptable for applications such as welding, light machining, assembling, fixturing & testing, in the aerospace, automotive and food & packaging industries.

• Destaco 9530-2L pneumatic swing clamp offers clamping force that is directly proportional to inlet pressure and bore size.
• It features a safeguarded piston rod for protection against scattered or splashed, molten metal / non-metallic material.
• This pneumatic swing clamp is integrated with a pneumatic cylinder having an input port for attaching to a source of compressed air.
• This clamp is switch ready for 6.5 mm x 5 mm sensors.
• Destaco 9530-2L pneumatic swing clamp is ideal for tight spaces and has an arm that rotates at the top of the stroke.
• The unique design allows clamp arm to swing 90 degrees on a horizontal plane before moving downward on its clamping stroke.
• It can be mounted on any face with optional side flange mounting kit.

• Destaco 9540150: These Destaco clamping arms are compatible with Destaco 9530-2L pneumatic swing clamp. They have lightweight aluminium construction for excellent structural rigidity and are equipped with a locking tapered connection that facilitates arm positioning up to 360 degrees.
• Destaco 953092 & 954092: These replacement seal kits are designed for unobstructed functioning of Destaco 9530-2L pneumatic swing clamp.

• Destaco 9530-2L pneumatic swing clamp meets international standards like ISO 14001:2015 & ISO 9001:2015 to ensure environmental health, utmost user safety and efficient performance of the clamp.

• Destaco 9530-2L pneumatic swing clamp can be mounted to any face, with mounting screws threaded directly into the body.
