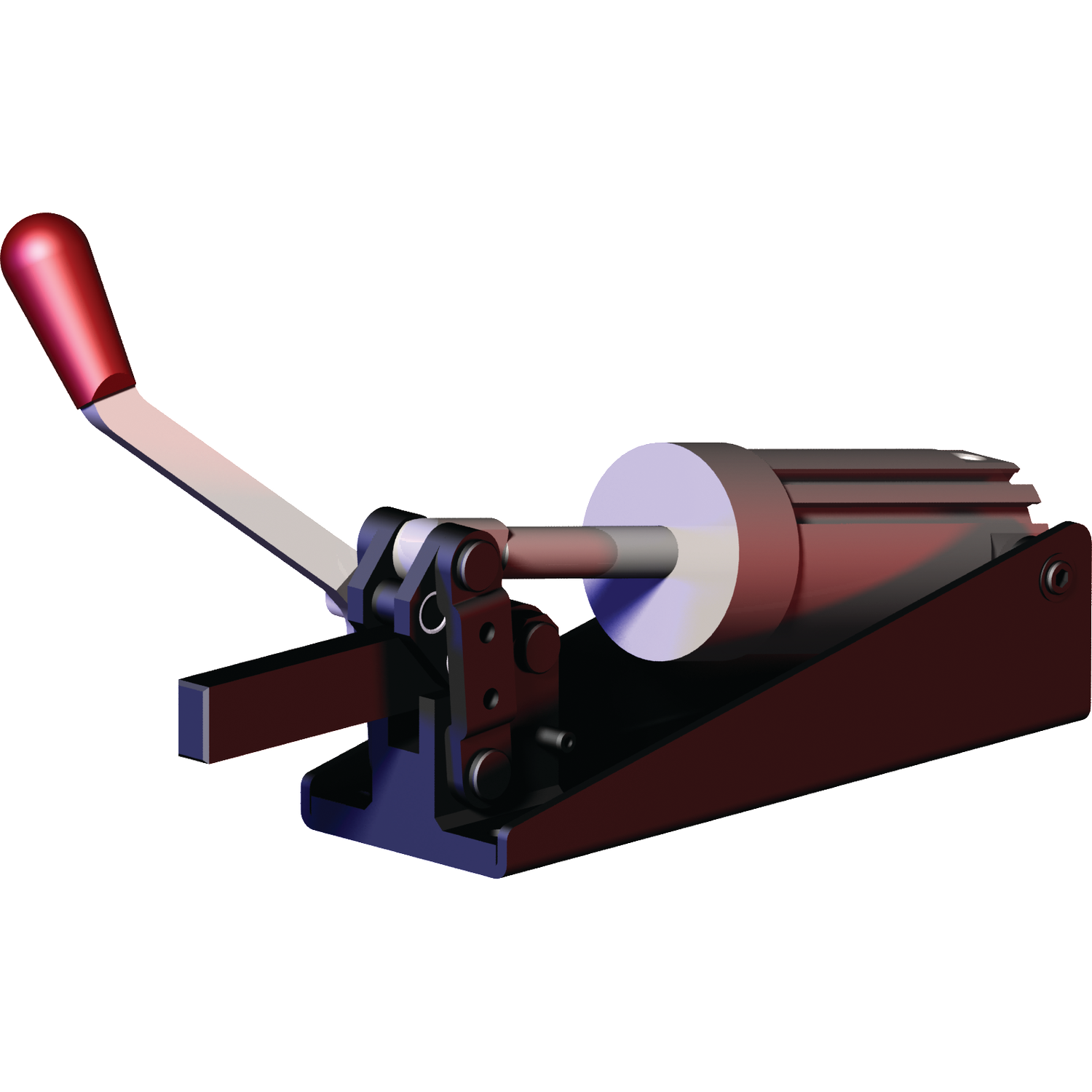

DESTACO 8007-EHR Pneumatic Hold Down Clamp, Solid Bar, 830 lb Holding Capacity

Destaco 8007-EHR pneumatic toggle clamp, also known as pneumatic hold down clamp, is ideal for quick clamping in the automotive and food & packaging industries. It uses air-actuated cylinders for applying clamping pressure to hold workpieces in place and allowing economical use on short-run jobs with temporary fixturing. This portable clamp is equipped with a toggle mechanism for keeping the clamp mechanically locked, even during loss of air pressure. It is completely self-contained & requires only a pressure source. The solid clamping bar and hardened pins & bushings at all pivot points ensure durability of the unit. Destaco 8007-EHR pneumatic hold down clamp is sensor ready for both round and T-slot style sensors, and features in-built flow restriction to eliminate the need for external flow controls. It comes equipped with a bolt retainer for handling loads up to 830 lb, and can be operated at temperatures ranging from -14 to 194 degrees F. This Destaco pneumatic toggle clamp is equipped with a non pivoting cylinder that can easily be hard-piped into fixtures, and is equipped with a magnetic piston ring for accurate position sensing. It features an enclosed design for spot & MIG welding in dirty working environments.

Destaco 8007-EHR pneumatic hold down clamp is ideal for fixturing, testing, assembling and welding applications in the aerospace, automotive and food & packaging industries.

• Destaco 8007-EHR pneumatic hold down clamp has a sensor ready function for round or T slot style cylinders, to provide low-profile mounting and easy fitting.
• The built-in flow control system eliminates external flow controls.
• This Destaco pneumatic hold down clamp can handle loads up to 830 lb.
• It incorporates hardened pins and bushings at all pivot points for enhanced durability.
• Destaco 8007-EHR pneumatic toggle clamp comes with a solid clamping bar to suit multiple applications.
• This clamp has a magnetic piston ring for position sensing.
• It is capable of operating at temperatures ranging from -14 to 194 degrees Fahrenheit.

• Destaco CABL-010 & CABL-013: The quick disconnect extension cables, CABL-010 (2 mm) & CABL-013 (5 mm), provide flexible adjustment of length & height, and are designed for areas where multiple clamping points are required.
• Destaco 8EA-109-1 & 810169: This 8007-EHR pneumatic hold down clamp can accommodate T slot (8EA-109-1) or round (810169) sensors. They are used for high performance workholding, automation and containment solutions.

Destaco 8007-EHR pneumatic toggle clamp is ISO 9001:2015 and ISO 14001:2015 certified to provide high quality clamping services.

• Destaco 8007-EHR pneumatic toggle clamp offers low profile mounting and easy fitting. It features threaded holes on the base plate for fixing the clamp to a smooth surface.
