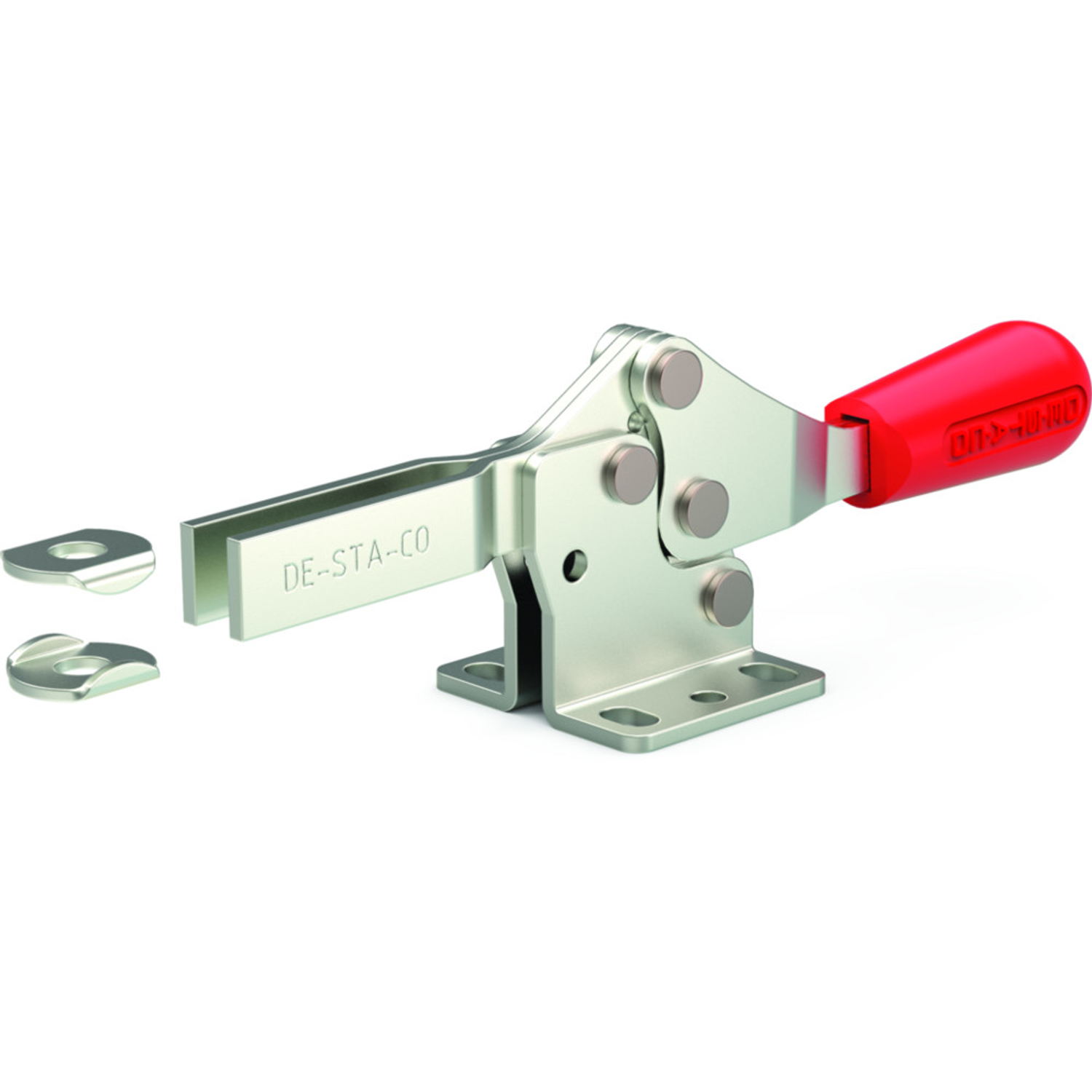

DESTACO 217-U-L Horizontal Hold Down Clamp, Flanged Base, Open Bar, 200 lb

Destaco 217-U-L horizontal hold down clamp is ideal for holding workpieces against flat surfaces in woodworking, metalworking & manufacturing applications. This manual clamp is used in applications requiring repeated clamping / detaching of the workpiece throughout the operation. It features a U shaped open clamping bar, designed for enabling quick spindle adjustment along the holding bar length for decreasing downtime and preventing buying of a separate clamp for diverse applications. This feature enables the worker to adjust the toggle clamp for various sized workpieces by attaching arm extensions. It has a low profile design to minimise space requirement for clamp installation & usage, thereby increasing ease of operation in confined spaces. This manual toggle clamp has steel construction, providing a long life cycle and preventing bending / breaking under heavy loads. It also fits an adjustable neoprene spindle to prevent the workpieces from loosening or slipping and keep them stationary throughout the operation. It is also offered in stainless steel, straight base and U bar variants on Raptor Supplies.

• This Destaco 217-U-L horizontal hold down clamp is used for woodworking, checking fixtures and performing assembly & testing operations in the aerospace, transportation, automotive and food processing & packaging industries. It can also be used for holding and closing chamber doors, lids, covers and access doors.

• Destaco 217-U-L horizontal hold down clamp has flange base mounting style for a maximum holding capacity of 200 lb.
• It has steel construction for strength, durability and minimising damage / wear due to abrasive conditions & outdoor environments.
• This clamp features low profile design & large handle clearance for minimising space requirement.
• Its easy to hold grip handle minimises user fatigue over prolonged usage.
• It provides a clamp bar opening of 91 degrees and handle opening of 61 degrees.
• This clamp is attached with an adjustable neoprene spindle for secure holding of workpieces.
• It is equipped with an open U-bar for attaching arm extensions and other accessories.
• The clamp has 0.92 inch height with 1.49 inch long clamp arm.

• Destaco offers replacement parts and accessories like 215105 washer assembly, length, height & clamping arm adapters for flexible adjustment of length and height in clamps.
• L-217-4-01 arm extension can also be supplied by Raptor Supplies for extending the reach of 217-U-L manual clamp.

• Destaco 217-U-L horizontal hold down clamp is manufactured in compliance with industry standards like ISO 9001:2015 & ISO 14001:2015 for safety, environmental health and efficient performance of the clamp.

• The Destaco 217-U-L hold down clamp is mounted to the surfaces using two pairs of threaded holes on the base for secure installation.
• When required, this clamp can be easily unscrewed using a simple screwdriver.
