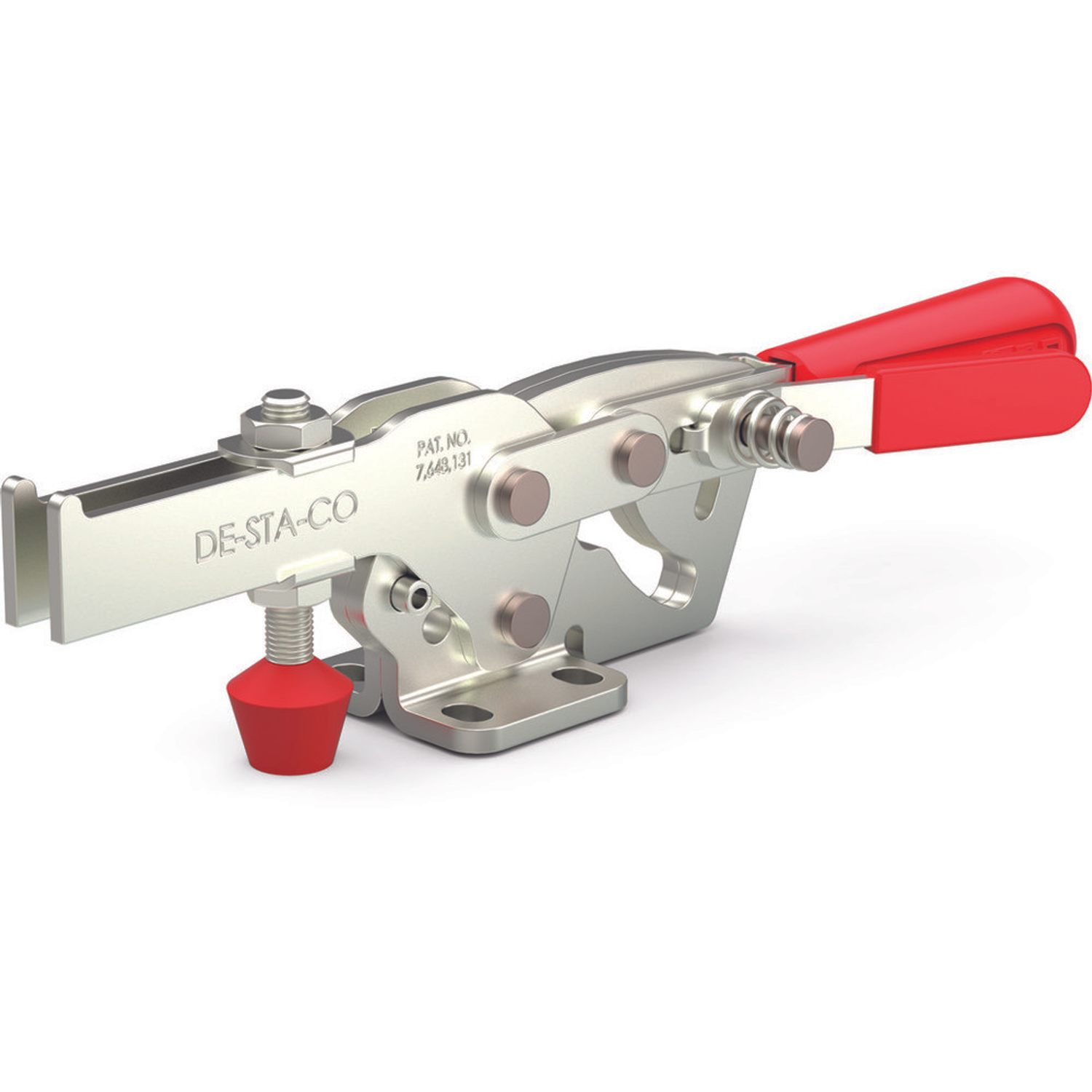

DESTACO 2027-UR Horizontal Hold Down Clamp, Toggle Lock Plus, Steel, 840 lb

Horizontal hold down clampsfeature a straight handle positioned parallel to the base to push the clamping arm and the attached spindle against a workpiece for a secure clamping operation. These clamps are suitable for repeated clamping / detaching of the workpiece throughout the operation. Destaco 2027 Serieshorizontal hold down clamps feature a U shaped clamping bar for allowing adjustment & attaching of diverse spindle assemblies to keep the workpiece stationary while preventing it from loosening or slipping throughout the operation. These clamps have fixed handle pivot capability for smooth operation and greater hand clearance for minimising pinch points. Destaco 2027-UR horizontal hold down clamp is used to hold workpieces against flat surfaces in fixture checking, woodworking, light machining, welding, assembly, testing & closure operations. This manual clamp has steel construction for structural strength and preventing damage due to bending / breaking under heavy loads. It features Toggle Lock Plus mechanism to prevent accidental opening of the clamp due to vibration or motion. This clamp is also offered in variants without Toggle Lock Plus mechanism to reduce operating costs; with a black non-reflective finish (Blackout Series) on Raptor Supplies.

This Destaco 2027-UR horizontal hold down clamp is used for woodworking, light machining, fixture checking, welding, assembly & testing operations in the automotive, consumer goods, transportation, aerospace and food & packaging industries. It is also ideal for closing fixtures like drums, lids, covers and chamber & access doors.

• Destaco 2027-UR horizontal hold down clamp is equipped with a U bar for attaching spindle assemblies for secure holding of workpieces.
• It comes with Toggle Lock Plus feature to prevent accidental disconnection of the clamp.
• This clamp has a flange base mounting style for installation on horizontal surfaces, providing a maximum holding capacity of 840 lb.
• It has steel construction for structural integrity, durability and withstanding wear & tear.
• This clamp provides a clamp bar opening of 68 degrees by moving the handle up to 70 degrees.
• It uses a flat tip bonded neoprene spindle to reduce clamping marks on the finished working surfaces.
• This spindle can also be adjusted vertically or horizontally using flanges to adjust the clamp according to the thickness of the workpiece and the clamping force required.
• It has an easy to hold handle that minimises user fatigue over prolonged usage and provides increased hand clearance to reduce pinch points.
• This clamp has a height of 1.32 inches and clamp arm length of 2.86 inches.

• Destaco offers replacement parts and accessories like flanged washer (507107) for secure clamping; length, height & clamping arm adapters for flexible adjustment of length & height of the clamp.
• Raptor Supplies delivers Destaco 2007208-M flat tip bonded neoprene spindle for holding workpieces by fitting onto Destaco 2027-UR clamp.
• Destaco L-227-4-01 arm extension increases the reach of this manual clamp by attaching to its clamping arm.

• Destaco 2027-UR horizontal hold down clamp is manufactured in compliance with ISO 9001:2015 & ISO 14001:2015 standards for ensuring user safety, environmental health and efficient performance of the clamp.

• Destaco 2027-UR hold down clamp can be quickly & securely mounted using two pairs of threaded holes on either side of the flanged base.
• The clamp can be removed easily when required, by simply unscrewing it using a screwdriver.
