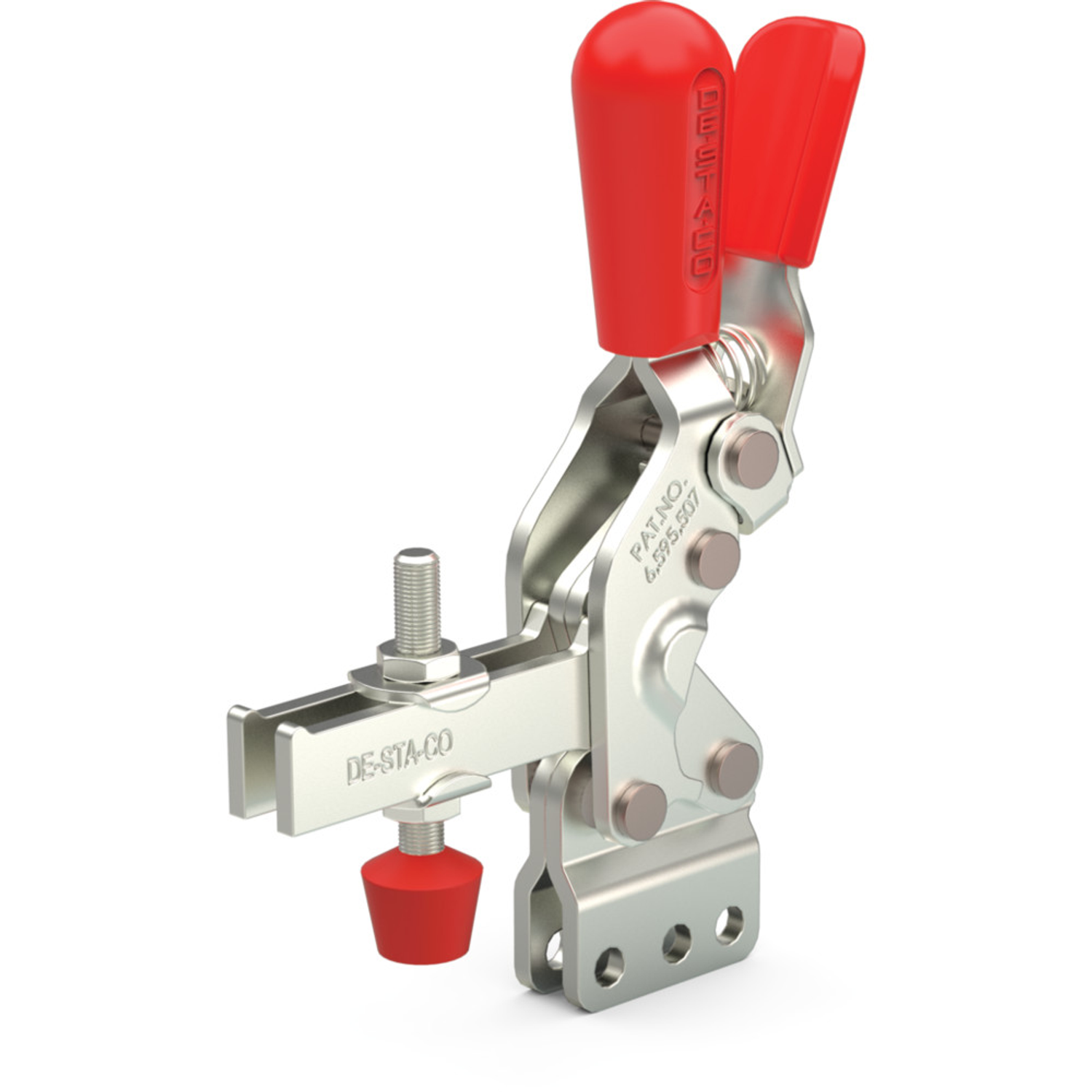

| Item | Vertical Hold Down Clamp |
|---|---|
| Accommodates Workpiece Variation | No |
| Arm Length | 1.93" |
| Arm Style | Open U Bar |
| Bar Width (in.) | 1/2" |
| Base Length | 1 9/25" |
| Base Mounting Style | Bar |
| Body Material | Steel |
| Clamp Arm Length | 1.93" |
| Clamp Arm Opening Angle | 75° |
| Clamp Arm Style | Open U Bar |
| Clamp Bar Opening | 75° |
| Fastener Thread Size | 1/8" |
| Handle | Vertical |
| Handle Material | Steel With Plastic Cover |
| Handle Opening | 66° |
| Handle Orientation | Vertical |
| Handle Style | Straight |
|---|---|
| Height Under Arm | 1.28" |
| Height Under Clamp Arm | 1 7/25" |
| Holding Capacity | 600 lbs. |
| Holding Capacity - Maximum | 600 lbf. |
| Includes Locking Handle | Yes |
| Material | Steel |
| Mounting Base | Straight |
| Mounting Holes Center To Center - Short Side | 0.09" |
| Overall Depth | 5.28" |
| Overall Height | 5 7/25" |
| Overall Length | 4.27" |
| Overall Width | 0.94" |
| Tip Material | Neoprene |
| Toggle Lock Plus | Yes |
| Type | Vertical |
| Height (cm) | 9.3 |
|---|---|
| Length (cm) | 6.71 |
| Width (cm) | 2.84 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 0.27 |
