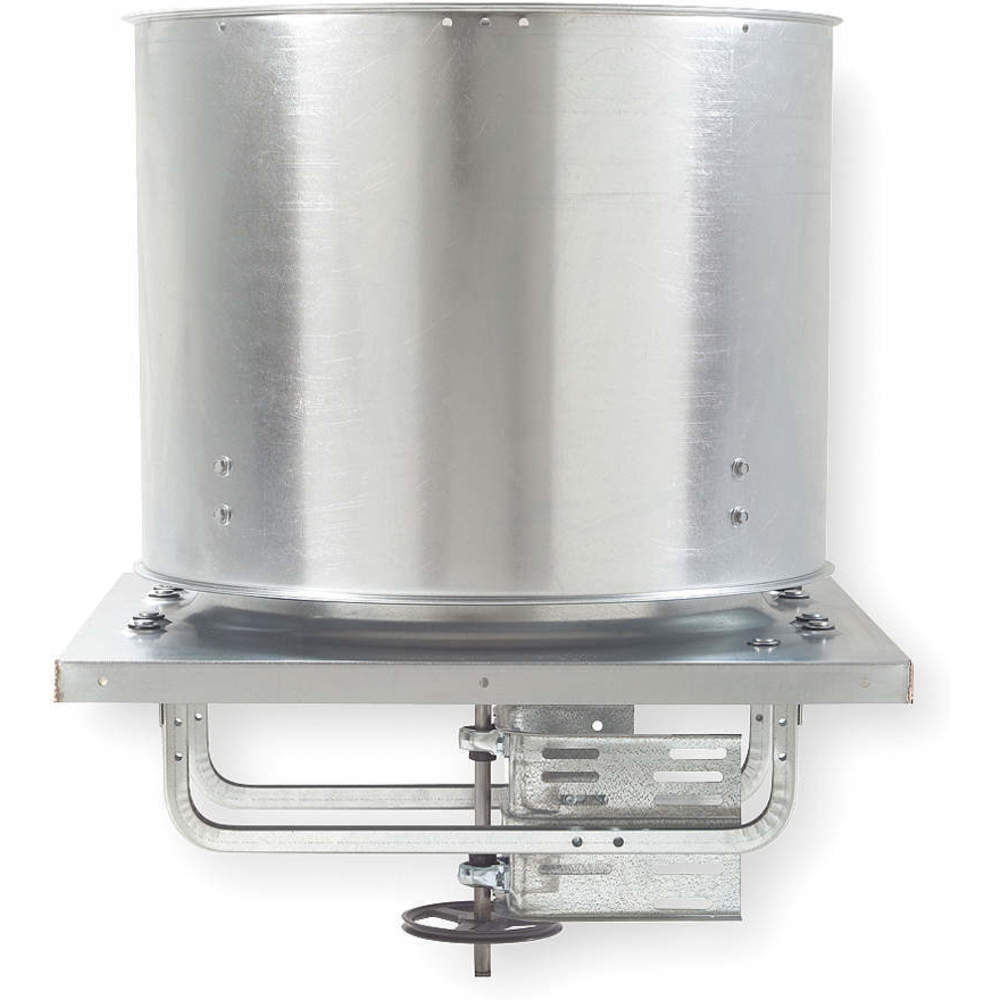

| Item | Exhaust Ventilator |
|---|---|
| Amps | 10/5.3-5A |
| Application | Industrial And Commercial Buildings Such As Warehouses, Manufacturing Facilities, Foundries And Laboratories |
| Assembled/unassembled | Unassembled |
| Assembly | Unassembled |
| Base Diameter | Not Applicable |
| Base Height | 1 3/4" |
| Base Length | 38 3/4" |
| Base Shape | Square |
| Base Size - Roof Ventilators | 38 3/4" x 38 3/4" |
| Base Width | 38 3/4" |
| Bearing Type | Regreaseable Pillow Block |
| Blade Design | Swept Steeply Pitched |
| Blade Dia. | 30" |
| Blade Material | Steel |
| Brake Horsepower | 1 1/5 hp |
| Cfm @ 0.000-in. Sp | 12227 CFM |
| Cfm @ 0.125-in. Sp | 10765 CFM |
| Cfm Range | 7256-15407 CFM |
| Compatible Curb Grainger Part No. | 2ZV84, 3AZJ1, 4C455 |
| Dimension B | 32 1/2" |
| Drive Package Included | Yes |
| Drive Package With Motor Included | Yes |
| Drive Type | Belt Drive |
| Drive Type - Roof Ventilators | Belt Drive |
| Electrical Connection | Power Cord |
| Exhaust Airflow @ 0.000 In Sp | 12227 CFM |
| Exhaust Airflow @ 0.100 In Sp | 12227 CFM |
| Exhaust Airflow @ 0.125 In Sp | 10765 CFM |
| Exhaust Airflow @ 0.250 In Sp | 9434 CFM |
| Fan Speed | 765 RPM |
| Features | Lifting Lugs Are Provided |
| For Air Type | Clean Air |
| For High-static Pressure Applications | No |
| Frequency | 60 Hz |
| High-efficiency Motor | No |
| Housing Finish | Galvanized |
| Housing Length | 37.3" |
| Housing Material | Steel |
| Housing Width | 37.3" |
|---|---|
| Includes | Drive Package |
| Includes Drive Package | Yes |
| Includes Drive Package With Motor | Yes |
| Includes Motor | Yes |
| Max. Bhp | 1 1/5 bhp |
| Max. Inlet Temp. | 120°F |
| Maximum Fan Speed | 765 RPM |
| Maximum Static Pressure | 0.25 in. wc |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Horsepower | 1 hp |
| Motor Speed | 964 RPM |
| Motor Voltage | 115/230V |
| Mount Type | Roof Curb |
| Mounting Location | Roof |
| Nameplate Voltage | 115/208-230V AC |
| Number Of Blades | 5 |
| Number Of Speeds | 1 |
| Overall Depth | 38 3/4" |
| Overall Dia. | 37 3/8" |
| Overall Height | 30" |
| Overall Width | 38 3/4" |
| Phase | 1 |
| Propeller Material | Steel |
| Propeller Shaft Diameter | 1" |
| Requires | Roof Curb For New Installations |
| Resistance Properties | Weather Resistant |
| Rpm | 964 RPM |
| Rpm Range | 454-964 RPM |
| Safety Features | Reinforced Windband |
| Shaft Dia. Propeller End | 1" |
| Shaft Dia. Sheave End | 1" |
| Sones @ 0.125-in. Sp @ 5 Ft. | 20 sones |
| Sones @ 0.250-in. Sp @ 5 Ft. | 19.8 sones |
| Sound Level | 19.8 Sones @ 0.250 In. Sp And 5 Ft., 20.0 Sones @ 0.125 In. Sp And 5 Ft., 21.0 Sones @ 0 In. Sp And 5 Ft. |
| Spark Resistant Construction Type | A |
| Speed Control | No |
| Type | Axial Upblast, With Drive Package |
| standard | AMCA SOUND AND AIR, UL/CUL 705 |
| Height (cm) | 76.2 |
|---|---|
| Length (cm) | 98.42 |
| Width (cm) | 98.42 |
| HS Code | 8414599080 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 147.6585 |
