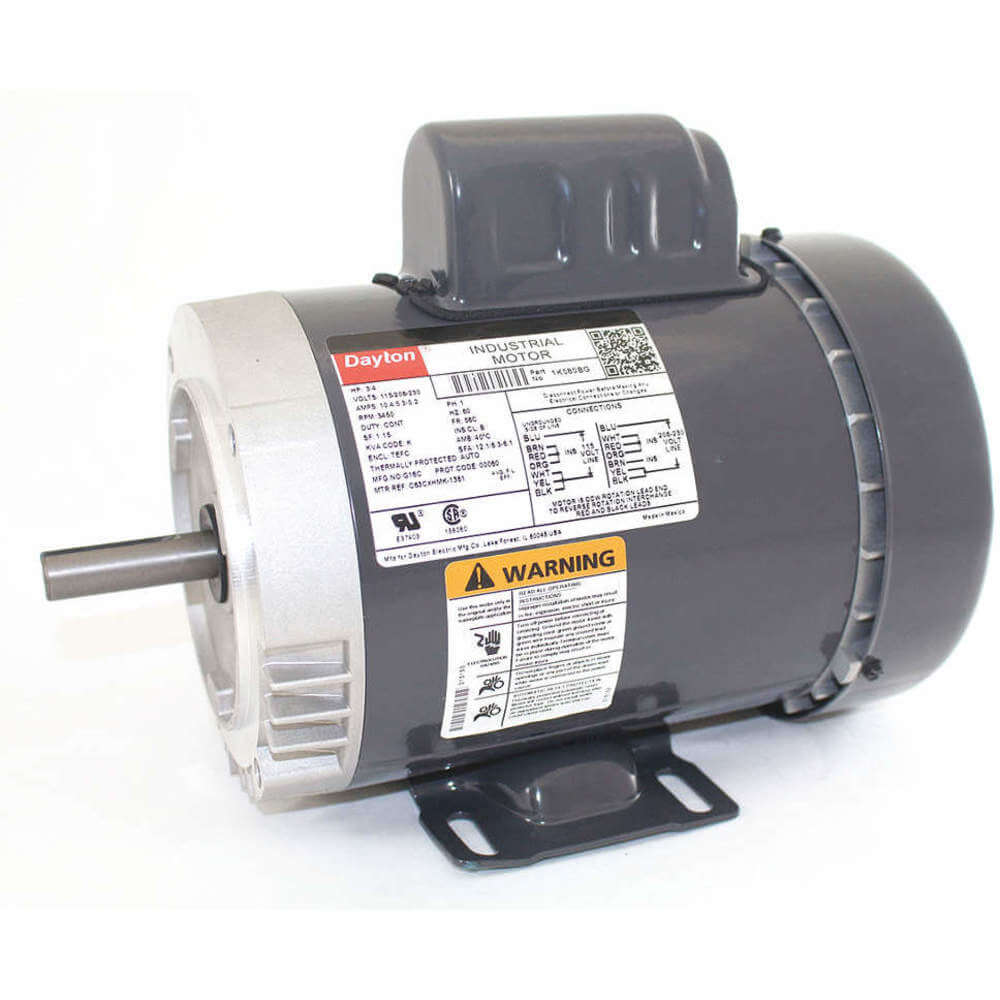

| Item | General Purpose Motor |
|---|---|
| Ambient Temp. | 104°F |
| Bearing Type | Ball |
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Efficiency | 76.2% |
| Frame | 56C |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 14.6/8.1-7.4A |
| Hp | 1 1/2 hp |
| Includes | 3/16 x 3/16 x 1-1/4" Shaft Key |
| Insulation Class | Class B |
| Length Less Shaft | 10 11/16" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start/Run |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
|---|---|
| Motor Mounting Type | Face |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Thermal Protection | Auto |
| Motor Type | Capacitor Start/Run |
| Mounting Type | Face |
| Nameplate Rpm | 3450 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 78.5% |
| Overall Length | 12 15/16" |
| Phase | 1 |
| Rpm Range | 3001-3600 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Thermal Protection | Automatic |
| Voltage | 115/208-230V AC |
| Standards | CSA CERTIFIED (258501), UL COMPONENT RECOGNIZED (E37403) |
| Height (cm) | 25.65 |
|---|---|
| Length (cm) | 40.13 |
| Width (cm) | 25.65 |
| HS Code | 8501406040 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 14.4 |
| Style | Model | Voltage | Nameplate Rpm | Hp | Full Load Amps | Motor Type | Service Factor | Mounting Type | Frame | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 1K080 | 115/208-230V AC | 3450 RPM | 3/4 hp | 10.4/5.3-5.2A | Capacitor Start | 1.15 | - | 56C | $456.76 | |
| B | 1K081 | 115/208-230V AC | 1725 RPM | 3/4 hp | 11/5.5-5.4A | Capacitor Start | 1.15 | Face/Base | 56C | $638.04 | |
| C | 5UKF4 | 115/208-230V AC | 3450 RPM | 3/4 hp | 11.1/5.6-5.4A | Capacitor Start | 1 | Rigid Base | 48 | $500.90 | |
| D | 5UKG4 | 115/208-230V AC | 3450 RPM | 2 hp | 19.5/10.8-9.7A | Capacitor Start/Run | 1 | Rigid Base | 56H | $895.74 | |
| D | 5UKG8 | 230V AC | 3450 RPM | 3 hp | 15.4A | Capacitor Start/Run | 1 | Rigid Base | 145T | $1,161.00 | |
| E | 6K176 | 230V AC | 1745 RPM | 7 1/2 hp | 30A | Capacitor Start/Run | 1 | Rigid Base | 215T | $2,490.16 | |
| F | 6K179BG | 230V AC | 3530 RPM | 7 1/2 hp | 30.3A | Capacitor Start/Run | 1 | Rigid Base | 213T | $3,233.40 |
