| Item | Rotary Gear Pump |
|---|---|
| Amps | 8.8A |
| Body Material | Cast Iron |
| Bushing Material | Carbon Graphite |
| Compatible Motor Frame | Carbonator Mount |
| Discharge Connection | 1/2" NPT |
| Enclosure Type | Open Dripproof |
| Flow Rate - Maximum | 5.2 GPM |
| Flow Rate @ 100 Psi | Not Applicable |
| Flow Rate @ 20 Psi | 4.6 GPM |
| Flow Rate @ 40 Psi | 4.4 GPM |
| Flow Rate @ 50 Psi | Not Applicable |
| Flow Rate @ 60 Psi | 4 GPM |
| Flow Rate @ 80 Psi | Not Applicable |
| Flow Rate @ Freeflow | 5.2 GPM |
| Frame | Carbonator Mount |
| Gear Design | Spur |
| Gear Material | Steel |
| Gears | Spur |
| Gpm @ 20 Psi | 4.6 GPM |
| Gpm @ 40 Psi | 4.4 GPM |
| Gpm @ 60 Psi | 4 GPM |
| Gpm @ Freeflow | 5.2 GPM |
| Gpm Max. | 5.2 GPM |
| Height | 13 3/4" |
| Horsepower - Maximum | 1/2 hp |
| Hp | 1/2 hp |
| Includes | Mechanical Seal |
| Intake Connection Size | 1/2" |
| Intake Connection Type | NPT |
| Length | 5 3/4" |
| Manufacturer Warranty Length | 1 yr. |
| Max. Flow Rate | 5.2 GPM |
| Max. Motor Speed | 1725 RPM |
| Max. Operating Pressure | 40 psi |
| Max. Pressure | 40 psi |
| Max. Rpm | 1725 RPM |
|---|---|
| Max. Temp. | 375°F |
| Max. Viscosity (ssu) | 100 SUS |
| Media Discharge Connection Size | 1/2" |
| Media Intake Connection Size | 1/2" |
| Min. Temp. | 40°F |
| Min. Temp. Rating | 40°F |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Mounting Type | Carbonator |
| Mounting Type | Carbonator Mounted |
| O-ring | Viton |
| O-ring Material | Viton |
| Operating Temp. Range | 40°F to 375°F |
| Outlet Size | 1/2" |
| Outlet Type | NPT |
| Overall Height | 13 4/5" |
| Overall Length | 5 4/5" |
| Overall Width | 5 3/5" |
| Phase | 1 |
| Port Size | 1/2" |
| Port Size (in.) | 1/2" |
| Seal | Silicone Lip |
| Seal Material | Silicone |
| Seal Type | Lip |
| Shaft Material | Stainless Steel |
| Suction Lift | 6.2 ft. |
| Suction Lift (ft.) | 6.2 ft. |
| Suction Lift -maximum | 6.2 ft. |
| Temp. Range | +40°F to +375°F |
| Type | With Motor |
| Viscosity - Maximum | 100 SUS |
| Voltage | 115/230V AC |
| Wetted Material | Not Applicable |
| Width | 5 5/8" |
| Standards | CSA US, NSF |
| Height (cm) | 30.99 |
|---|---|
| Length (cm) | 50.04 |
| Width (cm) | 25.4 |
| HS Code | 8413600090 |
|---|---|
| Country Of Origin | CN |
| Weight (kg) | 11.4975 |
| Style | Model | Hp | Body Material | Flow Rate @ 100 Psi | Max. Operating Pressure | Shaft Material | Seal Type | Operating Temp. Range | Seal Material | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

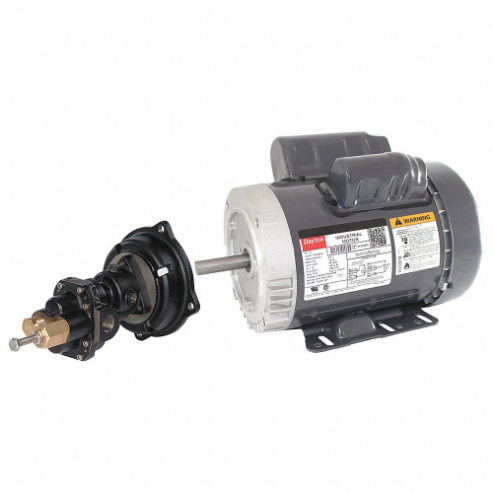

| A | 41TK05 | 1 hp | Cast Iron | 4.4 GPM | 125 psi | Steel | Mechanical | 32°F to 280°F | Viton | $1,112.10 | |

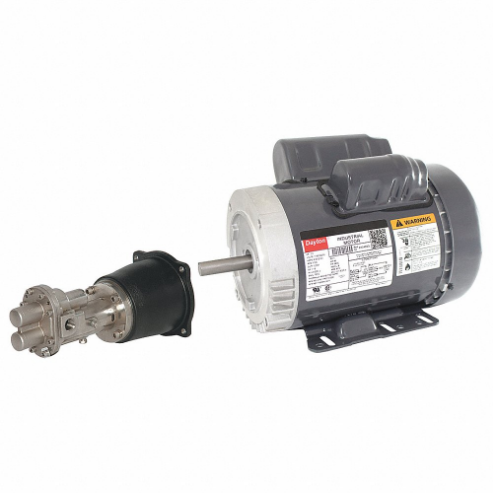

| B | 41TK07 | 1 hp | Stainless Steel | 4.4 GPM | 125 psi | Stainless Steel | Mechanical | 32°F to 280°F | Viton | $1,631.50 | |
| C | 41TK09 | 1 1/2 hp | Cast Iron | 6.5 GPM | 125 psi | Steel | Mechanical | 32°F to 280°F | Viton | $1,390.69 | |
| C | 41TK10 | 1 1/2 hp | Cast Iron | 10.2 GPM | 125 psi | Steel | Mechanical | 32°F to 280°F | Viton | $1,409.55 | |

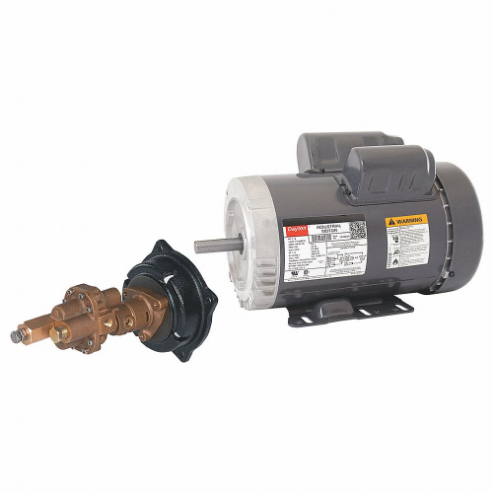

| D | 41TK11 | 1 1/2 hp | Bronze | 10.2 GPM | 125 psi | Stainless Steel | Mechanical | -20°F to +210°F | Buna N | $1,581.09 | |

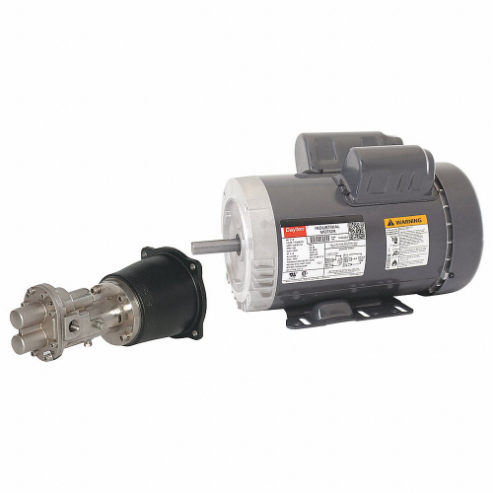

| E | 41TK12 | 1 1/2 hp | Stainless Steel | 10.2 GPM | 125 psi | Stainless Steel | Mechanical | 32°F to 280°F | Viton | $1,978.39 | |

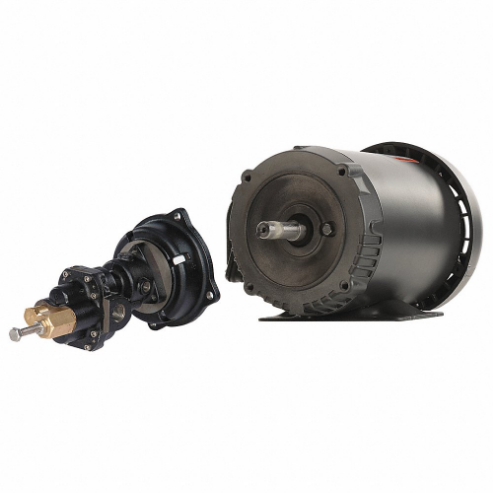

| F | 41TK13 | 1 hp | Cast Iron | 4.4 GPM | 125 psi | Steel | Mechanical | 32°F to 280°F | - | $915.06 |
