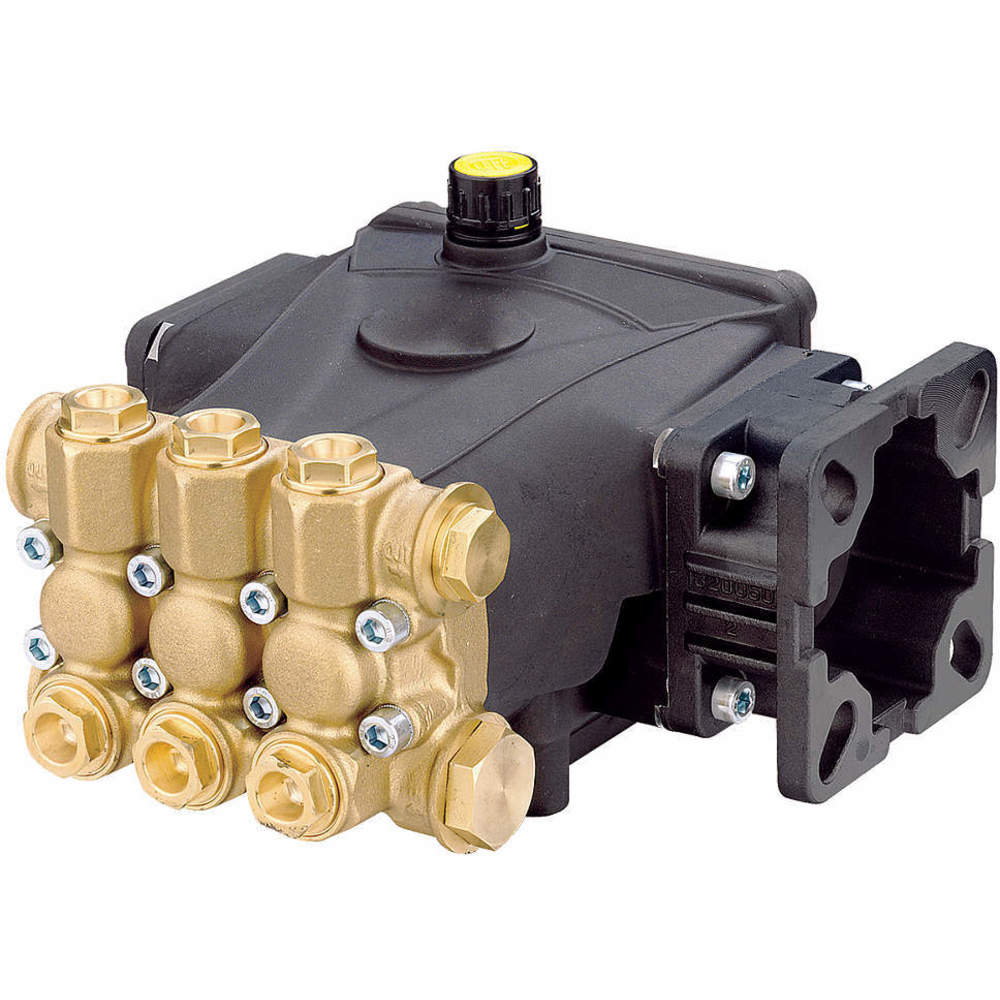

| Item | Pressure Plunger Pump |
|---|---|
| Application | High Pressure Water Applications, Including Car Wash, Pressure Wash, Sewer Jetting And Cooling Misting |
| Bearing Type | Ball, Needle Roller |
| Check Valve Material | Not Applicable |
| Connecting Rod | Aluminum |
| Connecting Rod Material | Aluminum |
| Crankcase | Die Cast Aluminum |
| Crankcase Material | Die Cast Aluminum |
| Crankshaft | Hardened Steel |
| Crankshaft Material | Hardened Steel |
| Discharge Connection Size | 3/8" |
| Discharge Connection Type | BSP |
| Discharge Port Size | 3/8" |
| Discharge Port Type | BSP |
| Discharge Pressure (psi) | 3700 psi |
| Drive Type | Direct Mount |
| Driver Type | Gasoline Engine |
| Electrical Connection Type | Not Applicable |
| Features | Forged Brass Manifold Provides Corrosion Resistance For Long Term Use. High Grade Manifold Head Bolts For Added Safety Protection And Strength. Precision Diecast Crankcase For Maximum Heat Dissipation. |
| Flange Type | Horizontal Gas Engine |
| Height | 6 1/2" |
| Hp Required @ 1000 Psi | 4 1/10 hp |
| Hp Required @ 1500 Psi | 6 1/10 hp |
| Hp Required @ 2000 Psi | 8 1/5 hp |
| Hp Required @ 2500 Psi | 10 1/5 hp |
| Hp Required @ 3000 Psi | 12 1/3 hp |
| Hp Required @ 3500 Psi | 14 1/3 hp |
| Hp Required @ 4000 Psi | 16 2/5 hp |
| Hp Required @ 500 Psi | 2 1/10 hp |
| Hydraulic Motor Pressure @ 1000 Psi | Not Applicable |
| Hydraulic Motor Pressure @ 1500 Psi | Not Applicable |
| Hydraulic Motor Pressure @ 2000 Psi | Not Applicable |
| Hydraulic Motor Pressure @ 2500 Psi | Not Applicable |
| Hydraulic Motor Pressure @ 3000 Psi | Not Applicable |
| Hydraulic Motor Pressure @ 500 Psi | Not Applicable |
| Includes | Manual |
| Intake Connection Size | 1/2" |
| Intake Connection Type | BSP |
| Length | 8 4/5" |
| Lubrication | Oil Bath |
| Manifold Material | Forged Brass |
|---|---|
| Manufacturers Warranty Length | 5 yrs. |
| Max. Discharge Pressure | 3700 psi |
| Max. Flow Rate | 4 GPM |
| Max. Fluid Temp. | 140°F |
| Max. Hydraulic Motor Flow Rate | Not Applicable |
| Max. Inlet Pressure | 100 psi |
| Max. Motor Speed | 3400 RPM |
| Max. Outlet Pressure | 3700 psi |
| Max. Rpm | 3400 RPM |
| No. Of Pistons | 3 |
| Number Of Pistons | 3 |
| Operating Pressure (maximum) | 3700 psi |
| Overall Height | 6 1/2" |
| Overall Length | 8 4/5" |
| Overall Width | 9 1/2" |
| Piston Design | Triplex |
| Piston Type | Triplex |
| Plunger | Ceramic |
| Plunger Material | Ceramic |
| Power Source | Not Applicable |
| Pump Head | Forged Brass |
| Pump Head Material | Forged Brass |
| Required Gasoline Engine Hp | 13 hp |
| Required Max. Electric Motor Hp | Not Applicable |
| Required Max. Gasoline Engine Hp | 13 hp |
| Seal | Buna N, Cotton Duct |
| Seal Material | Buna N |
| Seal Type | Cotton Duct |
| Series | RRV Series |
| Series Family | Rrv |
| Shaft | 1" Hollow |
| Shaft Dia. | 1" |
| Shaft Outer Dia. | 1" |
| Shaft Outside Dia. | 1" |
| Shaft Type | Hollow |
| Suction Port | 1/2" BSP |
| Wetted Material | Brass |
| Width | 9 1/2" |
| Height (cm) | 16.51 |
|---|---|
| Length (cm) | 22.35 |
| Width (cm) | 24.13 |
| HS Code | 8413500090 |
|---|---|
| Country Of Origin | CN |
| Weight (kg) | 8.91 |
| Style | Model | Max. Discharge Pressure | Max. Flow Rate | Shaft Outside Dia. | Seal Type | Intake Connection Size | Height | Max. Inlet Pressure | Discharge Pressure (psi) | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 4WXV9 | 2700 psi | 2.5 GPM | 3/4" | Chevron, Cotton Duct, Lip | 1/2" | 4.9" | 50 psi | 2700 psi | $840.18 | |
| A | 4WXW1 | 2500 psi | 3 GPM | 3/4" | Chevron, Cotton Duct, Lip | 1/2" | 4.9" | 50 psi | 2500 psi | $910.95 | |
| B | 4WXX7 | 3000 psi | 3 GPM | 3/4" | Chevron, Cotton Duct, Lip | 3/8" | 5.7" | 50 psi | 3000 psi | $1,024.36 | |
| C | 5ZNT6 | 3600 psi | 3 GPM | 1" | Cotton Duct | 1/2" | 6 1/2" | 100 psi | 3600 psi | $823.44 |
