| Item | Encapsulated Timer Relay |
|---|---|
| Adjustment Method | Potentiometer |
| Amps Rating | 1A |
| Base Shape | Square |
| Body Depth | 2" |
| Body Height | 0.79" |
| Body Width | 2" |
| Contact Amp Rating | 1A |
| Contact Form | SPST/NO |
| Contact Rating (ac) | 1A @ 24V |
| Current Rating | 1A |
| Dc Contact Rating | Not Applicable |
| Delay Function | Off Delay |
| Delay Function Group | Off Delay |
| Electrical Connection | Screw Terminal |
| Electrical Connection Type | Screw |
| Environmental Protection | Encapsulated/Sealed |
| Function | Off Delay |
| Hz | 50/60 Hz |
| Input Or Control Voltage Range | 24V AC |
| Input Voltage | 24V AC |
| Max. Time Setting | 1 sec. |
| Max. Time Setting - Timer | 1 sec. |
|---|---|
| Min. Time Setting | 0.05 sec. |
| Min. Time Setting - Timer | 0.05 sec. |
| Minimum Time Setting | 0.05 sec. |
| Mounting | Surface |
| Mounting - Relay | Surface |
| Mounting Style | Surface |
| No. Of Pins | 5 |
| No. Of Pins - Relay | 5 |
| Number Of Delay Functions | 1 |
| Number Of Pins | 5 |
| Output | Solid State |
| Overall Depth | 1.14" |
| Overall Height | 1.14" |
| Relay Mounting Style | Surface |
| Reset Method | Time Limit Reset |
| Resistive Contact Amp Rating | 1A |
| Sealing | Encapsulated |
| Status Indicator | No |
| Timer Range | 0.05 sec. to 1 sec. |
| Type Of Output | Solid State |
| Standards | CE CERTIFIED, UL LISTED |
| Height (cm) | 3.05 |
|---|---|
| Length (cm) | 7.62 |
| Width (cm) | 5.84 |
| HS Code | 8536490080 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.0675 |
| Style | Model | Number Of Pins | Min. Time Setting | Max. Time Setting | Function | Current Rating | Contact Form | Status Indicator | Output | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

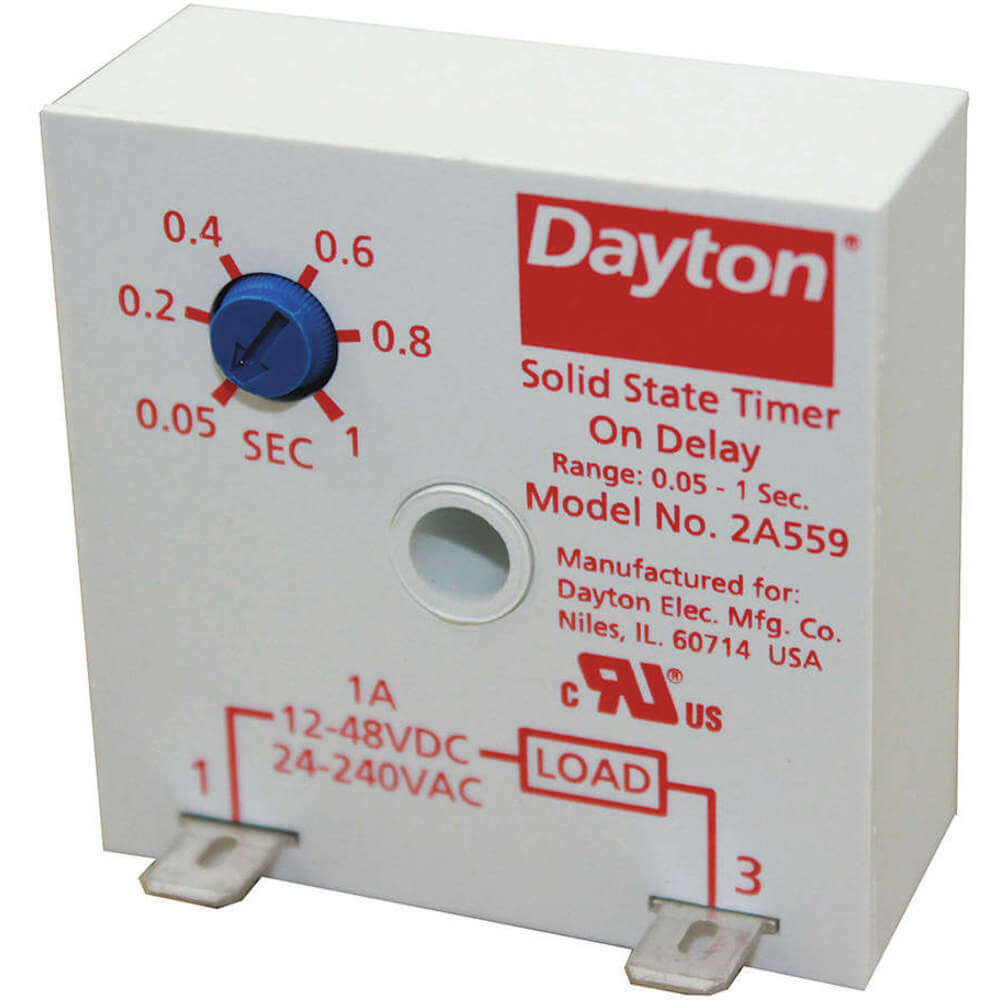

| A | 2A559 | 2 | 0.05 sec. | 1 sec. | On Delay | 1A | SPST/NO | No | Solid State | $48.54 | |

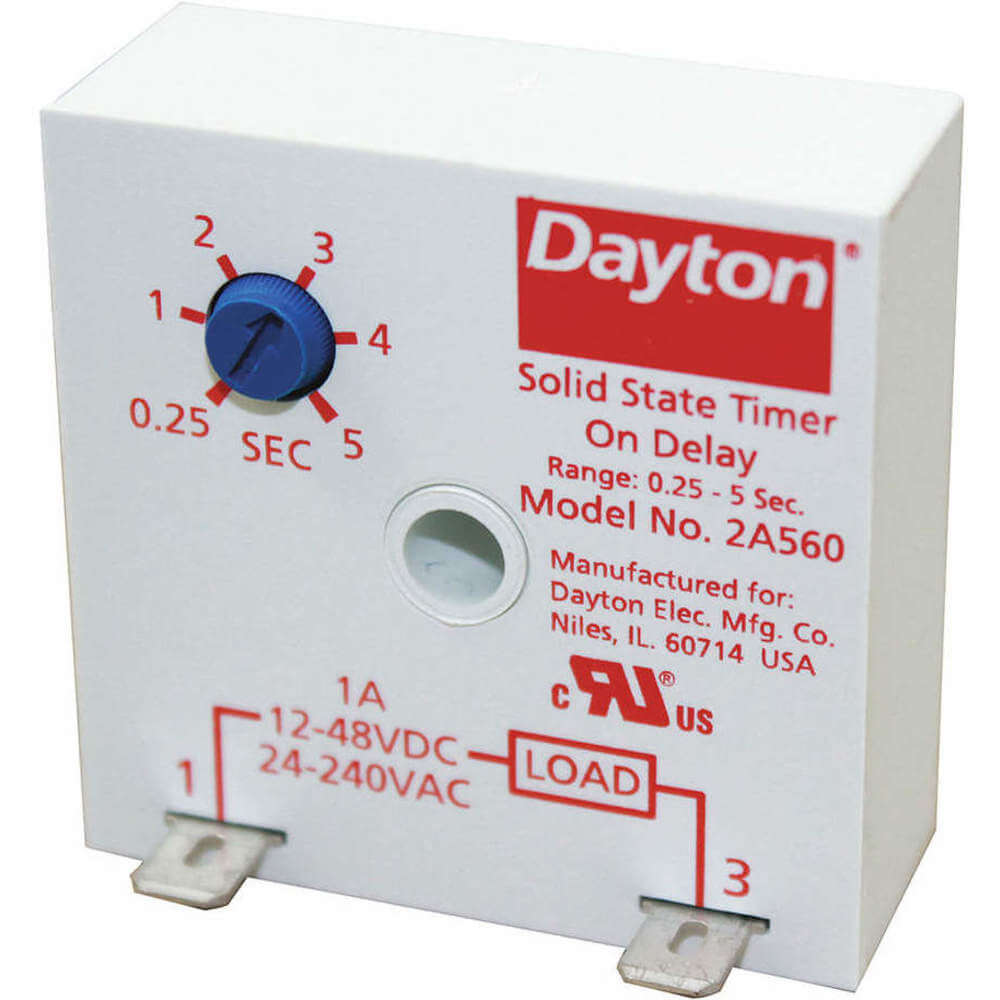

| B | 2A560 | 2 | 0.25 sec. | 5 sec. | On Delay | 1A | SPST/NO | No | Solid State | $49.19 | |

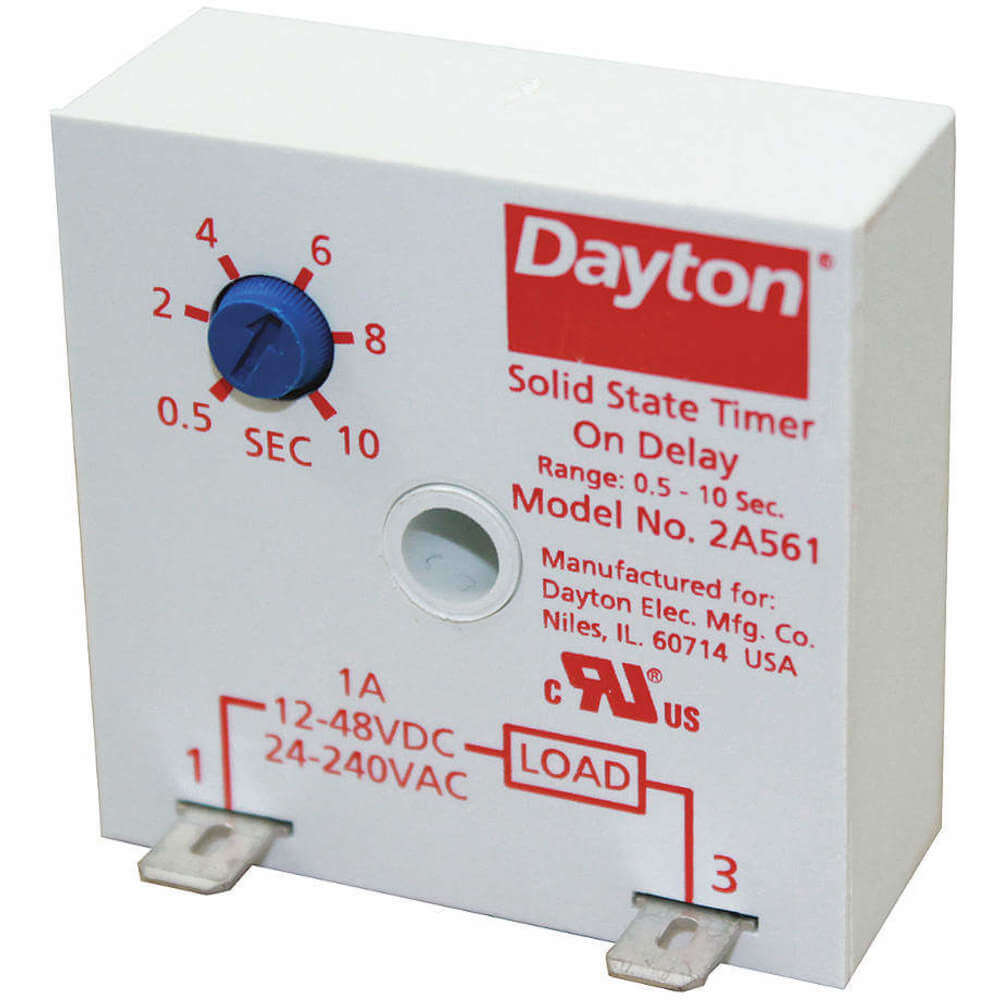

| C | 2A561 | 2 | 0.5 sec. | 10 sec. | On Delay | 1A | SPST/NO | No | Solid State | $49.43 | |

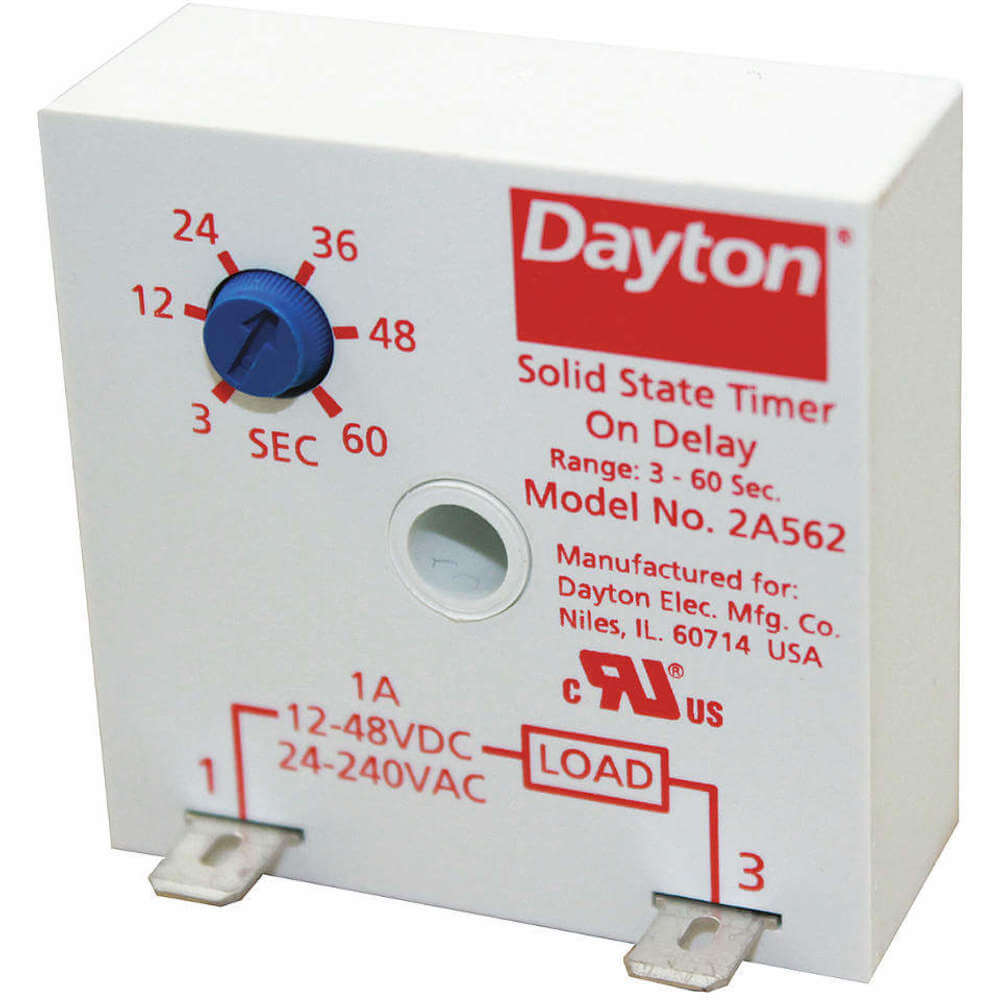

| D | 2A562 | 2 | 3 sec. | 60 sec. | On Delay | 1A | SPST/NO | No | Solid State | $49.63 | |
| E | 5WML7 | 5 | 0.05 sec. | 1 sec. | Off Delay | 1A | SPST/NO | No | Solid State | $55.06 | |

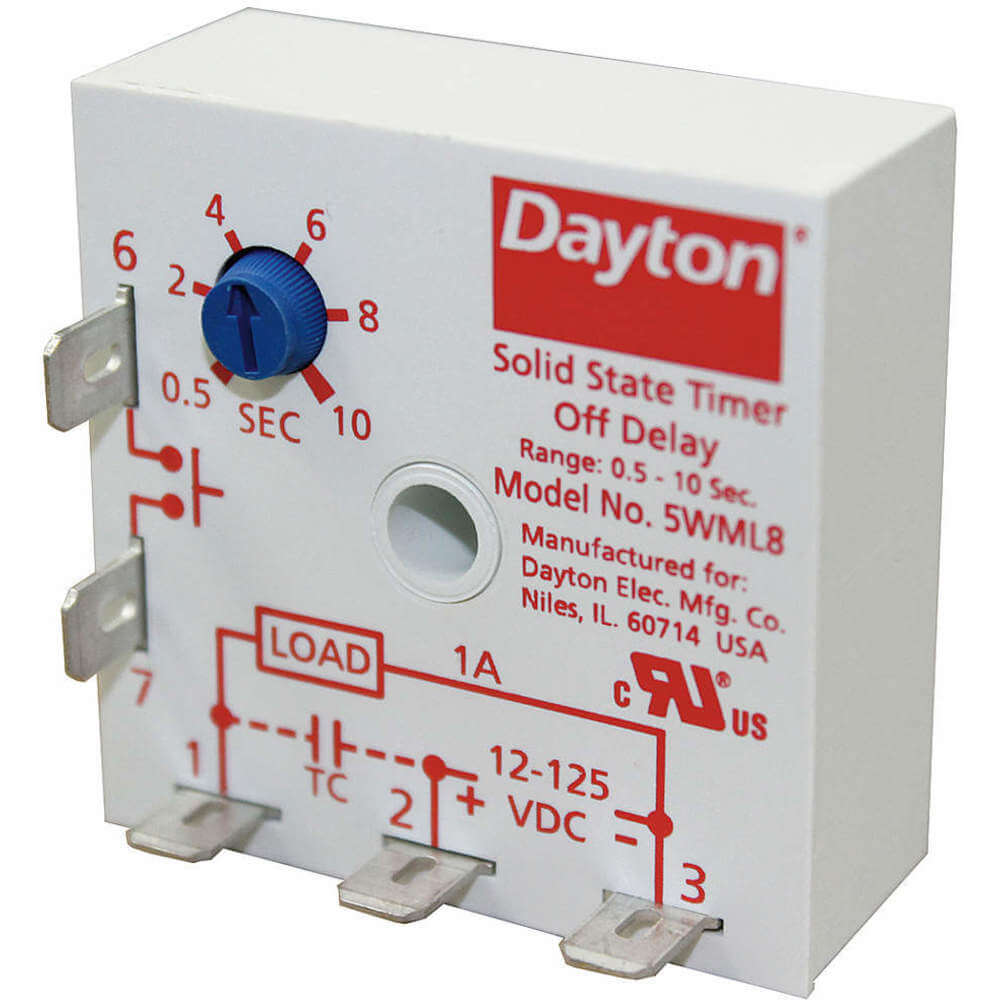

| F | 5WML8 | 5 | 0.5 sec. | 10 sec. | Off Delay | 1A | SPST/NO | No | Solid State | $56.01 | |
| G | 5WML9 | 5 | 0.5 sec. | 60 sec. | Off Delay | 1A | SPST/NO | No | Solid State | $56.21 |
