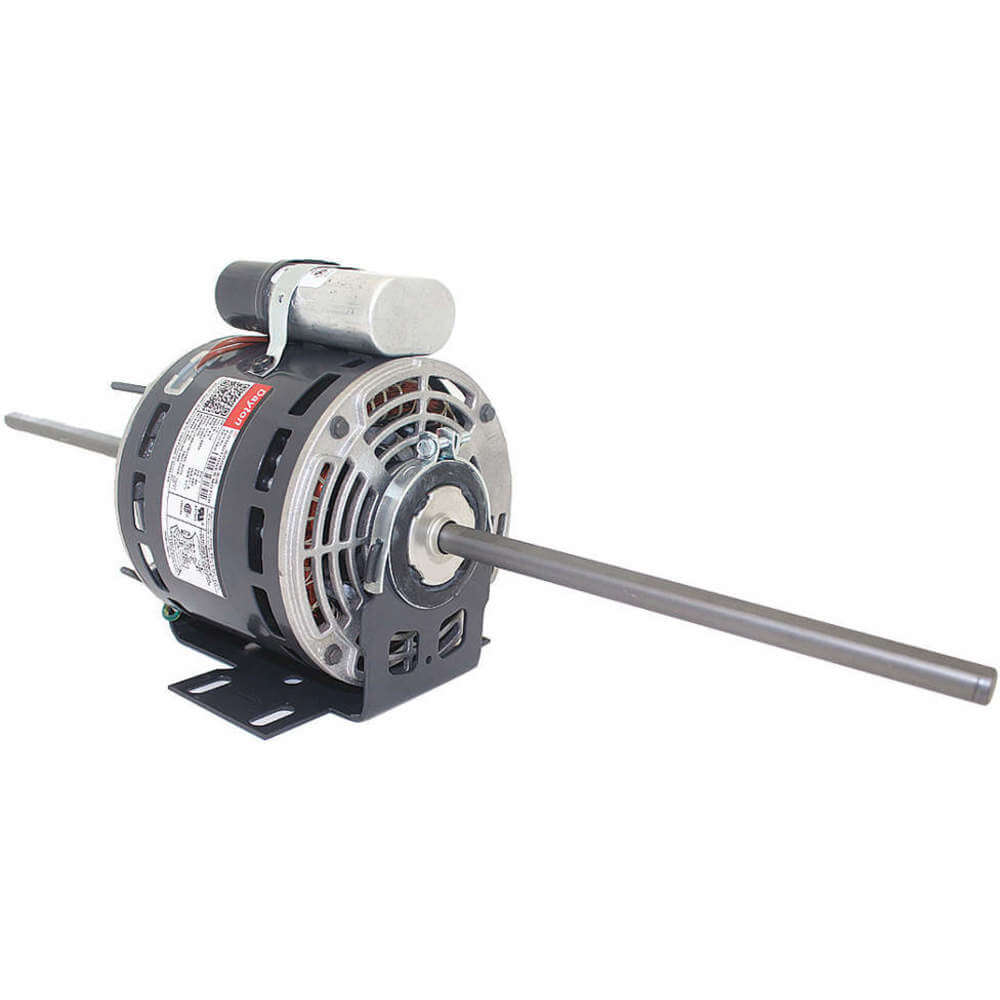

| Item | Room Air Conditioner Motor |
|---|---|
| Bearing Type | Ball |
| Body Dia. | 4 7/8" |
| Bolt Circle Dia. | 4 11/16" |
| Capacitor Required | Included |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Frame | 42Y |
| Frequency | 60 Hz |
| Full Load Amps | 1.7A |
| Hp | 1/10 hp |
| Includes | 5 MFD 370V AC Capacitor |
| Insulation Class | Class B |
| Lead Length | 60" |
| Length Less Shaft | 5 3/8" |
| Max. Ambient Temp. | 60°C |
| Motor Bearings | Ball |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Open Air Over |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Cradle Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
|---|---|
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Sub Application | Room Air Conditioner |
| Motor Thermal Protection | Auto |
| Motor Type | Permanent Split Capacitor |
| Mounting | Cradle Base |
| Mounting Stud Pattern | 3 3/16" x 3 3/16" |
| Mounting Type | Cradle Base |
| Nameplate Rpm | 1075 RPM |
| No. Of Speeds | 4 |
| Number Of Speeds | 4 |
| Phase | 1 |
| Resilient Ring Dia. | 2 1/2" |
| Ring To Ring Center | 5" |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 10" |
| Stud Pattern | 3 3/16" x 3 3/16" |
| Stud Size | #8-32 |
| Thermal Protection | Automatic |
| Thread Type | Coarse |
| standard | CSA CERTIFIED (258501), UL RECOGNIZED (E37403) |
| Height (cm) | 18.54 |
|---|---|
| Length (cm) | 72.9 |
| Width (cm) | 19.05 |
| HS Code | 8501402040 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 5.04 |
| Style | Model | Motor Type | Motor Shaft Rotation | Shaft Length | Frame | Nameplate Rpm | No. Of Speeds | Voltage | Mounting Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | DBL4404 | Shaded Pole | Counter Clockwise Lead End | 9 5/16" | 42Y | 1550 RPM | 3 | 115V AC | Cradle Base | $270.35 | |
| B | 7DB6408 | Permanent Split Capacitor | Counter Clockwise Lead End | 9 19/64" | 42Y | 1050 RPM | 4 | 277V AC | Cradle Base | $318.35 | |
| C | OFC1024 | Permanent Split Capacitor | CCWLE | 7 11/16" | 42Y | 1625 RPM | 2 | 208-230V AC | Ring | - | RFQ
|
| D | 747 | Permanent Split Capacitor | Counter Clockwise Lead End | 7 3/4" | 42 | - | 2 | 208-230V AC | - | - | RFQ
|
| E | RAL1006 | Permanent Split Capacitor | Counter Clockwise Lead End | 8 19/64" | 48Y | 1075 RPM | 3 | 115V AC | - | - | RFQ
|
| E | RA1016 | Permanent Split Capacitor | Counter Clockwise Lead End | 8 19/64" | 48Y | 1075 RPM | 3 | 208-230V AC | - | - | RFQ
|
| E | RA1026 | Permanent Split Capacitor | Counter Clockwise Lead End | 7 57/64" | 48Y | 1075 RPM | 3 | 208-230V AC | - | $364.59 |
