| Item | Sprinkler Pump |
|---|---|
| Amps | 5.2-5/2.5A |
| Bearing Type | Double Shielded Ball |
| Best Efficiency Flow | 26 GPM |
| Best Efficiency Flow Range @ Head | 38-11 GPM @ 46-85 Ft |
| Best Efficiency Flow Rate | 26 GPM |
| Best Efficiency Flow Rate @ Head | 26 GPM @ 46 ft. |
| Best Efficiency Head | 46 ft. |
| Case Pressure (maximum) | 150 psi |
| Compatible Discharge Pipe Size | 1 1/2" |
| Compatible Intake Pipe Size | 1 1/2" |
| Compatible With Media Type | Non Flammable Liquids |
| Connection Type | NPT |
| Discharge Rotation | 90° Increments |
| Discharge Type | NPT |
| Drain Plug | Yes |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Flow Rate @ 10 Psi | 35 GPM |
| Flow Rate @ 15 Psi | 45 GPM |
| Flow Rate @ 2 Ft. | 52 GPM |
| Flow Rate @ 20 Psi | 26 GPM |
| Flow Rate @ 25 Psi | 34 GPM |
| Flow Rate @ 30 Psi | 19 GPM |
| Flow Rate @ 35 Psi | 15 GPM |
| For Media Type | Non-Flammable Liquids |
| For Use With | Nonflammable Liquids Compatible With Pump Component Materials |
| For Use With Potable Systems | No |
| Frame | 56J |
| Frequency | 60 Hz |
| Gpm Of Water @ 2 Ft. | 52 GPM |
| Height | 10 2/3" |
| Housing Material | Cast Iron |
| Housing Material - Pumps | Cast Iron |
| Hp | 3/4 hp |
| Hp - Pumps | 3/4 hp |
| Impeller Material | Stainless Steel |
| Impeller Type | Closed |
| Includes | Manual |
| Inlet Pressure | 111 psi |
| Inlet Size | 1 1/2" |
| Intake And Discharge Size | 1 1/2", 1 1/2" |
| Length | 17 1/3" |
| Manufacturer Warranty Length | 1 yr. |
| Max. Case Pressure | 150 psi |
| Max. Feet Of Head | 83 ft. |
| Max. Head | 83 ft. |
| Max. Pressure | 39 psi |
| Max. Pressure - Pumps | 39 psi |
| Max. Specific Gravity | 1 |
|---|---|
| Max. Suction Lift | 25 ft. |
| Media Type | Non Flammable Liquids |
| Min. Flow Rate | 35 GPM |
| Minimum Flow Rate | 35 GPM |
| Motor Ambient Temp. | 104°F |
| Motor Ambient Temperature (maximum) | 104°F |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Designation | 56J |
| Motor Type | Three Phase |
| Nameplate Voltage | 208-230/460V AC |
| No. Of Stages | 1 |
| Outlet Rotation | 90° |
| Outlet Size | 1 1/2" |
| Outlet Type | NPT |
| Overall Height | 10.69" |
| Overall Length | 17.31" |
| Overall Width | 8" |
| Overload Thermal Protection | Yes |
| Phase | 3 |
| Phase - Pumps | 3 |
| Port Rotation | 90 Deg. Increments |
| Pressure Pump Type | Sprinkler Pump |
| Priming | Self Priming |
| Pump Housing Material | Cast Iron |
| Rpm | 3450 RPM |
| Rpm (maximum) | 3450 RPM |
| Screw Material | Steel |
| Seal Application | Non-Flammable Liquids Compatible With Pump Components |
| Seal Material | Buna N, Carbon, Ceramic, Stainless Steel |
| Seal Type | Mechanical |
| Self Priming | Yes |
| Service Factor | 1.5 |
| Shaft Material | Stainless Steel |
| Shut Off Length | 90 ft. |
| Shut Off Pressure | 39 psi |
| Shut Off Pressure (maximum) | 39 psi |
| Specific Gravity | 1 |
| Specific Gravity (maximum) | 1 |
| Stages | 1 |
| Standards | CSA |
| Suction Lift | 25 ft. |
| Suction Lift (maximum) | 25 ft. |
| Voltage | 208/230/460V AC |
| Volute Material | Cast Iron |
| Wetted Material | Buna N, Carbon, Cast Iron, Ceramic, Stainless Steel |
| Wetted Materials | Buna N, Carbon, Cast Iron, Ceramic, Stainless Steel |
| Width | 8" |
| Height (cm) | 27.15 |
|---|---|
| Length (cm) | 43.97 |
| Width (cm) | 20.32 |
| HS Code | 8413702005 |
|---|---|
| Country Of Origin | CN |
| Weight (kg) | 30.6 |
| Style | Model | Hp | Phase | Max. Suction Lift | Pump Housing Material | Max. Head | Compatible Intake Pipe Size | Compatible Discharge Pipe Size | Nameplate Voltage | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

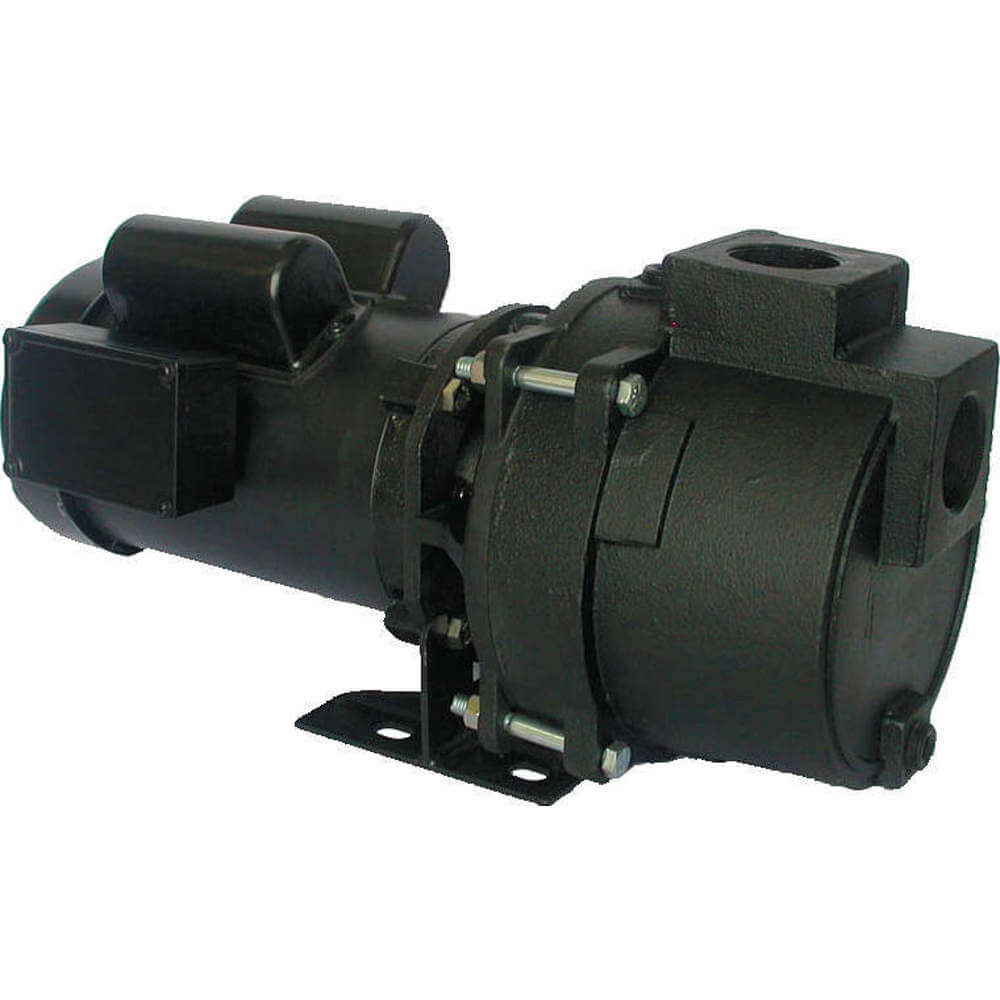

| A | 5RWG5 | 3/4 hp | 1 | 25 ft. | Cast Iron | 83 ft. | 1 1/2" | 1 1/2" | 120/208-240V AC | $1,201.85 | |
| A | 5RWG6 | 1 hp | 1 | 25 ft. | Cast Iron | 101 ft. | 1 1/2" | 1 1/2" | - | $1,309.89 | |

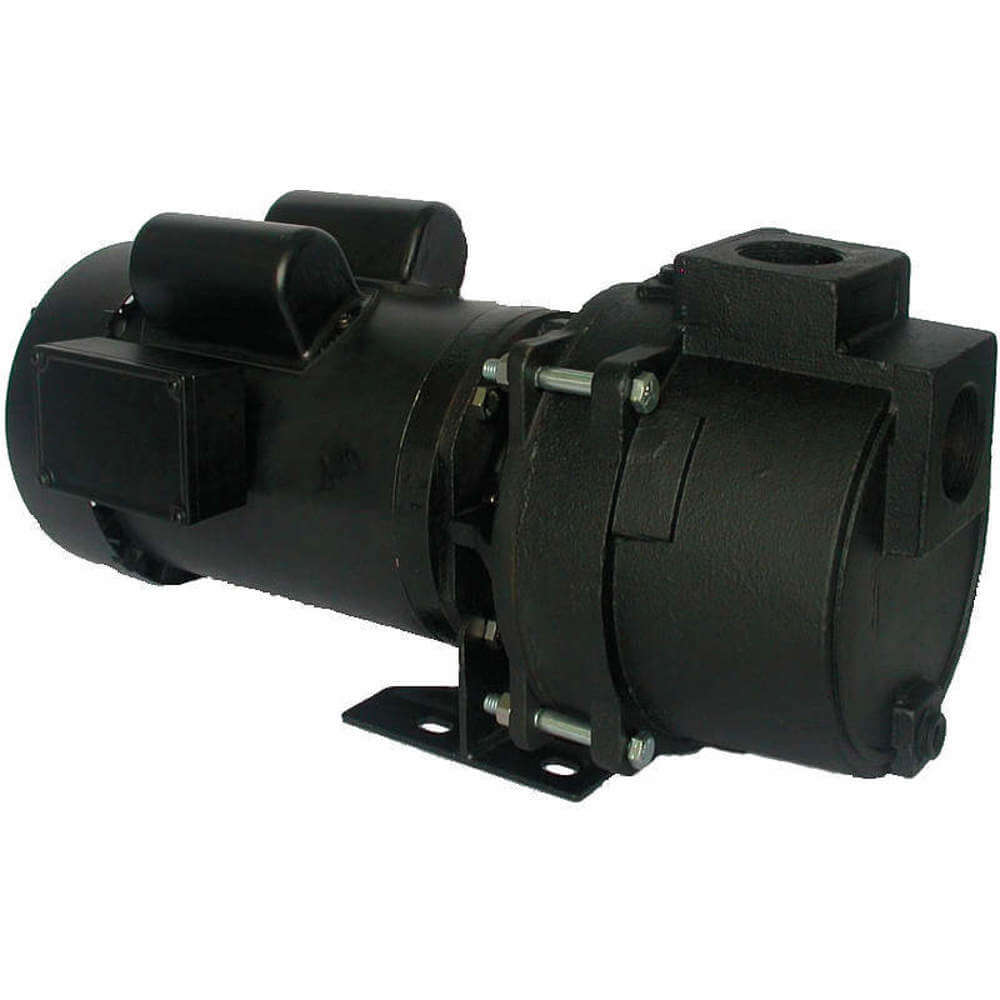

| B | 5RWG7 | 1 1/2 hp | 1 | 25 ft. | Cast Iron | 104 ft. | 1 1/2" | 1 1/2" | - | $1,191.71 | |

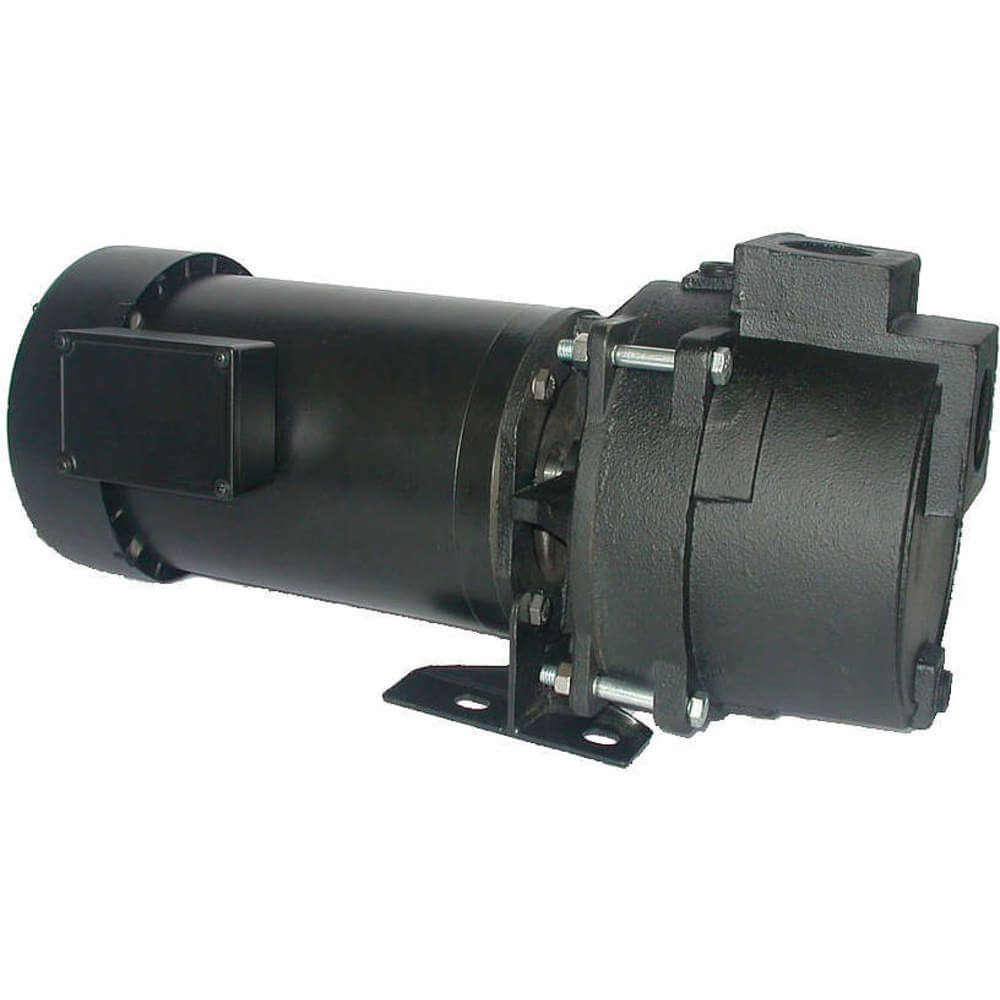

| C | 5RWG8 | 1 1/2 hp | 3 | 25 ft. | Cast Iron | 104 ft. | 1 1/2" | 1 1/2" | 208-230/460V AC | $1,231.65 | |
| B | 5RWG9 | 2 hp | 1 | 25 ft. | Cast Iron | 118 ft. | 1 1/2" | 1 1/2" | 115/208-230V AC | $1,802.68 | |
| B | 5RWH0 | 2 hp | 1 | 25 ft. | Cast Iron | 147 ft. | 1 1/2" | 1 1/2" | 120/208-240V AC | $1,857.09 | |
| C | 5RWH1 | 2 hp | 3 | 25 ft. | Cast Iron | 147 ft. | 1 1/2" | 1 1/2" | 208-230/460V AC | $1,650.07 |
