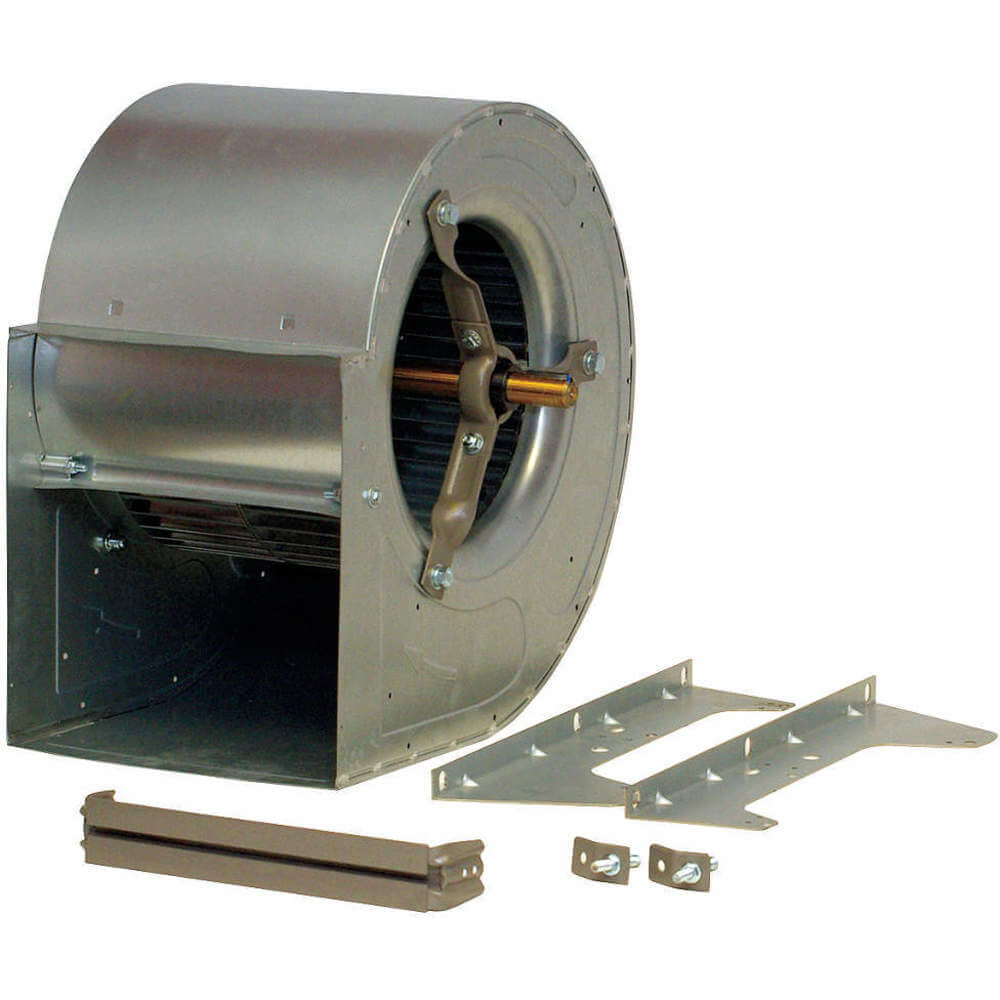

| Item | Blower |
|---|---|
| Amca Fan Class | Not Rated |
| Application | Air Conditioning, Exhausting, General Ventilation, Heating |
| Assembly | Unassembled |
| Bearing Type | Ball |
| Chemical Resistant | No |
| Corrosion Resistant | Yes |
| Discharge Height | 7" |
| Discharge Height (in.) | 7" |
| Discharge Position | Bottom Horizontal, Down Blast, Top Horizontal, Up Blast |
| Discharge Width | 13 1/8" |
| Discharge Width (in.) | 13.125" |
| Drive Package With Motor Included? | No |
| Drive Type | Belt Drive |
| Features | Accommodates A Wide Range Of Drive Sizes And Hp In Hvac Systems, Features Rubber Isolators And A Dynamically Balanced Wheel |
| For Air Type | General/Clean |
| For High-static Pressure Applications | Yes |
| For Location | Indoor |
| For Ventilation Type | Exhaust, Make-Up, Return, Supply |
| Hazardous Location Application | No |
| Housing Color | Silver |
| Housing Depth | 16.7" |
| Housing Finish | Galvanized |
| Housing Height | 17.3" |
| Housing Material | Steel |
| Housing Width | 13.1" |
| Includes | Isolation Grommet, Motor Mounting Bracket, Mounting Hardware |
| Includes Drive Package | No |
| Includes Motor | No |
| Includes Mounting Hardware | Yes |
| Inlet Diameter | 9 1/8" |
| Manufacturer Warranty Length | 1 yr. Limited |
| Max. Ambient Temp. | 104°F |
| Max. Inlet Temp. | 150°F |
|---|---|
| Max. Motor Hp | 2 hp |
| Maximum Airflow | 3390 CFM |
| Maximum Fan Speed | 1200 RPM |
| Maximum Static Pressure | 1.5 in. wc |
| Min. Motor Hp | 1/4 hp |
| Minimum Airflow | 1230 CFM |
| Minimum Ambient Temperature | -4°F |
| Minimum Fan Speed | 534 RPM |
| Mount Type | Multiposition |
| Mounting | Multipostion |
| Mounting Orientation | Multiposition |
| No. Of Inlets | 2 |
| Number Of Discharge Positions | 4 |
| Outlet Height | 11 3/8" |
| Outlet Shape | Rectangular |
| Outlet Type | Non Flanged |
| Outlet Width | 11 3/8" |
| Overall Depth | 16 5/8" |
| Overall Height | 17 3/8" |
| Overall Width | 18" |
| Resistance Properties | Corrosion Resistant |
| Rotation | CW/CCW |
| Shaft Dia. | 3/4" |
| Sound Level | Not Rated |
| Speed Controllable | No |
| Type | Belt Drive, Double Inlet Forward Curve, Less Motor |
| Wheel Bore Diameter | 3/4" |
| Wheel Dia. | 11 1/8" |
| Wheel Material | Steel |
| Wheel Material Finish | Galvanized |
| Wheel Type | Forward Curved |
| Wheel Width | 10 1/8" |
| Height (cm) | 44.13 |
|---|---|
| Length (cm) | 42.23 |
| Width (cm) | 45.72 |
| HS Code | 8414596060 |
|---|---|
| Country Of Origin | CN |
| Weight (kg) | 13.8375 |
| Style | Model | Outlet Height | Outlet Width | Housing Height | Shaft Dia. | Housing Width | Wheel Width | Discharge Width (in.) | Discharge Height (in.) | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 5NRC7 | 10 1/8" | 6" | 15 1/5" | 3/4" | 9.1" | 6 3/4" | 9.187" | - | $403.26 | |
| A | 5NRC8 | 7 7/8" | 7 7/8" | 12 1/2" | 3/4" | 9.1" | 6 3/4" | 9.187" | - | $397.65 | |
| A | 5NRC9 | 10 1/4" | 10 1/4" | 15 1/5" | 3/4" | 11.8" | 9 1/8" | - | - | $455.76 | |
| A | 5NRD0 | 11 3/8" | 11 3/8" | 17.3" | 3/4" | 10 1/2" | 7 5/8" | 10.5" | 7" | $388.39 | |
| A | 5NRD2 | 13 3/8" | 13 3/8" | 20 1/2" | 1" | 12.2" | 9" | 12.25" | 8.375" | $588.12 | |
| A | 5NRD3 | 13 3/8" | 13 3/8" | 20 1/2" | 1" | 15.6" | 12" | 15.625" | 8.375" | $597.45 | |
| A | 5NRD4 | 15 7/8" | 5 7/8" | 24" | 1" | 14.6" | 11" | - | - | $662.09 |
