| Item | Speed Reducer |
|---|---|
| Application | Speed Reducer |
| Bearing Type | Ball, Tapered Roller |
| Bore Dia. | 5/8" |
| Dimension U | 1 1/4" |
| Duty | Standard |
| Finish | Epoxy Paint |
| Frame | 56C |
| Gear Material | Hardened Steel, Manganese Bronze |
| Gear Ratio | 151 |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Input Rpm | 1750 RPM |
| Input Shaft Diameter | 5/8" |
| Max. Input Hp | 2 hp |
| Motor Frame Designation | 56C |
| Mounting Position | All Except Shaft Up |
| Mounting Type | All Position Except Input Motor Shaft Up |
|---|---|
| Nominal Output Rpm | 117 RPM |
| Number Of Stages | 1 |
| Output Shaft Dia. | 1 1/4" |
| Output Shaft Type | Keyed |
| Output Torque @ 1/40 Hp | 3600 lbs.-in. |
| Overhung Load | 1300 lbs. |
| Pinion Material | Hardened Steel |
| Reducer Model No. | 83992 |
| Rotation | CW/CCW |
| Seal Type | Double Lip |
| Shaft Orientation | Right Angle |
| Single/double Output | Double Output |
| Solid/hollow Output Shaft | Solid |
| Speed Reducer Type | C Face |
| Worm Center Distance | 2.62" |
| Worm Gear Material | Bronze |
| Height (cm) | 34.29 |
|---|---|
| Length (cm) | 42.67 |
| Width (cm) | 37.34 |
| HS Code | 8483405050 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 24.165 |
| Style | Model | Output Shaft Type | Gear Ratio | Max. Input Hp | Worm Center Distance | Motor Frame Designation | Overhung Load | Nominal Output Rpm | Rotation | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

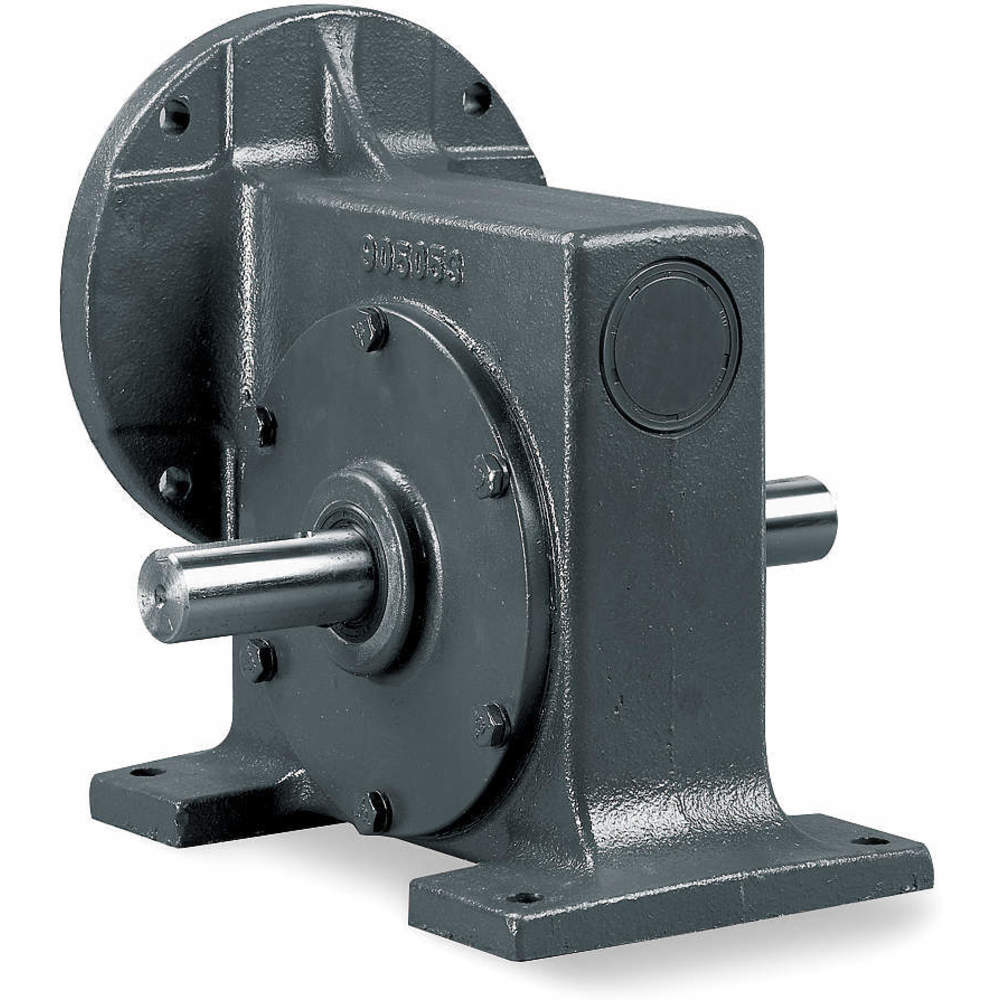

| A | 2Z151 | Round | 501 | 1/2 hp | 2.62" | 56C | 986 lbs. | 35 RPM | CW/CCW | $967.21 | |
| A | 2Z152 | Round | 251 | 3/4 hp | 2.62" | 56C | 679 lbs. | 69 RPM | CW/CCW | $817.69 | |
| A | 2Z153 | Round | 201 | 3/4 hp | 2.62" | 56C | - | 86 RPM | CW/CCW | $746.11 | |
| B | 2Z154 | Round | 12.5:1 | 3/4 hp | 2.62" | 56C | - | 138 RPM | CW/CCW | $852.37 | |
| A | 2Z936 | Round | 101 | 3/4 hp | 2.62" | 56C | - | 173 RPM | CW/CCW | $817.69 | |

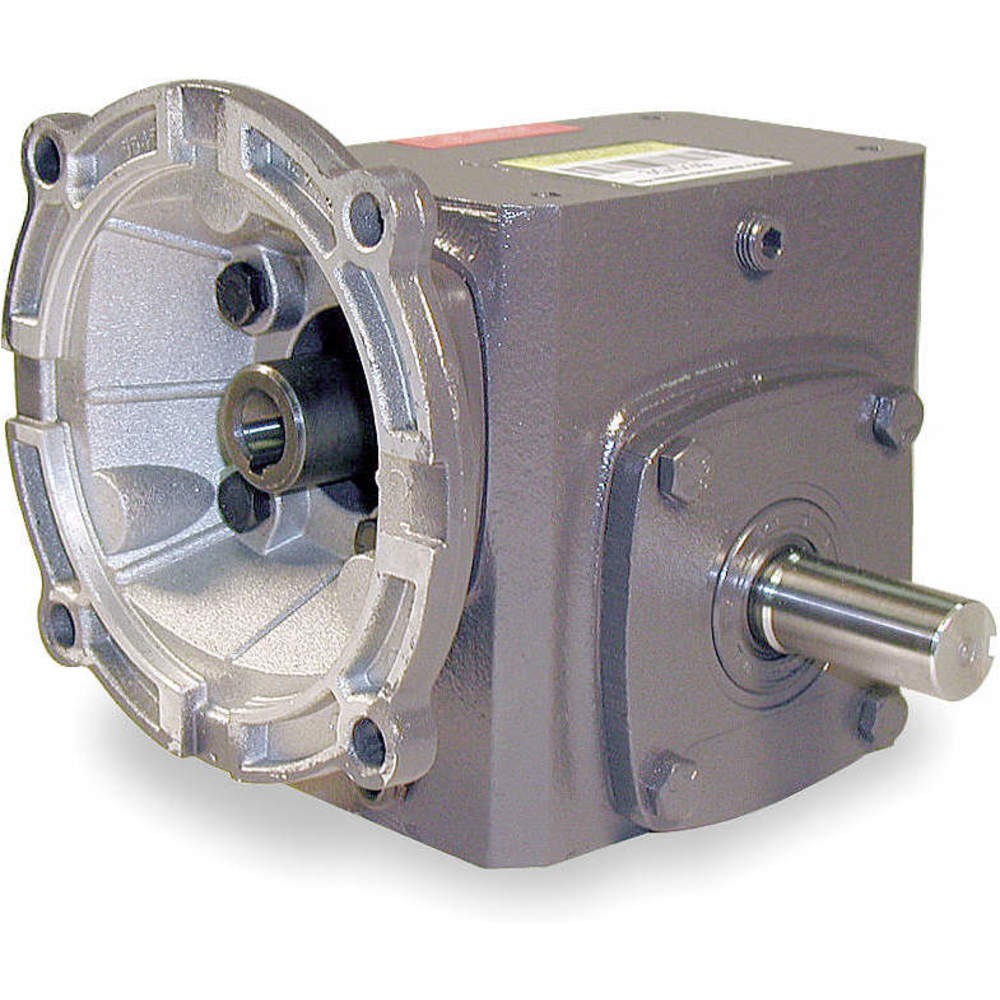

| C | 3GD39 | Round | 601 | 3/10 hp | - | 56C | 700 lbs. | 29 RPM | CW/CCW | $909.80 | |
| D | 3GD40 | Round | 501 | 1/2 hp | 1 3/4" | 56C | 700 lbs. | 35 RPM | CW/CCW | $843.75 |
