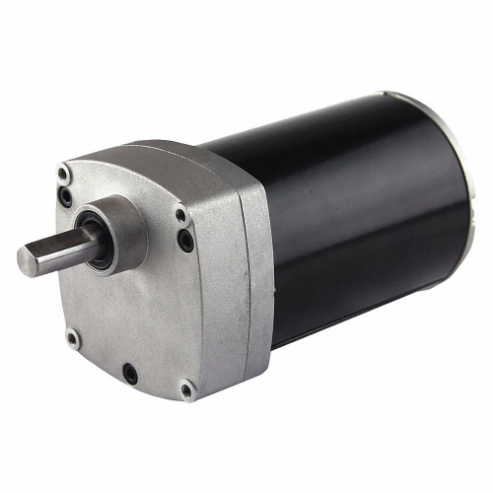

| Item | AC Gearmotor |
|---|---|
| Capacitor Required | Yes |
| Enclosure Type | Totally Enclosed Nonventilated |
| Gear Material | Nylon, Sintered Steel |
| Gearmotor Enclosure | Totally Enclosed Nonventilated |
| Gearmotor Mounting Position | All Angle |
| Gearmotor Shaft Orientation | Parallel |
| Input Hp | 1/25 hp |
| Inverter Rated | Yes |
| Keyway Depth | 1/8" |
| Keyway Size Type | Flat |
| Keyway Type | Flat |
| Keyway Width | 3/16" |
| Length Less Shaft | 6.33" |
| Motor Shaft Design | Flat |
| Mount Hole Center-to-center Length | 2.65" |
| Mount Hole Center-to-center Width | 2 16/25" |
| Mount Type | Any Position |
|---|---|
| Mounting Orientation | Any Angle |
| Number Of Brake Discs Required | 1 |
| Number Of Output Shafts | 1 |
| Output Shaft Dia. | 1/2" |
| Output Shaft Height | 2.07" |
| Output Shaft Length | 1 1/16" |
| Overall Height | 3 1/2" |
| Overall Length | 6.99" |
| Overall Width | 3 9/25" |
| Reversible Shaft Output | Yes |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 1.05" |
| Shaft Orientation | Parallel |
| Type | Permanent Split Capacitor |
| Height (cm) | 8.89 |
|---|---|
| Length (cm) | 20.08 |
| Width (cm) | 8.53 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 2.7225 |
