| Item | Chain Link |
|---|---|
| Ansi Chain Size | 35-2 |
| Breaking Strength | 4850 lbs. |
| Bushing Dia. | 1/5" |
| Bushing Dia. (in.) | 0.2" |
| Chain Construction | Riveted Pin |
| Chain Link Overall Width | 1 1/25" |
| Chain Number | 35 |
| Chain Overall Width | 1 3/64" |
| Chain Roller Dia. | 1/5" |
| Connecting End To Center Line | 0.469" |
| Heavy Series | No |
| Hole Dia. | 0.143" |
| Industry Chain Pitch | 3/8" |
| Inside Pin Dia. | 0.141" |
| Inside Width | 3/16" |

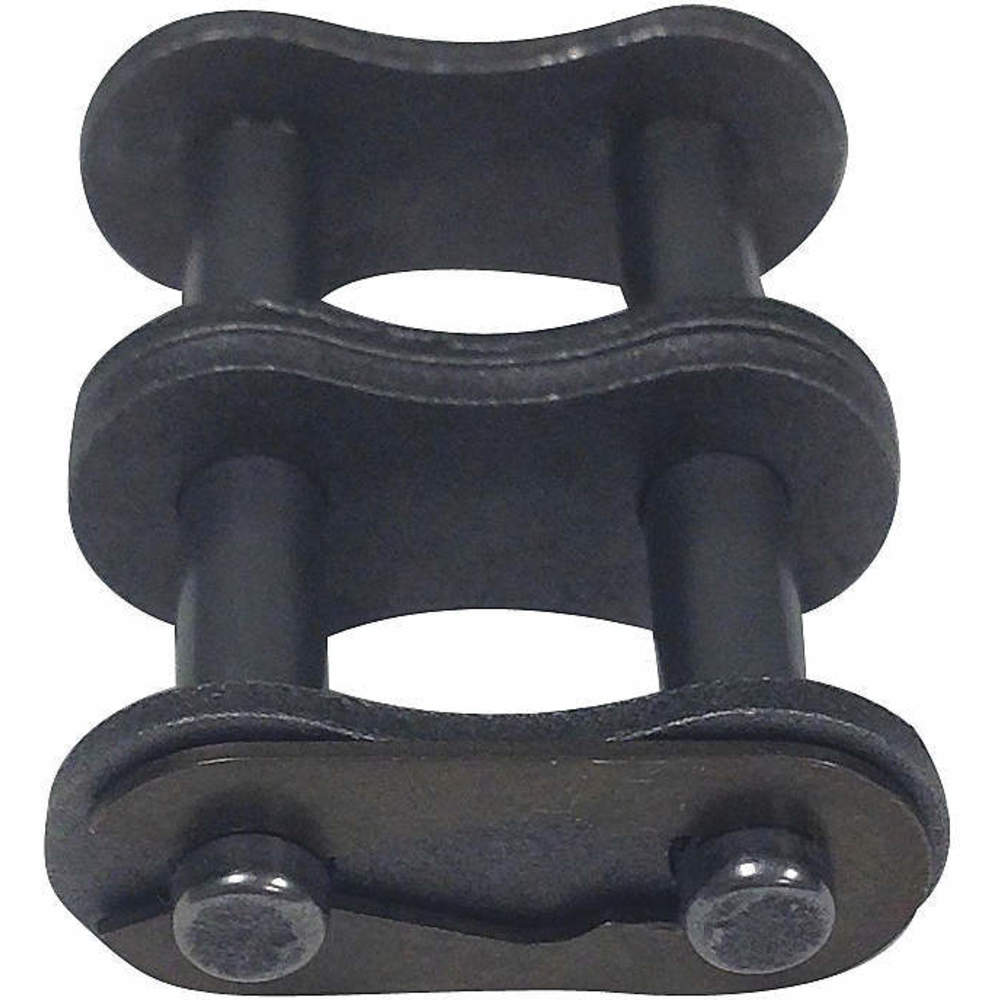

| Link Type | Connecting Link |
| Material | Steel |
| Max. Allowable Load | 805 lbs. |
| Maximum Operating Temperature | 150°F |
| Minimum Operating Temperature | 10°F |
| Number Of Strands | 2 |
|---|---|
| Outside Pin Dia. | 0.141" |
| Overall Width | 0.898" |
| Pin Contruction | Riveted Pin |
| Pin Hole Diameter | 9/64" |
| Pin Length | 1 1/25" |
| Pin Link Plate Thickness | 0.05" |
| Pin Outside Dia. | 9/64" |
| Pitch | 3/8" |
| Plate Height | 23/64" |
| Plate Thickness | 3/64" |
| Rivet End To Center Line | 0.429" |
| Roller Chain Link Item | Connecting Link |
| Roller Chain Link Type | Standard Riveted |
| Roller Dia. | 1/5" |
| Roller Diameter | 3/16" |
| Roller Link Plate Height | 0.356" |
| Type | Double Strand Connecting |
| Width Between Roller Link Plates | 0.188" |
| Working Load Limit | 805 lbs. |
| Height (cm) | 0.76 |
|---|---|
| Length (cm) | 13.21 |
| Width (cm) | 10.67 |
| HS Code | 7315900000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.036 |
| Style | Model | Pitch | Ansi Chain Size | Tensile Strength | Roller Dia. | Inside Pin Dia. | Pin Length | Roller Link Plate Height | Pin Link Plate Thickness | Pkg. Qty. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 2YDZ8 | 1/2" | 40NP | 2481 lbf. | 0.313" | 0.155" | 0.83" | 0.475" | 0.06" | 5 | $9.64 | |
| A | 2YDZ9 | 5/8" | 50NP | 4880 lbf. | 2/5" | 1/5" | 1.01" | 0.594" | 2/25" | 5 | $11.26 | |
| A | 2YEA1 | 3/4" | 60NP | 7030 lbf. | 0.469" | 0.233" | 1.23" | 0.709" | 0.094" | 5 | $14.40 | |
| B | 2YEA2 | 1/2" | 40NP | 2481 lbf. | 0.313" | 0.155" | 0.83" | 0.475" | 0.06" | 5 | $13.17 | |
| B | 2YEA3 | 5/8" | 50NP | 4880 lbf. | 2/5" | 1/5" | 1.01" | 0.594" | 2/25" | 5 | $19.59 | |
| B | 2YEA4 | 3/4" | 60NP | 8500 lbs. | 0.469" | 0.233" | 1.23" | 0.709" | 0.094" | 5 | $24.61 | |
| C | 2YEA5 | 3/8" | 35 | 1760 lbf. | 1/5" | 0.141" | 16/25" | 0.356" | 0.05" | 5 | $9.96 |
