| Item | Square Control Damper |
|---|---|
| Acma Leakage Class | Class 1A |
| Airflow Direction | Horizontal, Vertical |
| Application | Volume Control |
| Axle Dia. | 1/2" |
| Axle Material | Plated Steel |
| Bearing Material | Synthetic (Acetal) |
| Bearings | Synthetic (Acetal) Sleeve Type |
| Blade Material | Galvanized Steel |
| Blade Material Thickness | 16 ga. |
| Blade Orientation | Opposed Blades |
| Blade Seal Material | TPE |
| Blade Type | V-Groove |
| Closure Pressure Rating | 5 in. wc |
| Closure Type | Motorized |
| Closure Velocity Rating | 3000 FPM |
| Damper Application | Volume Control |
| Damper Item | Volume Control Damper |
| Damper Shape | Square |
| Duct Height | 16" |
| Duct Width | 16" |
| Flange Type | Hat Channel |
| For Duct Shape | Square |
| For Use In | Low To Medium Pressure And Velocity Systems |
| Frame Depth | 5" |
| Frame Material | Steel |
| Frame Material Thickness | 16 ga. |
| Frame Opening Height | 15 3/4" |
|---|---|
| Frame Opening Width | 15 3/4" |
| Frame Thickness | 16 ga. |
| Frame Width | 15 3/4" |
| Includes | Extension Pin Kit |
| Jamb Seal Material | Vinyl |
| Linkage | Concealed In Frame, Out Of Airstream, Side |
| Max. Air Velocity | 3000 FPM |
| Max. Temp. | 180°F |
| Max. Velocity | 3000 FPM |
| Maximum Pressure | 5 in. wg |
| Mounting Position | Horizontal |
| Number Of Panels | 1 |
| Overall Height | 15 3/4" |
| Overall Length | 5" |
| Overall Width | 15 3/4" |
| Pressure Differential Max. | 5 in. wg |
| Pressure Drop @ 1000 Fpm | 0.027 in. wg |
| Pressure Drop @ 1000 Fpm (amca 5.2) | 0.027 in. wg |
| Rough Opening Shape | Square |
| Rough Opening Width | 16" |
| Seal | Extruded Vinyl Blade |
| Seal Material | Vinyl |
| Sleeve Type | Synthetic |
| Switch Action | Normally Open |
| Standards | AMCA, ASHRAE 90.1, CALIFORNIA TITLE 24, IECC |
| Height (cm) | 34.92 |
|---|---|
| Length (cm) | 12.7 |
| Width (cm) | 40.01 |
| HS Code | 8481809050 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 6.0075 |
| Style | Model | Frame Material | Mounting Position | Number Of Panels | Voltage | Operation | Mounting Holes | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|
| A | 2LRY6 | Steel | Horizontal | 1 | - | - | - | $255.50 | |
| A | 2LRY7 | Steel | Horizontal | 1 | - | - | - | $253.36 | |
| A | 2LRY9 | Steel | Horizontal | 1 | - | - | - | $305.59 | |
| A | 2LRZ1 | Steel | Horizontal | 1 | - | - | - | $358.06 | |

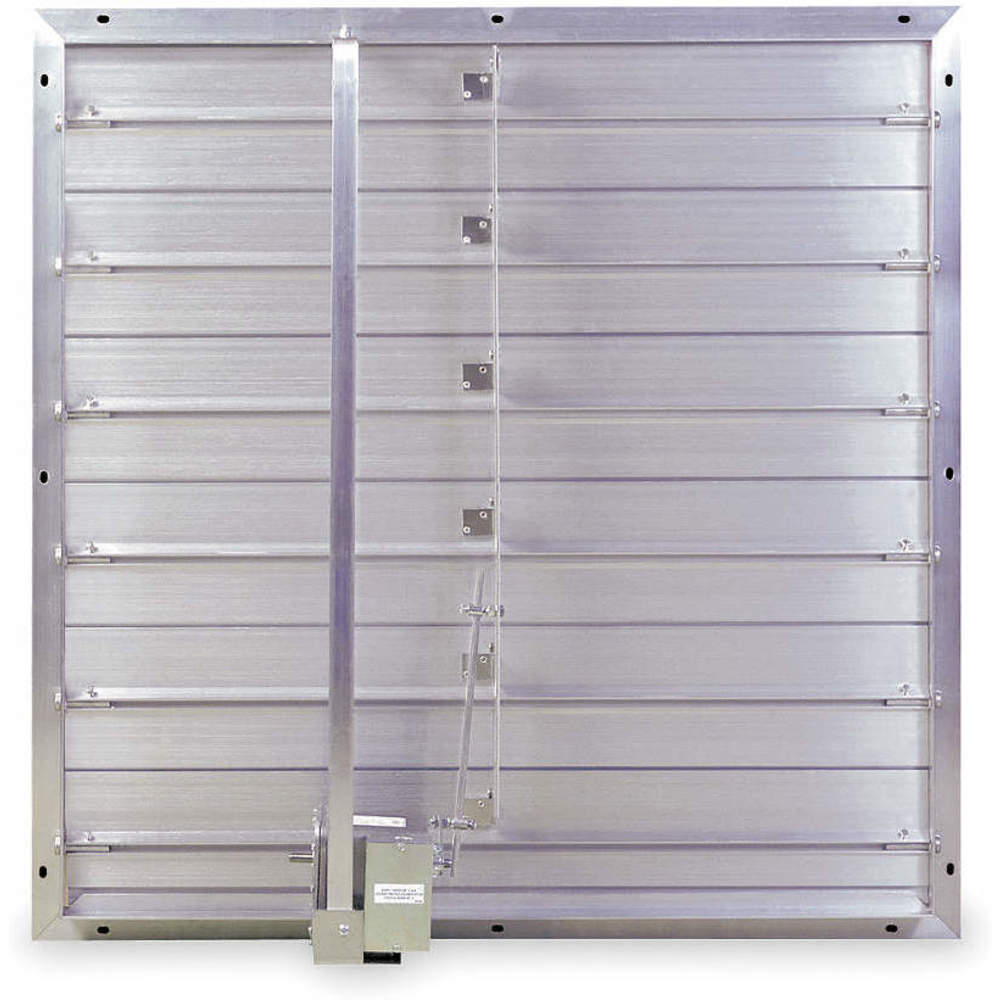

| B | 3C131 | Aluminum | Horizontal, Vertical | 1 | 100-240V | Power Open, Spring Return | 0.281" x 0.5" | $652.28 | |
| B | 3C132 | Aluminum | Horizontal | 1 | 100-240V | Power Open, Spring Return | 0.281" x 0.5" | $851.38 | |
| C | 3C188 | Aluminum | Horizontal, Vertical | 2 | 24-240V | Power Open, Spring Return | 0.281" x 0.5" | $1,141.99 |
