| Item | Speed Control |
|---|---|
| Application | Fans |
| Compatible With Series | Not Applicable |
| Contact Form | SPST |
| Depth | 1 1/4" |
| Fits | Single Gang Box |
| Height | 4 1/2" |
| Includes | Mounting Screws, Wire Nuts |
| Input Voltage | 120V AC |
| Ip Rating | IP5X |
| Items Controlled | Fans |
| Max. Amps | 12A |
| Max. Temp. Setting | Not Applicable |
| Maximum Input Current | 12A |
| Maximum Input Wattage | 1440 W |
| Maximum Time Setting | Not Applicable |
| Min. Temp. Setting | Not Applicable |
| Min. Time Setting | Not Applicable |
| Nominal Input Voltage | 120V AC |
|---|---|
| Number Of Switches Or Dials | 2 |
| Overall Depth | 1 1/4" |
| Overall Height | 4 1/2" |
| Overall Width | 4 1/2" |
| Plate | Black, Silver Aluminum |
| Plate Color | Black, Silver |
| Plate Material | Aluminum |
| Product Type | Speed Control |
| Reversible | Not Reversible |
| Switch Color | Gold |
| Switch Design | Dial, Touch Button |
| Switch Type | Dial, Touch Button |
| Temperature Sensor | Temperature Sensor Not Included |
| Type | Rotary, Adjustable |
| Voltage Rating | 120V |
| Width | 4 1/2" |
| Standards | CULUS COMPONENT RECOGNIZED |
| Height (cm) | 7.62 |
|---|---|
| Length (cm) | 12.7 |
| Width (cm) | 12.45 |
| HS Code | 8536509025 |
|---|---|
| Country Of Origin | CN |
| Weight (kg) | 0.27 |
| Style | Model | Switch Color | Plate Color | Height | Voltage Rating | Fits | Max. Wattage | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|
| A | 22PP72 | Gold | Silver | 4 1/2" | 120V | Single Gang Box | - | $43.51 | |
| B | 22PP73 | Gold | Black, Silver | 4 1/2" | 120V | Single Gang Box | - | $122.33 | |

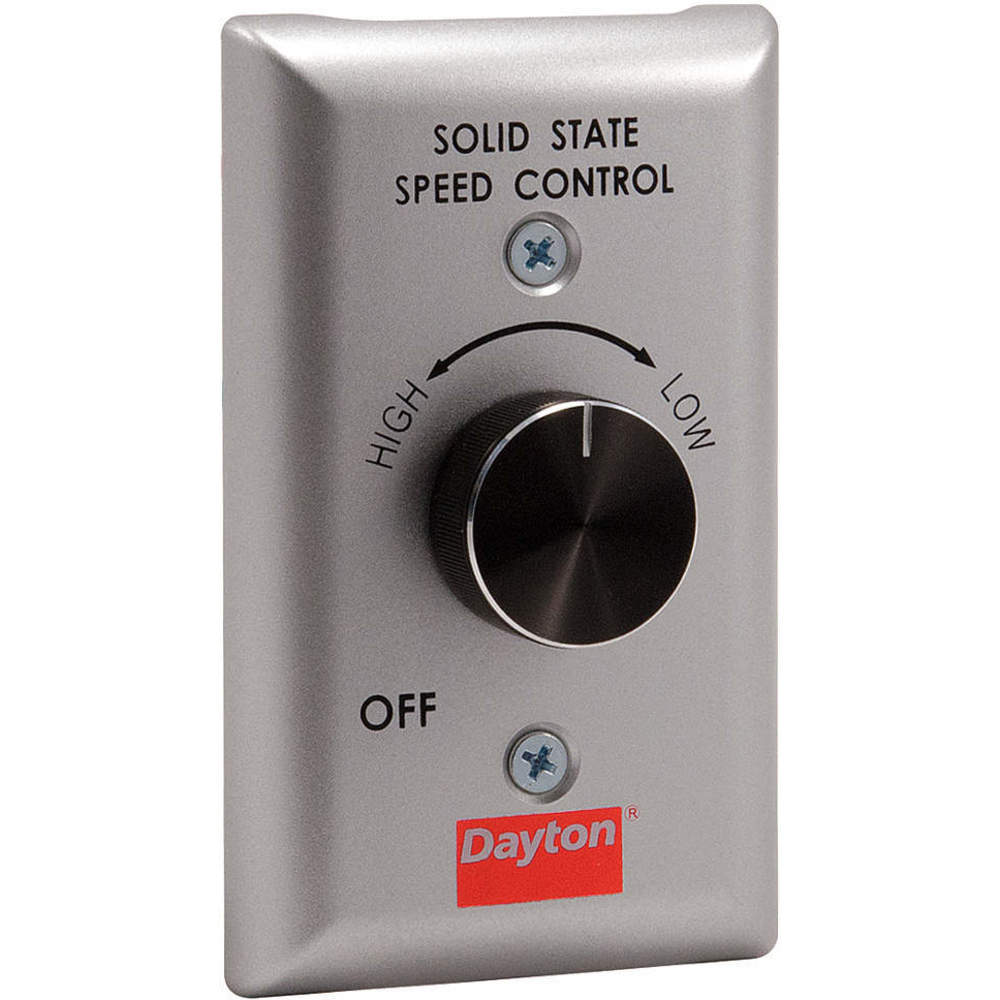

| C | 48C172 | Black | Silver | - | 115V | Single Gang Box | 720 W | $67.16 | |
| D | 48C173 | Black | Silver | - | 115V | Single Gang Box | - | $94.03 | |

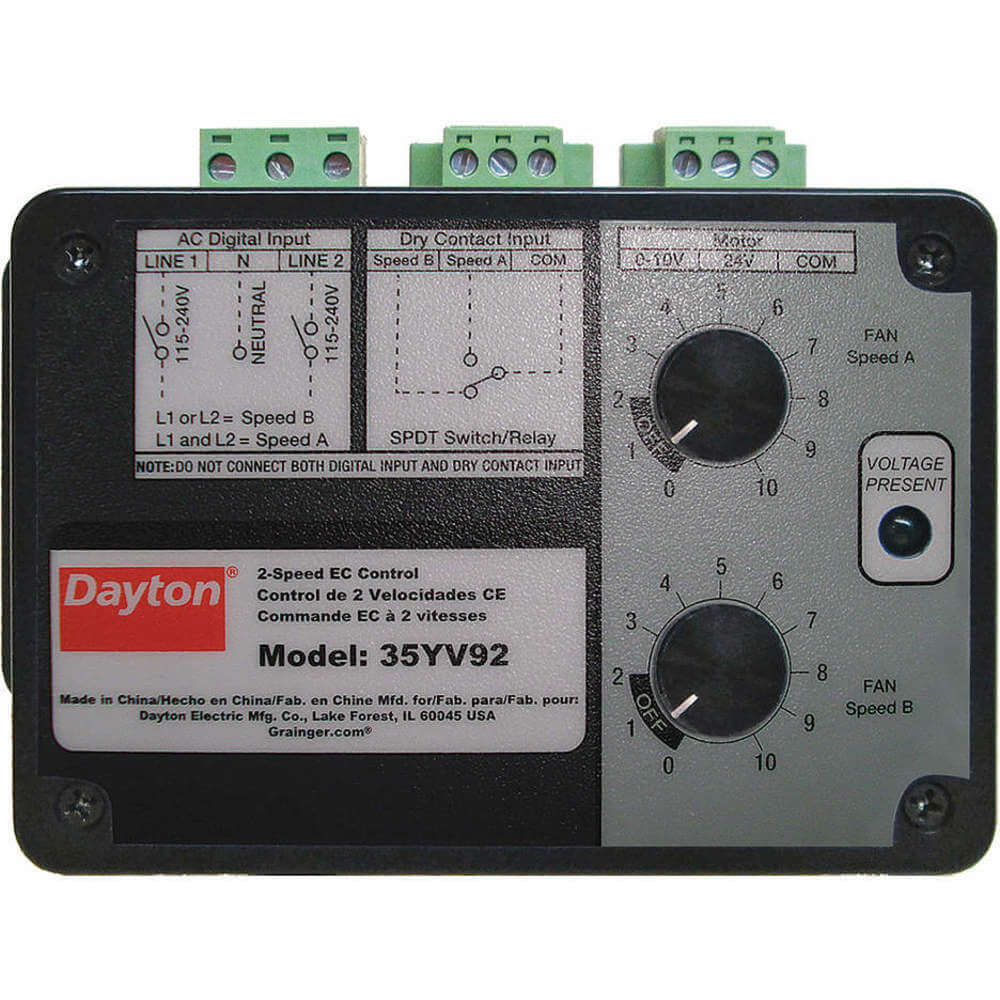

| E | 35YV92 | Black | - | 3 3/4" | 115/230V | - | - | $504.47 | |
| F | 35YV94 | White | White | 4 1/4" | 115/230V | Single Gang Junction Box | - | $717.79 | |
| G | 43Y140 | Black | Silver | - | 115/230V | Single Gang Junction Box | - | $420.26 |
