| Item | Dc Speed Control |
|---|---|
| Ac Input Voltage | 120/240V AC |
| Accepts Tach Feedback | Yes |
| Current/torque Limit | Adjustable |
| Dc Speed Control | SCR |
| Depth | 2 3/4" |
| Dynamic Braking | No |
| Enclosure Rating | NEMA 4 |
| Enclosure Type | Enclosed |
| External Switches | Fwd/Off/Rev |
| Follower Circuit | No |
| Frame | NEMA 4/12 |
| Height | 7 1/4" |
| Higher Voltage Motor Output Power | 1/4 hp to 2 hp |
| Hp @ Higher Voltage | 1/4 hp to 2 hp |
| Hp @ Lower Voltage | 1/8 hp to 1 hp |
| Input Voltage | 120/240V AC |
| Ir Compensation | Adjustable |
| Length | 7 1/4" |
| Linear Acceleration | 0.5 sec. to 8 sec. |
| Linear Deceleration | Fixed |
|---|---|
| Lower Voltage Motor Output Power | 1/8 hp to 1 hp |
| Max. Amps | 10A |
| Max. Linear Acceleration | 8 sec. |
| Min. Linear Acceleration | 0.5 sec. |
| Mounting Type | Surface |
| Operating Temp. | -10°C to +45°C |
| Output Voltage | 90/180V DC |
| Overall Depth | 2 3/4" |
| Overall Height | 7 1/4" |
| Overall Width | 5.53" |
| Product Type | Dc Speed Control |
| Rotation | Reversible |
| Series | Series 253 |
| Shunt Wound Voltage | 100/200V AC |
| Speed Control | SCR |
| Speed Range | 50:1 |
| Speed Regulation | +/-0.5% With Tach Feedback, +/-1% With Armature Voltage Feedback |
| Width | 5.53" |
| standard | CULUS LISTED, ROHS |
| Height (cm) | 10.67 |
|---|---|
| Length (cm) | 19.56 |
| Width (cm) | 16.51 |
| HS Code | 8504404000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 1.035 |
| Style | Model | Max. Amps | Rotation | Enclosure Rating | Enclosure Type | External Switches | Overall Depth | Linear Acceleration | Hp @ Lower Voltage | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

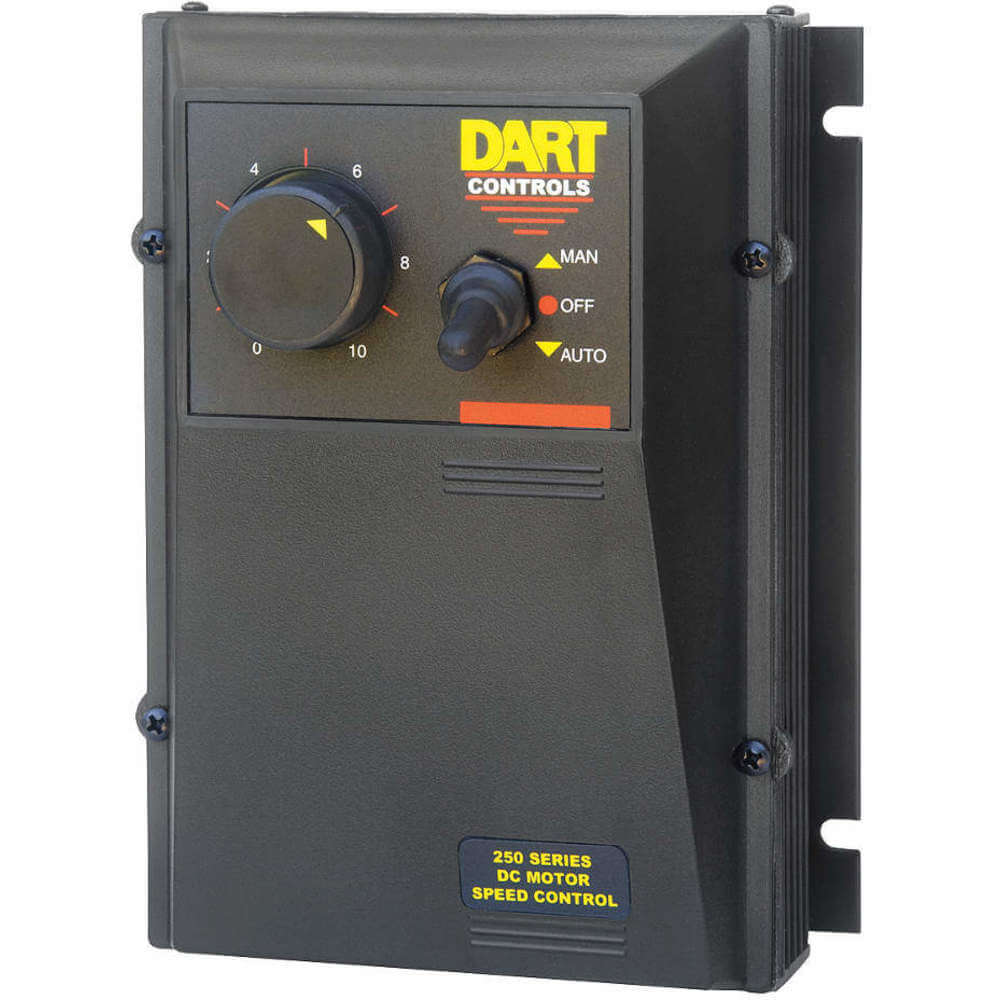

| A | 253G-200E-7 | 10A | Single Direction | NEMA 4 | Enclosed | On/Off | 2 3/4" | 0.5 sec. to 8 sec. | 1/8 hp to 1 hp | $758.69 | |

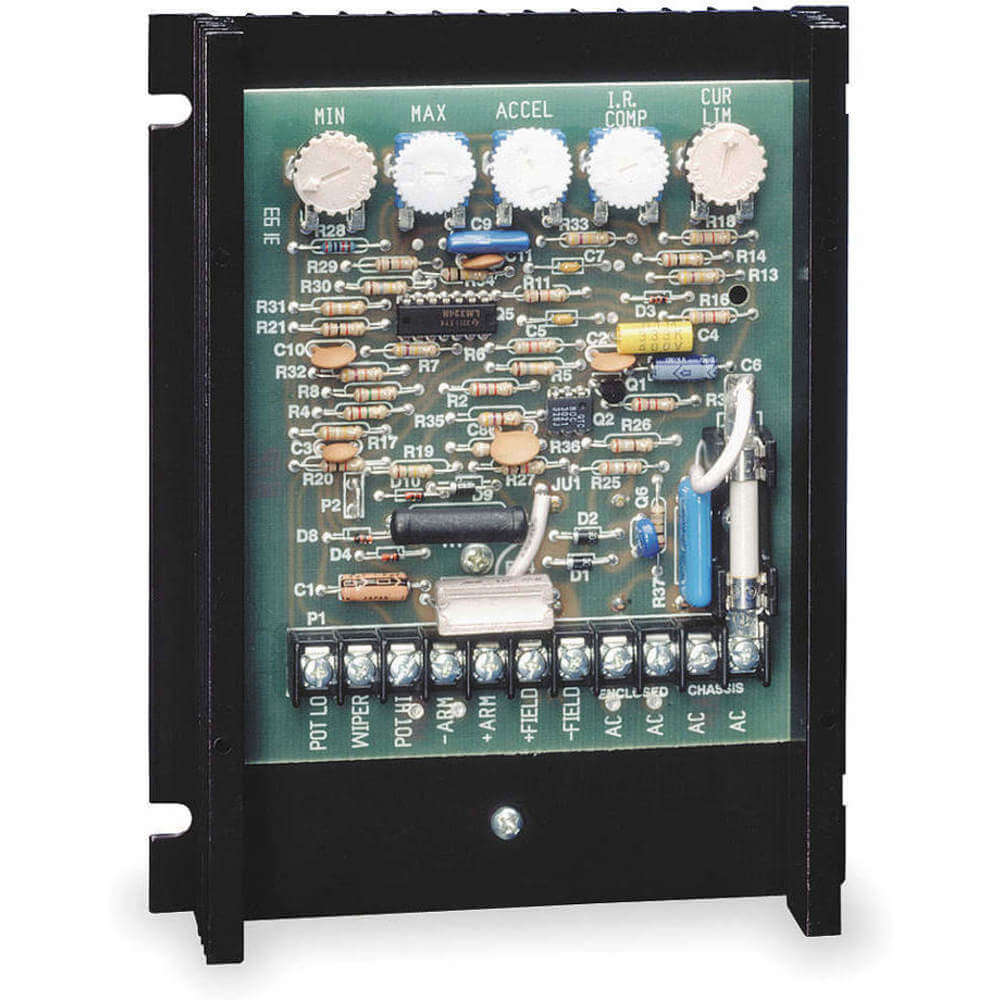

| B | 253G-200C | 10A | Reversible | - | Open | None | 1.63" | 0.5 sec. to 8 sec. | 1/8 hp to 1 hp | $441.16 | |

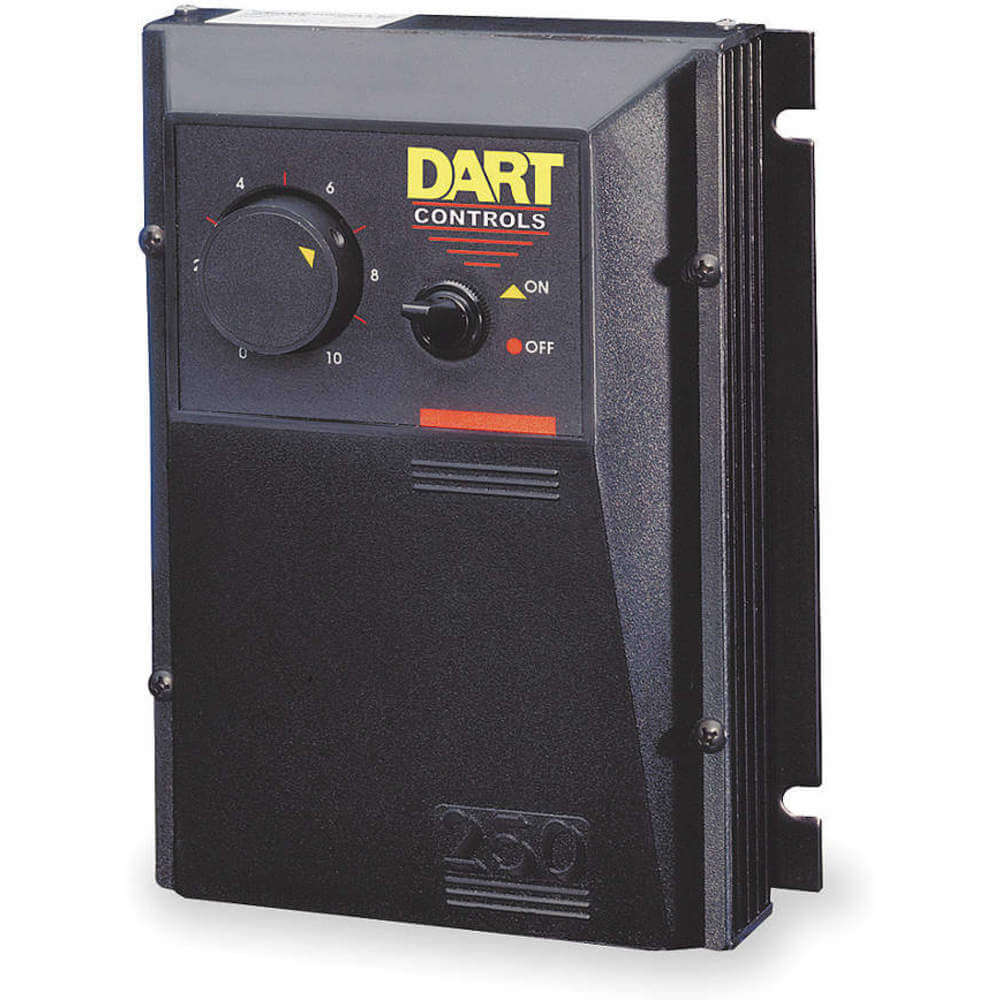

| C | 253G-200E | 10A | Single Direction | NEMA 4 | Enclosed | On/Off | 2 3/4" | 0.5 sec. to 8 sec. | 1/8 hp to 1 hp | $557.17 | |
| D | 251G-12E | 1.2A | Single | NEMA 4 | - | - | 2 3/4" | Adjustable | 1/50 hp to 1/8 hp | $1,096.71 | |
| D | 251G-12E-29 | 1.2A | Reversible | NEMA 4 | - | - | 2 3/4" | Adjustable | 1/50 hp to 1/8 hp | $1,633.26 | |
| D | 251G-12E-4X-29 | 1.2A | Reversible | - | - | - | 2 3/4" | Adjustable | 1/50 hp to 1/8 hp | - | RFQ
|
| D | 251G-12E-56H2 | 1.2A | Reversible | - | - | - | 2 3/4" | Adjustable | 1/50 hp to 1/8 hp | - | RFQ
|
