| Item | Multi Conductor Foil Shield Cable |
|---|---|
| Application | Audio Systems, Control Systems, Electronic Circuits |
| Conductor Gauge | 18 AWG |
| Conductor Size | 18 AWG |
| Conductor Size (data Cable) | 18 AWG |
| Cord Length | 100 ft. |
| Fire Rating | Plenum |
| Fire Rating (data Cable) | Commercial |
| Insulation Material | PE |
| Jacket Color | Gray |
| Jacket Material | PVC |
| Maximum Capacitance | 23 pF/ft. |
| Maximum Operating Temperature | 167°F |
| Maximum Voltage Rating | 300V |
| Minimum Operating Temperature | -4°F |
| Nec Article And Type | 800 CM |
| Nominal O.d. | 0.213" |
| Nominal Outside Dia. | 0.213" |
| Number Of Conductors | 3 |
|---|---|
| Number Of Pairs | 0 |
| Number Of Strands | 16 |
| Outside Dia. | 1/5" |
| Outside Diameter | 0.2" |
| Package Type | Reel In A Box |
| Package Type (data Cable) | Reel In A Box |
| Pairing | Unpaired |
| Product Type | Communication Cable |
| Shielded | Shielded |
| Shielded / Unshielded | Shielded |
| Shielding Material | Aluminum |
| Solid/stranded | Stranded |
| Stranded / Solid | Stranded |
| Suggested Voltage Rating (data Cable) | 300V |
| Temp. Range | -4°F to +167°F |
| Standards | NEC ARTICLE 800 CM, ROHS COMPLIANT, UL STYLE 2093 |
| Height (cm) | 27.94 |
|---|---|
| Length (cm) | 27.94 |
| Width (cm) | 27.94 |
| HS Code | 8544493080 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 14.49 |
| Style | Model | Number Of Conductors | Temp. Range | Number Of Strands | Conductor Size | Insulation Material | Shielding Material | Nominal Outside Dia. | Nec Article | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | C2536A.41.10 | 2 | -4°F to +167°F | 19 | 16 AWG | PE | Aluminum | 0.307" | - | $309.34 | |

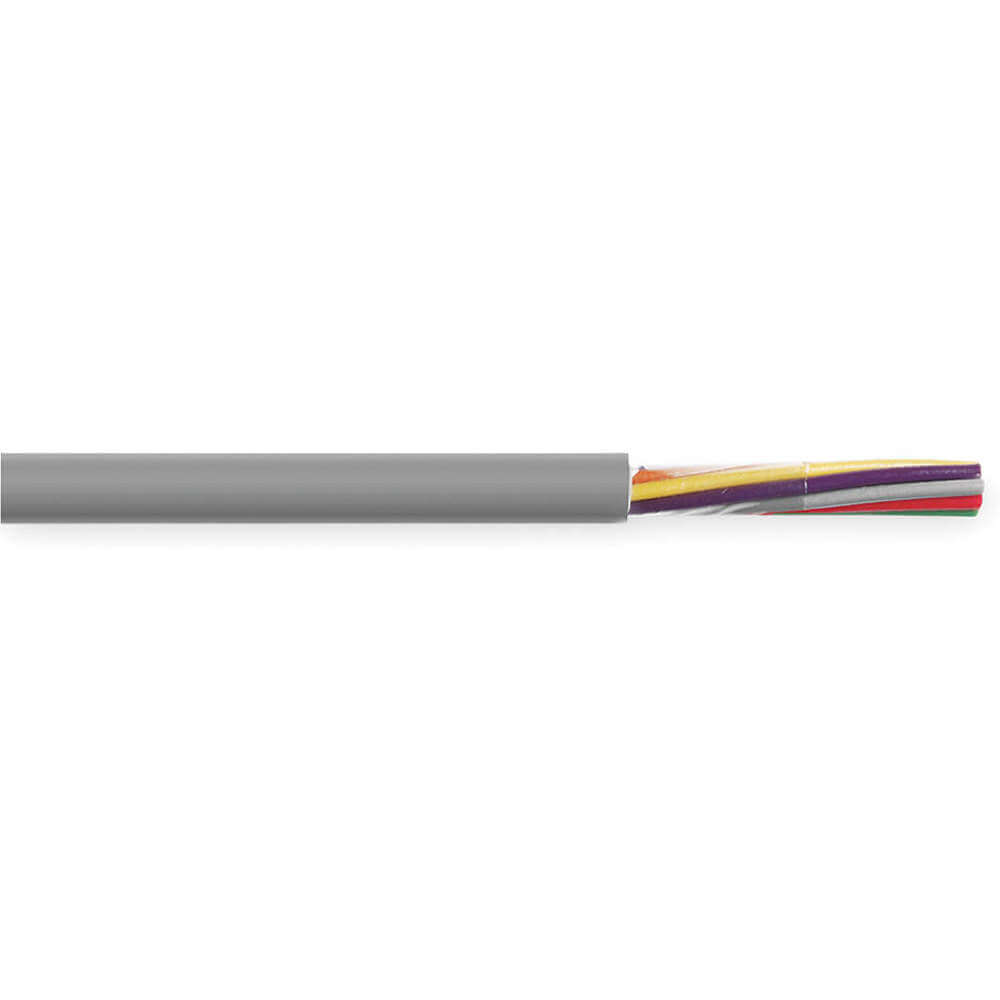

| B | C0744A.41.10 | 8 | -4°F to +176°F | 7 | 24 AWG | PVC | Aluminum, Mylar | - | - | $238.26 | |

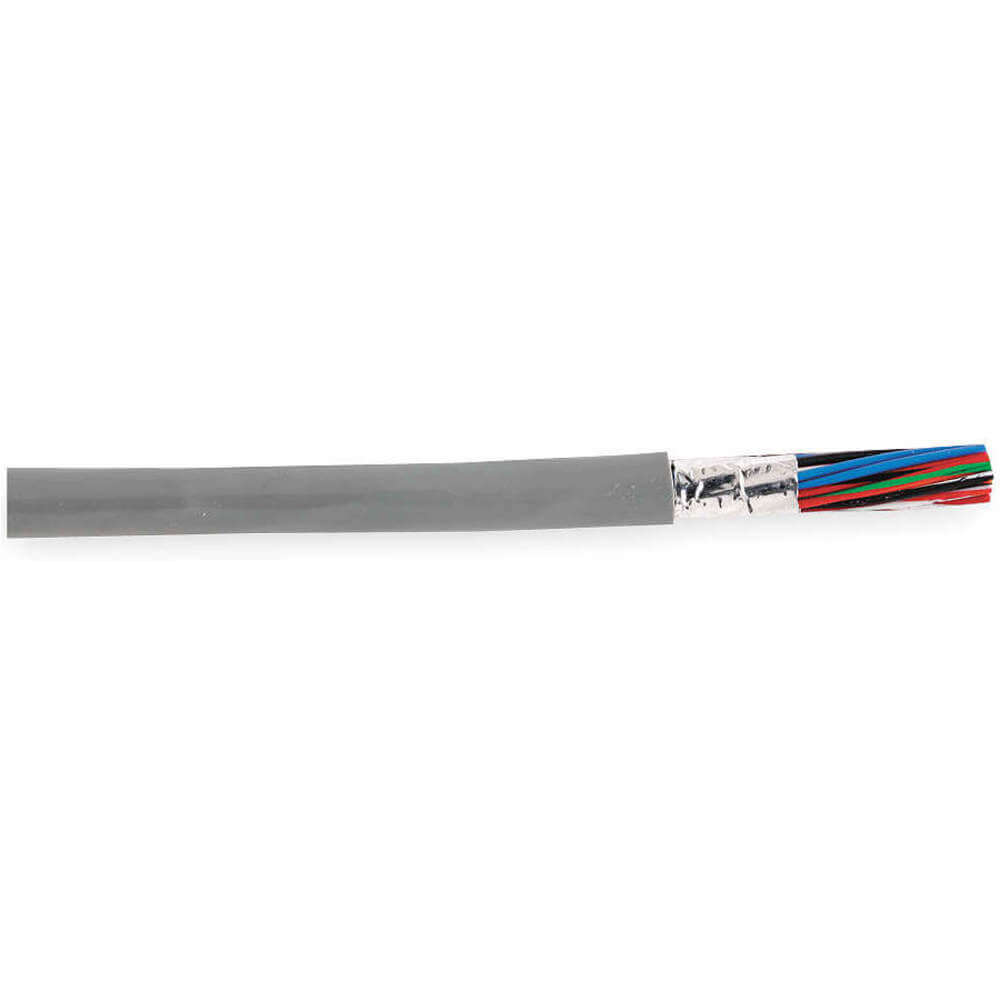

| C | C0748A.41.10 | 25 | -4°F to +176°F | 7 | 24 AWG | PVC | Aluminum, Mylar | 0.333" | - | $558.86 | |
| A | C0754A.41.10 | 7 | -4°F to +176°F | 7 | 24 AWG | PVC | Aluminum, Mylar | 0.201" | - | $210.93 | |
| A | C0755A.41.10 | 9 | -4°F to +176°F | 7 | 24 AWG | PVC | Aluminum, Mylar | 0.228" | - | $227.47 | |
| A | C0764A.41.10 | 8 | -4°F to +176°F | 7 | 22 AWG | PVC | Aluminum, Mylar | 0.235" | NEC Article 800 Type cmr 20 Or 22 AWG (UL: 75° C) | $281.96 | |
| A | C0781A.41.10 | 3 | -4°F to +176°F | 7 | 20 AWG | PVC | Aluminum, Mylar | 0.217" | NEC Article 800 Type cm 20 Or 22 AWG (UL: 75° C) | $239.63 |
